NSN 5930-01-196-9263 M9395/27-AFD, M939527AFD, MIL-S-9395/27
Product Details | PRESSURE SWITCH
5930-01-196-9263 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: M9395/27-AFD, M939527AFD, MIL-S-9395/27, MILS939527, 1213E1665 FIND 117, 1213E1665FIND117, 5930-01-196-9263, 01-196-9263, 5930011969263, 011969263
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 DEC 1984 | 01-196-9263 | 00206 ( SWITCH, PRESSURE ) |

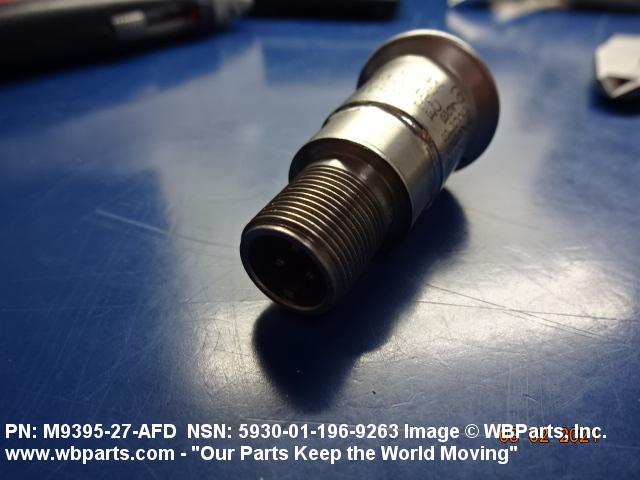

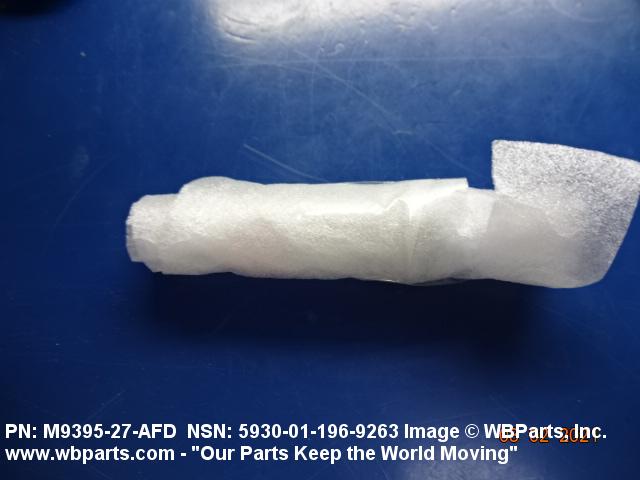

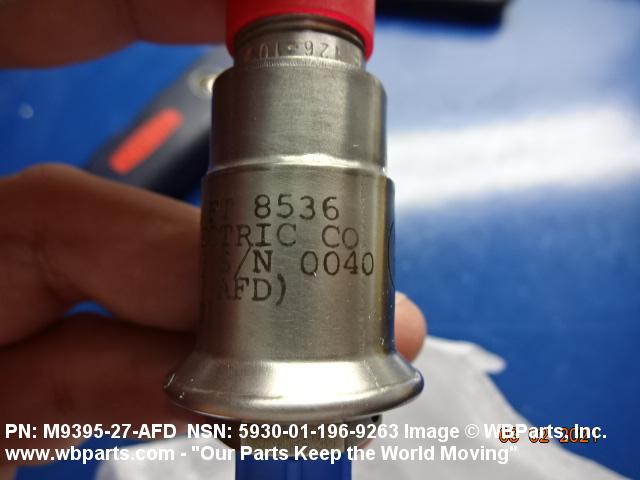

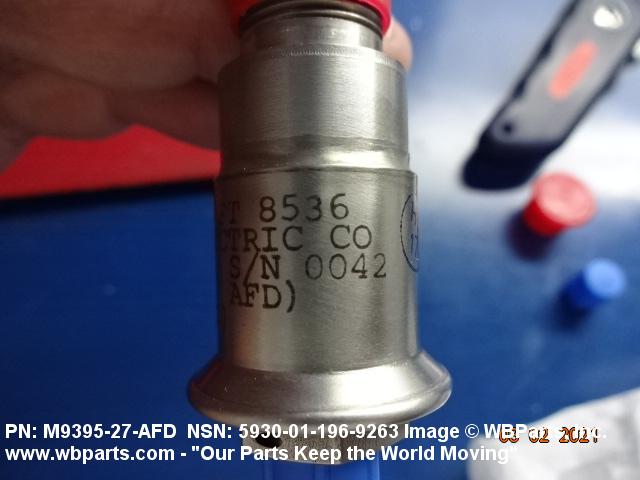

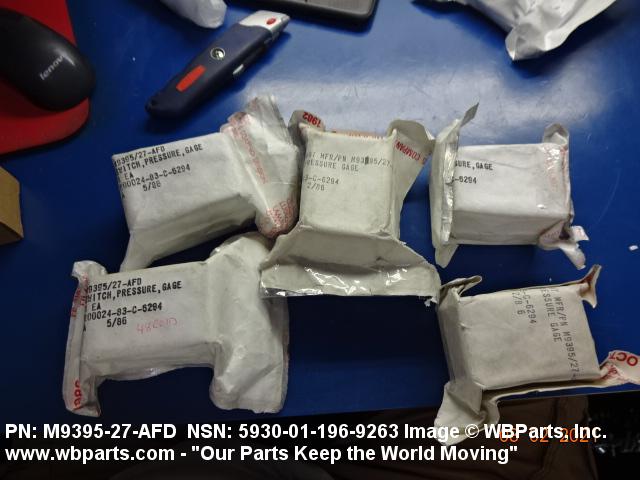

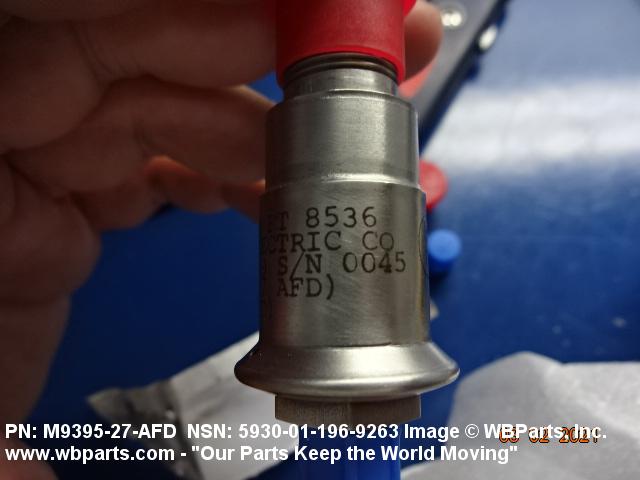

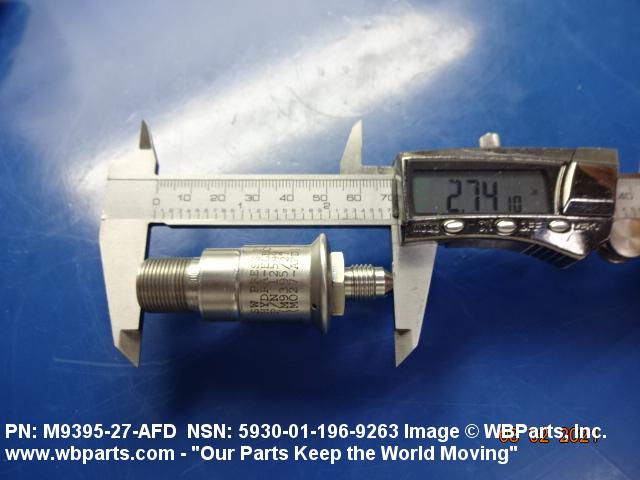

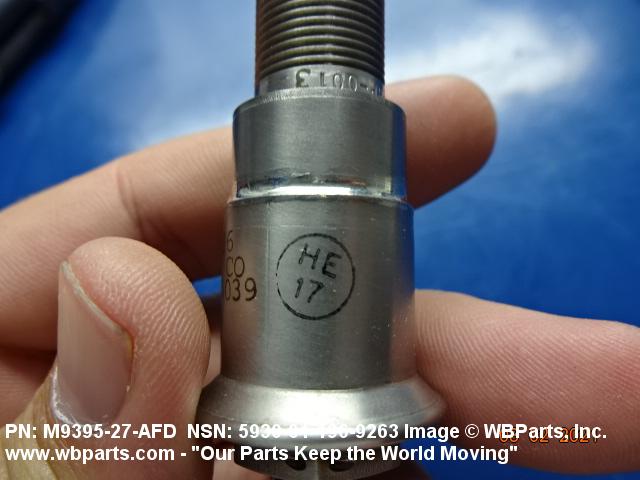

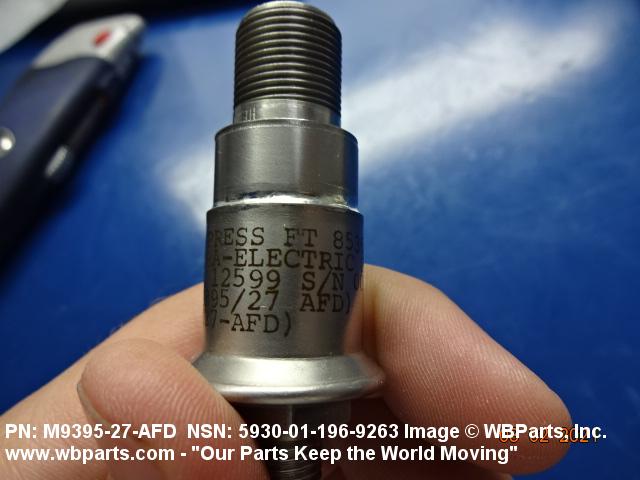

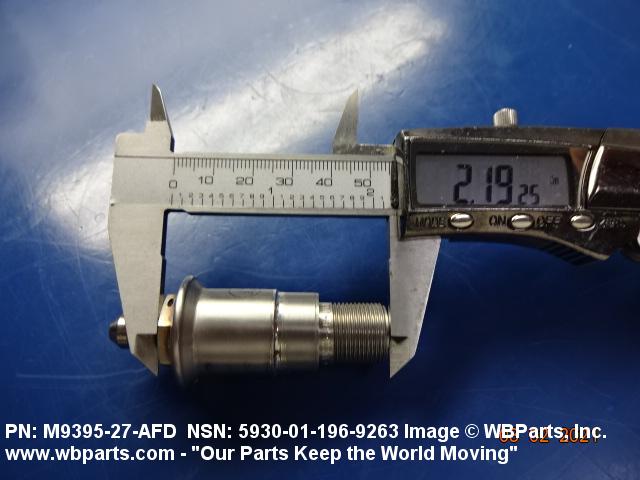

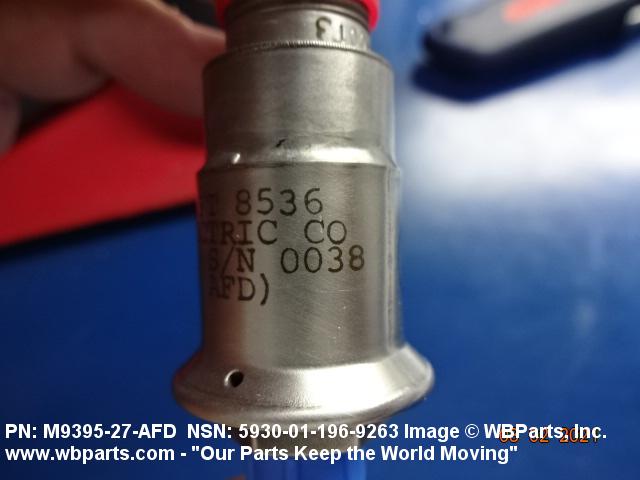

Drawings & Photos | NSN 5930-01-196-9263
Demand History | NSN 5930-01-196-9263
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-196-9263 | 2022-02-32 | 4 | DIBBS |
| 5930-01-196-9263 | 2022-01-20 | 4 | DIBBS |
| 5930-01-196-9263 | 2021-08-243 | 4 | DIBBS |
| 5930-01-196-9263 | 2021-04-102 | 4 | DIBBS |
| 5930-01-196-9263 | 2021-04-91 | 4 | DIBBS |
| 5930-01-196-9263 | 2021-02-47 | 9 | us |
| 5930-01-196-9263 | 2021-02-41 | 10 | CA |
| 5930-01-196-9263 | 2021-01-29 | 9 | DIBBS |
| 5930-01-196-9263 | 2021-01-18 | 9 | DIBBS |
| 5930-01-196-9263 | 2020-11-307 | 9 | DIBBS |
| 5930-01-196-9263 | 2020-10-296 | 9 | DIBBS |
| 5930-01-196-9263 | 2020-07-211 | 9 | DIBBS |
| 5930-01-196-9263 | 2020-04-111 | 4 | DIBBS |
| 5930-01-196-9263 | 2020-04-100 | 4 | DIBBS |
| 5930-01-196-9263 | 2020-03-63 | 1 | DIBBS |
| 5930-01-196-9263 | 2013-09-261 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-196-9263
Related Products | NSN 5930-01-196-9263
Technical Data | NSN 5930-01-196-9263
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 41 CYLINDRICAL |
| OVERALL LENGTH | 2.688 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.684 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| BODY LENGTH | 1.875 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |

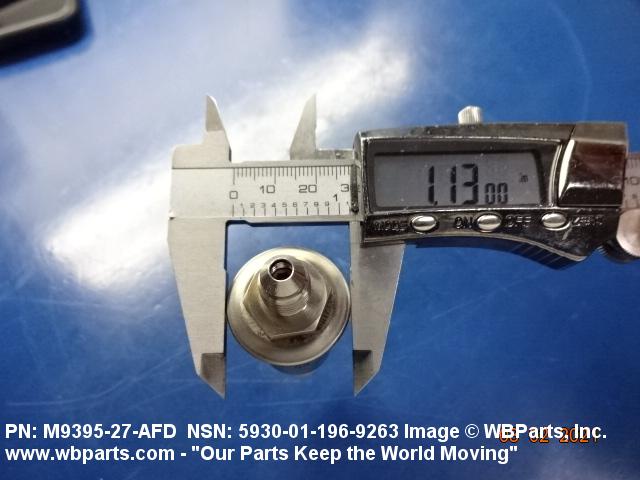

| OVERALL DIAMETER | 1.150 INCHES MAXIMUM |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 15.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 3.0 AMPERES RESISTIVE LOAD AND 1.0 AMPERES INDUCTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 275.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 120.00 POUNDS PER SQUARE INCH |

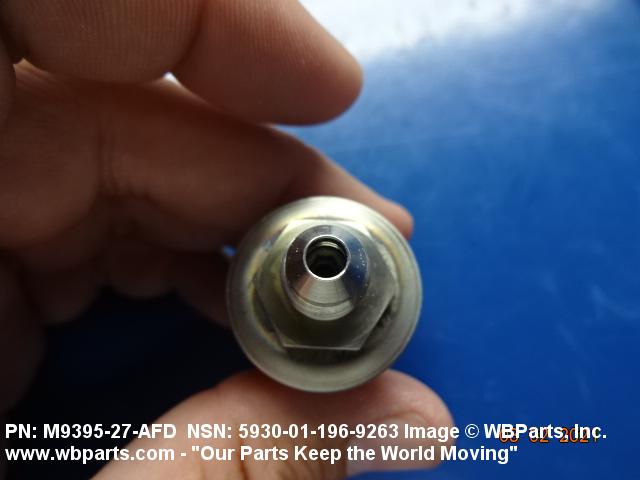

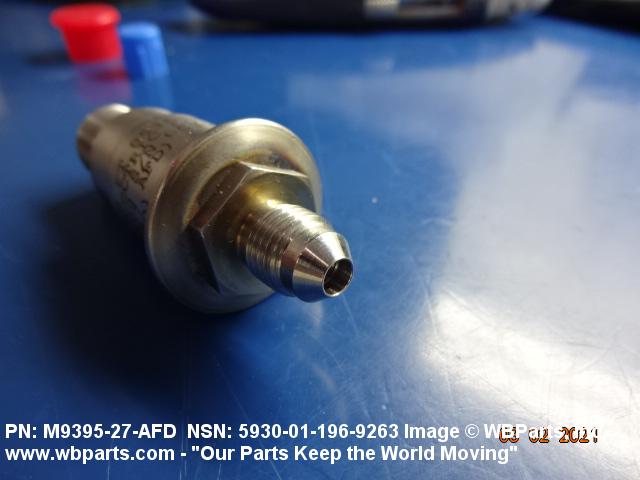

| PRESSURE CONNECTOR TYPE | FLARED, THREADED EXTERNAL SINGLE CONNECTION |
| OUTSIDE DIAMETER | 0.4375 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | INLET CONNECTION |
| THREAD SERIES DESIGNATOR | UNJF SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.4375 INCHES SINGLE PRESSURE CONNECTION |
| THREAD CLASS | 3A SINGLE PRESSURE CONNECTION |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-S-9395 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-9395/27 GOVERNMENT SPECIFICATION |
| III SENSING ELEMENT BURST PRESSURE | 800.00 POUNDS PER SQUARE INCH |
| III UNPACKAGED UNIT WEIGHT | 0.200 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-9395/27 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M9395/27-AFD |
Restrictions/Controls & Freight Information | NSN 5930-01-196-9263
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-196-9263
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
