NSN 5930-01-189-7607 M22885/89-BZ, M2288589BZ, MIL-PRF-22885/89
Product Details | PUSH SWITCH
5930-01-189-7607 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: M22885/89-BZ, M2288589BZ, MIL-PRF-22885/89 , MILPRF2288589, MIL-S-22885/89, MILS2288589, 3481682011, 348-1682-011, 5930-01-189-7607, 01-189-7607, 5930011897607, 011897607
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 SEP 1984 | 01-189-7607 | 00406 ( SWITCH, PUSH ) |

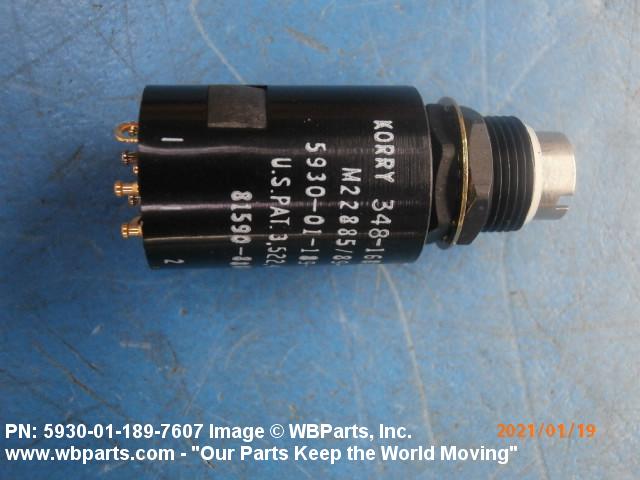

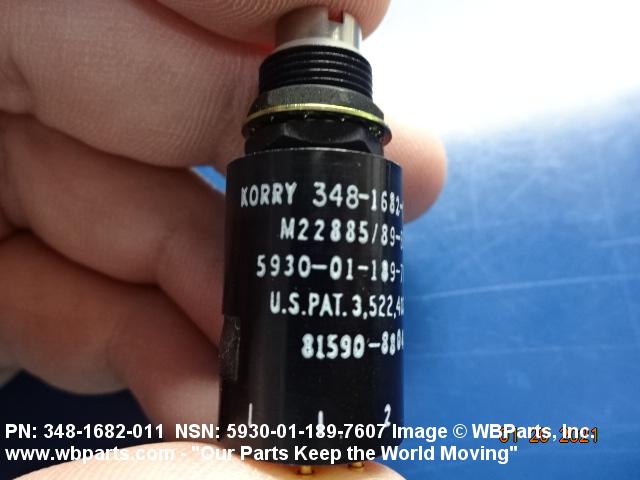

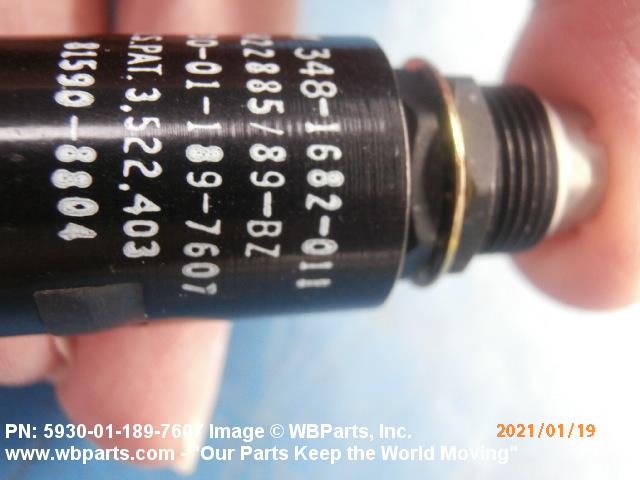

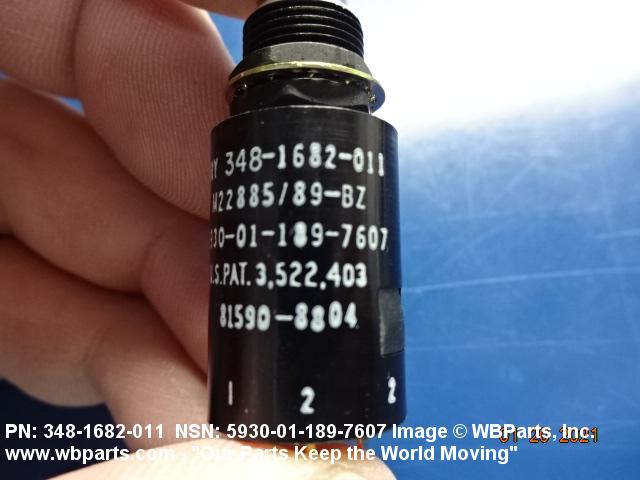

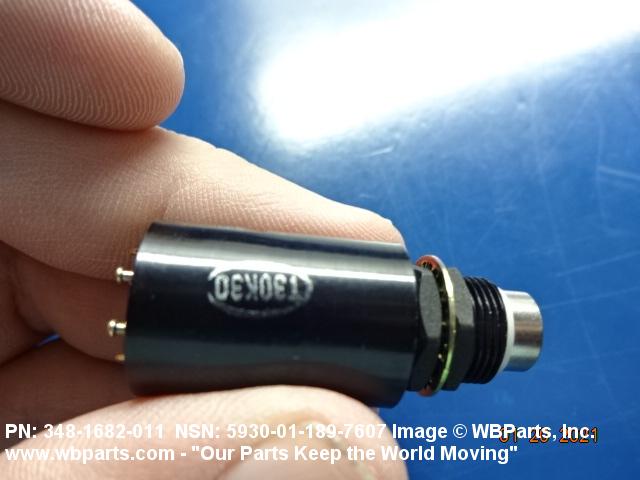

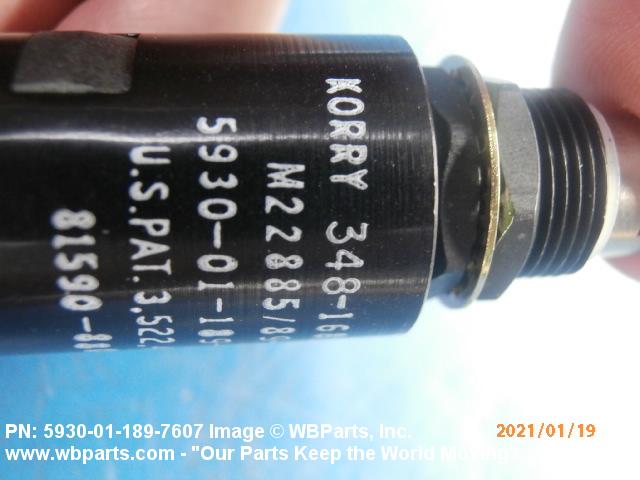

Drawings & Photos | NSN 5930-01-189-7607
Demand History | NSN 5930-01-189-7607
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-189-7607 | 2023-09-254 | 5 | DIBBS |
| 5930-01-189-7607 | 2023-09-253 | 1 | DIBBS |
| 5930-01-189-7607 | 2023-05-127 | 4 | DIBBS |
| 5930-01-189-7607 | 2021-08-218 | 5 | US |
| 5930-01-189-7607 | 2021-01-12 | 5 | United States |
| 5930-01-189-7607 | 2021-01-11 | 10 | US |
| 5930-01-189-7607 | 2021-01-06 | 10 | United States |
| 5930-01-189-7607 | 2020-10-282 | 15 | DIBBS |
| 5930-01-189-7607 | 2020-07-203 | 7 | DIBBS |
| 5930-01-189-7607 | 2020-04-100 | 17 | DIBBS |
| 5930-01-189-7607 | 2020-02-58 | 8 | DIBBS |
| 5930-01-189-7607 | 2018-11-313 | 22 | DIBBS |
| 5930-01-189-7607 | 2018-10-298 | 22 | DIBBS |
| 5930-01-189-7607 | 2015-05-138 | 29 | DIBBS |
| 5930-01-189-7607 | 2013-04-112 | 19 | DIBBS |
| 5930-01-189-7607 | 2012-09-249 | 6 | United States |
| 5930-01-189-7607 | 2012-08-244 | 11 | DIBBS |
| 5930-01-189-7607 | 2012-04-94 | 11 | DIBBS |
| 5930-01-189-7607 | 2011-11-307 | 10 | DIBBS |
| 5930-01-189-7607 | 2011-09-262 | 9 | DIBBS |
| 5930-01-189-7607 | 2005-12-341 | 56 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-189-7607
Related Products | NSN 5930-01-189-7607
Technical Data | NSN 5930-01-189-7607
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 4.000 AMPERES INDUCTIVE DC AND 2.500 AMPERES LAMP DC AND 7.000 AMPERES RESISTIVE AC AND 7.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC |
| BODY STYLE | 5K BUSHING MOUNTED |

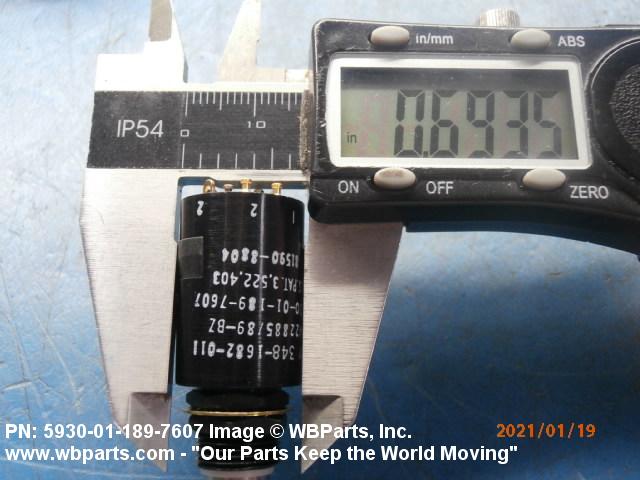

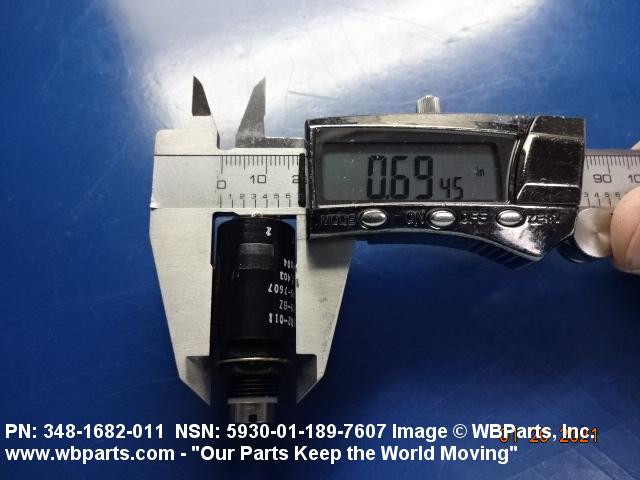

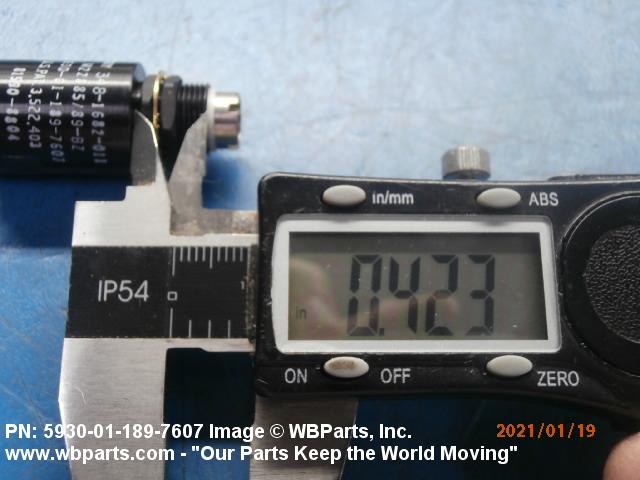

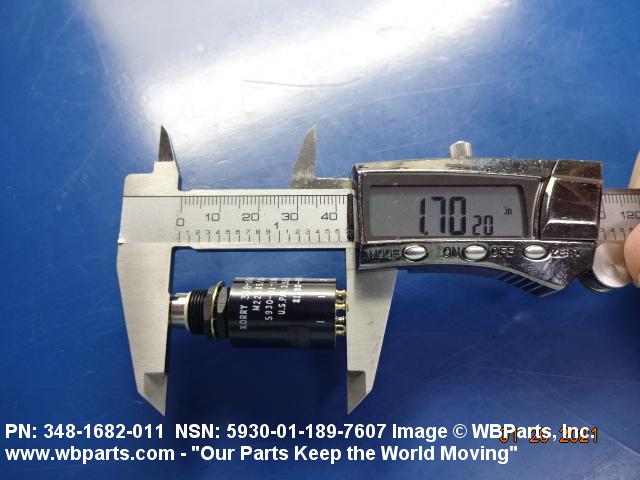

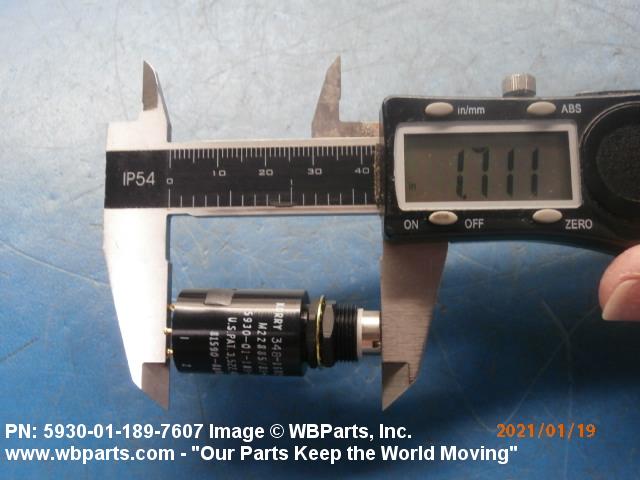

| BODY DIAMETER | 0.700 INCHES NOMINAL |
| BUSHING LENGTH | 0.425 INCHES NOMINAL |
| BODY LENGTH | 1.130 INCHES NOMINAL |
| OVERALL LENGTH | 1.720 INCHES NOMINAL |
| OVERALL WIDTH | 0.700 INCHES NOMINAL |
| OVERALL HEIGHT | 0.700 INCHES NOMINAL |

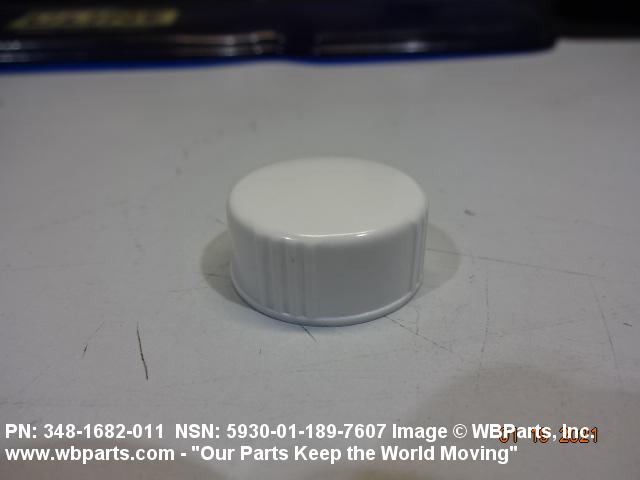

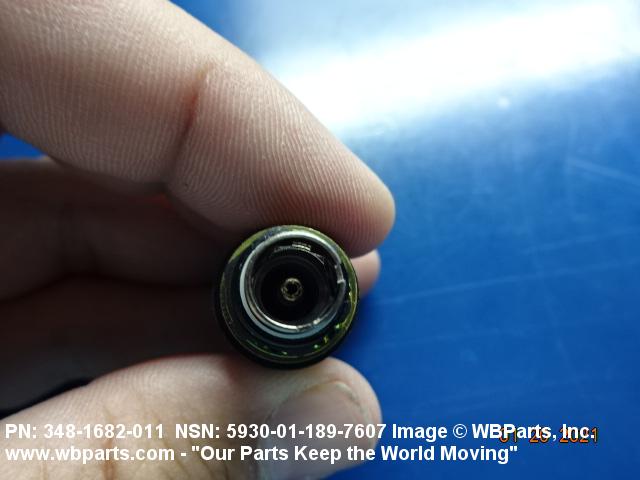

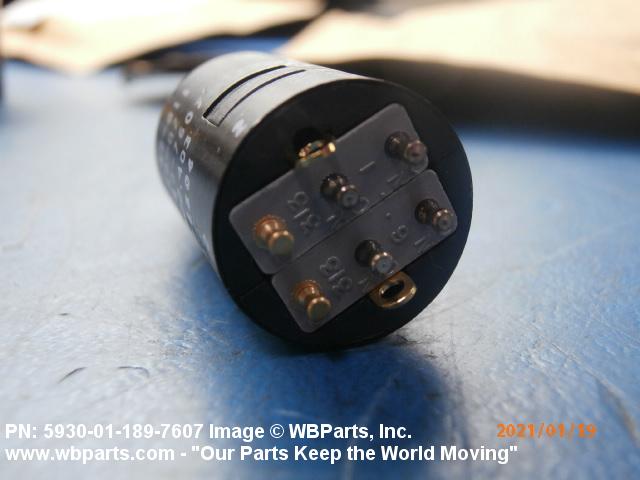

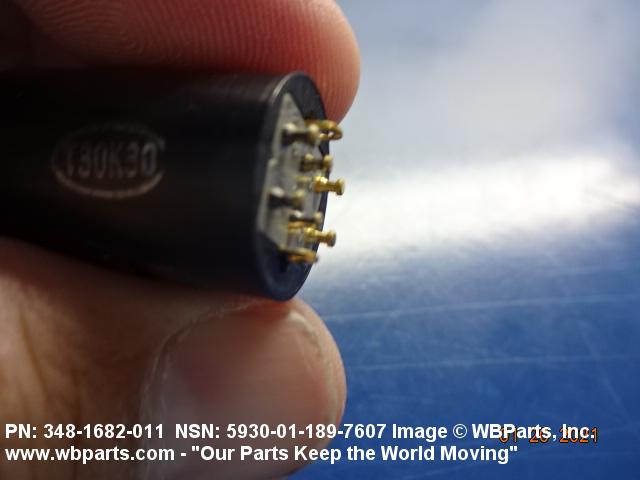

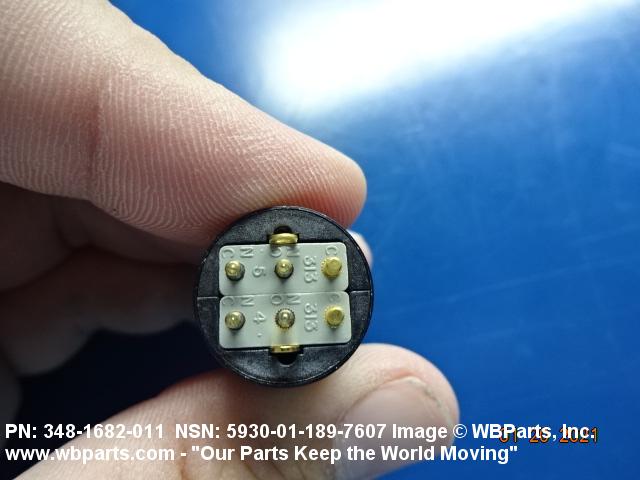

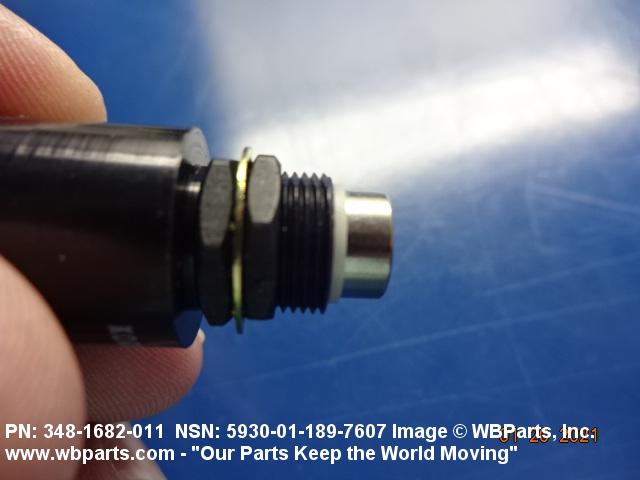

| ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG AND 6 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| TEST DATA DOCUMENT | 81349-MIL-S-22885 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-22885/89 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-22885/89 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22885/89-BZ |
