NSN 5930-01-188-6163 2222362NH1, 22232NH1, 222-32NH1

Product Details | THERMOSTATIC SWITCH

5930-01-188-6163 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).

Part Alternates: 2222362NH1, 22232NH1, 222-32NH1, 22232NH12222362, 222-32NH1-2222362, 2915321, 5930-01-188-6163, 01-188-6163, 5930011886163, 011886163

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	06 SEP 1984	01-188-6163	00451 ( SWITCH, THERMOSTATIC )

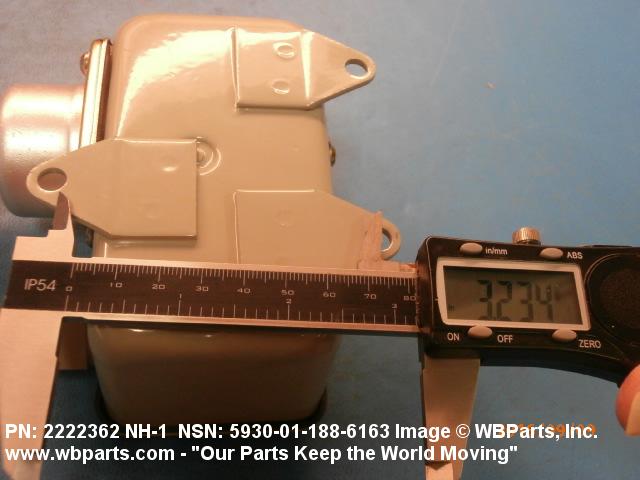

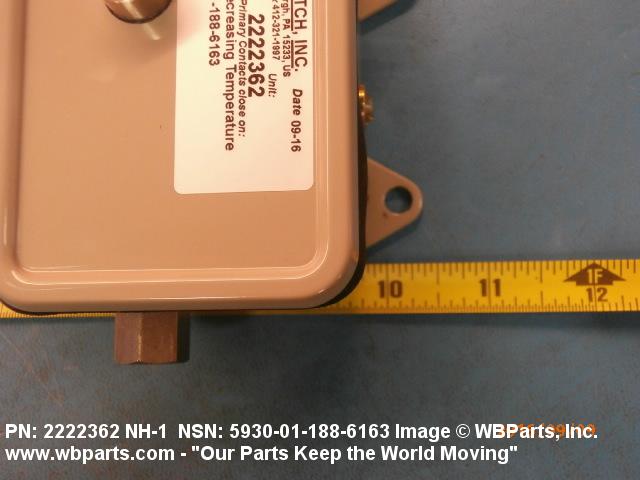

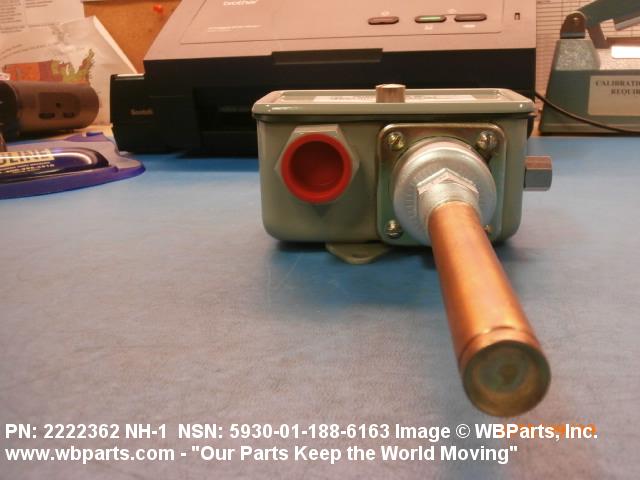

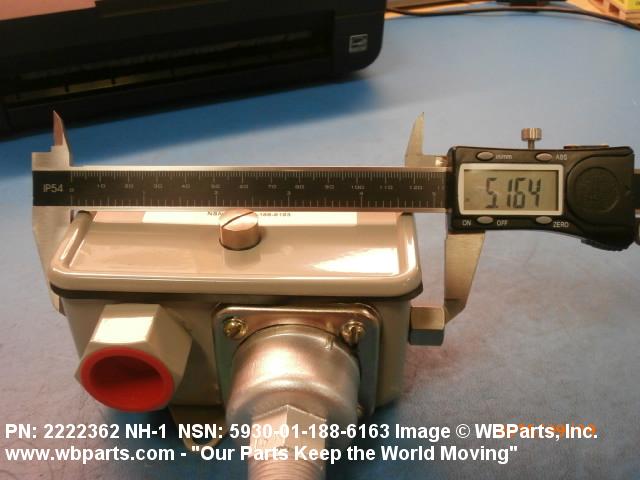

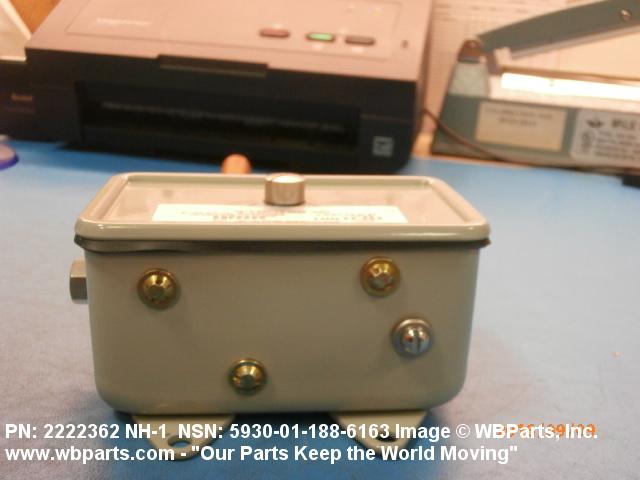

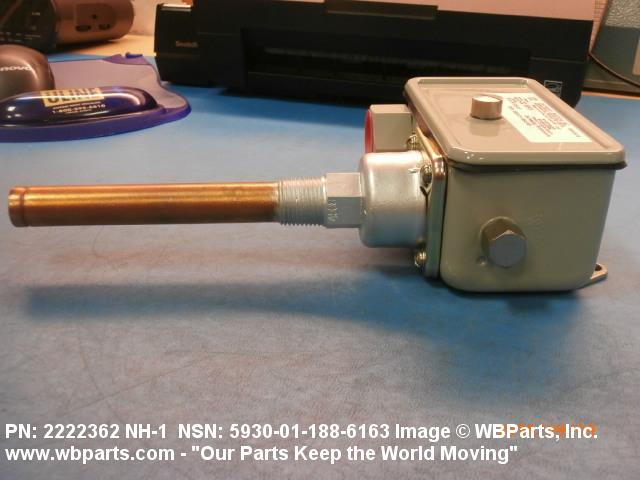

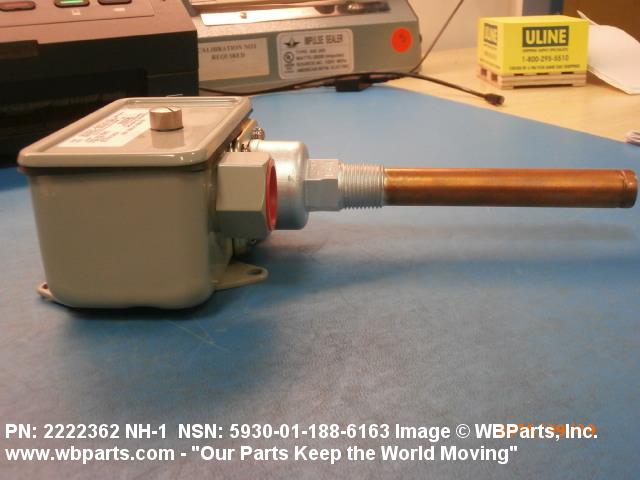

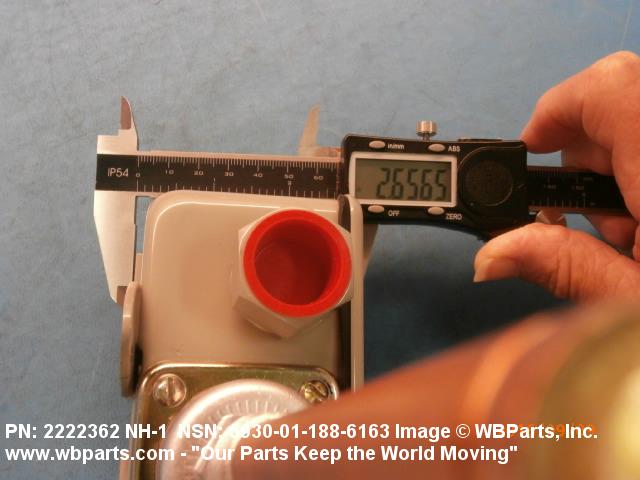

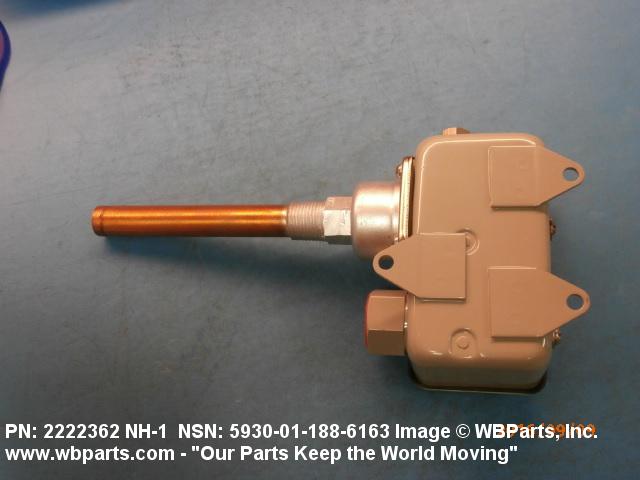

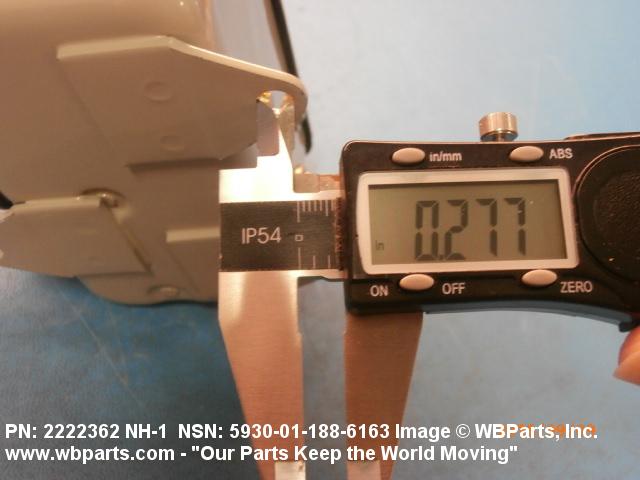

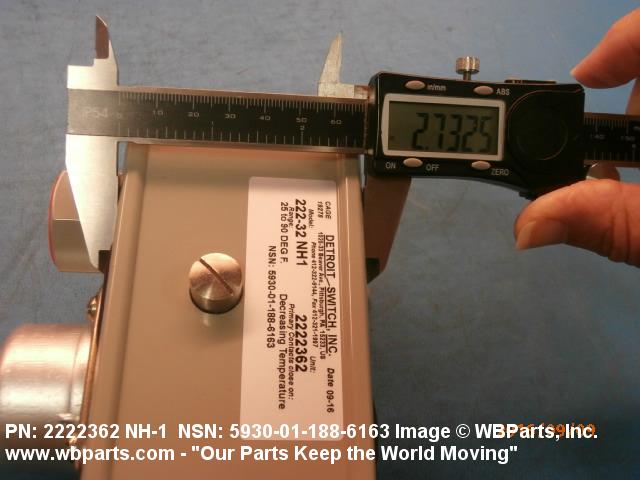

Drawings & Photos | NSN 5930-01-188-6163

Part Number	Request Date	QTY	Origin
222-32NH1-2222362	2024-04-95	1	DIBBS
222-32NH1-2222362	2023-03-67	1	DIBBS
222-32NH1-2222362	2022-11-331	1	DIBBS
222-32NH1-2222362	2021-03-66	4	DIBBS
222-32NH1-2222362	2021-01-07	1	DIBBS
222-32NH1-2222362	2020-12-362	1	DIBBS
222-32NH1-2222362	2020-02-50	1	DIBBS
5930-01-188-6163	2017-10-299	1	DIBBS
2915321	2016-07-206	2	United States
5930-01-188-6163	2016-04-98	1	DIBBS
5930-01-188-6163	2016-03-87	1	DIBBS
5930-01-188-6163	2016-03-76	8	United States

Cross Reference | NSN 5930-01-188-6163

Part Number	Cage Code	Manufacturer
222-32NH1	19278	DETROIT SWITCH, INC.
222-32NH1-2222362	19278	DETROIT SWITCH, INC.
2222362NH1	19278	DETROIT SWITCH, INC.
2915321	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-188-6163

Compare

Related Products | NSN 5930-01-188-6163

5930-01-188-6164, 5930-01-188-6165, 5930-01-188-6166, 5930-01-188-6175, 5930-01-188-6176

Technical Data | NSN 5930-01-188-6163

Characteristic	Specifications
STYLE DESIGNATOR	73 RECTANGULAR
OVERALL LENGTH	5.688 INCHES NOMINAL
OVERALL HEIGHT	10.187 INCHES NOMINAL
OVERALL WIDTH	2.812 INCHES NOMINAL
BODY HEIGHT	2.750 INCHES NOMINAL
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION
CONTACT ACTION STIMULUS	INCREASE
CONTACT ADJUSTABILITY	ACTUATION POINT ADJUSTABLE
CONTACT ADJUSTMENT RANGE	25.00 TO 90.00 ACTUATION POINT DEGREES FAHRENHEIT
CONTACT ADJUSTMENT TYPE	EXTERNAL ACTUATION POINT SCREW
CONTACT VOLTAGE RATING IN VOLTS	115.0 AC AT SEA LEVEL FIRST VOLTAGE 550.0 AC AT SEA LEVEL SECOND VOLTAGE 115.0 DC AT SEA LEVEL THIRD VOLTAGE 550.0 DC AT SEA LEVEL FOURTH VOLTAGE
CONTACT LOAD CURRENT RATING	16.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 3.2 AMPERES INDUCTIVE LOAD SECOND VOLTAGE 9.6 AMPERES INDUCTIVE LOAD THIRD VOLTAGE 2.0 AMPERES INDUCTIVE LOAD FOURTH VOLTAGE
OPERATING TEMP RATING	120.0 DEG FAHRENHEIT MAXIMUM
MEDIA FOR WHICH DESIGNED	GAS OR LIQUID
TEMP SENSING ELEMENT TYPE	BULB
TERMINAL TYPE	SCREW
MOUNTING METHOD	BRACKET AND UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER	0.281 INCHES NOMINAL
MOUNTING FACILITY PATTERN	ISOSCELES TRIANGLE

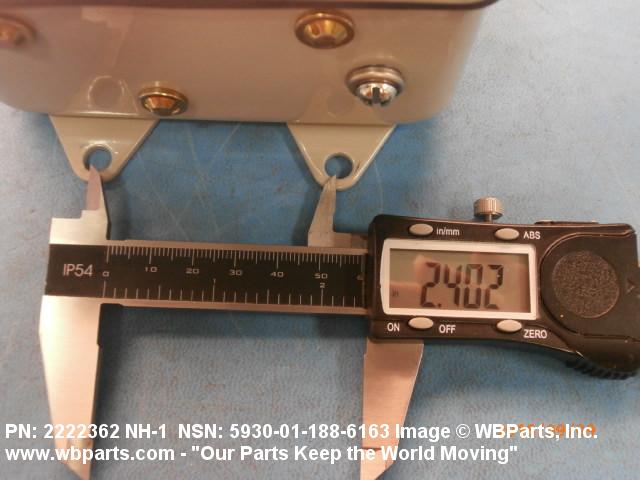

LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS	2.406 INCHES NOMINAL
SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS	0.656 INCHES NOMINAL
LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS	3.281 INCHES NOMINAL
FEATURES PROVIDED	ELECTRICAL ACCESS PORT
III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	WATERTIGHT AND DUSTPROOF
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	CONTACTS SILVER

Restrictions/Controls & Freight Information | NSN 5930-01-188-6163

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-188-6163

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
