NSN 5930-01-161-8148 9025BCW33W1, 9025GXW2, 01-161-8148
Product Details | THERMOSTATIC SWITCH
5930-01-161-8148 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 9025BCW33W1, 9025GXW2, 5930-01-161-8148, 01-161-8148, 5930011618148, 011618148
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 SEP 1983 | 01-161-8148 | 00451 ( SWITCH, THERMOSTATIC ) |

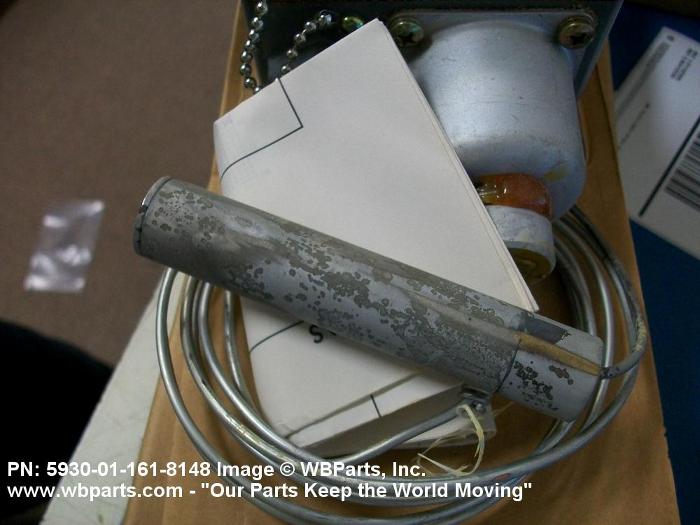

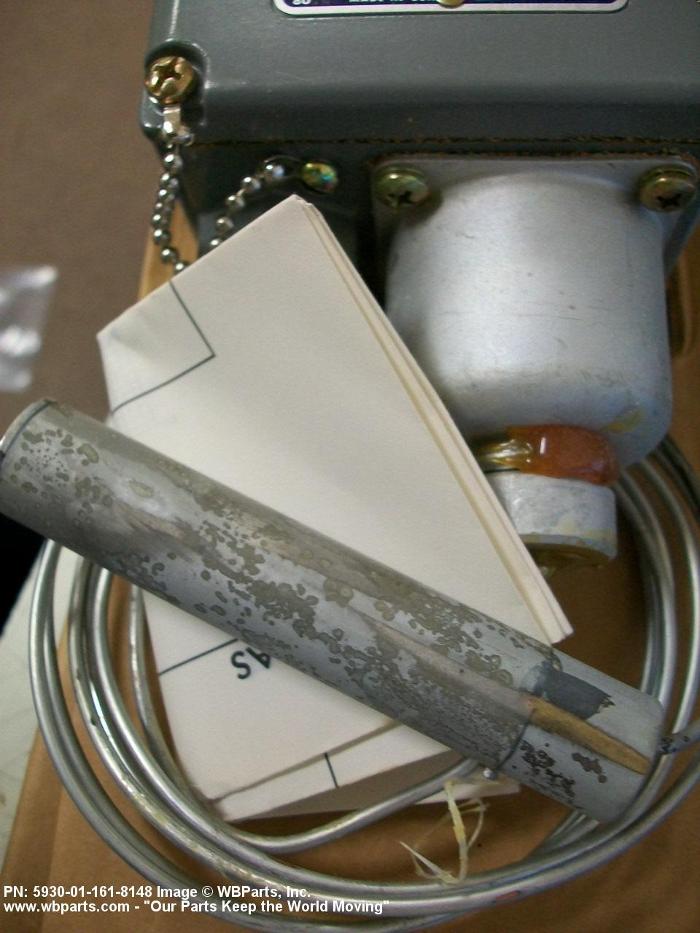

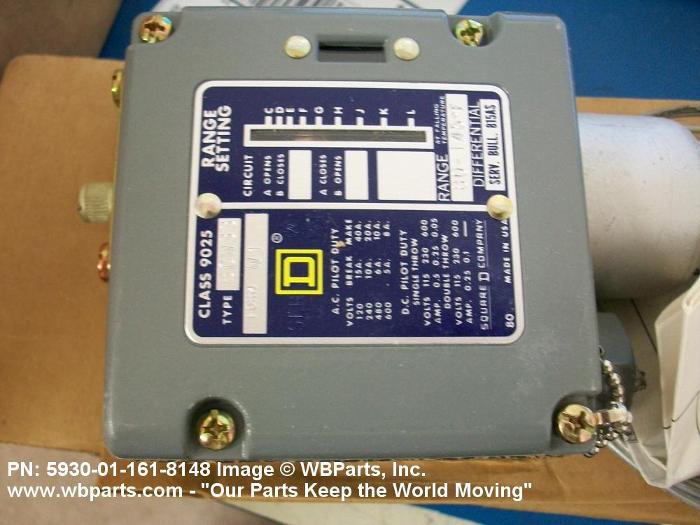

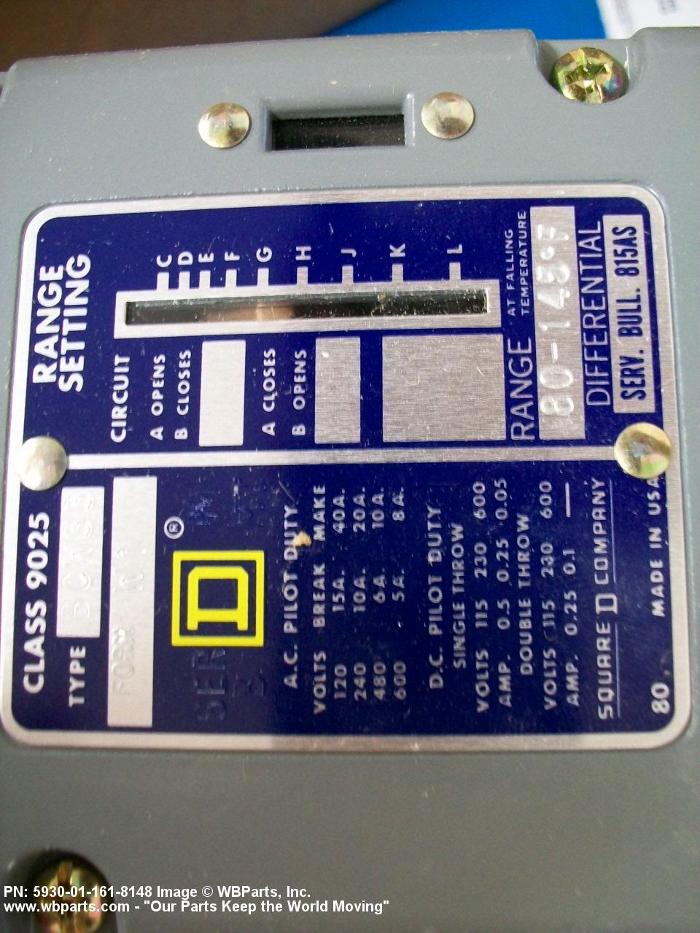

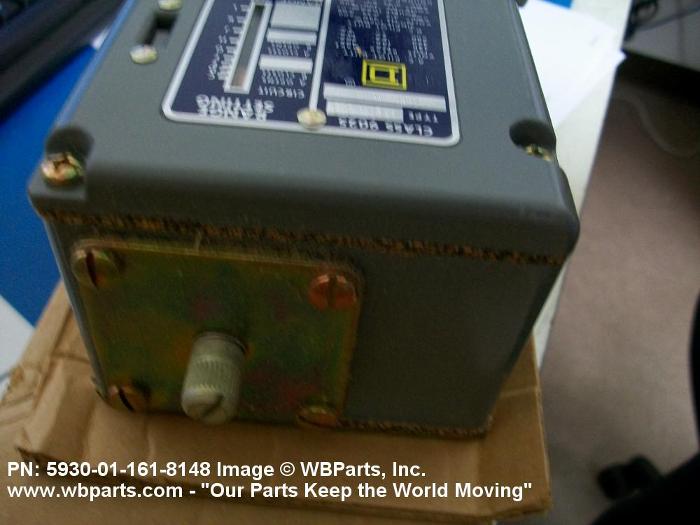

Drawings & Photos | NSN 5930-01-161-8148
Demand History | NSN 5930-01-161-8148
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-161-8148 | 2011-08-222 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-161-8148
Related Products | NSN 5930-01-161-8148
Technical Data | NSN 5930-01-161-8148
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.594 INCHES NOMINAL |
| OVERALL HEIGHT | 5.562 INCHES NOMINAL |
| OVERALL WIDTH | 2.594 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 80.00 TO 145.00 ACTUATION POINT DEGREES FAHRENHEIT AND 40.00 TO 137.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL ACTUATION POINT SCREW WITH SCALE AND EXTERNAL DEACTUATION POINT SCREW WITH SCALE |
| CONTACT VOLTAGE RATING IN VOLTS | 575.0 AC AT SEA LEVEL FIRST VOLTAGE 115.0 AC AT SEA LEVEL SECOND VOLTAGE 600.0 DC AT SEA LEVEL THIRD VOLTAGE 115.0 DC AT SEA LEVEL FOURTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD AND 6.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 10.0 AMPERES RESISTIVE LOAD AND 30.0 AMPERES INDUCTIVE LOAD SECOND VOLTAGE 10.0 AMPERES RESISTIVE LOAD AND 10.0 AMPERES INDUCTIVE LOAD THIRD VOLTAGE 10.0 AMPERES RESISTIVE LOAD AND 10.0 AMPERES INDUCTIVE LOAD FOURTH VOLTAGE |
| OPERATING TEMP RATING | 190.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | CAPILLARY TUBE-BULB |
| CAPILLARY TUBE LENGTH | 72.0 INCHES NOMINAL |
| BULB LENGTH | 3.625 INCHES NOMINAL |
| BULB DIAMETER | 0.688 INCHES NOMINAL |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BASE AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION DIAGONAL |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.719 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.719 INCHES NOMINAL |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-161-8148
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-161-8148
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
