NSN 5930-01-141-2697 M83504/04-006, M8350404006, MIL-S-83504/4
Product Details | SLIDE SWITCH
5930-01-141-2697 A switch designed to be actuated by the sliding of a button, bar, or knob.
Part Alternates: M83504/04-006, M8350404006, MIL-S-83504/4, MILS835044, 5930-01-141-2697, 01-141-2697, 5930011412697, 011412697
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 OCT 1982 | 01-141-2697 | 00400 ( SWITCH, SLIDE ) |

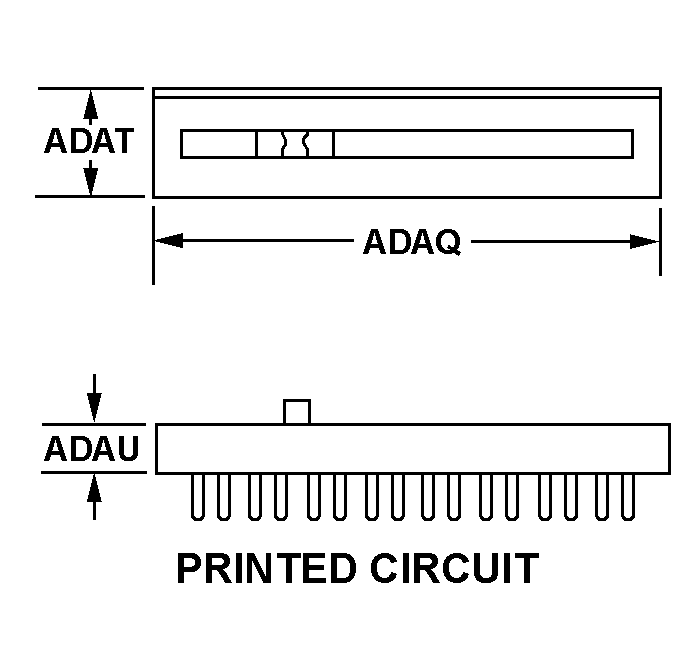

Drawings & Photos | NSN 5930-01-141-2697
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-141-2697
Related Products | NSN 5930-01-141-2697
Technical Data | NSN 5930-01-141-2697
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED 1ST SWITCH UNIT 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED 2ND SWITCH UNIT 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED 3RD SWITCH UNIT 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED 4TH SWITCH UNIT 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED 5TH SWITCH UNIT 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED 6TH SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 6.0 DC AND 24.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 100.0 MILLIAMPERES RESISTIVE DC AND 25.0 MILLIAMPERES RESISTIVE DC |
| BODY STYLE | 11N PRINTED CIRCUIT |
| BODY LENGTH | 0.660 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |
| BODY WIDTH | 0.370 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| BODY HEIGHT | 0.230 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
| SWITCH ACTUATOR QUANTITY | 6 |
| ACTUATOR STYLE | 20 RECTANGULAR |
| ACTUATOR LENGTH | 0.055 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 0.040 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.045 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 12 PRINTED CIRCUIT |
| MOUNTING METHOD | PRINTED CIRCUIT |
| TEST DATA DOCUMENT | 81349-MIL-S-83504 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-83504/4 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC |
| III OVERALL LENGTH | 0.660 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |
| III OVERALL WIDTH | 0.370 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| III OVERALL HEIGHT | 0.465 INCHES NOMINAL |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL AND CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-83504/4 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83504/04-006 |
