NSN 5930-01-137-0011 TT21NG-PC-1 DPDT, TT21NGPC1DPDT, 204S0S01

Product Details | TOGGLE SWITCH

5930-01-137-0011 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: TT21NG-PC-1 DPDT, TT21NGPC1DPDT, 204S0S01, 2-04-S0S-01, 204S0SNI, 2-04-S0S-NI, 204S0SSC, 2-04-S0S-SC, 337773, 5930-01-137-0011, 01-137-0011, 5930011370011, 011370011

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 AUG 1982	01-137-0011	00184 ( SWITCH, TOGGLE )

Drawings & Photos | NSN 5930-01-137-0011

Cross Reference | NSN 5930-01-137-0011

Part Number	Cage Code	Manufacturer
2-04-S0S-01	63880	INSTRUMENT FLIGHT RESEARCH INC
2-04-S0S-NI	63880	INSTRUMENT FLIGHT RESEARCH INC
2-04-S0S-SC	63880	INSTRUMENT FLIGHT RESEARCH INC
337773	88236	COMMUNICATIONS & POWER INDUSTRIES LLC
337773	C5845	CPI INTERNATIONAL INCCOMMUNICATIONS & POWER INDUSTRIES
TT21NG-PC-1 DPDT	00779	TYCO ELECTRONICS CORPORATION
TT21NG-PC-1 DPDT	95146	ALCO ELECTRONIC PRODUCTS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-137-0011

Compare

Related Products | NSN 5930-01-137-0011

5930-01-137-0012, 5930-01-137-0013, 5930-01-137-0014, 5930-01-137-0065, 5930-01-137-0198

Technical Data | NSN 5930-01-137-0011

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	20.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	400.000 MILLIAMPERES RESISTIVE DC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.220 INCHES NOMINAL
BODY LENGTH	0.320 INCHES NOMINAL
BODY WIDTH	0.360 INCHES NOMINAL
BODY HEIGHT	0.340 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.470 INCHES NOMINAL

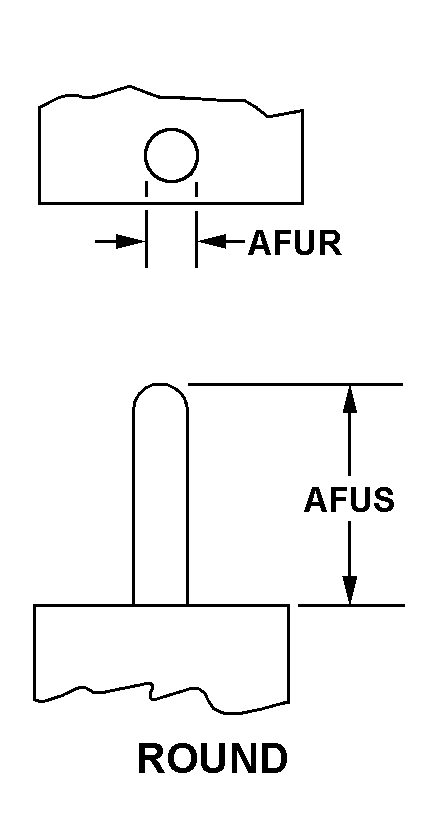

ACTUATOR STYLE	27 ROUND
ACTUATOR DIAMETER	0.100 INCHES NOMINAL
ACTUATOR HEIGHT	0.210 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	6 PRINTED CIRCUIT
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED BUSHING
SPECIAL FEATURES	UNTHREADED BUSHING PRINTED CIRCUIT BOARD TERMINAL MTD
III OVERALL LENGTH	0.320 INCHES NOMINAL
III OVERALL WIDTH	0.360 INCHES NOMINAL
III OVERALL HEIGHT	0.900 INCHES NOMINAL
III END ITEM IDENTIFICATION	ANFPS77VWEARA
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
