NSN 5930-01-129-5987 XM66149, 8445, 1173P0336
Product Details | PRESSURE SWITCH
5930-01-129-5987 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: XM66149, 8445, 1173P0336, 12321814, 5930-01-129-5987, 01-129-5987, 5930011295987, 011295987
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 APR 1982 | 01-129-5987 | 00206 ( SWITCH, PRESSURE ) |

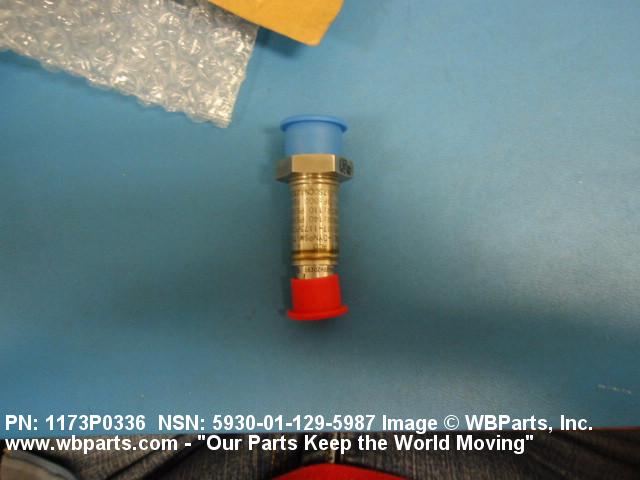

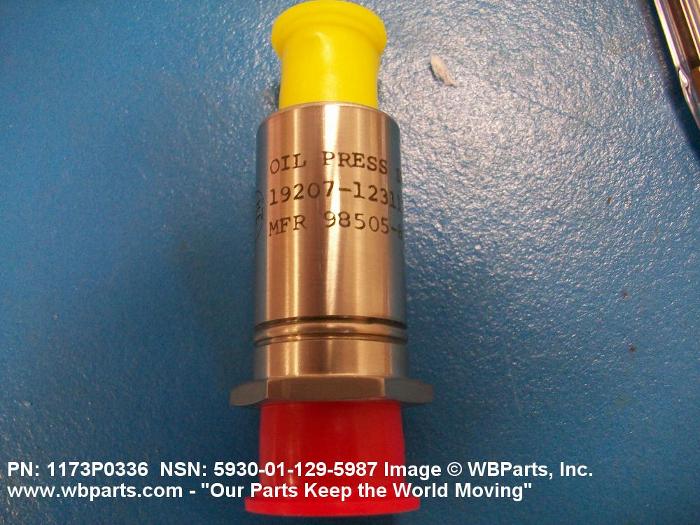

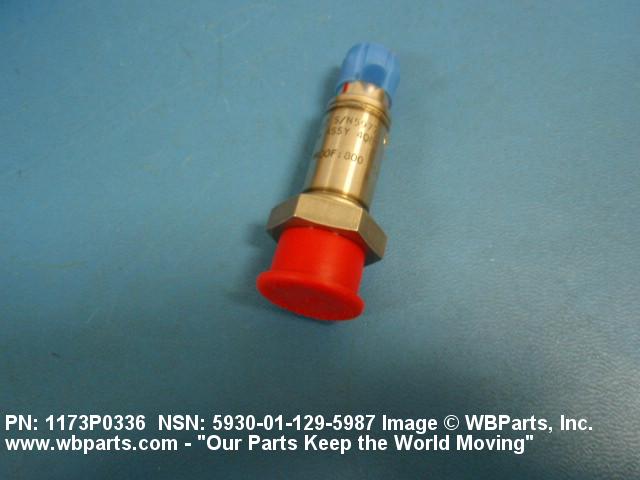

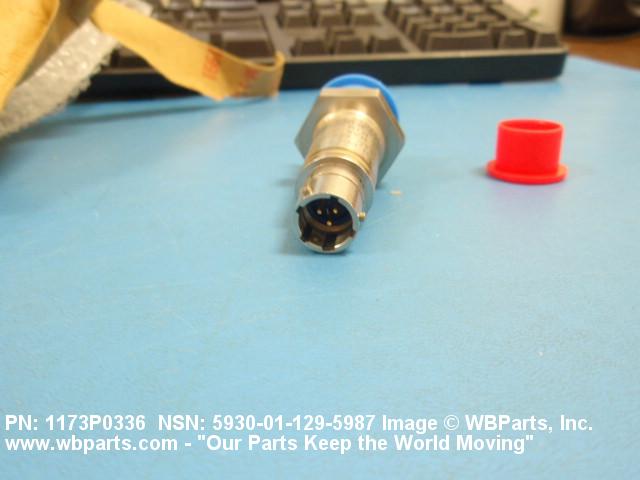

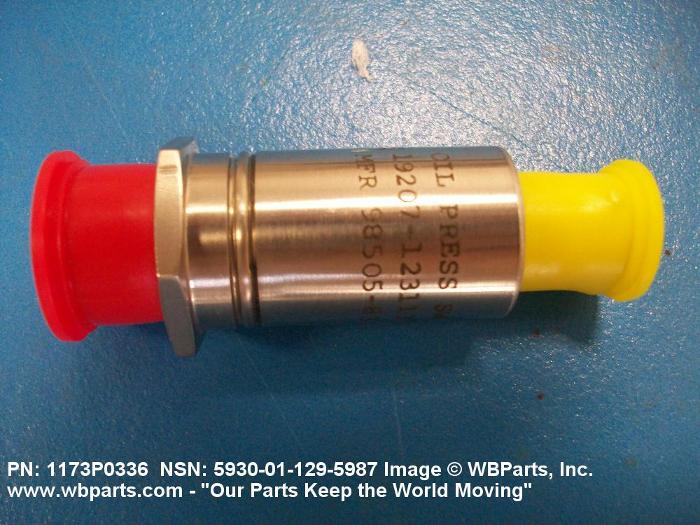

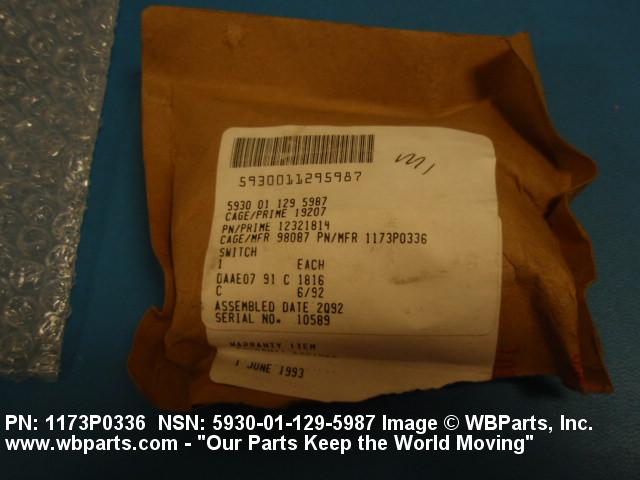

Drawings & Photos | NSN 5930-01-129-5987
Demand History | NSN 5930-01-129-5987
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-129-5987 | 2025-05-147 | 80 | US |
| 5930-01-129-5987 | 2025-05-133 | 90 | KR |
| 5930-01-129-5987 | 2025-03-80 | 80 | United States |
| 5930-01-129-5987 | 2025-01-23 | 2 | US |
| 1173P0336 | 2025-01-12 | 44 | DIBBS |
| 8445 | 2025-01-12 | 44 | DIBBS |
| 1173P0336 | 2024-09-270 | 98 | DIBBS |
| 8445 | 2024-09-270 | 98 | DIBBS |
| 1173P0336 | 2024-09-256 | 27 | DIBBS |
| 1173P0336 | 2024-09-256 | 59 | DIBBS |
| 8445 | 2024-09-256 | 27 | DIBBS |
| 8445 | 2024-09-256 | 59 | DIBBS |
| 1173P0336 | 2024-08-235 | 32 | DIBBS |
| 8445 | 2024-08-235 | 32 | DIBBS |
| 5930-01-129-5987 | 2024-08-219 | 2 | KR |
| 1173P0336 | 2024-05-123 | 38 | DIBBS |
| 8445 | 2024-05-123 | 38 | DIBBS |
| 1173P0336 | 2024-02-57 | 30 | DIBBS |
| 8445 | 2024-02-57 | 30 | DIBBS |
| 5930-01-129-5987 | 2022-08-234 | 12 | Korea |
| 5930-01-129-5987 | 2021-09-245 | 4 | US |
| 5930-01-129-5987 | 2021-08-243 | 10 | IN |
| 5930-01-129-5987 | 2021-06-153 | 4 | Korea |
| 5930-01-129-5987 | 2021-02-36 | 1 | DIBBS-RFPs |
| 5930-01-129-5987 | 2020-10-289 | 4 | Korea |
| 5930-01-129-5987 | 2020-10-282 | 4 | US |
| 5930-01-129-5987 | 2020-10-280 | 4 | US |
| 5930-01-129-5987 | 2020-10-280 | 4 | Korea |
| 5930-01-129-5987 | 2020-03-67 | 14 | Korea |
| 1173P0336 | 2019-10-297 | 30 | DIBBS |
| 1173P0336 | 2019-09-252 | 49 | DIBBS |
| 1173P0336 | 2019-08-241 | 49 | DIBBS |
| 5930-01-129-5987 | 2019-08-219 | 13 | United States |
| 5930-01-129-5987 | 2019-07-186 | 55 | US |
| 5930-01-129-5987 | 2019-03-79 | 42 | KR |
| 5930-01-129-5987 | 2018-12-341 | 39 | KR |
| 5930-01-129-5987 | 2018-03-63 | 67 | DIBBS |
| 5930-01-129-5987 | 2018-02-36 | 6 | DIBBS |
| 5930-01-129-5987 | 2018-01-11 | 21 | DIBBS |
| 5930-01-129-5987 | 2017-12-338 | 3 | DIBBS |
| 5930-01-129-5987 | 2017-11-316 | 8 | DIBBS |
| 5930-01-129-5987 | 2017-11-310 | 2 | DIBBS |
| 5930-01-129-5987 | 2017-10-291 | 6 | DIBBS |
| 5930-01-129-5987 | 2017-10-290 | 5 | DIBBS |
| 5930-01-129-5987 | 2017-10-276 | 53 | US |
| 5930-01-129-5987 | 2017-10-276 | 53 | DIBBS |
| 5930-01-129-5987 | 2017-08-233 | 50 | DIBBS |
| 5930-01-129-5987 | 2012-10-277 | 53 | DIBBS |
| 5930-01-129-5987 | 2012-08-244 | 46 | DIBBS |
| 5930-01-129-5987 | 2012-08-233 | 67 | DIBBS |
| 5930-01-129-5987 | 2012-08-220 | 3 | DIBBS |
| 5930-01-129-5987 | 2012-07-200 | 38 | DIBBS |
| 5930-01-129-5987 | 2012-06-181 | 65 | DIBBS |
| 5930-01-129-5987 | 2011-06-172 | 6 | Korea |
| 5930-01-129-5987 | 2011-03-77 | 10 | DIBBS |
| 5930-01-129-5987 | 2011-03-69 | 10 | US |
| 5930-01-129-5987 | 2011-03-67 | 10 | US |
| 5930-01-129-5987 | 2010-01-25 | 6 | DIBBS |
| 5930-01-129-5987 | 2009-12-362 | 17 | DIBBS |
| 5930-01-129-5987 | 2009-12-344 | 13 | DIBBS |
| 5930-01-129-5987 | 2009-10-274 | 2 | Korea |
| 1173P0336 | 2009-09-268 | 2 | Korea |
| 5930-01-129-5987 | 2007-10-278 | 210 | DIBBS |
| 5930-01-129-5987 | 2007-03-72 | 163 | DIBBS |
| 5930-01-129-5987 | 2006-04-110 | 109 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-129-5987
Related Products | NSN 5930-01-129-5987
Technical Data | NSN 5930-01-129-5987
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 53 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 2.680 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 1.003 INCHES MAXIMUM |
| BODY DIAMETER | 0.780 INCHES MAXIMUM |
| BODY LENGTH | 0.280 INCHES MAXIMUM |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 100.00 ACTUATION POINT MINIMUM POUNDS PER SQUARE INCH GAGE AND 400.00 ACTUATION POINT MAXIMUM POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -60.0 DEG FAHRENHEIT MINIMUM AND 350.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 800.00 POUNDS PER SQUARE INCH GAGE |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.750 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 2A SINGLE THREADED BUSHING |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND HUMIDITY RESISTANT AND SALT SPRAY RESISTANT AND VIBRATION RESISTANT AND WATERPROOF |
| III END ITEM IDENTIFICATION | 2350-01-087-1095 |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12321814 |
Restrictions/Controls & Freight Information | NSN 5930-01-129-5987
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-129-5987
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
