Product Details | TOGGLE SWITCH
5930-01-123-6512 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 9970099, 997-0099, 5930-01-123-6512, 01-123-6512, 5930011236512, 011236512
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 DEC 1981 | 01-123-6512 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-123-6512
Cross Reference | NSN 5930-01-123-6512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 997-0099 | 81579 | MASON ELECTRIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-123-6512
Technical Data | NSN 5930-01-123-6512
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, TWO POSITIONS MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 50.000 MILLIAMPERES RESISTIVE DC |
| BODY STYLE | 4P BUSHING MOUNT |
| BUSHING LENGTH | 0.450 INCHES NOMINAL |
| BODY LENGTH | 0.572 INCHES MAXIMUM |
| BODY WIDTH | 0.364 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.706 INCHES MAXIMUM |

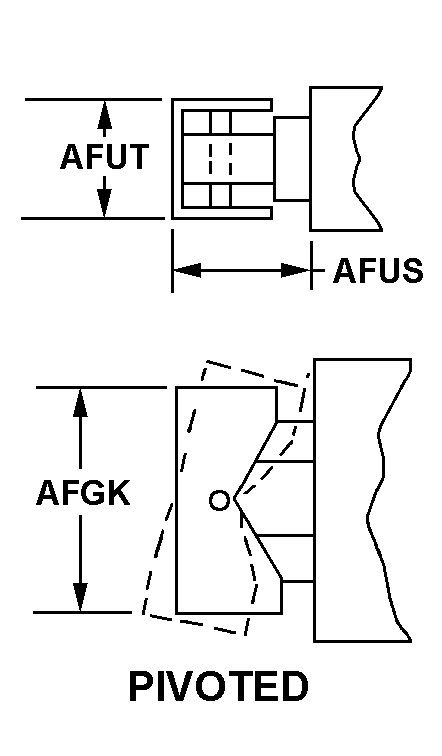

| ACTUATOR STYLE | 55 PIVOTED |
| ACTUATOR LENGTH | 1.120 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.480 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.364 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MOMENTARY AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |
| ACTUATOR COLOR | BLACK SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | SPECIAL MTG ADAPTER RING |
