NSN 5930-01-118-7465 ST5M16080021A, ST5M1608-0021A, T10027A

Product Details | TOGGLE SWITCH

5930-01-118-7465 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: ST5M16080021A, ST5M1608-0021A, T10027A, T1-0027A, T10185A, T1-0185A, 10154318 , 5930-01-118-7465, 01-118-7465, 5930011187465, 011187465

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 SEP 1981	01-118-7465	00184 ( SWITCH, TOGGLE )

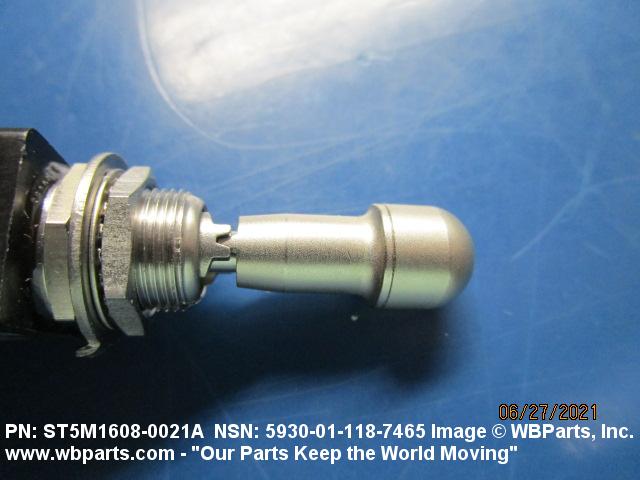

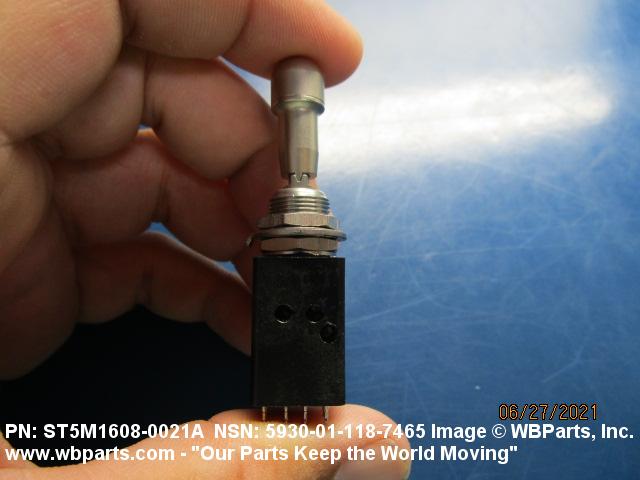

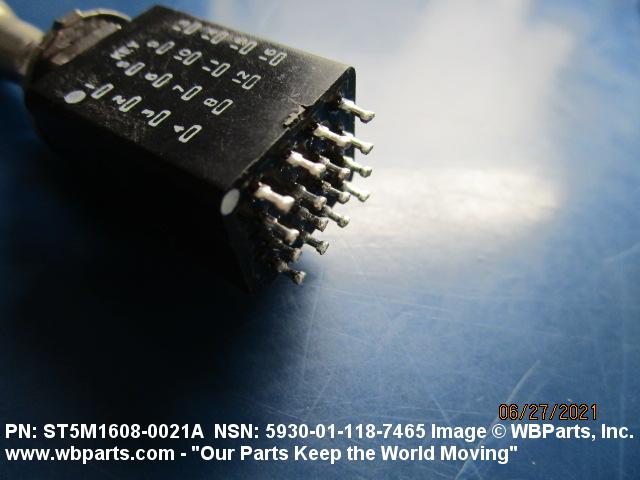

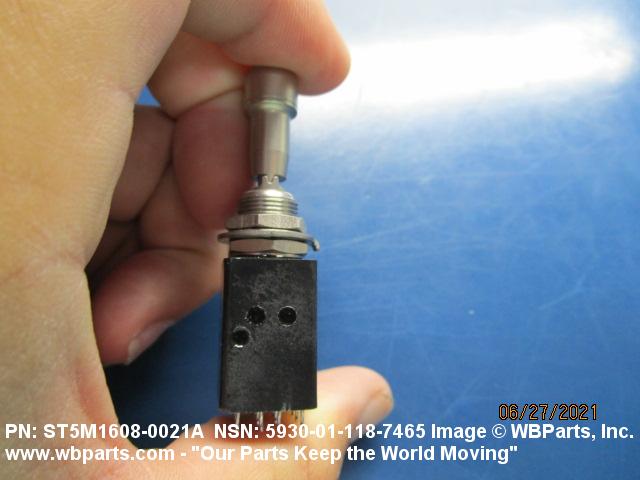

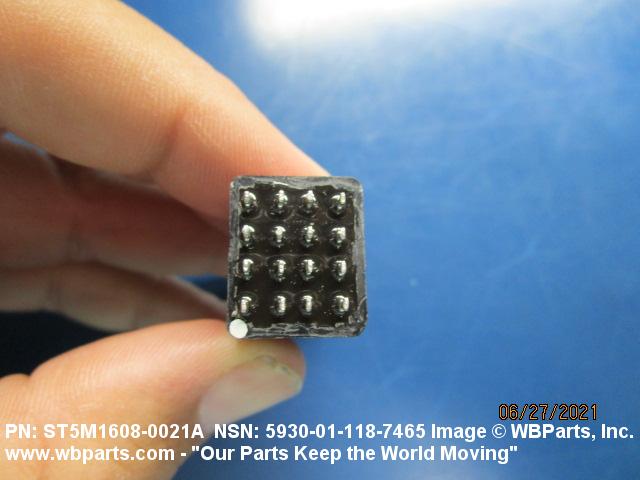

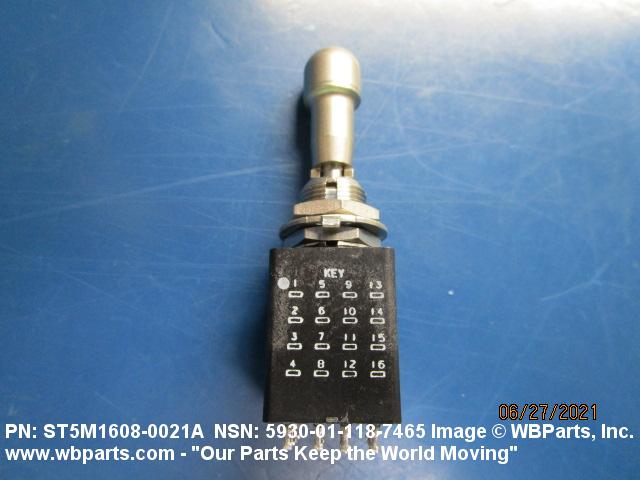

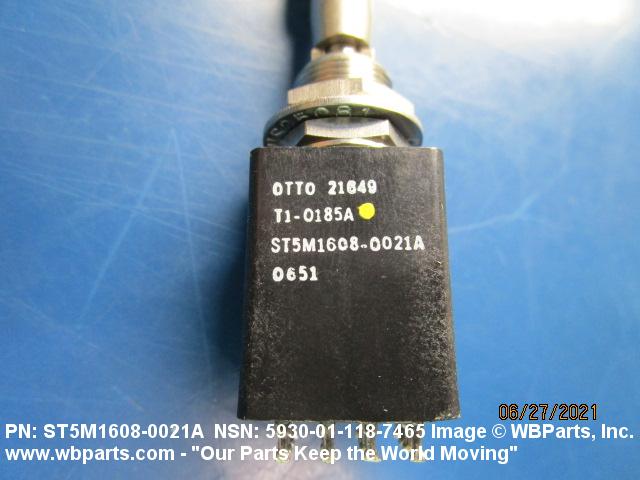

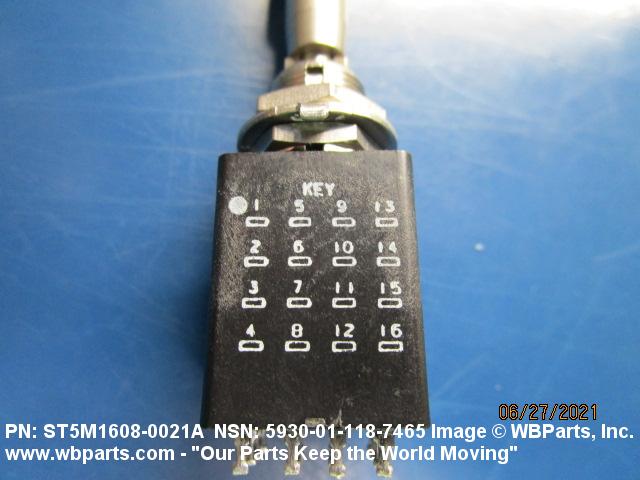

Drawings & Photos | NSN 5930-01-118-7465

Part Number	Request Date	QTY	Origin
ST5M1608-0021A	2024-02-51	58	DIBBS
T1-0185A	2024-02-51	58	DIBBS
ST5M1608-0021A	2024-02-39	58	DIBBS
T1-0185A	2024-02-39	58	DIBBS
ST5M1608-0021A	2023-05-124	32	DIBBS
T1-0185A	2023-05-124	32	DIBBS
ST5M1608-0021A	2022-11-310	28	DIBBS
T1-0185A	2022-11-310	28	DIBBS
ST5M1608-0021A	2022-05-132	28	DIBBS
T1-0185A	2022-05-132	28	DIBBS
ST5M1608-0021A	2022-02-52	12	DIBBS
T1-0185A	2022-02-52	12	DIBBS
ST5M1608-0021A	2021-12-350	14	DIBBS
T1-0185A	2021-12-350	14	DIBBS
ST5M1608-0021A	2021-12-335	47	DIBBS
T1-0185A	2021-12-335	47	DIBBS
ST5M1608-0021A	2021-11-320	47	DIBBS
T1-0185A	2021-11-320	47	DIBBS
ST5M1608-0021A	2021-11-305	47	DIBBS
T1-0185A	2021-11-305	47	DIBBS
ST5M16080021A	2021-10-287	5	United States
ST5M16080021A	2021-06-153	1	United States
ST5M16080021A	2021-05-147	1	United States
ST5M1608-0021A	2020-10-294	29	DIBBS
T1-0185A	2020-10-294	29	DIBBS
ST5M1608-0021A	2020-10-282	28	DIBBS
T1-0185A	2020-10-282	28	DIBBS
5930-01-118-7465	2020-10-281	29	US
ST5M1608-0021A	2020-10-279	29	DIBBS
T1-0185A	2020-10-279	29	DIBBS
ST5M1608-0021A	2020-09-261	9	DIBBS
T1-0185A	2020-09-261	9	DIBBS
ST5M1608-0021A	2019-01-03	28	DIBBS
T1-0185A	2019-01-03	28	DIBBS
5930-01-118-7465	2018-04-95	42	DIBBS
ST5M16080021A	2017-03-88	45	United States
5930-01-118-7465	2017-03-78	45	DIBBS
5930-01-118-7465	2016-07-213	45	DIBBS
5930-01-118-7465	2015-08-217	37	DIBBS
5930-01-118-7465	2014-09-271	21	DIBBS
5930-01-118-7465	2013-09-245	18	DIBBS
5930-01-118-7465	2012-03-61	23	DIBBS
5930-01-118-7465	2012-01-04	13	DIBBS
5930-01-118-7465	2010-04-92	44	DIBBS
5930-01-118-7465	2009-07-212	67	DIBBS
5930-01-118-7465	2009-03-82	28	DIBBS
5930-01-118-7465	2008-12-340	31	DIBBS
ST5M16080021A	2006-09-251	5	United States

Cross Reference | NSN 5930-01-118-7465

Part Number	Cage Code	Manufacturer
ST5M1608-0021A	76301	BOEING COMPANY, THE DBA BOEING
T1-0027A	21649	OTTO ENGINEERING, INC. DBA OTTO CONTROLS
T1-0185A	21649	OTTO ENGINEERING, INC. DBA OTTO CONTROLS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-118-7465

Compare

Related Products | NSN 5930-01-118-7465

5930-01-118-7466, 5930-01-118-7542, 5930-01-118-7615, 5930-01-118-7703, 5930-01-118-7874

Technical Data | NSN 5930-01-118-7465

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	3 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES INDUCTIVE DC AND 1.000 AMPERES LAMP DC AND 2.000 AMPERES MOTOR DC
BODY STYLE	4P BUSHING MOUNT
BUSHING LENGTH	0.468 INCHES NOMINAL

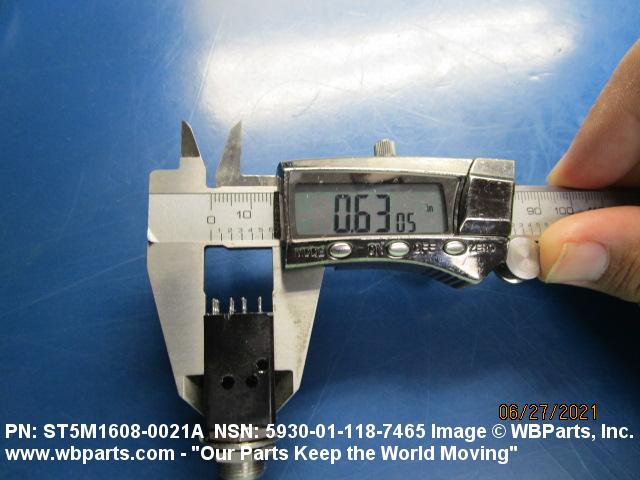

BODY LENGTH	0.625 INCHES MAXIMUM

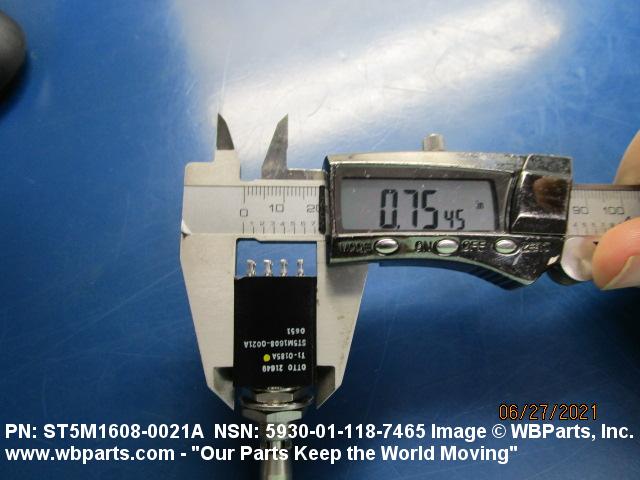

BODY WIDTH	0.750 INCHES MAXIMUM
BODY HEIGHT	1.000 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.125 INCHES MAXIMUM
OVERALL LENGTH	0.625 INCHES MAXIMUM
OVERALL WIDTH	0.750 INCHES MAXIMUM

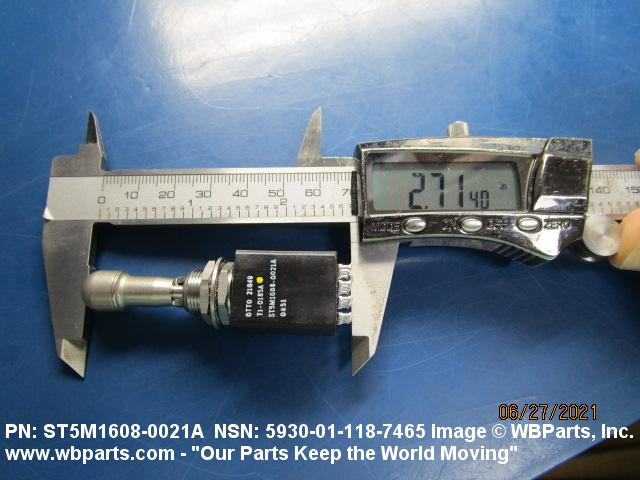

OVERALL HEIGHT	2.733 INCHES NOMINAL

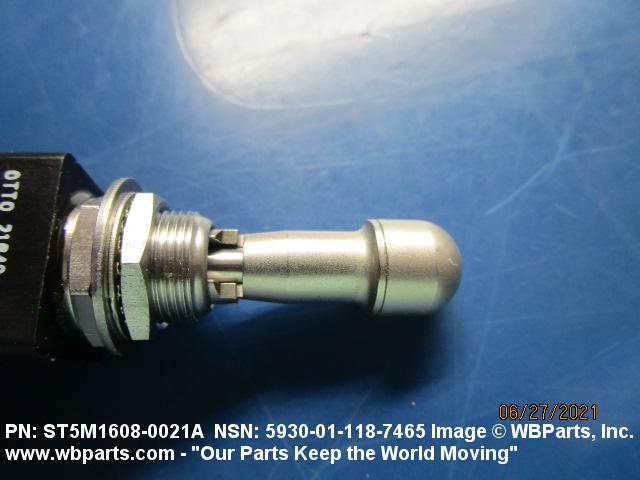

ACTUATOR STYLE	26 ROUND

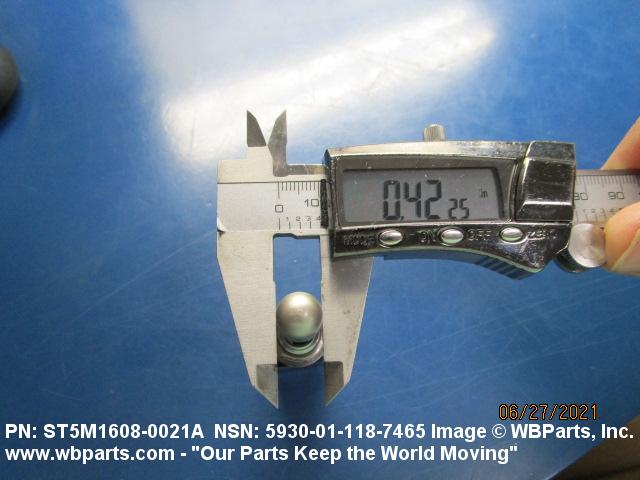

ACTUATOR DIAMETER	0.420 INCHES NOMINAL

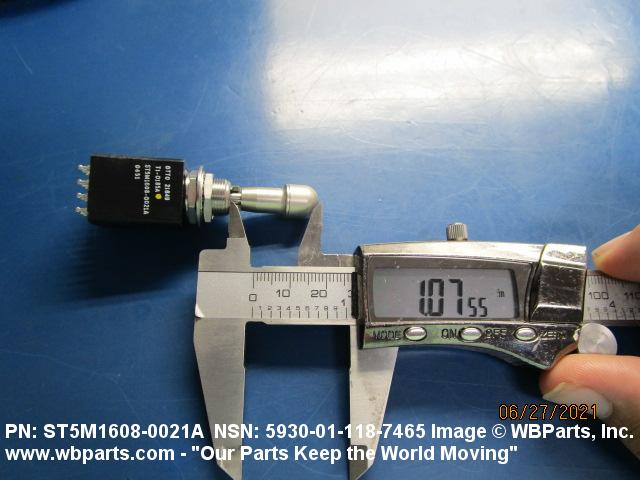

ACTUATOR HEIGHT	1.140 INCHES NOMINAL
