NSN 5930-01-117-2764 211C117130, 211C117-130, 74B838001
Product Details | PRESSURE SWITCH
5930-01-117-2764 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 211C117130, 211C117-130, 74B838001, 74B838001111, 74B838001-111, 5930-01-117-2764, 01-117-2764, 5930011172764, 011172764
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 AUG 1981 | 01-117-2764 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-01-117-2764
Demand History | NSN 5930-01-117-2764
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-117-2764 | 2017-10-288 | 2 | DIBBS |
| 5930-01-117-2764 | 2016-03-63 | 29 | DIBBS |
| 5930-01-117-2764 | 2015-09-250 | 7 | DIBBS |
| 5930-01-117-2764 | 2015-03-68 | 8 | DIBBS |
| 5930-01-117-2764 | 2014-10-287 | 10 | DIBBS |
| 5930-01-117-2764 | 2014-10-275 | 10 | DIBBS |
| 5930-01-117-2764 | 2014-09-247 | 12 | DIBBS |
| 5930-01-117-2764 | 2014-08-236 | 12 | DIBBS |
| 5930-01-117-2764 | 2014-07-199 | 4 | DIBBS |
| 5930-01-117-2764 | 2014-07-187 | 4 | DIBBS |
| 5930-01-117-2764 | 2014-04-111 | 4 | DIBBS |
| 5930-01-117-2764 | 2014-04-99 | 4 | DIBBS |
| 5930-01-117-2764 | 2014-04-97 | 8 | DIBBS |
| 5930-01-117-2764 | 2014-03-80 | 3 | DIBBS |
| 5930-01-117-2764 | 2014-03-78 | 8 | DIBBS |
| 5930-01-117-2764 | 2014-03-65 | 3 | DIBBS |
| 5930-01-117-2764 | 2013-11-331 | 7 | DIBBS |
| 5930-01-117-2764 | 2013-11-316 | 7 | DIBBS |
| 5930-01-117-2764 | 2013-10-288 | 5 | DIBBS |
| 5930-01-117-2764 | 2013-09-268 | 5 | DIBBS |
| 5930-01-117-2764 | 2013-06-171 | 6 | DIBBS |
| 5930-01-117-2764 | 2013-06-156 | 6 | DIBBS |
| 5930-01-117-2764 | 2013-01-17 | 5 | DIBBS |
| 5930-01-117-2764 | 2012-10-278 | 6 | DIBBS |
| 5930-01-117-2764 | 2011-09-265 | 3 | DIBBS |
| 5930-01-117-2764 | 2011-08-221 | 10 | DIBBS |
| 5930-01-117-2764 | 2010-12-337 | 21 | DIBBS |
| 5930-01-117-2764 | 2010-03-74 | 3 | DIBBS |
| 5930-01-117-2764 | 2008-11-318 | 19 | DIBBS |
| 5930-01-117-2764 | 2008-03-84 | 29 | DIBBS |
| 5930-01-117-2764 | 2007-08-227 | 27 | DIBBS |
| 5930-01-117-2764 | 2007-02-59 | 15 | DIBBS |
| 5930-01-117-2764 | 2006-07-191 | 8 | DIBBS |
| 5930-01-117-2764 | 2006-06-174 | 8 | DIBBS |
| 5930-01-117-2764 | 2006-06-159 | 8 | DIBBS |
Cross Reference | NSN 5930-01-117-2764
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-117-2764
Related Products | NSN 5930-01-117-2764
Technical Data | NSN 5930-01-117-2764
| Characteristic | Specifications |
|---|---|

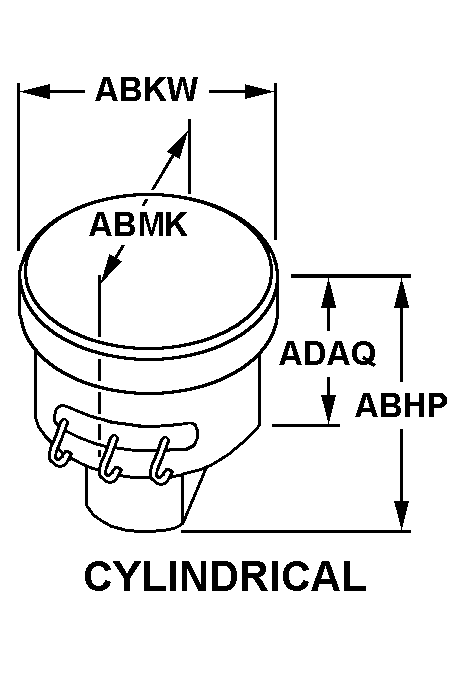

| STYLE DESIGNATOR | 44 CYLINDRICAL |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL DIAMETER | 1.120 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 150.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 120.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 30.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 2.000 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 300.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| PROOF PRESSURE | 190.00 POUNDS PER SQUARE INCH GAGE |
| PRESSURE CONNECTOR TYPE | FLARED, THREADED EXTERNAL SINGLE CONNECTION |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | INPUT PORT |
| THREAD SERIES DESIGNATOR | UNF SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.438 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 20 SINGLE PRESSURE CONNECTION |
| FEATURES PROVIDED | ELECTRICAL BOX CONNECTOR |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III END ITEM IDENTIFICATION | BLEED AIR SYS |
