NSN 5930-01-116-5532 MS90311731, MS90311-731, MILDTL8834

Product Details | TOGGLE SWITCH

5930-01-116-5532 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS90311731, MS90311-731, MILDTL8834, MIL-DTL-8834, MILS8834, MIL-S-8834, 10154316 , 8869K4X, 5930-01-116-5532, 01-116-5532, 5930011165532, 011165532

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	29 JUL 1981	01-116-5532	00184 ( SWITCH, TOGGLE )

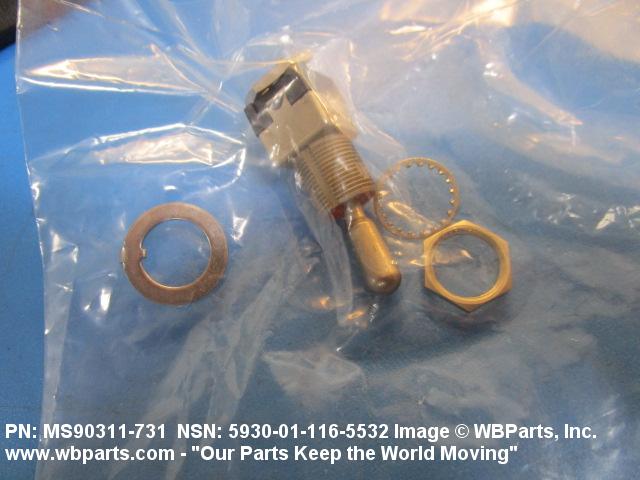

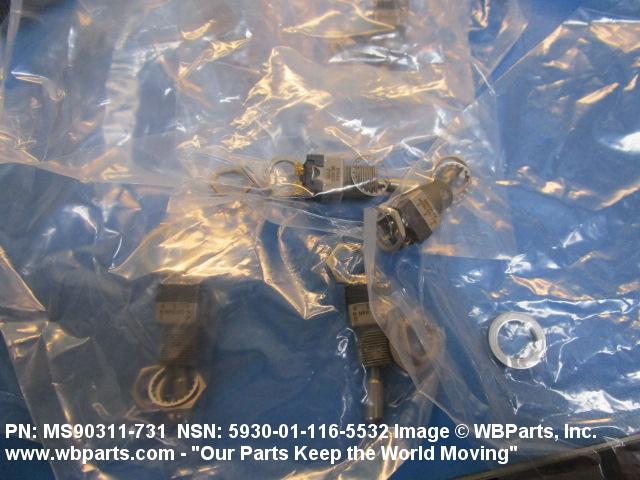

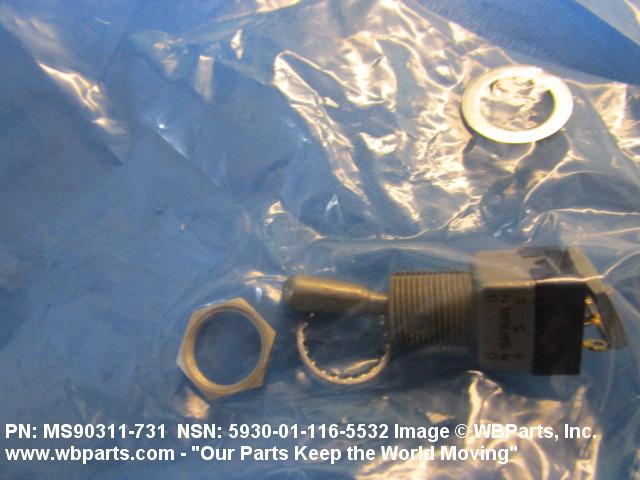

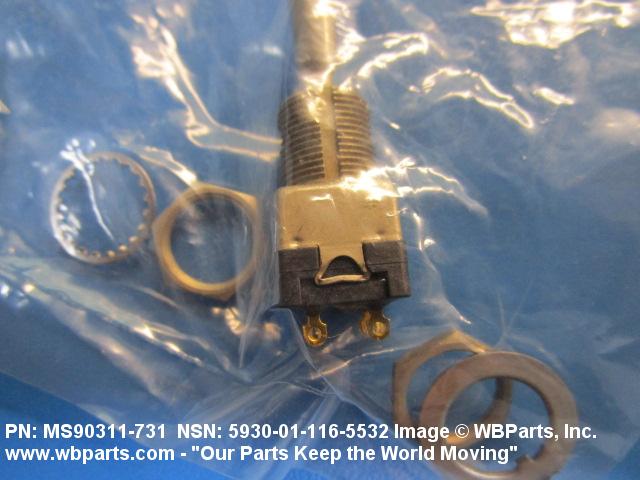

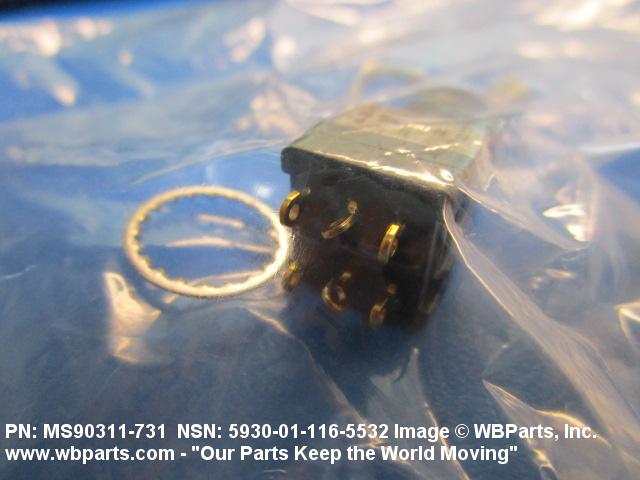

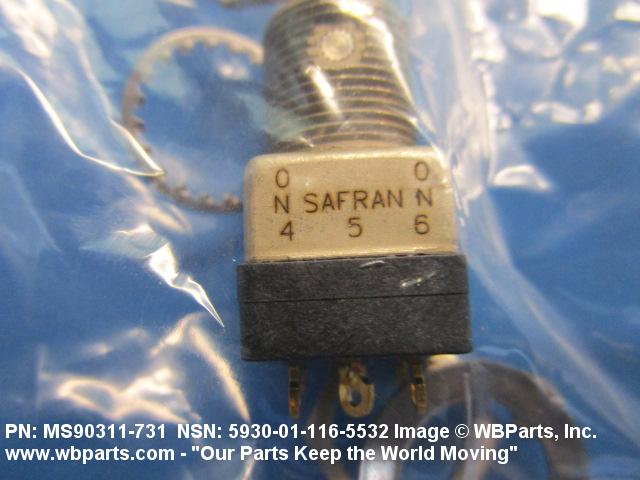

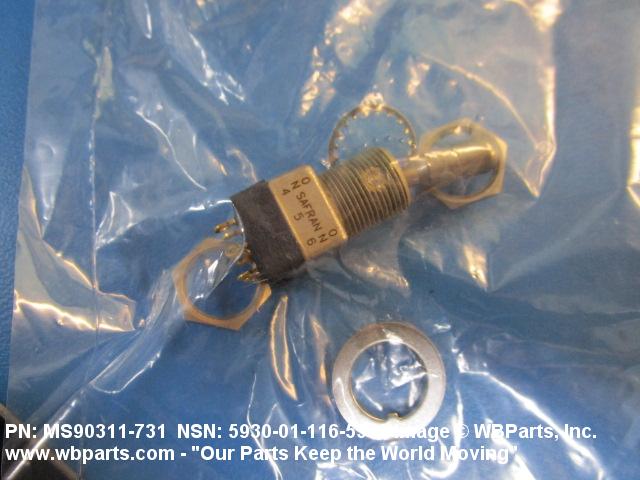

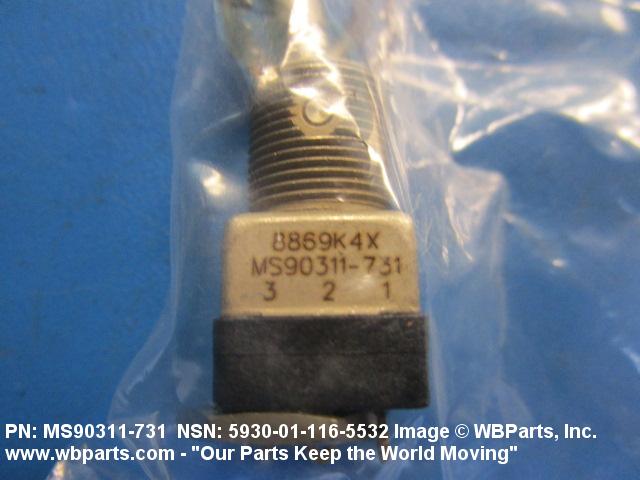

Drawings & Photos | NSN 5930-01-116-5532

Part Number	Request Date	QTY	Origin
5930-01-116-5532	2023-06-166	54	DIBBS
MS90311731	2021-10-282	6	United States
MS90311731	2021-10-282	6	United States
5930-01-116-5532	2020-10-303	122	DIBBS
5930-01-116-5532	2019-09-262	10	TR
5930-01-116-5532	2019-08-219	166	DIBBS
5930-01-116-5532	2019-01-01	142	DIBBS
5930-01-116-5532	2017-08-223	39	DIBBS
5930-01-116-5532	2017-07-211	39	DIBBS
5930-01-116-5532	2017-07-205	19	DIBBS
5930-01-116-5532	2017-07-193	19	DIBBS
5930-01-116-5532	2017-06-166	14	DIBBS
5930-01-116-5532	2017-05-151	14	DIBBS
5930-01-116-5532	2017-05-129	19	DIBBS
MILDTL8834	2017-03-81	3	United States
5930-01-116-5532	2015-08-230	5	US
5930-01-116-5532	2015-02-51	1	DIBBS
MILS8834	2012-07-192	10	Australia
MS90311731	2012-02-41	10	United States
5930-01-116-5532	2011-03-68	49	MANUAL
MS90311731	2010-07-209	1238	US
5930-01-116-5532	2008-08-214	137	DIBBS
5930-01-116-5532	2008-04-112	22	DIBBS
5930-01-116-5532	2008-04-94	22	DIBBS
5930-01-116-5532	2007-08-226	76	DIBBS
MS90311731	2005-12-361	100	IL

Cross Reference | NSN 5930-01-116-5532

Part Number	Cage Code	Manufacturer
8869K4X	81640	EATON CORPORATION DBA FLUID POWER DIV
MIL-DTL-8834	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-8834	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90311-731	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-116-5532

Compare

Related Products | NSN 5930-01-116-5532

5930-01-116-5533, 5930-01-116-5534, 5930-01-116-5535, 5930-01-116-5536, 5930-01-116-5538

Technical Data | NSN 5930-01-116-5532

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, DOUBLE BREAK/DOUBLE MAKE, PERMANENT JUMPER, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 1.000 AMPERES INDUCTIVE DC AND 3.000 AMPERES RESISTIVE AC AND 2.000 AMPERES INDUCTIVE AC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.469 INCHES NOMINAL
BODY LENGTH	0.572 INCHES MAXIMUM
BODY WIDTH	0.556 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.706 INCHES MAXIMUM
OVERALL LENGTH	0.572 INCHES MAXIMUM
OVERALL WIDTH	0.556 INCHES MAXIMUM
OVERALL HEIGHT	1.862 INCHES NOMINAL
ACTUATOR STYLE	27 ROUND
ACTUATOR DIAMETER	0.240 INCHES NOMINAL
ACTUATOR HEIGHT	0.687 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
ACTUATOR COLOR	NATURAL SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY	6 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
TEST DATA DOCUMENT	81349-MIL-S-8834 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS90311 GOVERNMENT STANDARD
III CASE MATERIAL	PLASTIC
III END ITEM IDENTIFICATION	6940010462850 18876
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	TERMINAL SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-8834
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS90311-731

Restrictions/Controls & Freight Information | NSN 5930-01-116-5532

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-116-5532

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	A	Item requires special handling/or condemnation procedures because of specific reasons (i.e., precious metal content, high dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
