Product Details | THERMOSTATIC SWITCH
5930-01-104-7421 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: S26055097, S2605-5097, QS1190, QS-1190, QS11902, QS1190-2, 77302381, 77-30238-1, 5930-01-104-7421, 01-104-7421, 5930011047421, 011047421
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 DEC 1980 | 01-104-7421 | 00451 ( SWITCH, THERMOSTATIC ) |

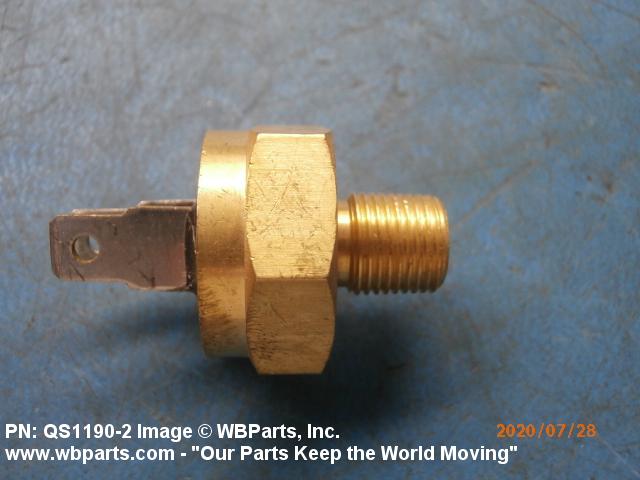

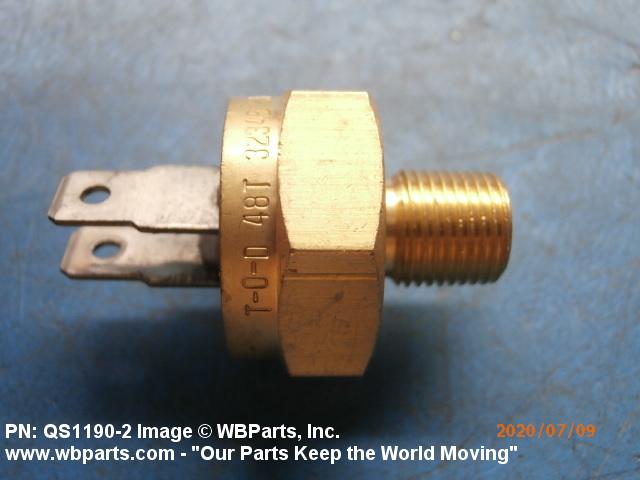

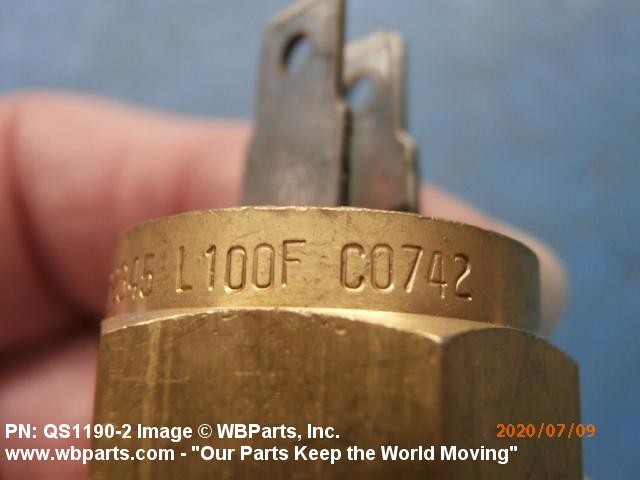

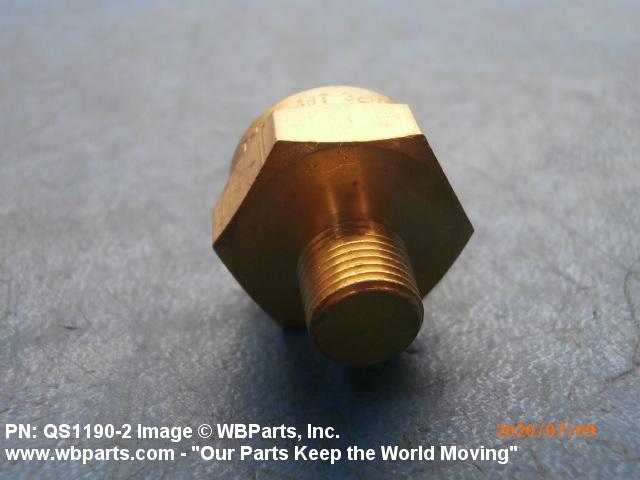

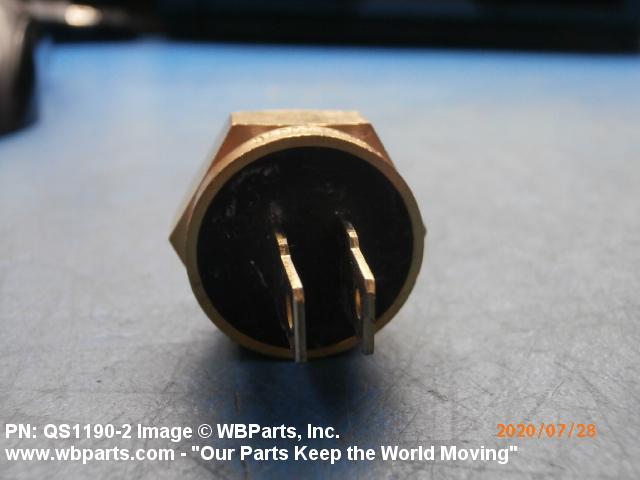

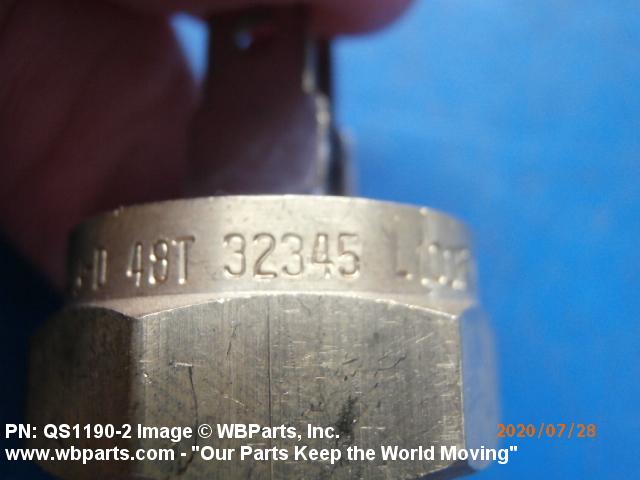

Drawings & Photos | NSN 5930-01-104-7421
Demand History | NSN 5930-01-104-7421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-104-7421 | 2021-06-179 | 1 | United States |
| QS11902 | 2021-06-179 | 1 | United States |
| 5930-01-104-7421 | 2021-06-168 | 2 | United States |
| QS11902 | 2020-07-210 | 1 | United States |
| QS11902 | 2020-07-191 | 1 | United States |
| 5930-01-104-7421 | 2020-07-188 | 1 | United States |
| 5930-01-104-7421 | 2020-06-181 | 1 | United States |
| 5930-01-104-7421 | 2020-03-72 | 1 | United States |
| QS11902 | 2020-02-36 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-104-7421
Related Products | NSN 5930-01-104-7421
Technical Data | NSN 5930-01-104-7421
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 66 PLUG |

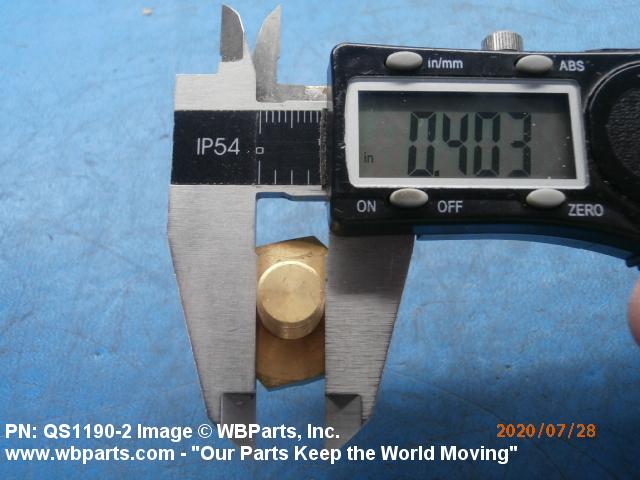

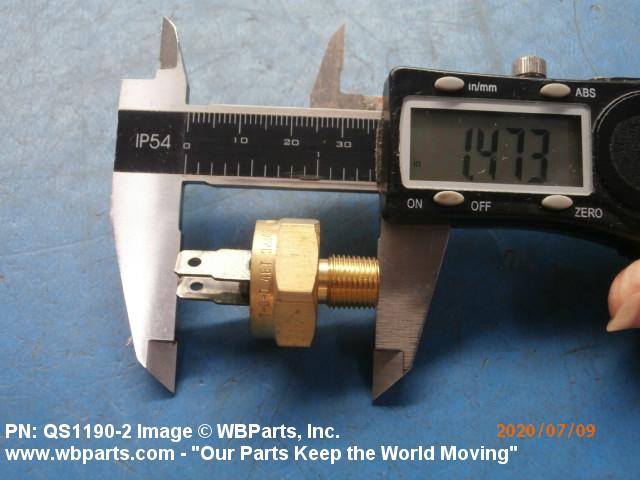

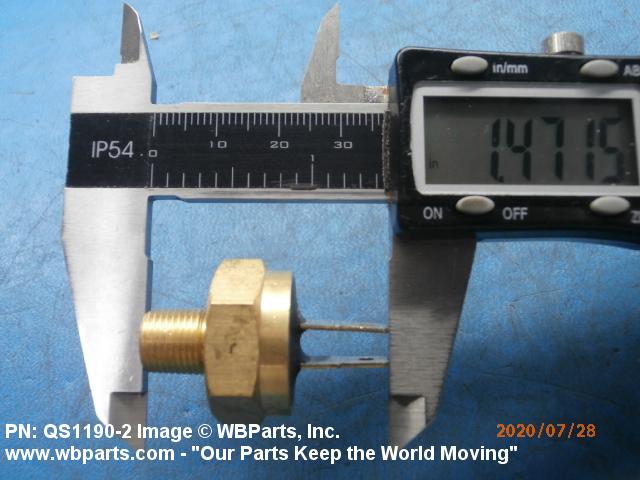

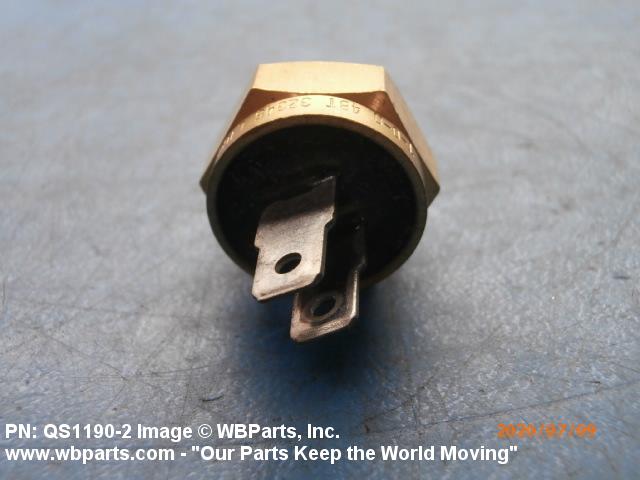

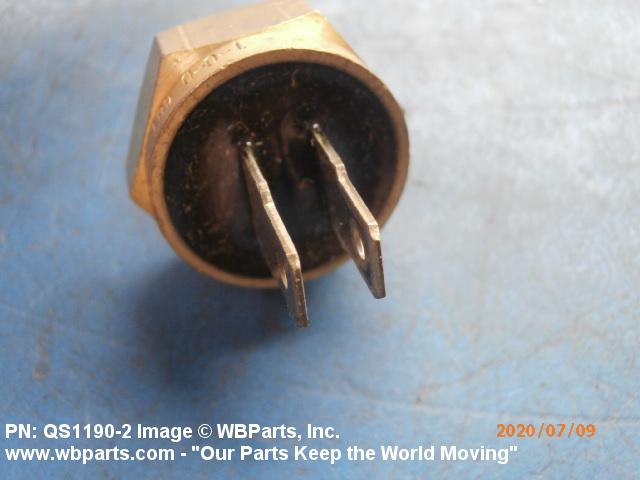

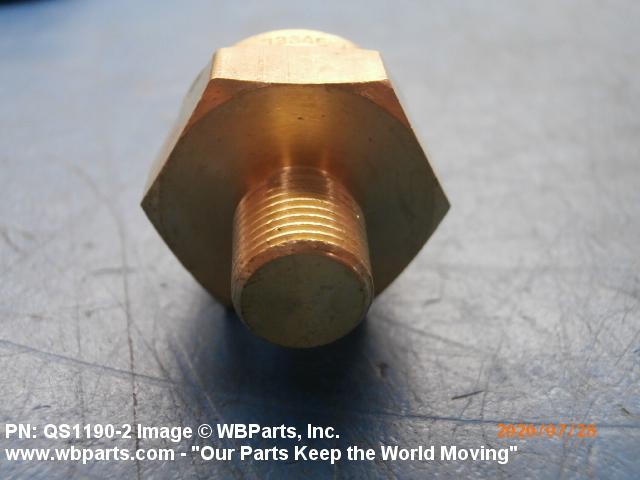

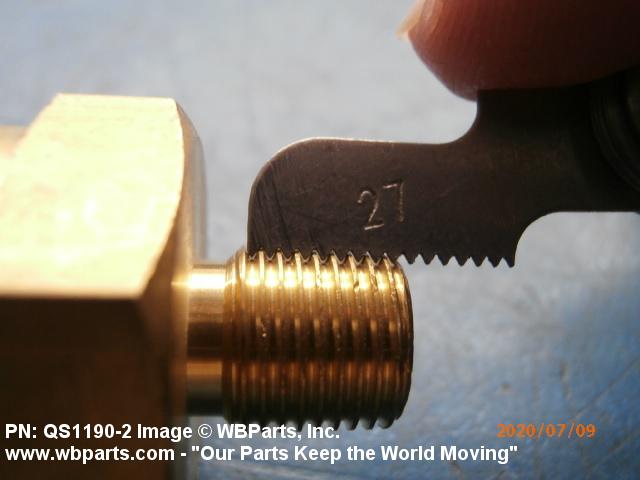

| OVERALL LENGTH | 1.380 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| BODY LENGTH | 0.880 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 100.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 70.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 3.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | NPTF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.125 INCHES SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 27 SINGLE THREADED BUSHING |
| THREAD LENGTH | 0.370 INCHES NOMINAL SINGLE THREADED BUSHING |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | NSN 2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK) |
