NSN 5930-01-104-2202 24863, 7N3606, 01-104-2202
Product Details | PRESSURE SWITCH
5930-01-104-2202 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 24863, 7N3606, 5930-01-104-2202, 01-104-2202, 5930011042202, 011042202
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 NOV 1980 | 01-104-2202 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-01-104-2202
Demand History | NSN 5930-01-104-2202
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 24863 | 2016-01-11 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-104-2202
Related Products | NSN 5930-01-104-2202
Technical Data | NSN 5930-01-104-2202
| Characteristic | Specifications |
|---|---|

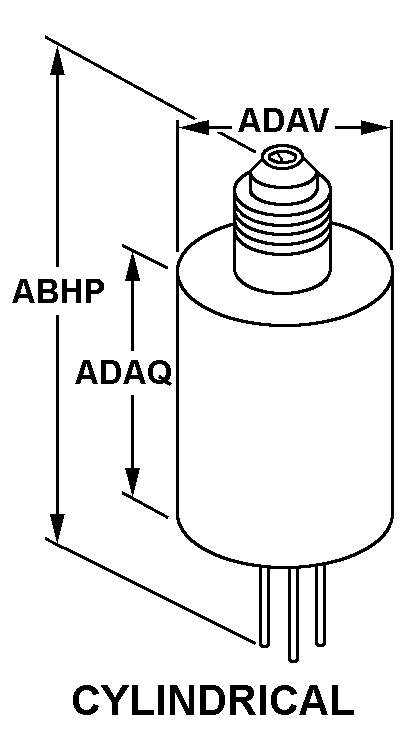

| STYLE DESIGNATOR | 38 CYLINDRICAL |
| OVERALL LENGTH | 5.350 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 31.00 TO 37.00 ACTUATION POINT GRAM AND 31.00 TO 37.00 DEACTUATION POINT GRAM |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SHAFT AND EXTERNAL ACTUATION POINT SHAFT |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 100.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PRESSURE CONNECTOR TYPE | GASKET SEAL, THREADED INTERNAL SINGLE CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.844 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.164 INCHES SINGLE PRESSURE CONNECTION |
| THREAD CLASS | 2B SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 32 SINGLE PRESSURE CONNECTION |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III END ITEM IDENTIFICATION | 3930-01-082-3758 TRUCK,FORK LIFT |
