NSN 5930-01-091-5553 M24236/19-CPA, M2423619CPA, MIL-S-24236/19
Product Details | THERMOSTATIC SWITCH
5930-01-091-5553 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: M24236/19-CPA, M2423619CPA, MIL-S-24236/19, MILS2423619, 5930-01-091-5553, 01-091-5553, 5930010915553, 010915553
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAR 1980 | 01-091-5553 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-01-091-5553
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-091-5553
Related Products | NSN 5930-01-091-5553
Technical Data | NSN 5930-01-091-5553
| Characteristic | Specifications |
|---|---|

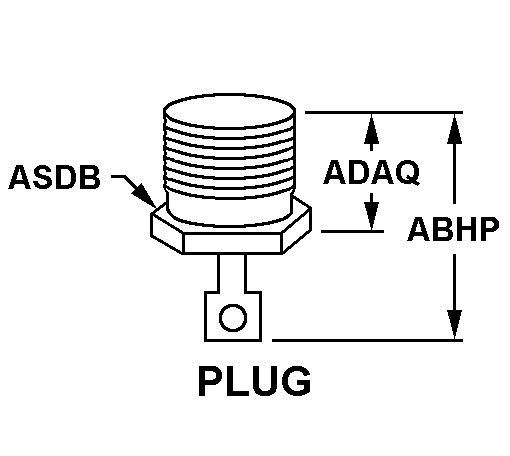

| STYLE DESIGNATOR | 66 PLUG |
| OVERALL LENGTH | 0.373 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.281 INCHES NOMINAL |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| BODY DIAMETER | 0.215 INCHES NOMINAL |
| BODY LENGTH | 0.170 INCHES NOMINAL |
| BODY HEIGHT | 0.136 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 230.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 200.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 28.0 DC AT SEA LEVEL SECOND VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 FIRST VOLTAGE |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 500.0 MILLIAMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -30.0 DEG FAHRENHEIT MINIMUM AND 350.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 2A SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 28 SINGLE THREADED BUSHING |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-S-24236 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-24236/19 GOVERNMENT SPECIFICATION |
| III UNPACKAGED UNIT WEIGHT | 0.900 GRAMS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24236/19 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24236/19-CPA |
