NSN 5930-01-084-5735 A507A085101, A507A085-101, 9021006
Product Details | TOGGLE SWITCH
5930-01-084-5735 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: A507A085101, A507A085-101, 9021006, 902-1006, 910043-001, 5930-01-084-5735, 01-084-5735, 5930010845735, 010845735, 910043001
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 OCT 1979 | 01-084-5735 | 00184 ( SWITCH, TOGGLE ) |

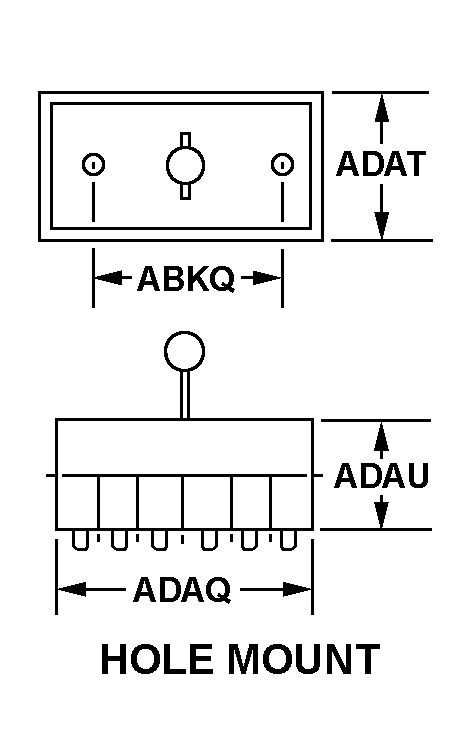

Drawings & Photos | NSN 5930-01-084-5735
Demand History | NSN 5930-01-084-5735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 902-1006 | 2024-09-260 | 1 | DIBBS |
| 910043-001 | 2024-09-260 | 1 | DIBBS |
| 902-1006 | 2024-09-249 | 1 | DIBBS |
| 910043-001 | 2024-09-249 | 1 | DIBBS |
| 5930-01-084-5735 | 2007-08-233 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-084-5735
Related Products | NSN 5930-01-084-5735
Technical Data | NSN 5930-01-084-5735
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 12.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.000 MILLIAMPERES RESISTIVE DC |
| BODY STYLE | 11P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.220 INCHES NOMINAL |
| BODY LENGTH | 2.500 INCHES NOMINAL |
| BODY WIDTH | 0.590 INCHES NOMINAL |
| BODY HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.590 INCHES NOMINAL |
| OVERALL HEIGHT | 3.460 INCHES NOMINAL |
| ACTUATOR STYLE | 29 RECTANGULAR |
| ACTUATOR HEIGHT | 0.680 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.380 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MOMENTARY AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 9 PRINTED CIRCUIT |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | PCB CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5930-01-084-5735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
