Product Details | TOGGLE SWITCH
5930-01-065-2684 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS2452323, MS24523-23, L02558, L02739, 870CM0052, 5930-01-065-2684, 01-065-2684, 5930010652684, 010652684
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 1978 | 01-065-2684 | 00184 ( SWITCH, TOGGLE ) |

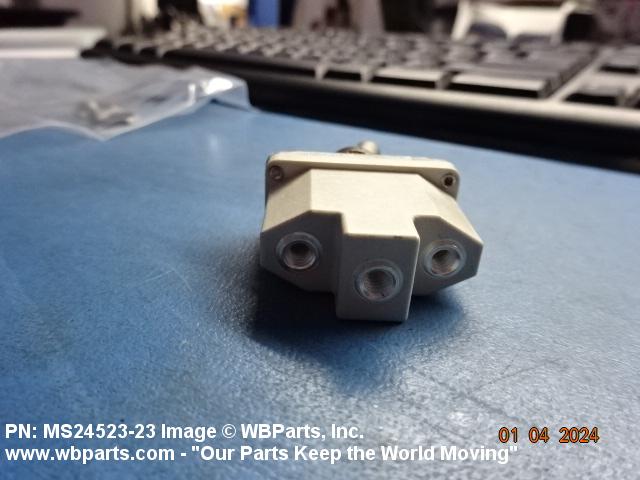

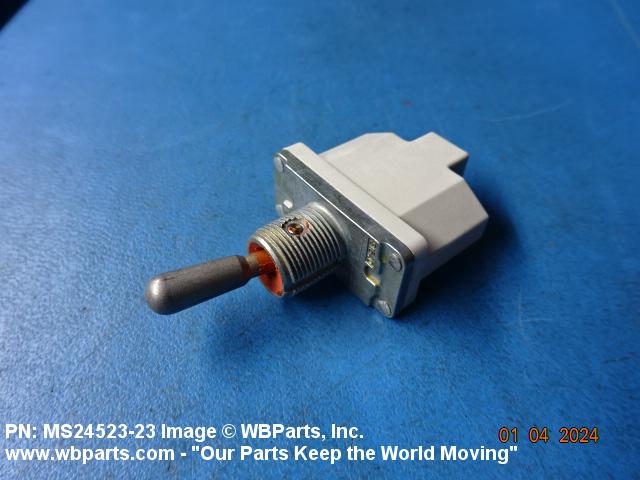

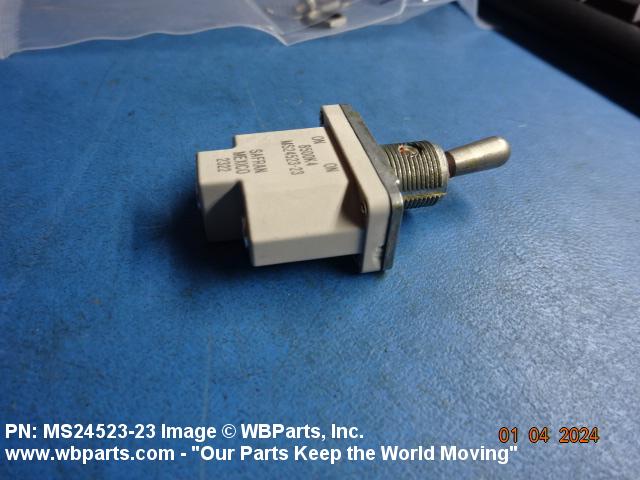

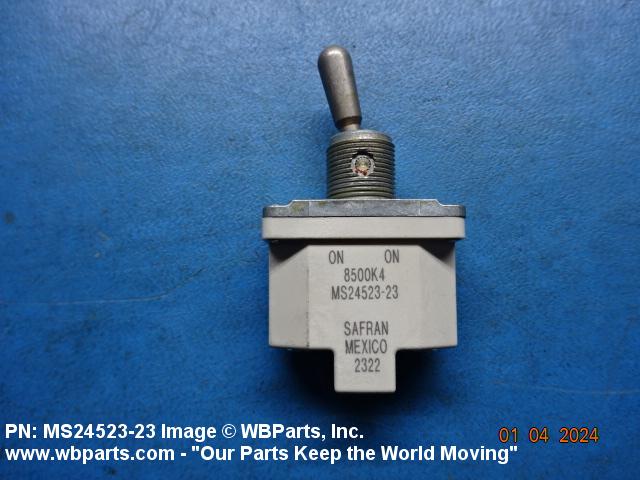

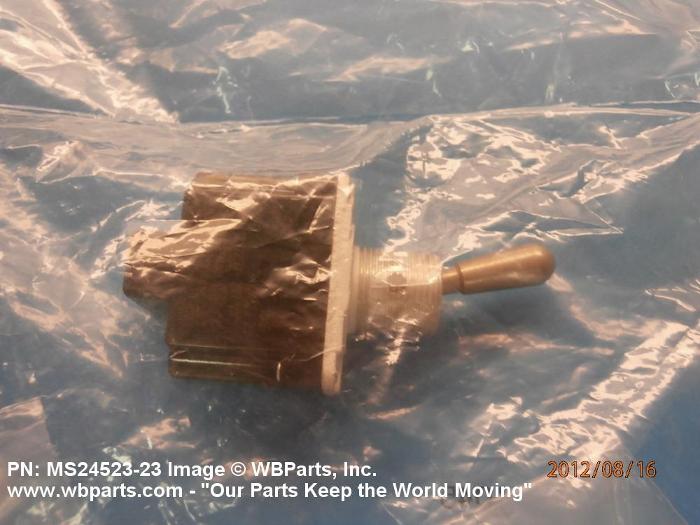

Drawings & Photos | NSN 5930-01-065-2684
Demand History | NSN 5930-01-065-2684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2452323 | 2023-12-353 | 1 | United States |
| MS2452323 | 2023-02-48 | 1 | United States |
| MS2452323 | 2022-06-159 | 1 | United States |
| MS2452323 | 2020-02-35 | 12 | United States |
| MS2452323 | 2018-03-71 | 5 | ID |
| MS24523-23 | 2016-06-181 | 2 | Thailand |
| MS2452323 | 2015-11-308 | 1 | US |
| MS24523-23 | 2015-06-174 | 100 | |
| MS2452323 | 2015-04-107 | 5 | PL |
| MS24523-23 | 2015-04-91 | 15 | Greece |
| MS2452323 | 2015-02-58 | 15 | US |
| MS24523-23 | 2014-10-275 | 39 | US |
| MS2452323 | 2014-09-273 | 39 | US |
| MS2452323 | 2014-07-196 | 15 | United States |
| MS2452323 | 2014-03-62 | 20 | FR |
| 5930-01-065-2684 | 2014-02-43 | 1 | US |
| MS2452323 | 2013-08-227 | 100 | US |
| MS2452323 | 2013-08-227 | 100 | US |
| MS2452323 | 2013-02-38 | 1 | United States |
| MS2452323 | 2012-06-182 | 5 | United States |
| MS2452323 | 2010-11-307 | 16 | US |
| MS2452323 | 2010-08-224 | 6 | Brazil |
| MS2452323 | 2009-07-187 | 2 | United States |
| MS2452323 | 2008-07-183 | 71 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-065-2684
Related Products | NSN 5930-01-065-2684
Technical Data | NSN 5930-01-065-2684
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 20.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC |
| BODY STYLE | 5P BUSHING MOUNT |

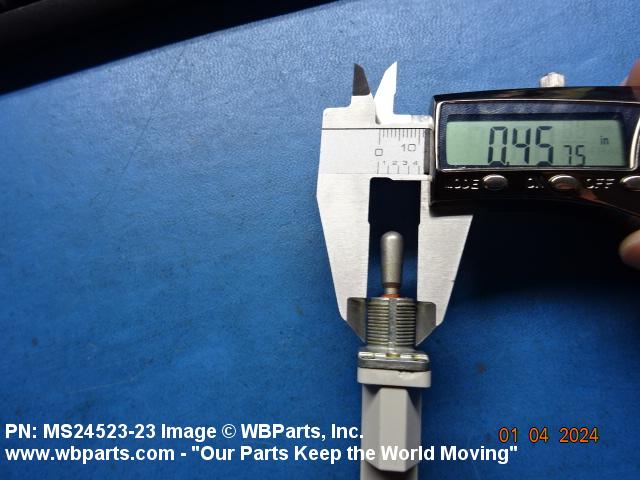

| BUSHING LENGTH | 0.470 INCHES NOMINAL |

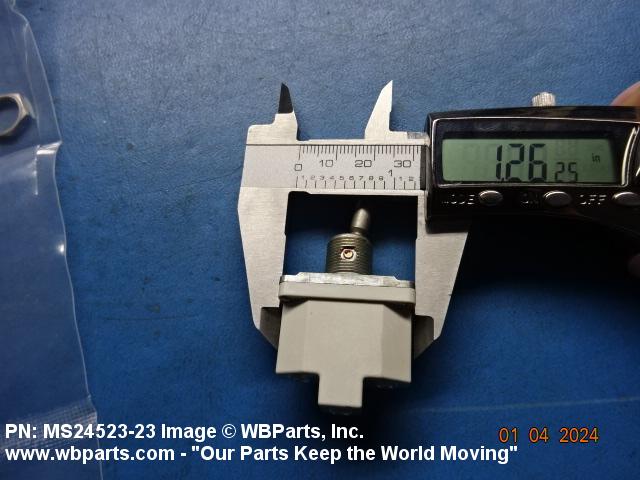

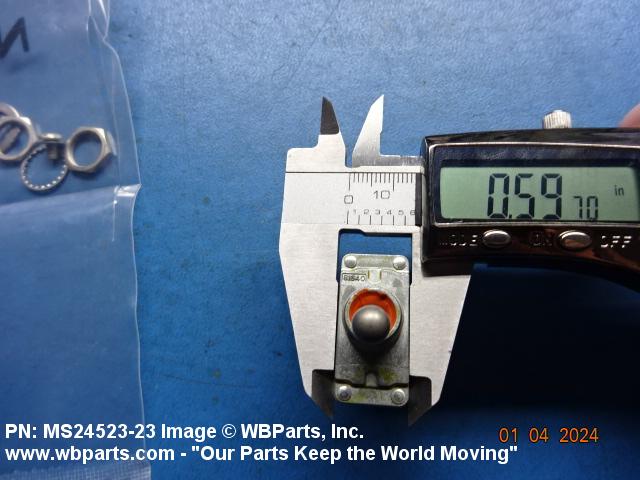

| BODY LENGTH | 1.270 INCHES MAXIMUM |
| BODY WIDTH | 0.635 INCHES MAXIMUM |
| BODY HEIGHT | 0.910 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.180 INCHES MAXIMUM |
| OVERALL LENGTH | 1.270 INCHES MAXIMUM |
| OVERALL WIDTH | 0.635 INCHES MAXIMUM |

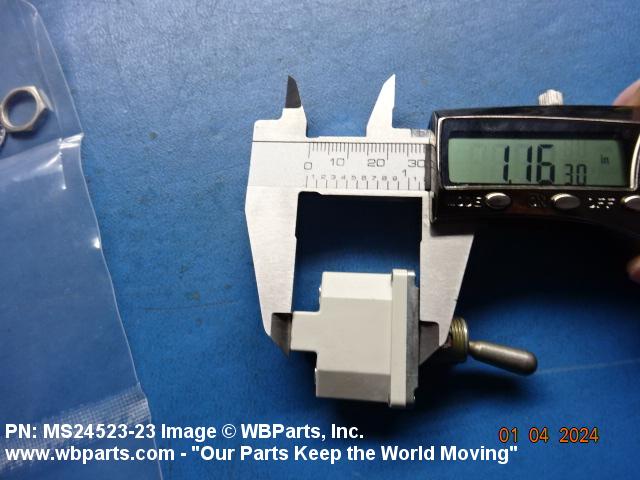

| OVERALL HEIGHT | 1.160 INCHES NOMINAL |
