5930-01-047-4789 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 1277, 5930-01-047-4789, 01-047-4789, 5930010474789, 010474789
Electrical and Electronic Equipment Components | Switches
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 09 SEP 1977 | 01-047-4789 | 00406 ( SWITCH, PUSH ) |
Cross Reference | NSN 5930-01-047-4789
Part Number | Cage Code | Manufacturer |
---|---|---|
1277 | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5930-01-047-4789
Technical Data | NSN 5930-01-047-4789
Characteristic | Specifications |
---|---|
NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC |
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES INDUCTIVE AC |
BODY STYLE | 27K HOLE MOUNT |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.281 INCHES NOMINAL |
BODY LENGTH | 2.375 INCHES NOMINAL |
BODY WIDTH | 1.500 INCHES NOMINAL |
BODY HEIGHT | 0.968 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN COVER PLATE MOUNTING HOLES | 2.437 INCHES NOMINAL |

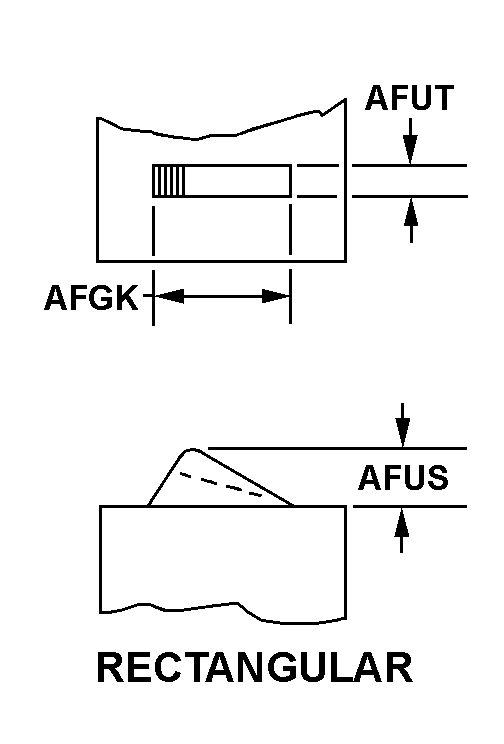

ACTUATOR STYLE | 16 RECTANGULAR |
ACTUATOR COLOR | RED SINGLE ACTUATOR |
ILLUMINATED ACTUATOR COLOR | RED SINGLE ACTUATOR |
TERMINAL TYPE AND QUANTITY | 4 SCREW |
INCLOSURE TYPE | FULLY INCLOSED |
III CASE MATERIAL | PLASTIC |
III OVERALL WIDTH | 1.500 INCHES NOMINAL |
