NSN 5930-01-042-5631 SS-93, SS93, 31011595
Product Details | SLIDE SWITCH
5930-01-042-5631 A switch designed to be actuated by the sliding of a button, bar, or knob.
Part Alternates: SS-93, SS93, 31011595, 3101-1595, 5930-01-042-5631, 01-042-5631, 5930010425631, 010425631
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUN 1977 | 01-042-5631 | 00400 ( SWITCH, SLIDE ) |

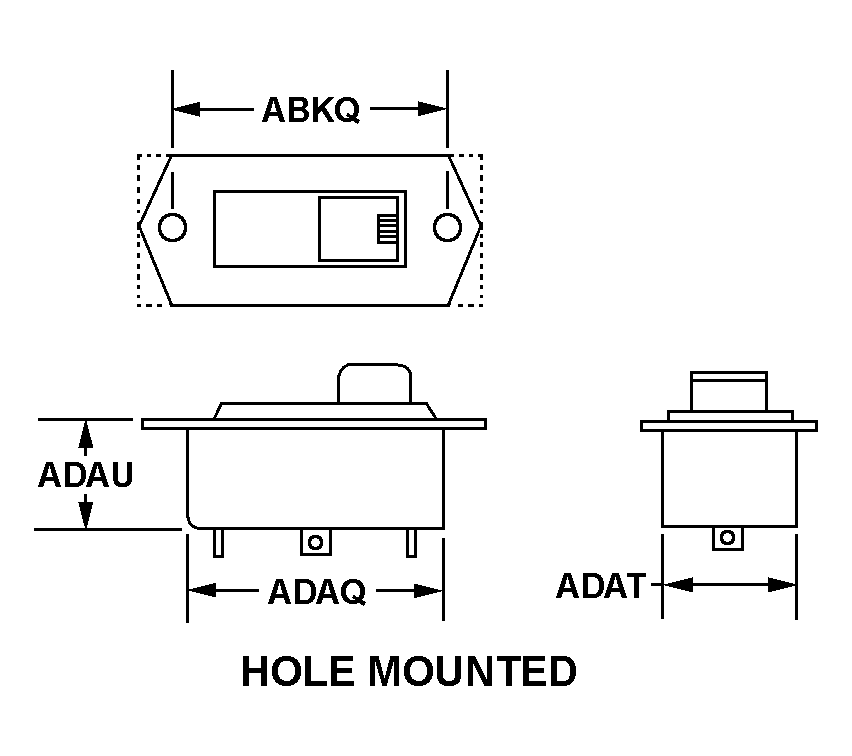

Drawings & Photos | NSN 5930-01-042-5631
Demand History | NSN 5930-01-042-5631
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-042-5631 | 2012-06-163 | 2 | South Korea |
| 5930-01-042-5631 | 2012-05-152 | 2 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-042-5631
Related Products | NSN 5930-01-042-5631
Technical Data | NSN 5930-01-042-5631
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.000 AMPERES RESISTIVE AC |
| BODY STYLE | 6N HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 0.800 INCHES NOMINAL |
| BODY HEIGHT | 0.260 INCHES NOMINAL |
| ACTUATOR LENGTH | 0.200 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.330 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | CENTER POSITION MAINTAINED AND LEFT POSITION MAINTAINED AND RIGHT POSITION MAINTAINED |
| ACTUATOR COLOR | BLACK SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| SPECIAL FEATURES | VALUE SORT OUTLINE DWG NO. 19 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS SILVER |
| MANUFACTURERS CODE | 1LQK8 |
| DESIGN CONTROL REFERENCE | 3101-1595 |
Restrictions/Controls & Freight Information | NSN 5930-01-042-5631
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063250 | SWITCHES AIR-BREAK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
