NSN 5930-01-041-3696 JV9033, 01-041-3696, 010413696
Product Details | ROTARY SWITCH
5930-01-041-3696 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: JV9033, 5930-01-041-3696, 01-041-3696, 5930010413696, 010413696
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAY 1977 | 01-041-3696 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-041-3696
Demand History | NSN 5930-01-041-3696
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-041-3696 | 2014-05-142 | 1 | CA |
Cross Reference | NSN 5930-01-041-3696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JV9033 | 71590 | CRL COMPONENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-041-3696
Related Products | NSN 5930-01-041-3696
Technical Data | NSN 5930-01-041-3696
| Characteristic | Specifications |
|---|---|

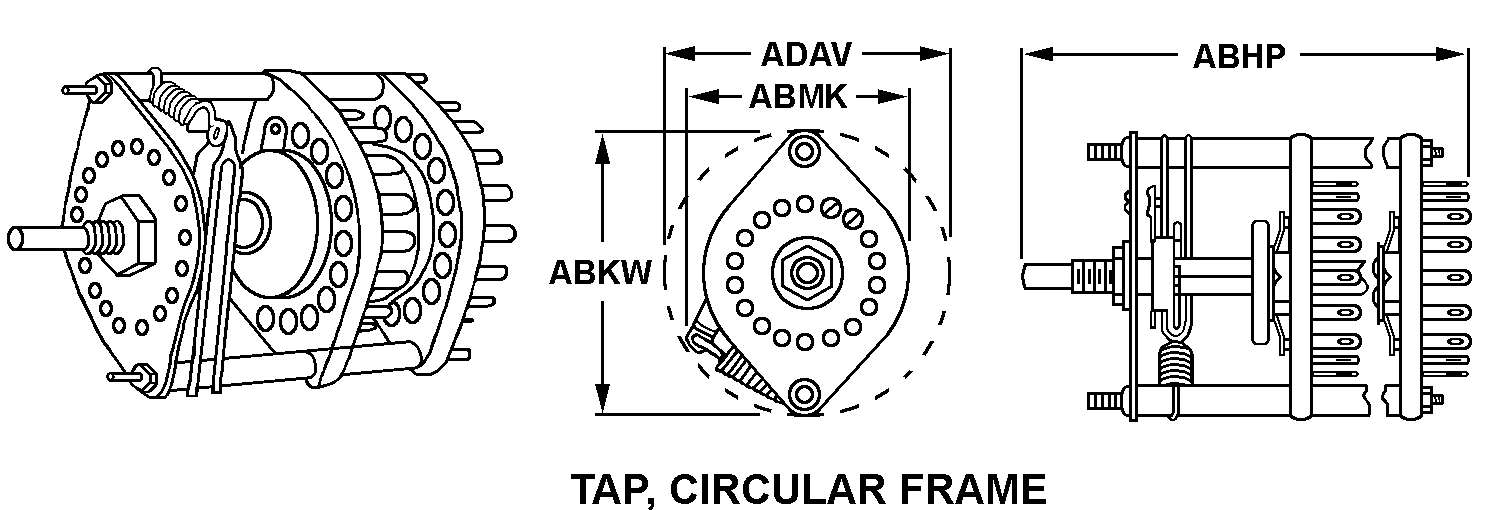

| STYLE DESIGNATOR | 10 TAP, CIRCULAR FRAME |
| OVERALL LENGTH | 5.620 INCHES NOMINAL |
| OVERALL HEIGHT | 2.812 INCHES NOMINAL |
| OVERALL DIAMETER | 1.875 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 SINGLE SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 20.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, V FLATTED SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 2.250 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
