NSN 5930-01-034-1901 MS750751, MS75075-1, MILDTL83731
Product Details | TOGGLE SWITCH
5930-01-034-1901 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS750751, MS75075-1, MILDTL83731, MIL-DTL-83731, MILS83731, MIL-S-83731, 5930-01-034-1901, 01-034-1901, 5930010341901, 010341901
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JAN 1977 | 01-034-1901 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-034-1901
Demand History | NSN 5930-01-034-1901
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-034-1901 | 2008-05-123 | 31 | DIBBS |
| 5930-01-034-1901 | 2008-03-79 | 32 | DIBBS |
| 5930-01-034-1901 | 2008-03-79 | 26 | DIBBS |
| 5930-01-034-1901 | 2007-04-117 | 42 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-034-1901
Related Products | NSN 5930-01-034-1901
Technical Data | NSN 5930-01-034-1901
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 2.500 AMPERES INDUCTIVE DC AND 1.500 AMPERES RESISTIVE AC |
| BODY STYLE | 4P BUSHING MOUNT |
| BUSHING LENGTH | 0.250 INCHES NOMINAL |
| BODY LENGTH | 0.515 INCHES MAXIMUM |
| BODY WIDTH | 0.515 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.525 INCHES MAXIMUM |

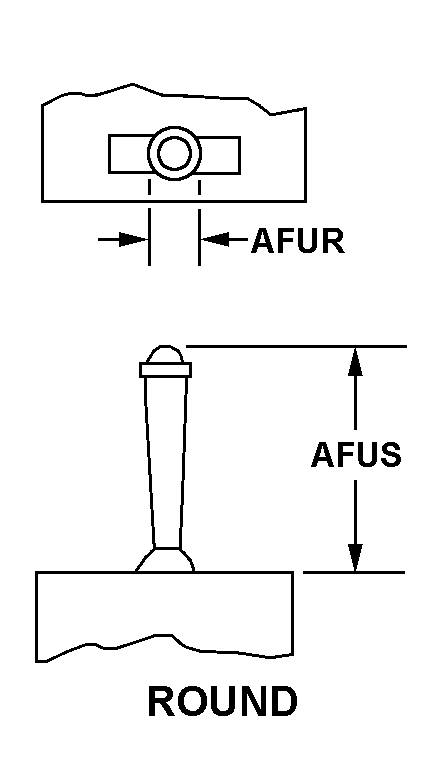

| ACTUATOR STYLE | 24 ROUND |
| ACTUATOR DIAMETER | 0.078 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.390 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 6 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| TEST DATA DOCUMENT | 81349-MIL-DTL-83731 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-83731 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS75075-1 |
Restrictions/Controls & Freight Information | NSN 5930-01-034-1901
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
