NSN 5930-01-028-0400 81727LQ61, 01-028-0400, 010280400
Product Details | LOCK SWITCH
5930-01-028-0400 A switch which is externally actuated by a key designed to be inserted into a switch, or actuated by a predetermined combination dial setting(s). Excludes SWITCH, LOCK, IGNITION.
Part Alternates: 81727LQ61, 5930-01-028-0400, 01-028-0400, 5930010280400, 010280400
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 SEP 1976 | 01-028-0400 | 00401 ( SWITCH, LOCK ) |
Drawings & Photos | NSN 5930-01-028-0400
Cross Reference | NSN 5930-01-028-0400
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81727LQ61 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-028-0400
Related Products | NSN 5930-01-028-0400
Technical Data | NSN 5930-01-028-0400
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |

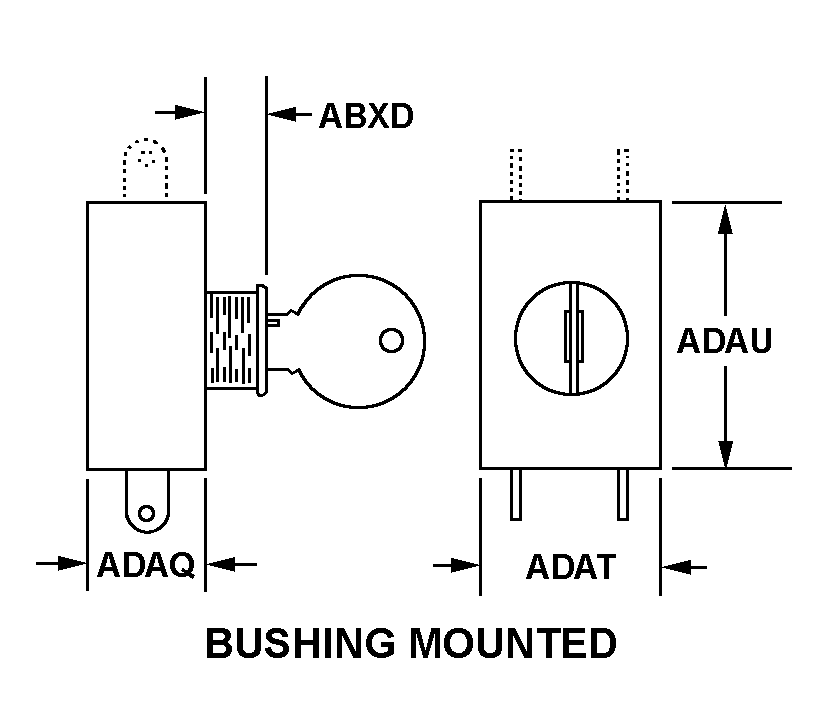

| BODY STYLE | 7H BUSHING MOUNTED |
| BUSHING LENGTH | 0.703 INCHES NOMINAL |
| BODY LENGTH | 0.781 INCHES NOMINAL |
| BODY WIDTH | 0.906 INCHES NOMINAL |
| BODY HEIGHT | 1.109 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
