NSN 5930-01-015-1298 21202, 01-015-1298, 010151298
Product Details | PRESSURE SWITCH
5930-01-015-1298 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 21202, 5930-01-015-1298, 01-015-1298, 5930010151298, 010151298
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JAN 1976 | 01-015-1298 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-01-015-1298
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-015-1298
Technical Data | NSN 5930-01-015-1298
| Characteristic | Specifications |
|---|---|

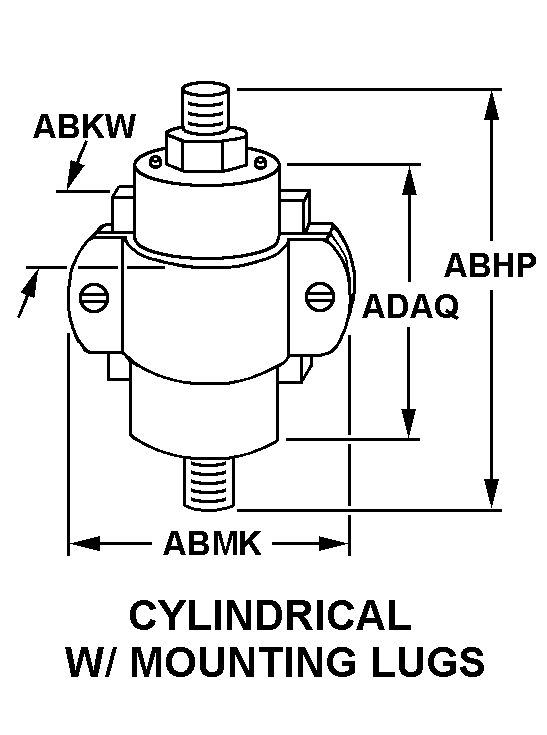

| STYLE DESIGNATOR | 42 CYLINDRICAL W/MOUNTING LUGS |
| OVERALL LENGTH | 4.120 INCHES NOMINAL |
| OVERALL HEIGHT | 1.870 INCHES NOMINAL |
| OVERALL WIDTH | 3.625 INCHES NOMINAL |
| BODY DIAMETER | 1.620 INCHES NOMINAL |
| BODY LENGTH | 2.750 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | ABSOLUTE |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 800.00 TO 1400.00 ACTUATION POINT POUNDS PER SQUARE INCH GAGE AND 800.00 TO 1400.00 DEACTUATION POINT POUNDS PER SQUARE INCH GAGE |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT STIMULUS RATING | 1000.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 30.0 DC AT SEA LEVEL SECOND VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 4500.00 POUNDS PER SQUARE INCH GAGE |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | UNTHREADED HOLE AND FLANGE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.196 INCHES NOMINAL |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.000 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.620 INCHES NOMINAL |
| THREAD CLASS | 3B FIRST PRESSURE CONNECTION |
| III SENSING ELEMENT BURST PRESSURE | 7500.00 POUNDS PER SQUARE INCH GAGE |
