Product Details | PRESSURE SWITCH

5930-01-014-9530 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.

Part Alternates: B2SA48SS, B2S-A48SS, 5930-01-014-9530, 01-014-9530, 5930010149530, 010149530

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 13 JAN 1976 01-014-9530

Drawings & Photos | NSN 5930-01-014-9530


Demand History | NSN 5930-01-014-9530

Part Number Request Date QTY Origin
5930-01-014-9530 2014-07-191 6 CA

Cross Reference | NSN 5930-01-014-9530

Part Number Cage Code Manufacturer
B2S-A48SS 89326 BARKSDALE INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-014-9530

Technical Data | NSN 5930-01-014-9530

Characteristic Specifications

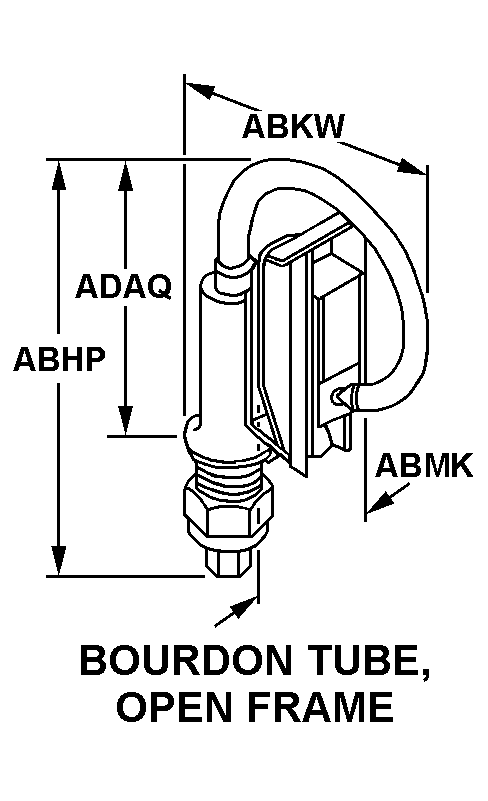

STYLE DESIGNATOR 25 BOURDON TUBE, OPEN FRAME
OVERALL LENGTH 5.000 INCHES MAXIMUM
OVERALL HEIGHT 3.812 INCHES MAXIMUM
OVERALL WIDTH 1.562 INCHES NOMINAL
BODY LENGTH 3.813 INCHES NOMINAL
PRESSURE SWITCH TYPE GAGE
NONPILE-UP CONTACT ARRANGEMENT 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
CONTACT ACTION STIMULUS INCREASE
CONTACT ADJUSTABILITY DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE
CONTACT ADJUSTMENT RANGE 325.00 TO 4800.00 ACTUATION POINT POUNDS PER SQUARE INCH AND 240.00 TO 4715.00 DEACTUATION POINT POUNDS PER SQUARE INCH
CONTACT ADJUSTMENT TYPE EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW
CONTACT VOLTAGE RATING IN VOLTS 480.0 AC AT SEA LEVEL FIRST VOLTAGE 24.0 DC AT SEA LEVEL SECOND VOLTAGE
FREQUENCY IN HERTZ 400.0 FIRST VOLTAGE
CONTACT LOAD CURRENT RATING 3.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 500.0 MILLIAMPERES RESISTIVE LOAD SECOND VOLTAGE
MEDIA FOR WHICH DESIGNED GAS OR LIQUID
PROOF PRESSURE 6000.00 POUNDS PER SQUARE INCH
TERMINAL TYPE WIRE LEAD
MOUNTING METHOD THREADED BUSHING
THREAD SERIES DESIGNATOR UNF SINGLE THREADED BUSHING
NOMINAL THREAD SIZE 1.000 INCHES SINGLE THREADED BUSHING
THREAD CLASS 2A SINGLE THREADED BUSHING
THREAD QUANTITY PER INCH 14 SINGLE THREADED BUSHING
SPECIAL FEATURES STAINLESS STEEL MATERIAL
