NSN 5930-01-014-6995 QMQB1022, QMQB1032, QMQB1032R
Product Details | BOX SWITCH
5930-01-014-6995 A switch designed with its actuator extending from the box which incloses the circuit elements. The door or cover of the box is designed so that it may be readily opened or removed, thus providing relatively easy access to the circuit elements. The item is commonly designated as a safety switch or entrance switch. May be fusible and may have interlocking device.
Part Alternates: QMQB1022, QMQB1032, QMQB1032R, 5930-01-014-6995, 01-014-6995, 5930010146995, 010146995
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 DEC 1975 | 01-014-6995 | 02636 ( SWITCH, BOX ) |

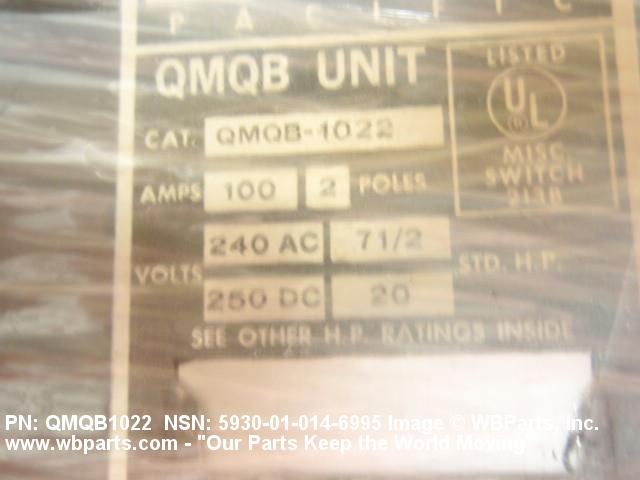

Drawings & Photos | NSN 5930-01-014-6995
Demand History | NSN 5930-01-014-6995
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-014-6995 | 2020-10-301 | 27 | US |
| 5930-01-014-6995 | 2018-12-345 | 5 | US |
| QMQB1022 | 2017-11-306 | 5 | US |
| QMQB1022 | 2010-07-202 | 3 | United States |
| QMQB1022 | 2010-07-200 | 1 | United States |
| QMQB1022 | 2010-04-111 | 1 | United States |
| QMQB1022 | 2010-04-104 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-014-6995
Technical Data | NSN 5930-01-014-6995
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 240.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 100.000 AMPERES RESISTIVE DC AND 100.000 AMPERES RESISTIVE AC |

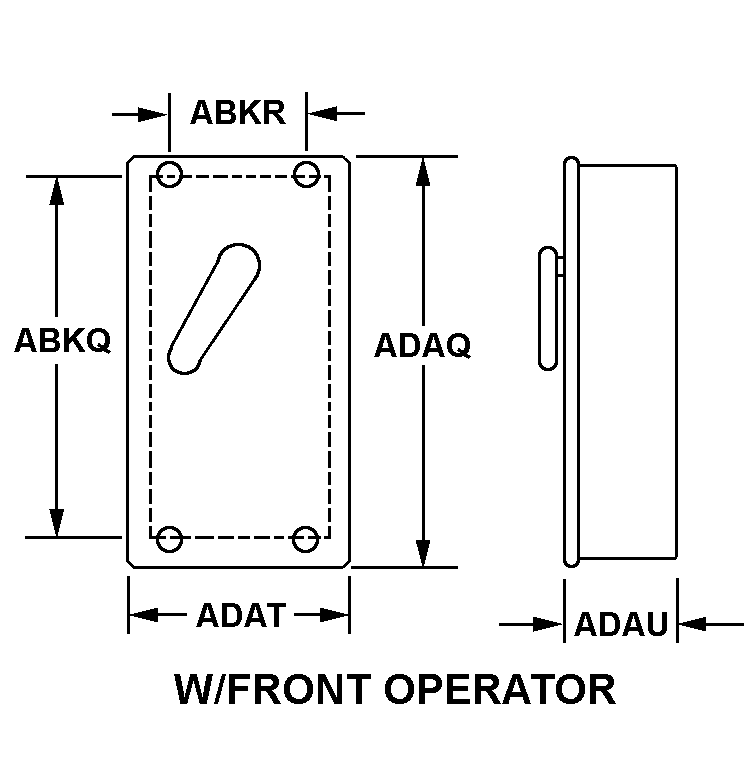

| BODY STYLE | 2B WITH FRONT OPERATOR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 4.500 INCHES NOMINAL |
| BODY LENGTH | 14.500 INCHES NOMINAL |
| BODY WIDTH | 5.437 INCHES NOMINAL |
| BODY HEIGHT | 5.062 INCHES NOMINAL |

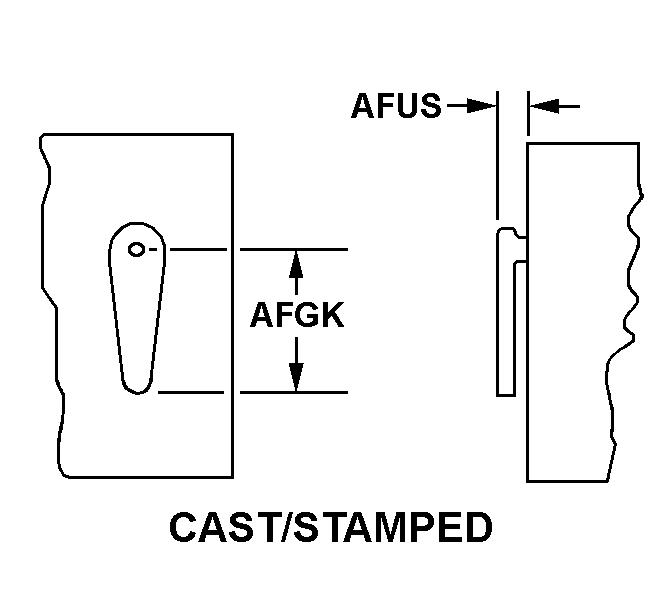

| ACTUATOR STYLE | 39 CAST/STAMPED |
| ACTUATOR LENGTH | 2.625 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| FEATURES PROVIDED | CARTRIDGE FUSEHOLDER |
| SPECIAL FEATURES | COVER CAN BE PADLOCKED ALSO HANDLE CAN BE LOCKED WITH AS MANY AS 3 PADLOCKS |
| III ELECTRICAL POWER RATING AT MAXIMUM AC VOLTAGE RATING | 7.5 HORSEPOWER |
| III END ITEM IDENTIFICATION | MEDIUM INTENSITY APPROACH LIGHTING SYSTEM, FA8767 (MALS) |
Restrictions/Controls & Freight Information | NSN 5930-01-014-6995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
