NSN 5930-01-014-6227 50C450124N, 50C45-01-2-4N, 01-014-6227
Product Details | ROTARY SWITCH
5930-01-014-6227 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 50C450124N, 50C45-01-2-4N, 5930-01-014-6227, 01-014-6227, 5930010146227, 010146227
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 DEC 1975 | 01-014-6227 | 02134 ( SWITCH, ROTARY ) |

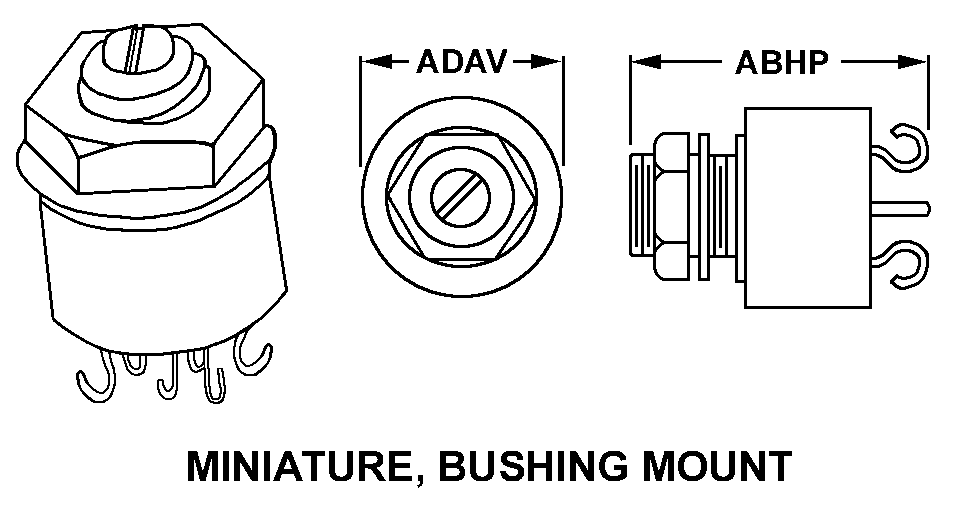

Drawings & Photos | NSN 5930-01-014-6227
Cross Reference | NSN 5930-01-014-6227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50C45-01-2-4N | 81073 | GRAYHILL, INC |
