NSN 5930-01-010-0577 M5NCF, F6E5J3A30008UAG, 2605920
Product Details | PRESSURE SWITCH
5930-01-010-0577 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: M5NCF, F6E5J3A30008UAG, 2605920, 5930-01-010-0577, 01-010-0577, 5930010100577, 010100577
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 SEP 1975 | 01-010-0577 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-01-010-0577
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-010-0577
Related Products | NSN 5930-01-010-0577
Technical Data | NSN 5930-01-010-0577
| Characteristic | Specifications |
|---|---|

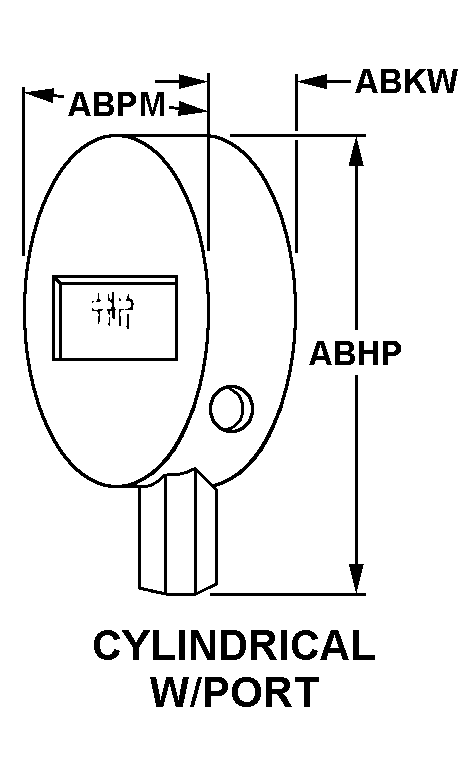

| STYLE DESIGNATOR | 26 CYLINDRICAL W/PORT |
| OVERALL LENGTH | 6.219 INCHES NOMINAL |
| OVERALL HEIGHT | 2.109 INCHES NOMINAL |
| BODY DIAMETER | 5.875 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| CONTACT VOLTAGE RATING IN VOLTS | 250.0 AC AT SEA LEVEL FIRST VOLTAGE 125.0 AC AT SEA LEVEL SECOND VOLTAGE 30.0 DC AT SEA LEVEL THIRD VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 5.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE 5.0 AMPERES RESISTIVE LOAD AND 3.0 AMPERES INDUCTIVE LOAD THIRD VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | FLUSH |
| MANUFACTURERS CODE | 30003 |
| DESIGN CONTROL REFERENCE | 2605920 |
Restrictions/Controls & Freight Information | NSN 5930-01-010-0577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
