NSN 5930-00-961-7984 MS2465823G, MS24658-23G, MILDTL3950
Product Details | TOGGLE SWITCH
5930-00-961-7984 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS2465823G, MS24658-23G, MILDTL3950, MIL-DTL-3950, 7S2465823G, 7S24658-23G, 1TL13G, 1TL1-3G, 5930-00-961-7984, 00-961-7984, 5930009617984, 009617984
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-961-7984 | 00184 ( SWITCH, TOGGLE ) |

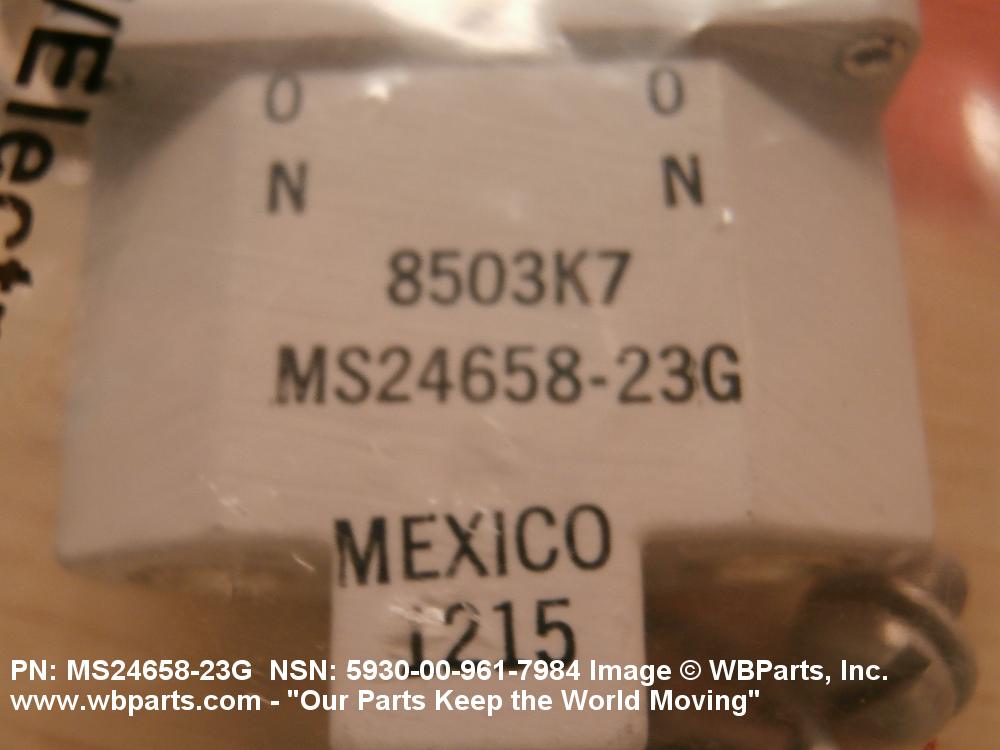

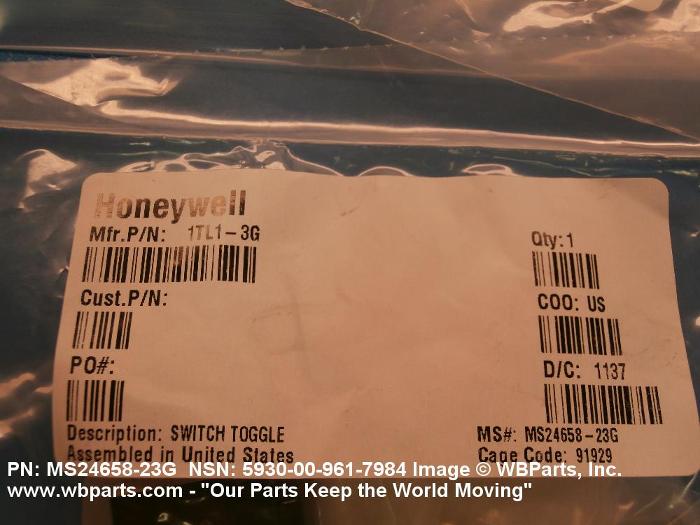

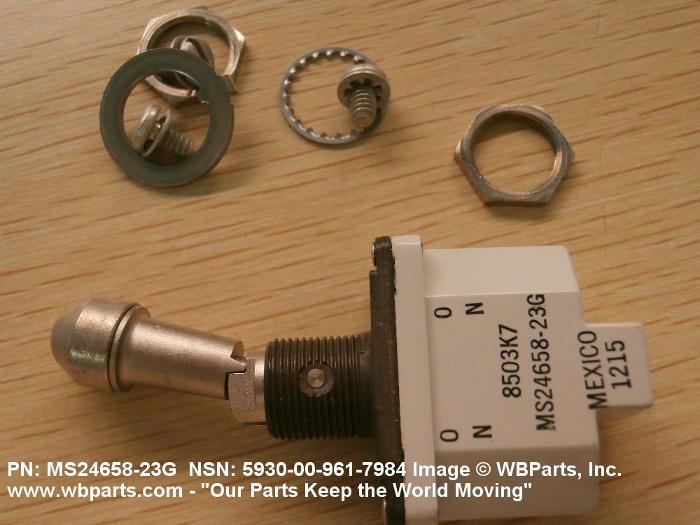

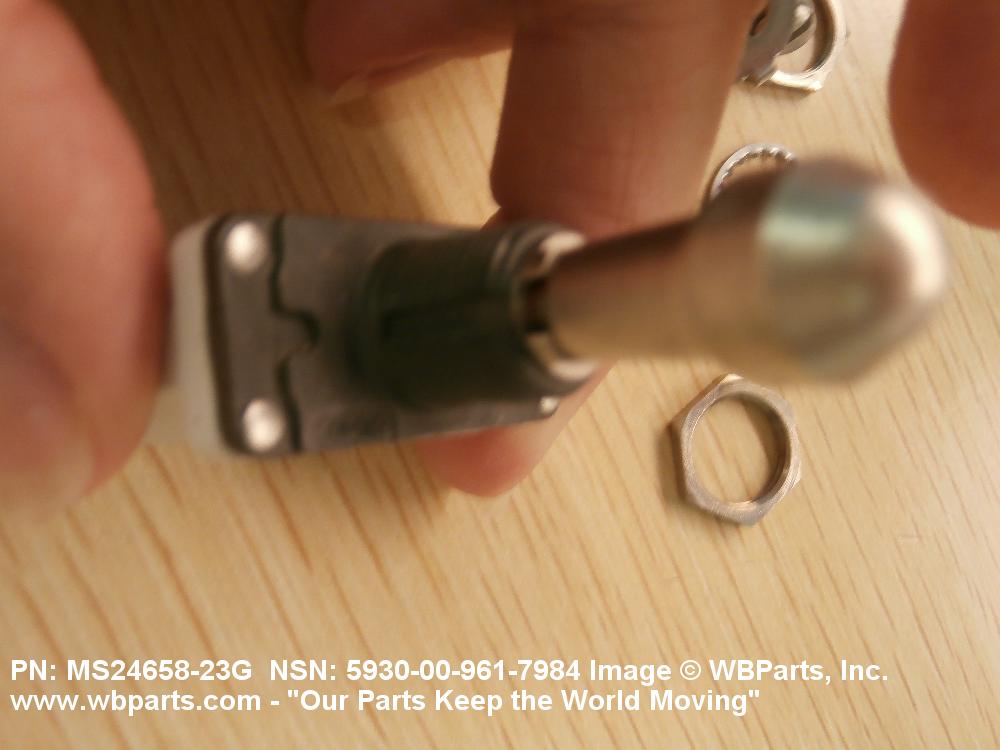

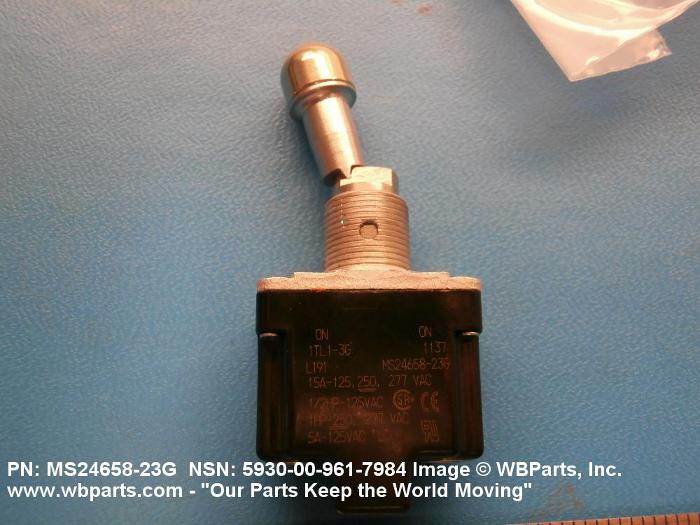

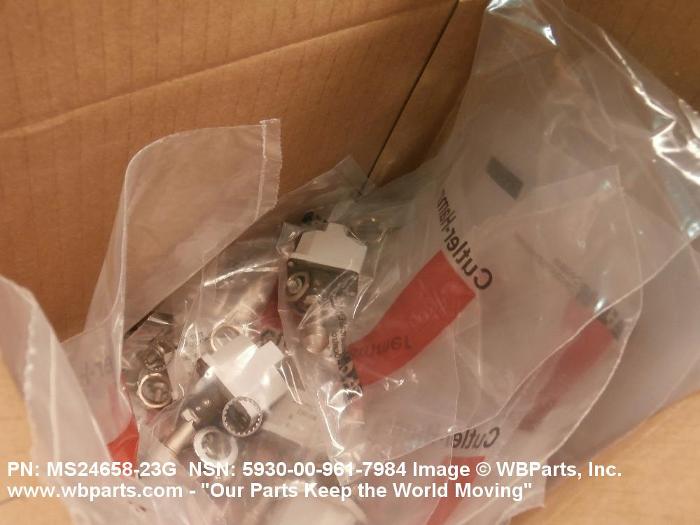

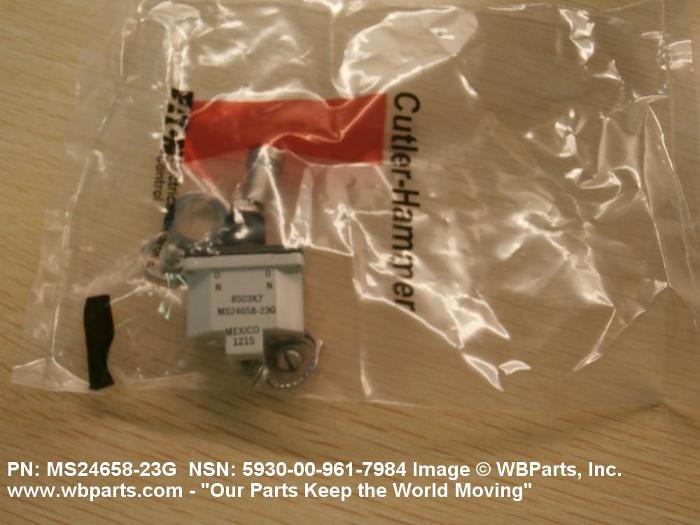

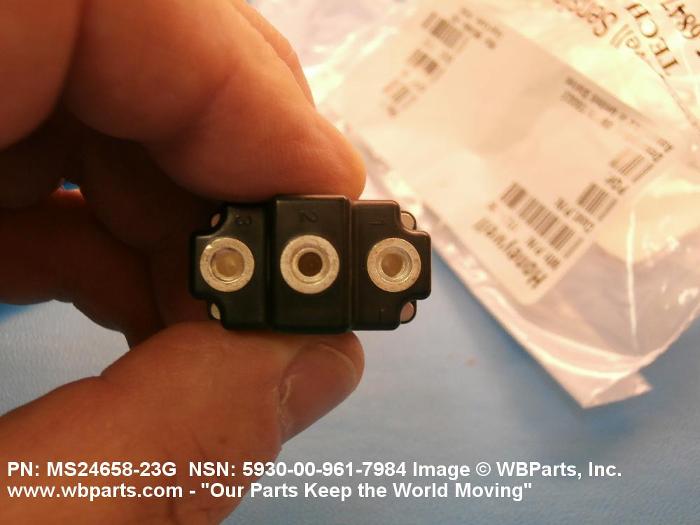

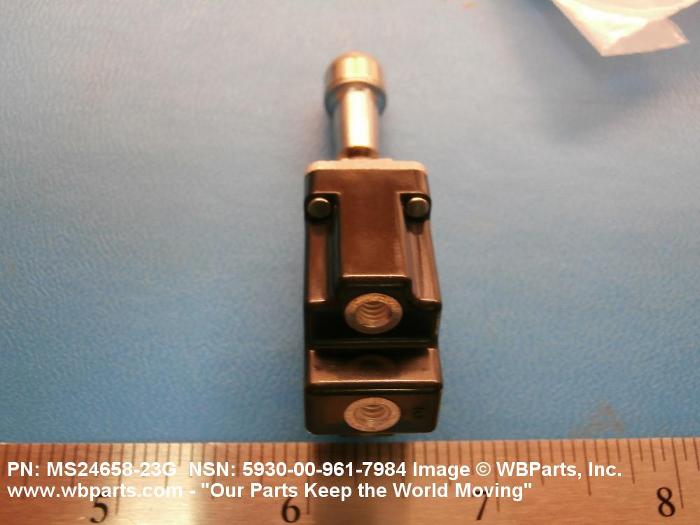

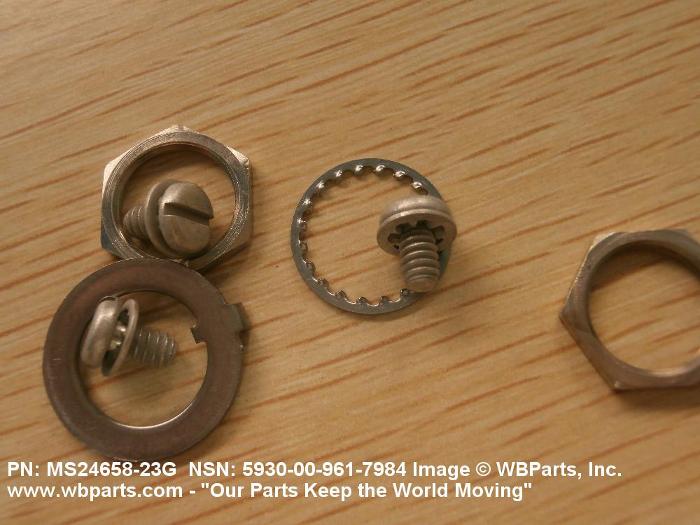

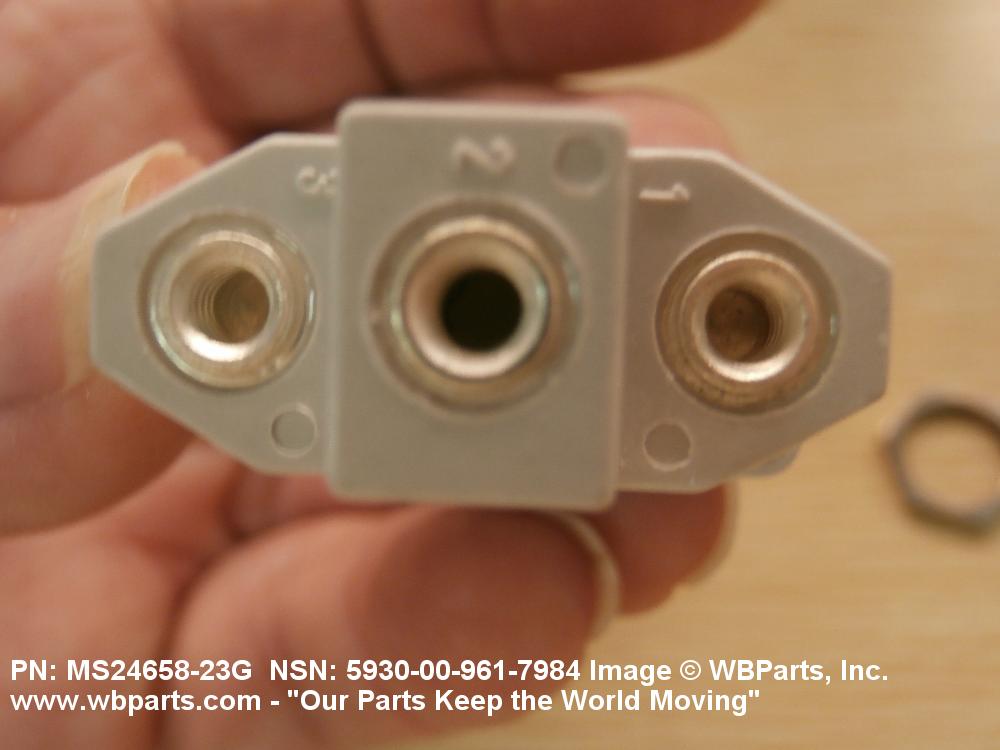

Drawings & Photos | NSN 5930-00-961-7984
Demand History | NSN 5930-00-961-7984
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-961-7984 | 2019-03-67 | 6 | MANUAL |
| 5930-00-961-7984 | 2016-10-298 | 178 | DIBBS |
| 5930-00-961-7984 | 2016-10-286 | 178 | DIBBS |
| 5930-00-961-7984 | 2016-10-285 | 95 | DIBBS |
| 5930-00-961-7984 | 2016-09-273 | 95 | DIBBS |
| MS24658-23G | 2015-04-91 | 20 | Greece |
| MS2465823G | 2013-03-70 | 4 | United States |
| MS2465823G | 2012-08-234 | 2 | United States |
| MS24658-23G | 2012-08-223 | 2 | United States |
| 5930-00-961-7984 | 2012-07-202 | 19 | United States |
| 5930-00-961-7984 | 2011-05-139 | 27 | DIBBS |
| 5930-00-961-7984 | 2010-10-299 | 17 | DIBBS |
| 5930-00-961-7984 | 2010-03-69 | 46 | DIBBS |
| 5930-00-961-7984 | 2007-07-193 | 66 | DIBBS |
Cross Reference | NSN 5930-00-961-7984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1TL1-3G | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 7S24658-23G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MIL-DTL-3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24658-23G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-961-7984
Related Products | NSN 5930-00-961-7984
Technical Data | NSN 5930-00-961-7984
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 20.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC |
| BODY STYLE | 5P BUSHING MOUNT |
| BUSHING LENGTH | 0.450 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |
| BODY LENGTH | 1.270 INCHES MAXIMUM |
| BODY WIDTH | 0.635 INCHES MAXIMUM |
| BODY HEIGHT | 0.910 INCHES MAXIMUM |
| OVERALL LENGTH | 1.270 INCHES MAXIMUM |
| ACTUATOR STYLE | 26 ROUND |
| ACTUATOR DIAMETER | 0.400 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 1.135 INCHES MINIMUM AND 1.145 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| ACTUATOR POSITION-LOCKING RELATIONSHIP | UP POSITION NO LOCKING ACTION AND DOWN POSITION LOCKED IN |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SUBMERSIBLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD PITCH DIAMETERS | 0.4752 TO 0.4787 INCHES |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| TEST DATA DOCUMENT | 81349-MILS3950 SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | MH-53E, HH-53H & UH-1 HELICOPTER; C-141 & F-111 AIRCRAFT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3950 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24658-23G |
Restrictions/Controls & Freight Information | NSN 5930-00-961-7984
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-961-7984
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
