NSN 5930-00-892-9657 160024L, 00-892-9657, 008929657
Product Details | LEVER SWITCH
5930-00-892-9657 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Part Alternates: 160024L, 5930-00-892-9657, 00-892-9657, 5930008929657, 008929657
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-892-9657 | 00175 ( SWITCH, LEVER ) |

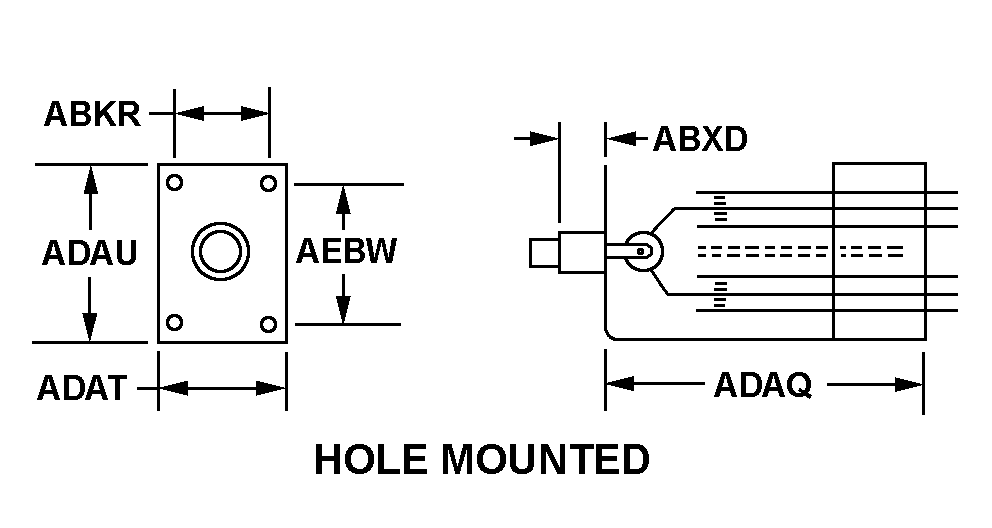

Drawings & Photos | NSN 5930-00-892-9657
Cross Reference | NSN 5930-00-892-9657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160024L | 82389 | SWITCHCRAFT INC. |
