NSN 5930-00-890-9486 10-40048-12, 00-890-9486, 104004812

5930-00-890-9486 A switch which is actuated by centrifugal force.

Part Alternates: 10-40048-12, 5930-00-890-9486, 00-890-9486, 5930008909486, 104004812, 008909486

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 APR 1968	00-890-9486	00173 ( SWITCH, CENTRIFUGAL )

Part Number	Cage Code	Manufacturer
10-40048-12	23090	STEWARD DAVIS INTERNATIONAL INC
10-40048-12	81205	THE BOEING COMPANY DBA BOEING

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5930-00-890-9486

Compare

5930-00-890-9494, 5930-00-890-9496, 5930-00-890-9497, 5930-00-890-9498, 5930-00-890-9513

Characteristic	Specifications

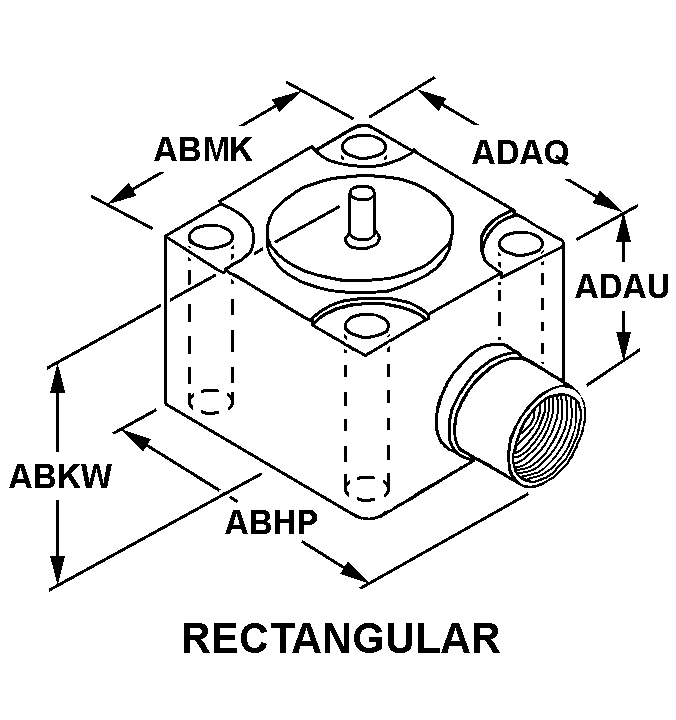

STYLE DESIGNATOR	8 RECTANGULAR
BODY HEIGHT	2.670 INCHES NOMINAL
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, DOUBLE BREAK/DOUBLE MAKE, PERMANENT JUMPER, ONE POSITION MOMENTARY
CONTACT ADJUSTABILITY	ACTUATION POINT NOT ADJUSTABLE
CONTACT VOLTAGE RATING IN VOLTS	30.0 DC AT SEA LEVEL SINGLE VOLTAGE
CONTACT LOAD CURRENT RATING	5.0 AMPERES RESISTIVE LOAD AND 3.0 AMPERES INDUCTIVE LOAD SINGLE VOLTAGE
TERMINAL TYPE	CONNECTOR, RECEPTACLE
MOUNTING METHOD	FLANGE AND UNTHREADED HOLE
MOUNTING FACILITY PATTERN	FOUR POSITION RECTANGULAR
SPECIAL FEATURES	SWITCH 1 ACTUATES AT 1200 RPM; SWITCH 2 ACTUATES AT 3900 RPM

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	723	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
