NSN 5930-00-890-9466 BMW-2, UEE 9907, UEE9907
Product Details | PRESSURE SWITCH
5930-00-890-9466 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: BMW-2, UEE 9907, UEE9907, 9016BMW2F, 9016GAW21F, BMW2, 5930-00-890-9466, 00-890-9466, 5930008909466, 008909466
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 APR 1968 | 00-890-9466 | 00206 ( SWITCH, PRESSURE ) |

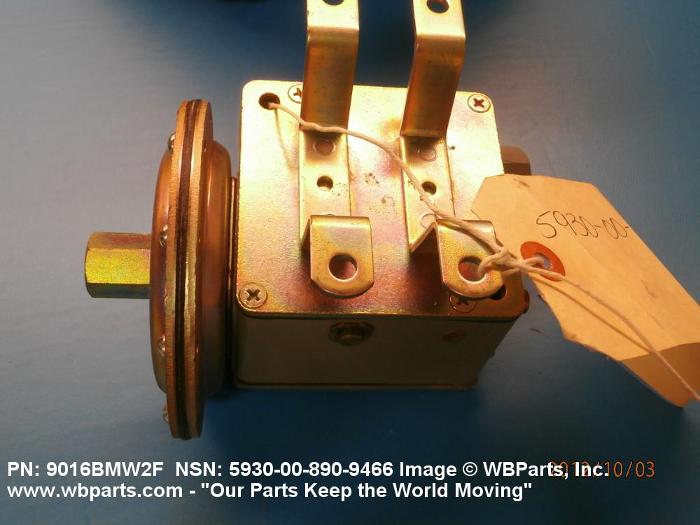

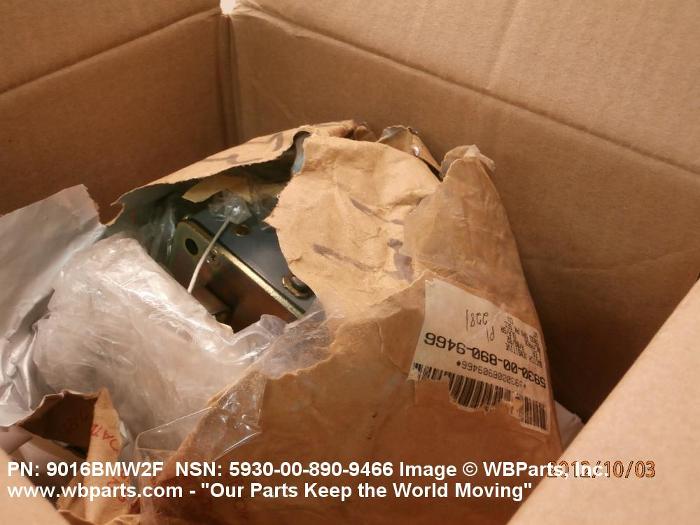

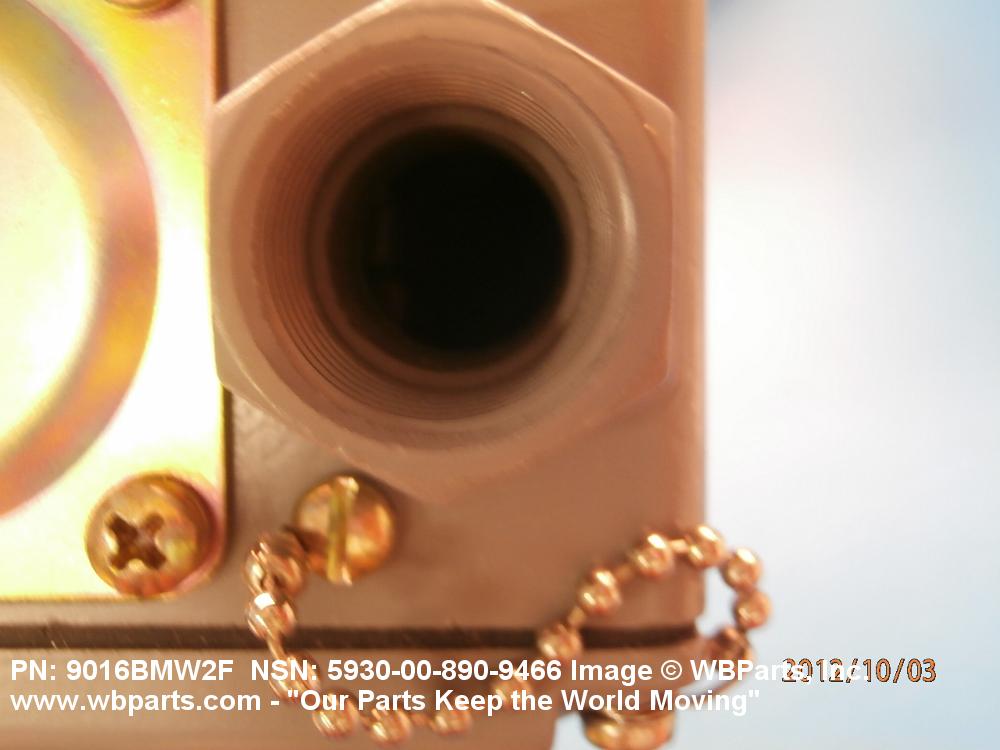

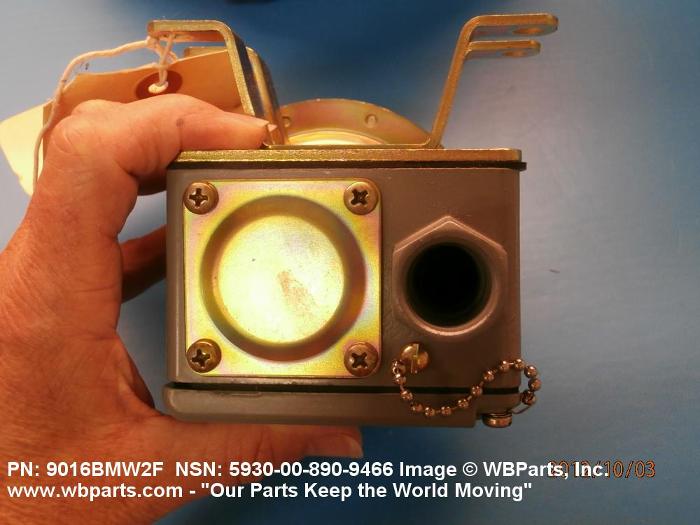

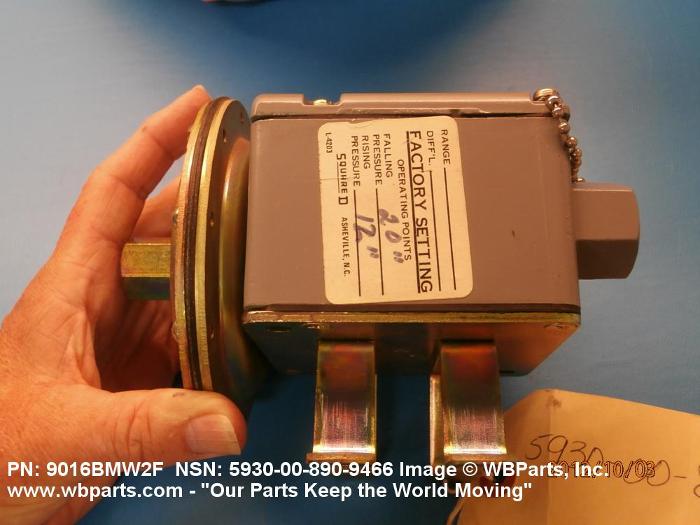

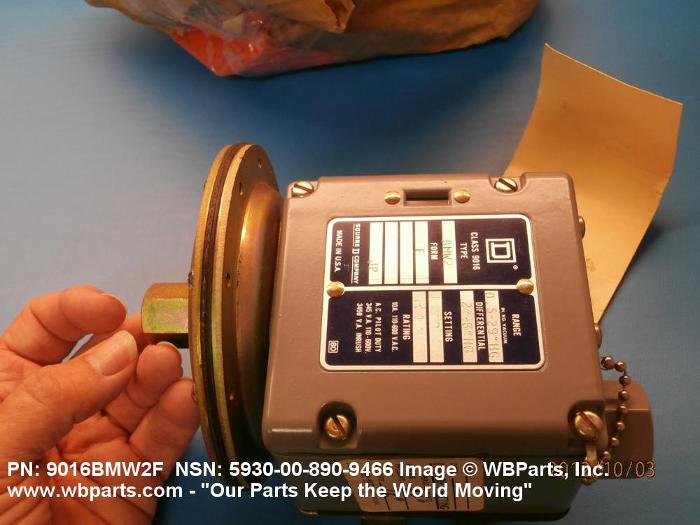

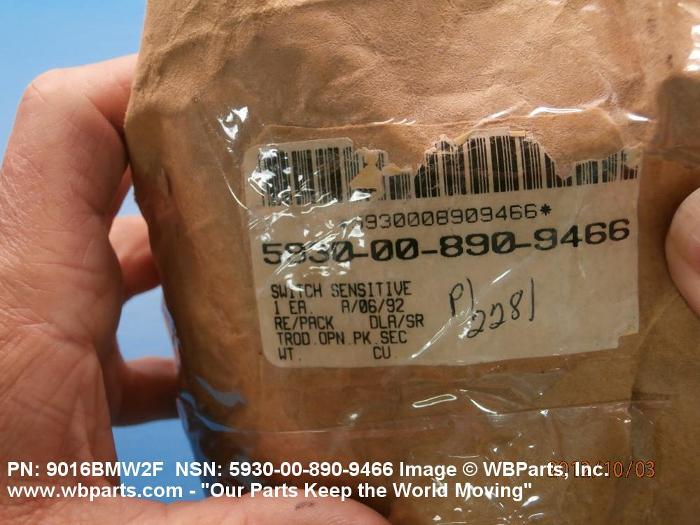

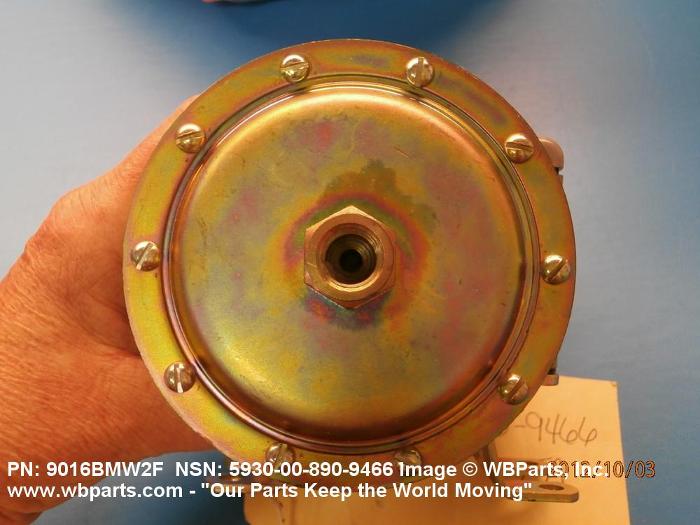

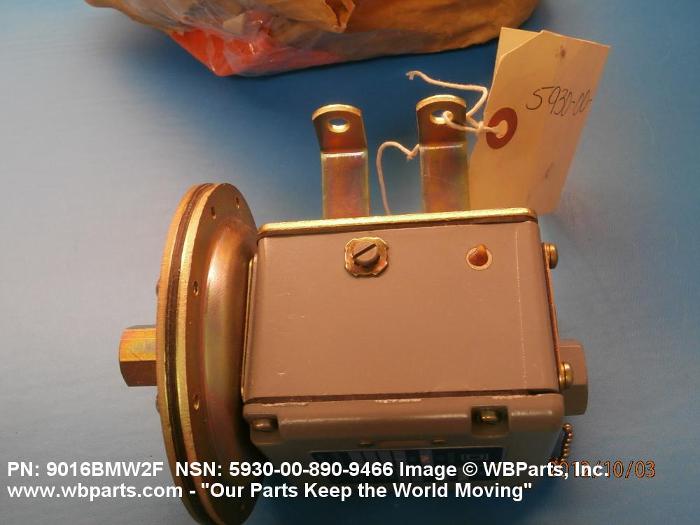

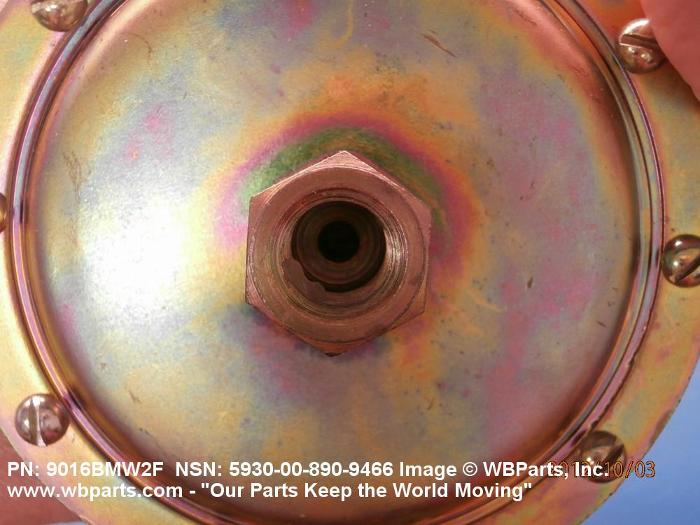

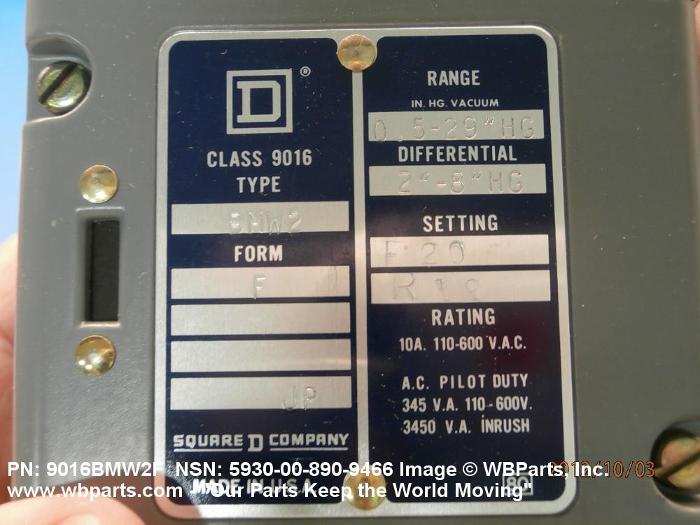

Drawings & Photos | NSN 5930-00-890-9466
Demand History | NSN 5930-00-890-9466
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-890-9466 | 2015-11-330 | 15 | DIBBS |
| 9016BMW2F | 2012-09-259 | 1 | United States |
| 5930-00-890-9466 | 2009-08-226 | 5 | DIBBS |
| 5930-00-890-9466 | 2009-07-203 | 3 | DIBBS |
| 5930-00-890-9466 | 2008-08-233 | 4 | DIBBS |
Cross Reference | NSN 5930-00-890-9466
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9016BMW2F | 14280 | SCHNEIDER ELECTRIC USA, INC. DBA SCHNEIDER ELECTRIC |
| 9016GAW21F | 14280 | SCHNEIDER ELECTRIC USA, INC. DBA SCHNEIDER ELECTRIC |
| 9016GAW21F | 51917 | SCHNEIDER ELECTRIC USA, INC DBA SCHNEIDER ELECTRIC |
| 9016GAW21F | 51918 | SCHNEIDER ELECTRIC USA, INC. |
| BMW-2 | 56365 | SCHNEIDER ELECTRIC USA, INC. DBA SCHNEIDER ELECTRIC |
| UEE 9907 | 42280 | NASH ENGINEERING COMPANY INC THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-890-9466
Related Products | NSN 5930-00-890-9466
Technical Data | NSN 5930-00-890-9466
| Characteristic | Specifications |
|---|---|

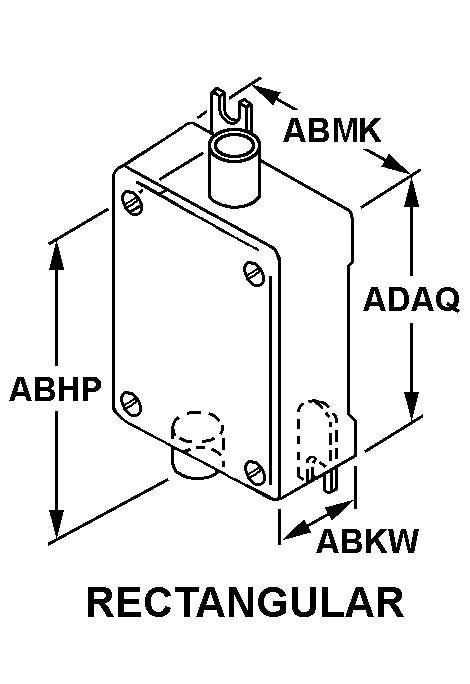

| STYLE DESIGNATOR | 28 RECTANGULAR |
| OVERALL LENGTH | 6.156 INCHES NOMINAL |
| OVERALL WIDTH | 4.813 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | ABSOLUTE |
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 0.50 TO 29.00 DEACTUATION POINT INCHES OF MERCURY |
| CONTACT ADJUSTMENT TYPE | INTERNAL DEACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 230.0 AC AT SEA LEVEL SECOND VOLTAGE 460.0 AC AT SEA LEVEL THIRD VOLTAGE 600.0 AC AT SEA LEVEL FOURTH VOLTAGE 115.0 DC AT SEA LEVEL FIFTH VOLTAGE 230.0 DC AT SEA LEVEL SIXTH VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 FIRST VOLTAGE 60.0 SECOND VOLTAGE 60.0 THIRD VOLTAGE 60.0 FOURTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 3.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 1.5 AMPERES RESISTIVE LOAD SECOND VOLTAGE 750.0 MILLIAMPERES RESISTIVE LOAD THIRD VOLTAGE 570.0 MILLIAMPERES RESISTIVE LOAD FOURTH VOLTAGE 0.2 AMPERES RESISTIVE LOAD FIFTH VOLTAGE 0.1 AMPERES RESISTIVE LOAD SIXTH VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS |
| PROOF PRESSURE | 100.00 POUNDS PER SQUARE INCH GAGE |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 18 SINGLE PRESSURE CONNECTION |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
Restrictions/Controls & Freight Information | NSN 5930-00-890-9466
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
