Product Details | PRESSURE SWITCH
5930-00-862-7461 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: C96123HC, C9612-3-H-C, 549013, 549-013, 5930-00-862-7461, 00-862-7461, 5930008627461, 008627461
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 OCT 1967 | 00-862-7461 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-862-7461
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-862-7461
Related Products | NSN 5930-00-862-7461
Technical Data | NSN 5930-00-862-7461
| Characteristic | Specifications |
|---|---|

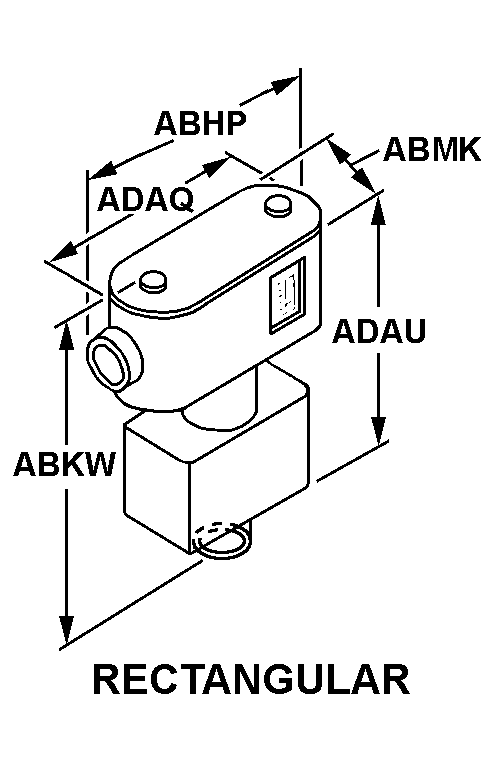

| STYLE DESIGNATOR | 30 RECTANGULAR |
| OVERALL LENGTH | 4.562 INCHES NOMINAL |
| OVERALL HEIGHT | 6.750 INCHES MAXIMUM |
| BODY LENGTH | 2.937 INCHES NOMINAL |
| BODY HEIGHT | 4.375 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 2850.00 TO 3000.00 ACTUATION POINT POUNDS PER SQUARE INCH AND 2450.00 TO 3000.00 DEACTUATION POINT POUNDS PER SQUARE INCH |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT STIMULUS RATING | 400.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH |
| CONTACT VOLTAGE RATING IN VOLTS | 24.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES INDUCTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -67.0 DEG FAHRENHEIT MINIMUM AND 125.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 18 SINGLE PRESSURE CONNECTION |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III UNPACKAGED UNIT WEIGHT | 2.000 POUNDS |
