NSN 5930-00-852-2407 MS24524230, MS24524-230, MS24659230
Product Details | TOGGLE SWITCH
5930-00-852-2407 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS24524230, MS24524-230, MS24659230, MS24659-230, MS2465923D, MS24659-23D, MS2495923D, MS24959-23D, M20708/73A , M20708/74-01A , M20708/74C-001 , M2070873A, M207087401A, M2070874C001, AS20708/74 , AS2070874, ASC1562836, AY3701A7D1 , C325108, C3251-08 , SKEE517 ITEM 7, SKEE517ITEM7, TY 2TL1-3D, TY2TL13D, VTRX376A1, VTRX37-6A1 , MILDTL3950, MIL-DTL-3950, MIL-S-20708/73 , MIL-S-20708/74 , MILS2070873, MILS2070874, MILS3950, DF404716336, DF4047-1633-6, FV 2103457, FV2103457, 10-1532 PIECE 37 , 101532PIECE37, 10-4200 PIECE 37, 104200PIECE37, 112741265P, 1127-41-265P, 1878084 PIECE 77 , 1878084PIECE77, 2523-31565, 2635-088-22 ITEM 1-200, 263508822ITEM1200, 2TL13D, 2TL1-3D, 37TR6 , 37TRX6, 37TRX6A , 37TRX6B, 37TX6B , 37TXCB, 4012115426PC214, 401-2115426PC214, 401635723515, 401-6357235-15, 43767269036, 437-6726903-6, 6415302, 870CM0028, 5930-00-852-2407, 00-852-2407, 5930008522407, 252331565, 008522407
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-852-2407 | 00184 ( SWITCH, TOGGLE ) |

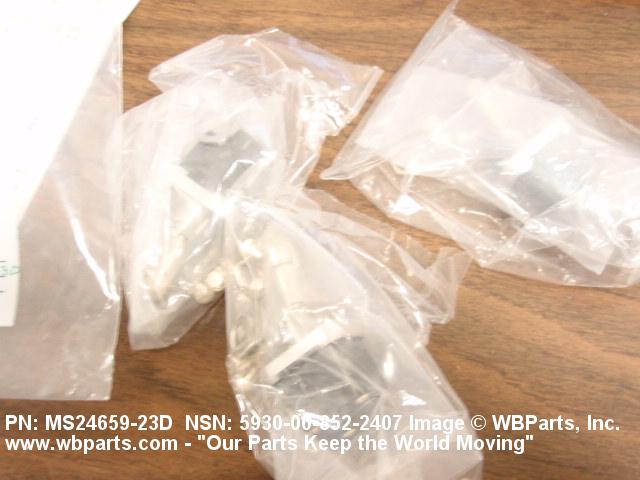

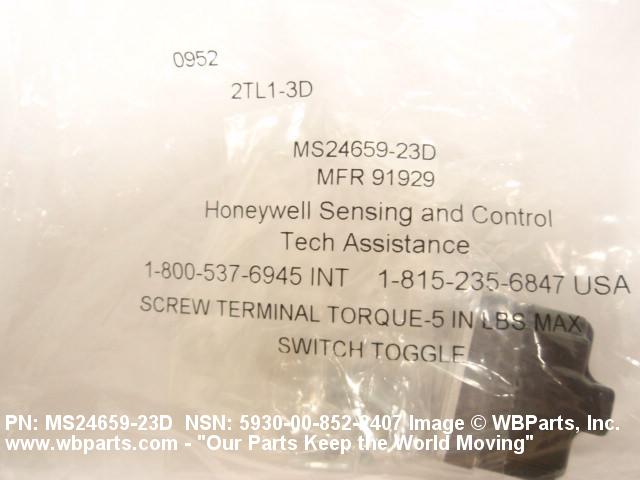

Drawings & Photos | NSN 5930-00-852-2407
Demand History | NSN 5930-00-852-2407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-852-2407 | 2024-09-09 | 238 | DIBBS |
| 5930-00-852-2407 | 2024-08-29 | 238 | DIBBS |
| 5930-00-852-2407 | 2024-07-08 | 279 | DIBBS |
| 5930-00-852-2407 | 2024-06-27 | 279 | DIBBS |
| 5930-00-852-2407 | 2023-11-30 | 184 | DIBBS |
| 5930-00-852-2407 | 2023-04-27 | 192 | DIBBS |
| M2070874C001 | 2021-06-22 | 9 | United States |
| M207087401A | 2021-04-29 | 12 | US |
| MS24659230 | 2021-01-12 | 20 | United States |
| MS2465923D | 2019-05-15 | 5 | United States |
| 5930-00-852-2407 | 2019-04-28 | 400 | DIBBS |
| 5930-00-852-2407 | 2017-12-18 | 600 | DIBBS |
| 5930-00-852-2407 | 2017-12-06 | 600 | DIBBS |
| MS2465923D | 2017-08-24 | 150 | US |
| 5930-00-852-2407 | 2016-02-16 | 350 | DIBBS |
| MS2465923D | 2015-11-04 | 1 | US |
| 5930-00-852-2407 | 2015-01-26 | 1 | United States |
| 5930-00-852-2407 | 2014-10-22 | 1 | TH |
| MS2465923D | 2014-08-22 | 1 | TH |
| MILS3950 | 2014-02-25 | 4 | Canada |
| MS2465923D | 2013-08-15 | 300 | US |
| MILS3950 | 2013-01-11 | 48 | US |
| MS24659230 | 2012-06-28 | 1 | US |
| MS2465923D | 2012-06-26 | 15 | TR |
| 5930-00-852-2407 | 2012-02-02 | 205 | DIBBS |
| 5930-00-852-2407 | 2011-09-27 | 173 | DIBBS |
| 5930-00-852-2407 | 2011-09-19 | 173 | DIBBS |
| MS24659-23D | 2010-10-26 | 20 | |
| MS24659-23D | 2010-10-19 | 20 | |
| MS24659-23D | 2010-10-19 | 20 | |
| MS2465923D | 2010-10-18 | 4 | Brazil |
| MS2465923D | 2010-08-12 | 6 | Brazil |
| 5930-00-852-2407 | 2009-12-04 | 475 | DIBBS |
| MS2465923D | 2008-07-01 | 38 | United States |
| 5930-00-852-2407 | 2007-09-12 | 992 | DIBBS |
Cross Reference | NSN 5930-00-852-2407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-4200 PIECE 37 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| 1127-41-265P | A0199 | OTO MELARA SPA |
| 2523-31565 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 2635-088-22 ITEM 1-200 | 96169 | ELECTRIC BOAT CORPORATION |
| 2TL1-3D | 96169 | ELECTRIC BOAT CORPORATION |
| 401-2115426PC214 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 401-6357235-15 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 437-6726903-6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6415302 | 001JK | EMBRAER S/A |
| 6415302 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 870CM0028 | A0199 | OTO MELARA SPA |
| ASC1562836 | Z4779 | ASC PTY LTD |
| DF4047-1633-6 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| FV2103457 | K1977 | ABTUS LIMITED |
| FV2103457 | K2914 | WESTAIR DEFENCE LTD |
| FV2103457 | K4649 | MCGEOCH TECHNOLOGY LTD |
| MIL-DTL-3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24524-230 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24659-230 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24659-23D | 1WL60 | LOCKHEED MARTIN SERVICES, INC. |
| MS24659-23D | 74703 | LOCKHEED MARTIN AERONAUTICAL SYSTEMS SUPPORT COMPANY |
| MS24659-23D | 81692 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS24659-23D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24959-23D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SKEE517 ITEM 7 | 01417 | GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS |
| SKEE517 ITEM 7 | 24290 | DRS TEST & ENERGY MANAGEMENT, LLC |
| TY 2TL1-3D | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-852-2407
Related Products | NSN 5930-00-852-2407
Technical Data | NSN 5930-00-852-2407
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 20.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 7.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 15.000 AMPERES INDUCTIVE AC AND 4.000 AMPERES LAMP AC |
| BODY STYLE | 5P BUSHING MOUNT |
| BUSHING LENGTH | 0.450 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |
| BODY LENGTH | 1.340 INCHES MAXIMUM |
| BODY WIDTH | 0.905 INCHES MINIMUM AND 0.915 INCHES MAXIMUM |
| BODY HEIGHT | 1.090 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| OVERALL LENGTH | 1.340 INCHES MAXIMUM |
| OVERALL WIDTH | 0.905 INCHES MINIMUM AND 0.915 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.890 INCHES NOMINAL |
| ACTUATOR STYLE | 26 ROUND |
| ACTUATOR DIAMETER | 0.420 INCHES NOMINAL |
| ACTUATOR HEIGHT | 1.050 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| ACTUATOR POSITION-LOCKING RELATIONSHIP | UP POSITION NO LOCKING ACTION AND DOWN POSITION NO LOCKING ACTION |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SUBMERSIBLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 32 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3950 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24659-23D |
Restrictions/Controls & Freight Information | NSN 5930-00-852-2407
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-852-2407
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
