NSN 5930-00-849-6192 113MFE, 266-8302-00, 2668302000
Product Details | PRESSURE SWITCH
5930-00-849-6192 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 113MFE, 266-8302-00, 2668302000, 266-8302-000, 7759956P1, 9975918, 5930-00-849-6192, 00-849-6192, 5930008496192, 008496192, 266830200
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-849-6192 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-849-6192
Cross Reference | NSN 5930-00-849-6192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 113MFE | 72635 | DIETZ R E CO |
| 113MFE | 96502 | HENRY G DIETZ CO INC |
| 266-8302-00 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 266-8302-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 7759956P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 9975918 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-849-6192
Related Products | NSN 5930-00-849-6192
Technical Data | NSN 5930-00-849-6192
| Characteristic | Specifications |
|---|---|

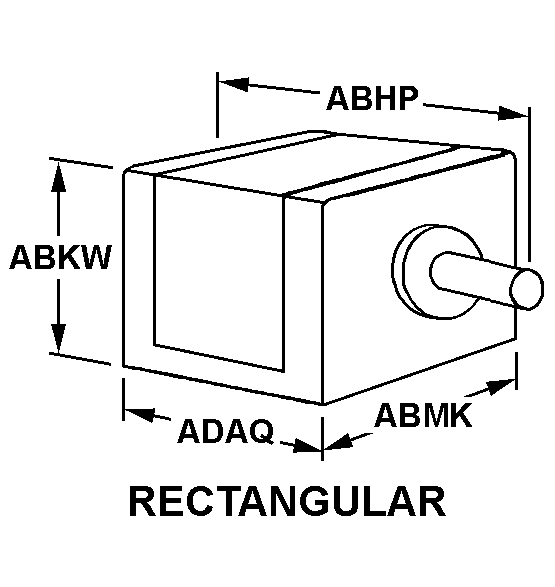

| STYLE DESIGNATOR | 7 RECTANGULAR |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 4.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.875 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| CONTACT VOLTAGE RATING IN VOLTS | 250.0 AC AT SEA LEVEL FIRST VOLTAGE 30.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 0.1 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TERMINAL TYPE | THREADED STUD |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNC SINGLE PRESSURE CONNECTION UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.625 INCHES SINGLE PRESSURE CONNECTION 0.625 INCHES SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 18 SINGLE PRESSURE CONNECTION 18 SINGLE THREADED BUSHING |
| THREAD LENGTH | 1.438 INCHES NOMINAL SINGLE THREADED BUSHING |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
