NSN 5930-00-847-7984 VL72031NM11, M11, 1236001P1
Product Details | LEVER SWITCH
5930-00-847-7984 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Part Alternates: VL72031NM11, M11, 1236001P1, 5930-00-847-7984, 00-847-7984, 5930008477984, 008477984
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-847-7984 | 00175 ( SWITCH, LEVER ) |
Drawings & Photos | NSN 5930-00-847-7984
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-847-7984
Technical Data | NSN 5930-00-847-7984
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 750.000 MILLIAMPERES RESISTIVE DC AND 300.000 MILLIAMPERES RESISTIVE AC |
| BODY STYLE | 3G HOLE MOUNTED |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| BODY WIDTH | 0.360 INCHES NOMINAL |
| BODY HEIGHT | 1.460 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.212 INCHES NOMINAL |
| OVERALL LENGTH | 2.440 INCHES NOMINAL |
| OVERALL WIDTH | 0.360 INCHES NOMINAL |
| OVERALL HEIGHT | 1.212 INCHES NOMINAL |

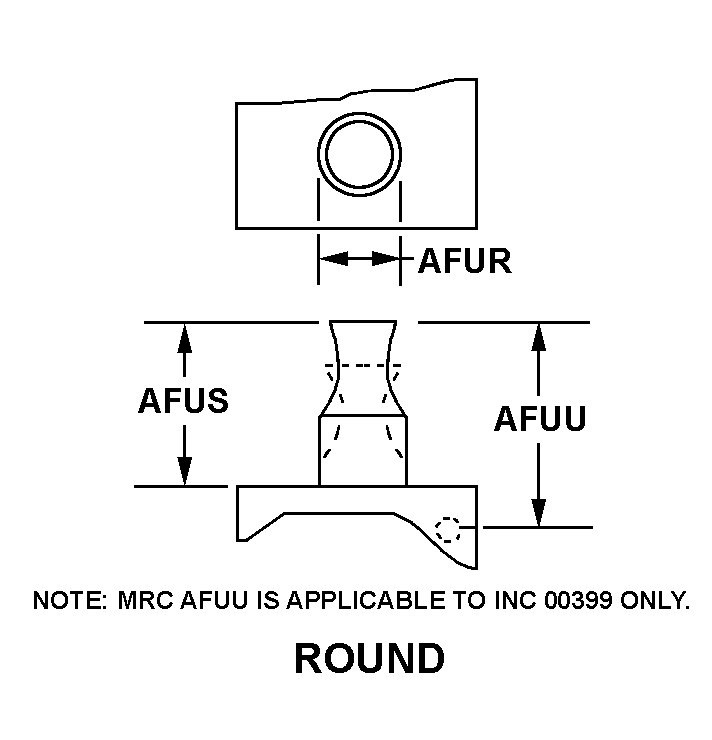

| ACTUATOR STYLE | 3 ROUND |
| ACTUATOR DIAMETER | 0.560 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.190 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| MANUFACTURERS CODE | 94117 |
| DESIGN CONTROL REFERENCE | 1236001P1 |
