NSN 5930-00-845-9352 2PH2, 00-845-9352, 008459352
Product Details | PUSH SWITCH
5930-00-845-9352 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 2PH2, 5930-00-845-9352, 00-845-9352, 5930008459352, 008459352
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-845-9352 | 00406 ( SWITCH, PUSH ) |

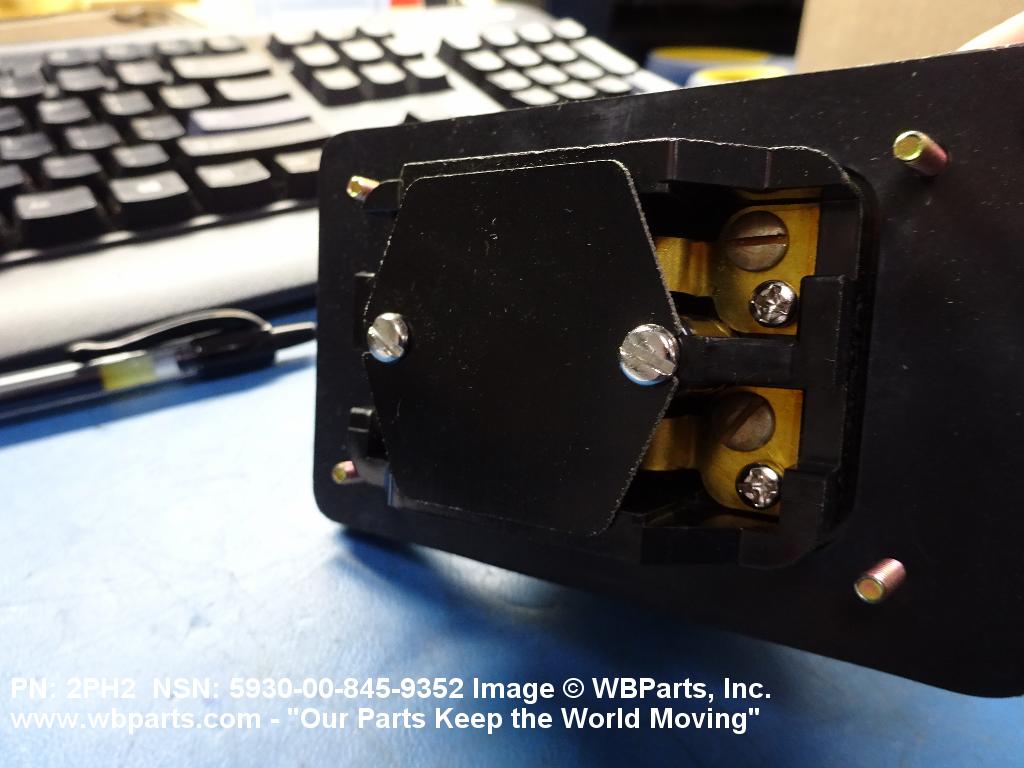

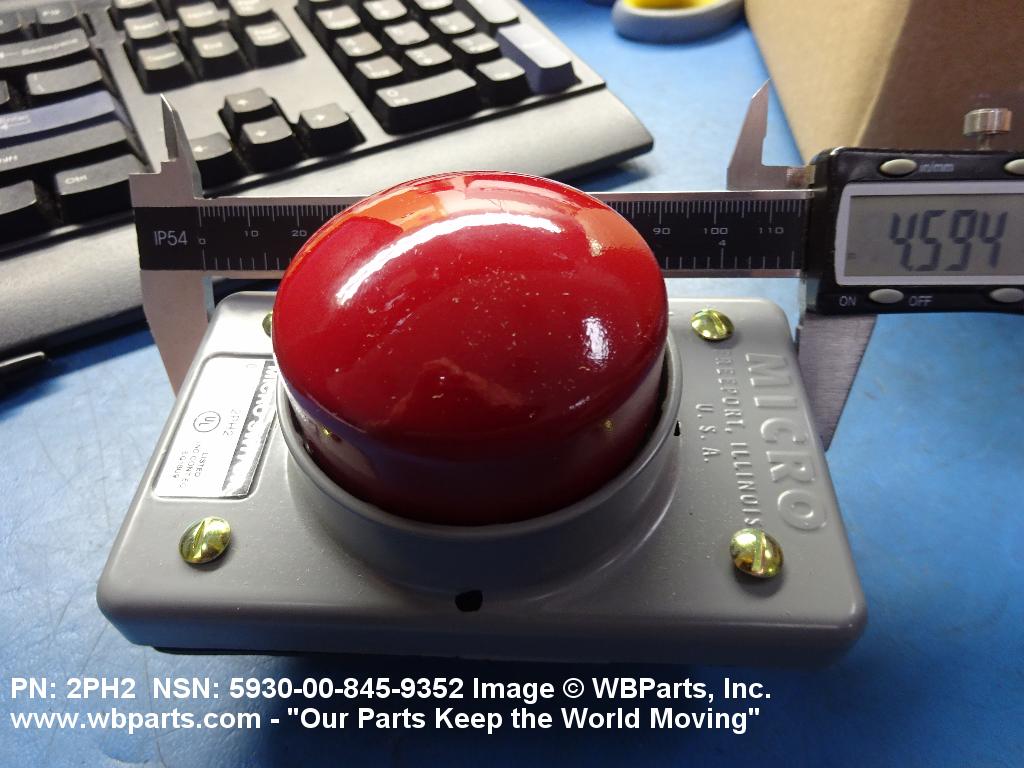

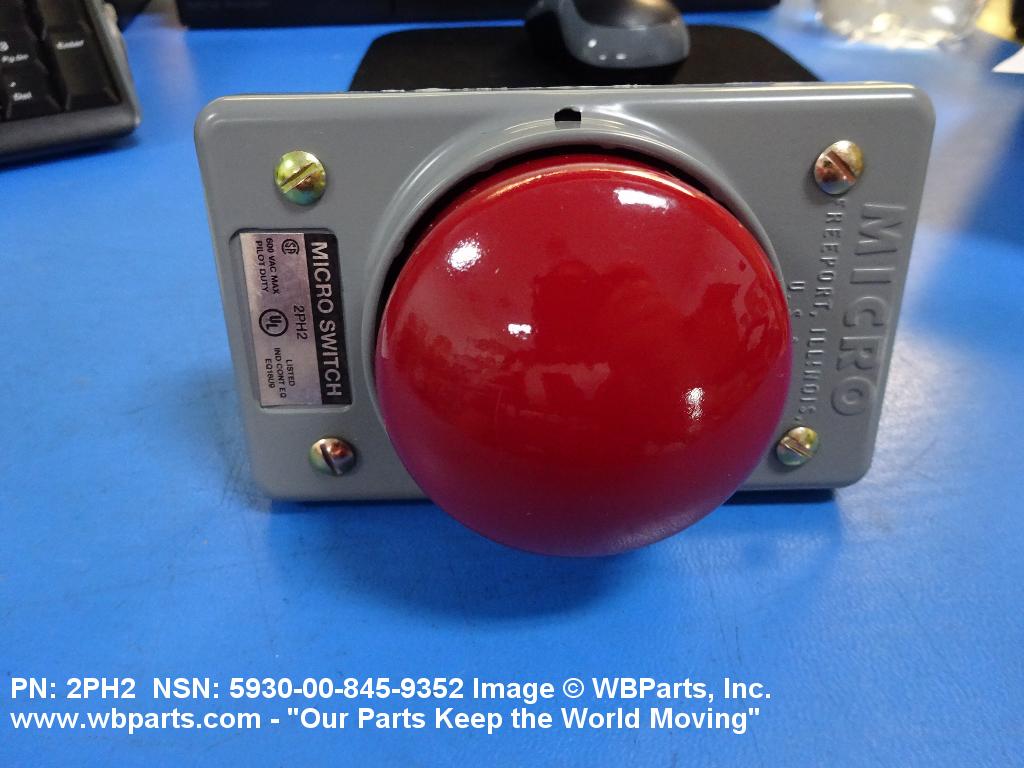

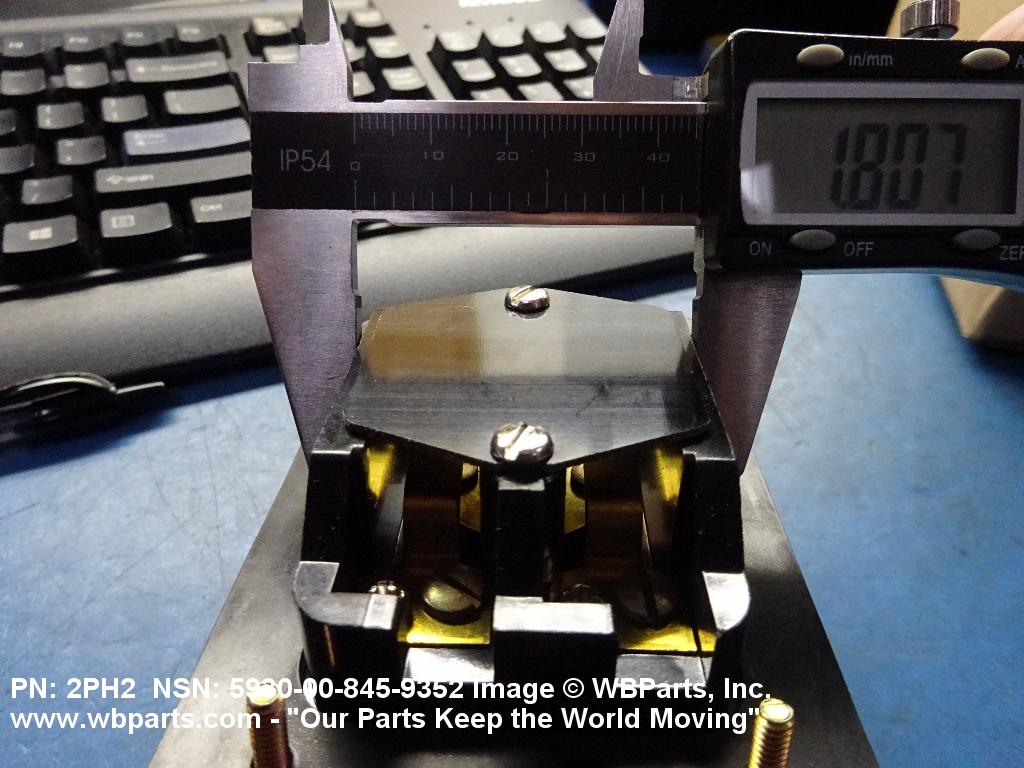

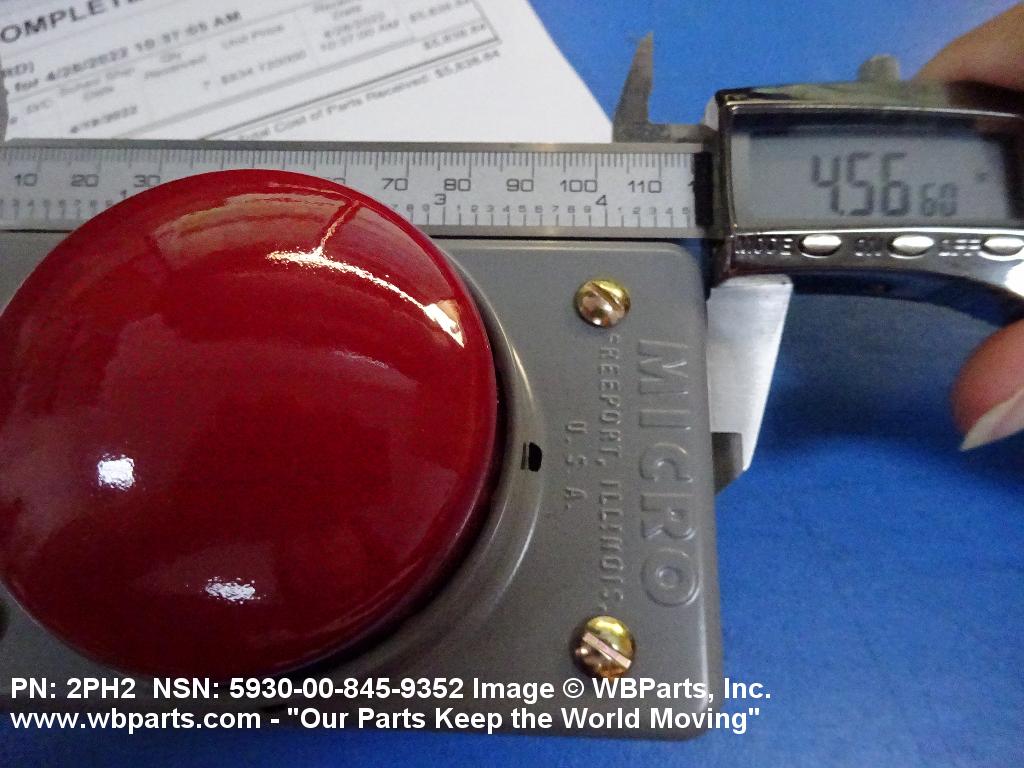

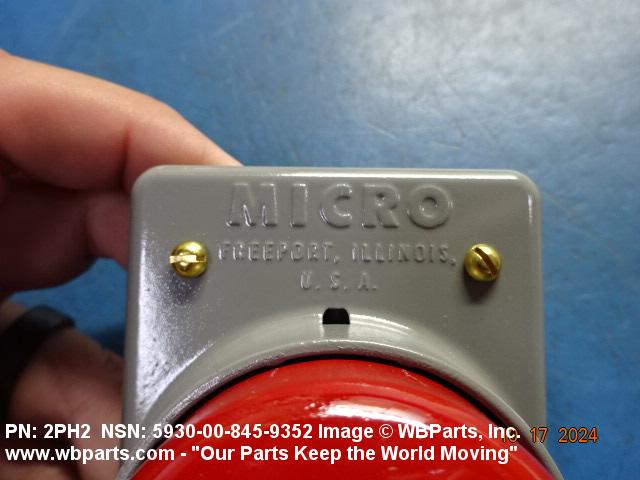

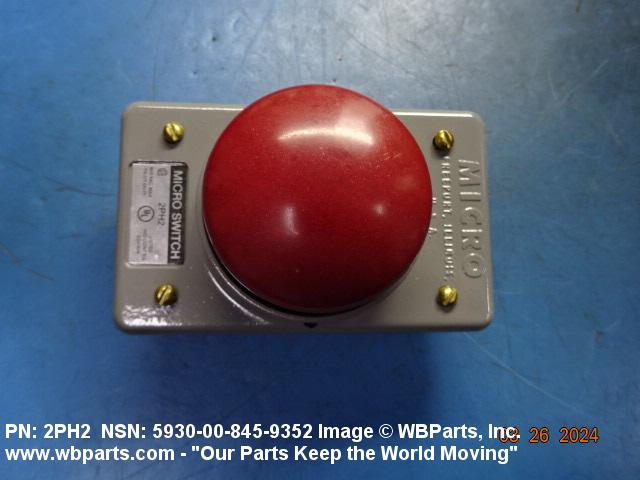

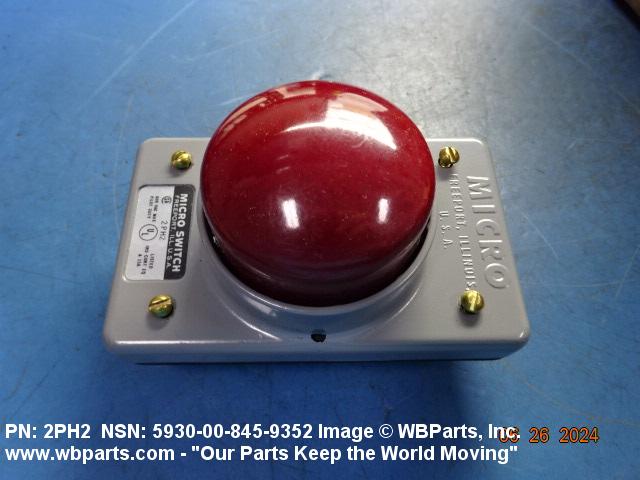

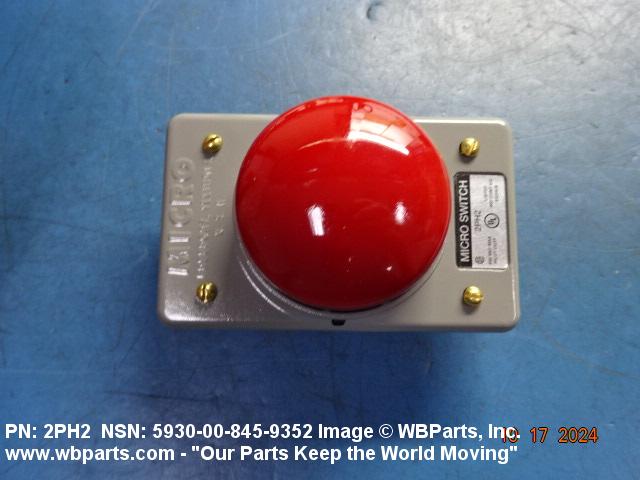

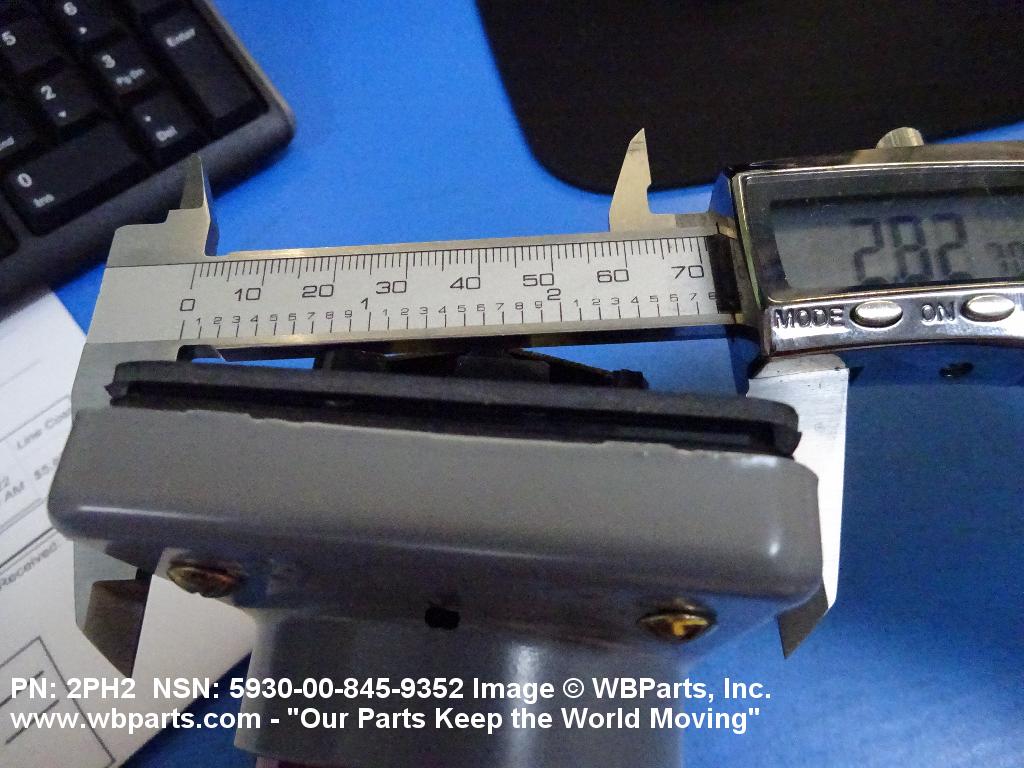

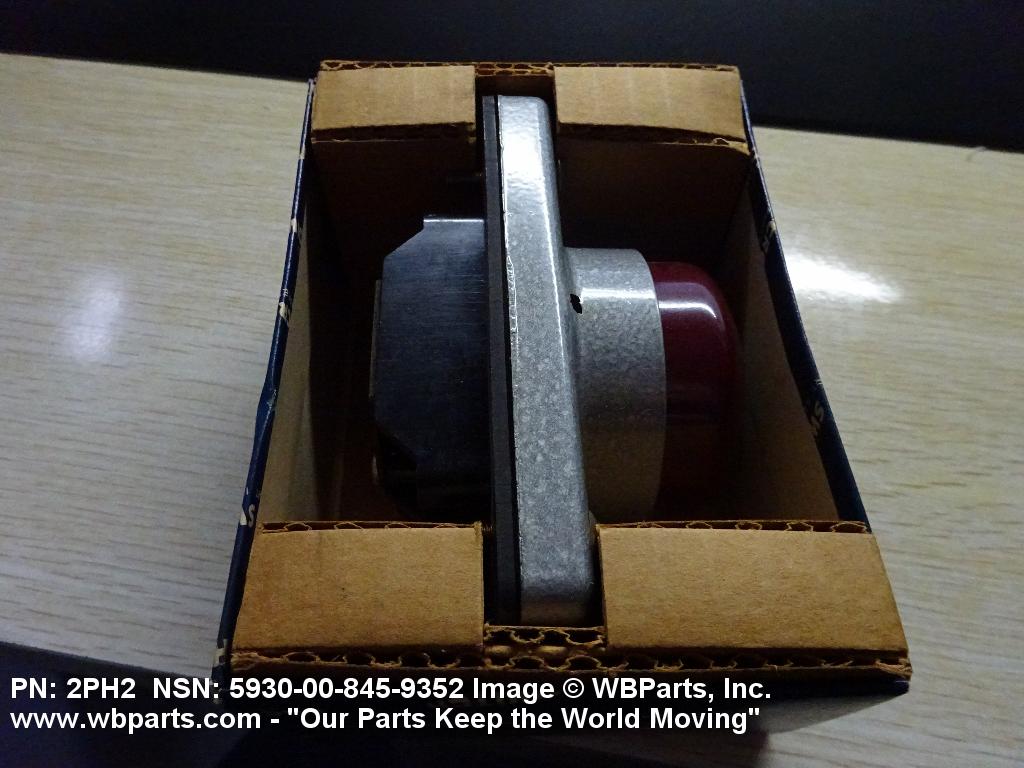

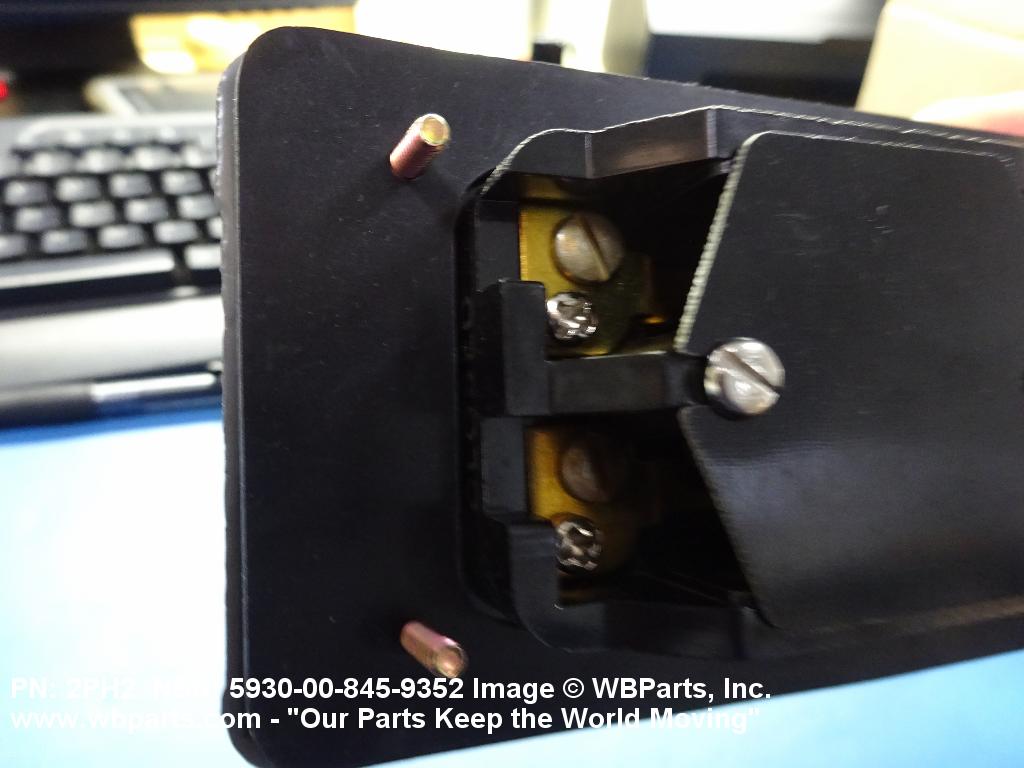

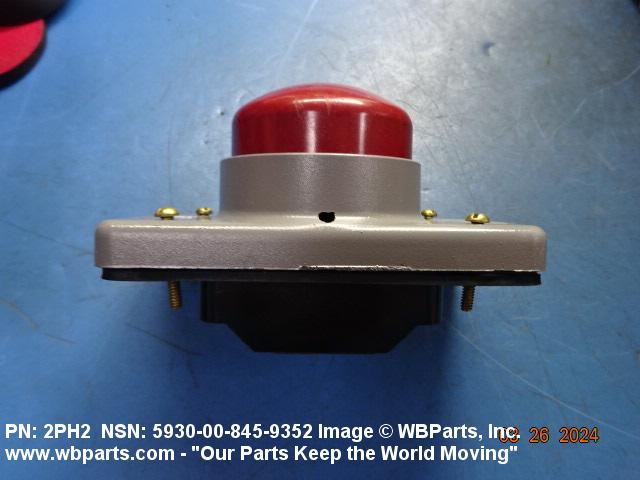

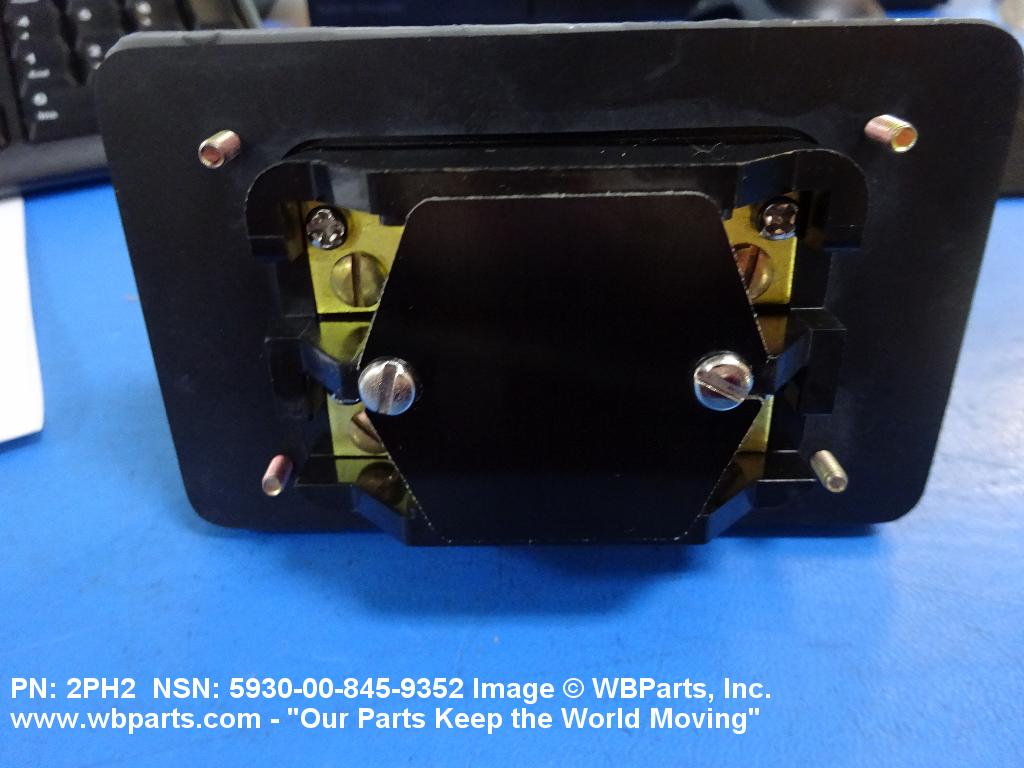

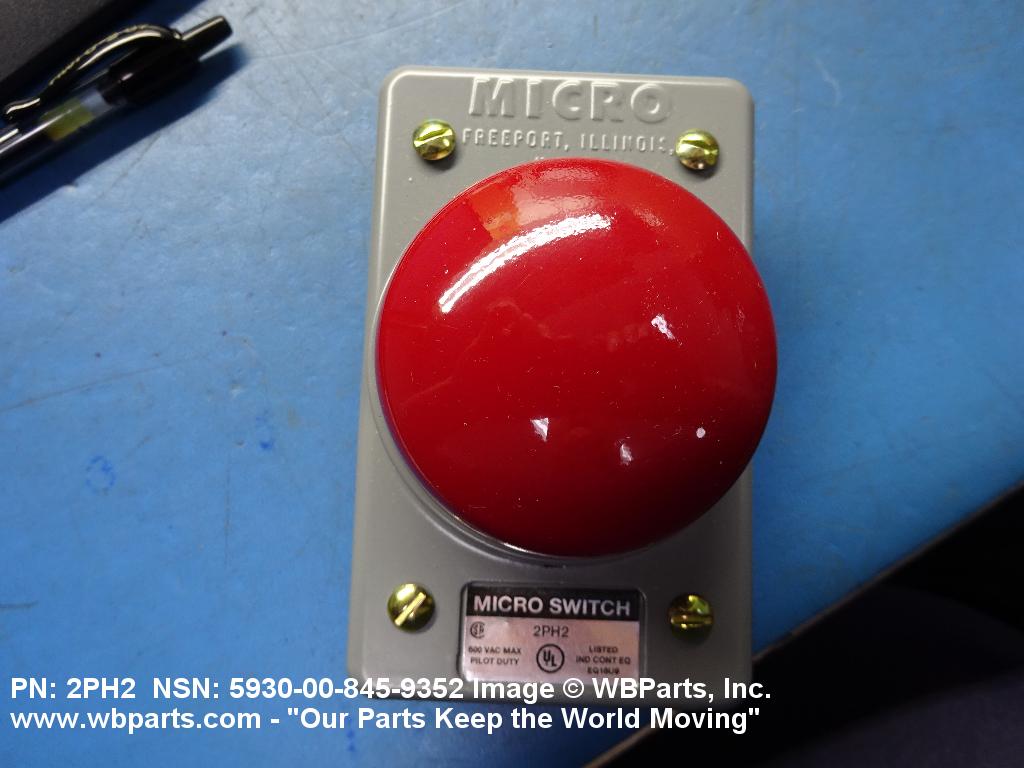

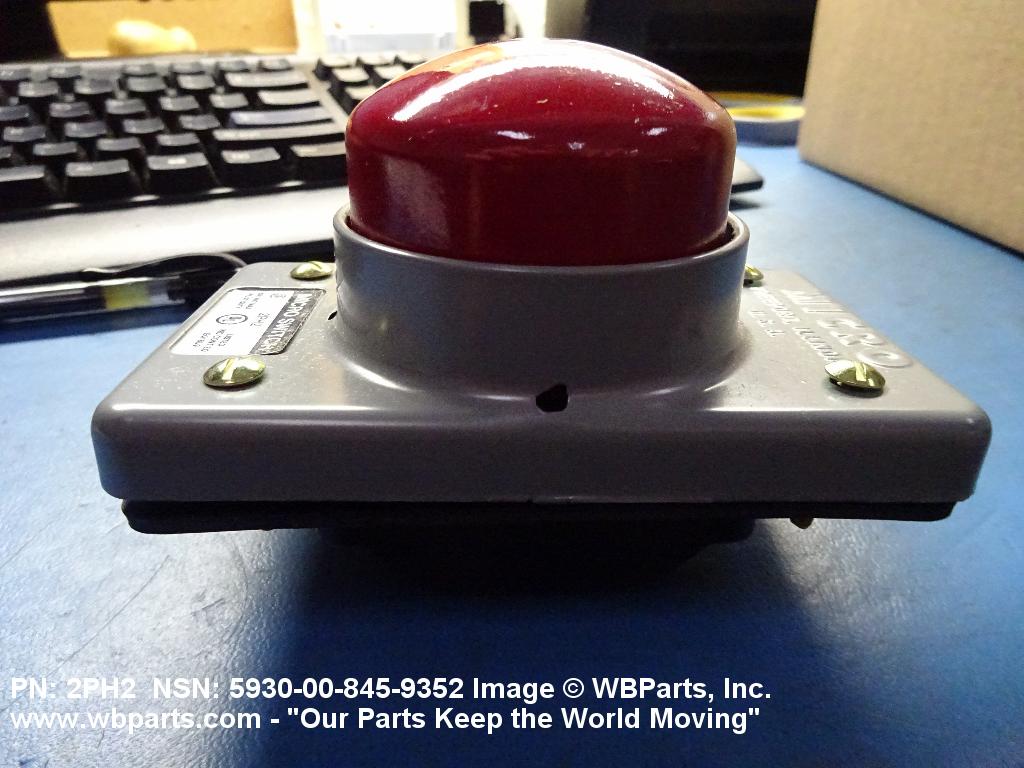

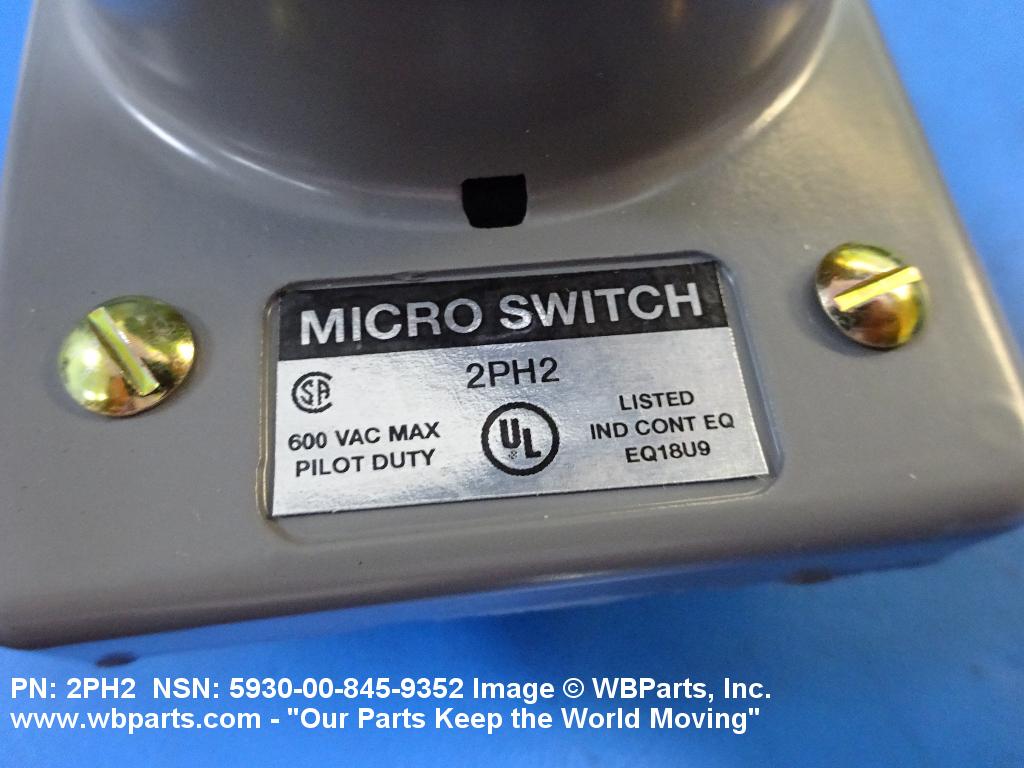

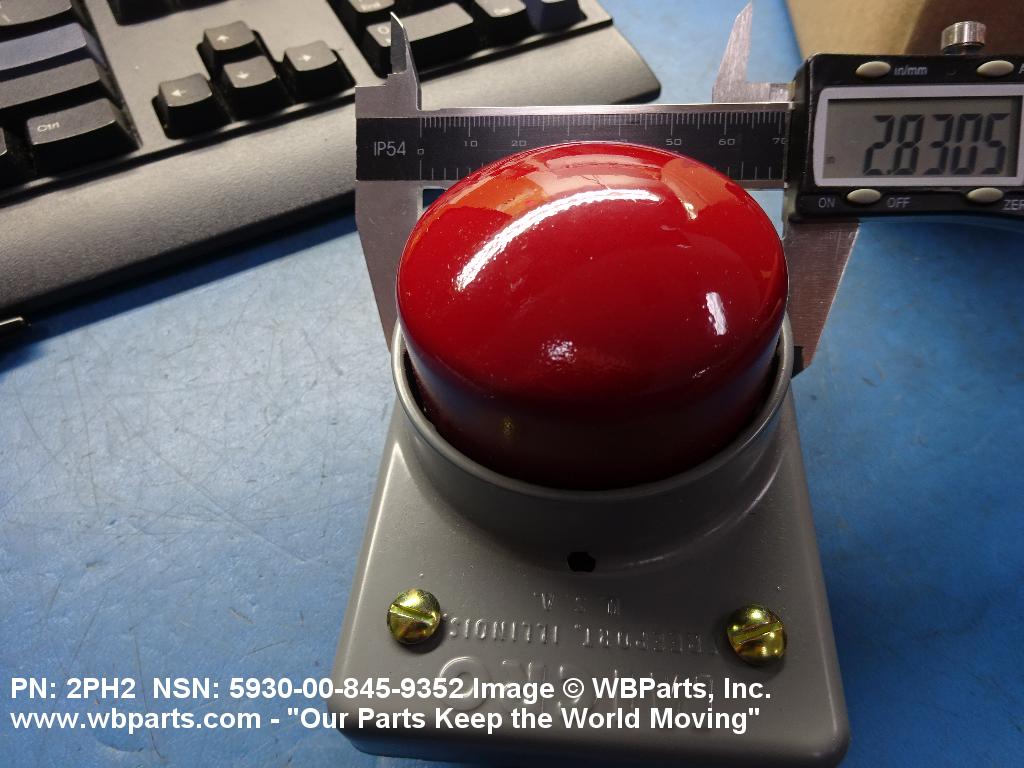

Drawings & Photos | NSN 5930-00-845-9352
Demand History | NSN 5930-00-845-9352
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-845-9352 | 2024-06-180 | 48 | United States |
| 2PH2 | 2024-06-179 | 48 | MY |
| 2PH2 | 2023-06-180 | 24 | United States |
| 2PH2 | 2023-05-125 | 6 | us |
| 2PH2 | 2023-03-81 | 5 | United States |
| 2PH2 | 2023-02-55 | 25 | United States |
| 2PH2 | 2023-01-25 | 5 | United States |
| 2PH2 | 2022-09-264 | 6 | United States |
| 2PH2 | 2022-05-124 | 3 | US |
| 2PH2 | 2022-04-96 | 6 | United States |
| 2PH2 | 2022-03-84 | 3 | United States |
| 2PH2 | 2022-03-84 | 13 | United States |
| 2PH2 | 2021-11-319 | 3 | United States |
| 5930-00-845-9352 | 2019-10-295 | 5 | United States |
| 5930-00-845-9352 | 2019-04-119 | 2 | United States |
| 2PH2 | 2019-04-106 | 5 | United States |
| 5930-00-845-9352 | 2019-04-105 | 5 | United States |
| 5930-00-845-9352 | 2019-04-102 | 5 | United States |
| 5930-00-845-9352 | 2019-03-79 | 1 | United States |
| 5930-00-845-9352 | 2017-08-216 | 10 | US |
| 5930-00-845-9352 | 2016-03-81 | 47 | DIBBS |
| 5930-00-845-9352 | 2016-03-70 | 47 | DIBBS |
| 5930-00-845-9352 | 2012-08-243 | 66 | DIBBS |
| 5930-00-845-9352 | 2012-07-185 | 41 | DIBBS |
| 5930-00-845-9352 | 2012-04-95 | 31 | DIBBS |
| 5930-00-845-9352 | 2011-04-100 | 39 | DIBBS |
| 5930-00-845-9352 | 2011-04-91 | 38 | DIBBS |
| 5930-00-845-9352 | 2010-08-224 | 12 | DIBBS |
| 5930-00-845-9352 | 2010-04-120 | 15 | DIBBS |
| 5930-00-845-9352 | 2009-10-292 | 31 | DIBBS |
| 5930-00-845-9352 | 2009-09-244 | 72 | DIBBS |
| 5930-00-845-9352 | 2009-03-79 | 30 | DIBBS |
| 5930-00-845-9352 | 2008-11-316 | 31 | DIBBS |
| 5930-00-845-9352 | 2008-03-79 | 22 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-845-9352
Related Products | NSN 5930-00-845-9352
Technical Data | NSN 5930-00-845-9352
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE MAKE, TWO POSITIONS MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.200 AMPERES RESISTIVE AC |
| BODY LENGTH | 4.562 INCHES NOMINAL |
| BODY WIDTH | 3.125 INCHES NOMINAL |
| BODY HEIGHT | 2.812 INCHES NOMINAL |
| ACTUATOR LENGTH | 1.687 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| THREAD SERIES DESIGNATOR | UNC |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-845-9352
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-845-9352
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
