NSN 5930-00-785-8546 B35359, S611929, S61-1929
Product Details | PUSH SWITCH
5930-00-785-8546 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: B35359, S611929, S61-1929, SMB417220, V324751, WIS11423/1, WIS114231, G2869601, G286960-1, 723898-201, 7745717P002, 989114, 99869072, 9986907-2, 109, 10-9, 12E, 1641009, 16-41009, 18514832, 1851483-2, 24521300, 2D26, 355-283-411, 519744, 5197-44, 5800583674101122, 5800583-674101-122, 611929, 61-1929, 6560340, 656-034-0, 5930-00-785-8546, 00-785-8546, 5930007858546, 723898201, 355283411, 007858546
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-785-8546 | 00406 ( SWITCH, PUSH ) |
Drawings & Photos | NSN 5930-00-785-8546
Demand History | NSN 5930-00-785-8546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 109 | 2019-10-295 | 3 | us |
| 12E | 2018-02-52 | 2 | United States |
| 109 | 2014-04-111 | 16 | United States |
Cross Reference | NSN 5930-00-785-8546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-9 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 12E | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 16-41009 | K0835 | QINETIQ LTD |
| 16-41009 | U1727 | THALES INFORMATION SYSTEMS LTD |
| 1851483-2 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 1851483-2 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 24521300 | 34010 | CONTROL DATA SYSTEMS INC CONTRACTS DEPT |
| 24521300 | 59661 | SYNTEGRA / USA/ INC COMPUTER PARTS AND SUPPLIES |
| 2D26 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2D26 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 2D26 | F3767 | SEF INDUSTRIE |
| 2D26 | K6596 | HONEYWELL CONTROL SYSTEMS LTD |
| 2D26 | R1120 | SATAIR A/S |
| 2D26 | U4042 | HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS - |
| 355-283-411 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 5197-44 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 5800583-674101-122 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
| 61-1929 | 54418 | MILTOPE CORPORATION |
| 656-034-0 | K7810 | ROCC COMPUTERS LTD |
| 723898-201 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 723898-201 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 7745717P002 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 989114 | 19790 | DATA PRODUCTS CORP |
| 989114 | 58634 | SAGA ENGINEERING CORP |
| 9986907-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| B35359 | K0967 | MBDA UK LTD |
| G286960-1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S61-1929 | 54418 | MILTOPE CORPORATION |
| SMB417220 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| V324751 | B1224 | BARCO N.V. BARCOVIEW |
| WIS11423/1 | K2555 | G E C MARCONI COMMUNICATIONS LTD |
| WIS11423/1 | U2248 | SELEX ES LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-785-8546
Technical Data | NSN 5930-00-785-8546
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 5.000 AMPERES RESISTIVE AC |

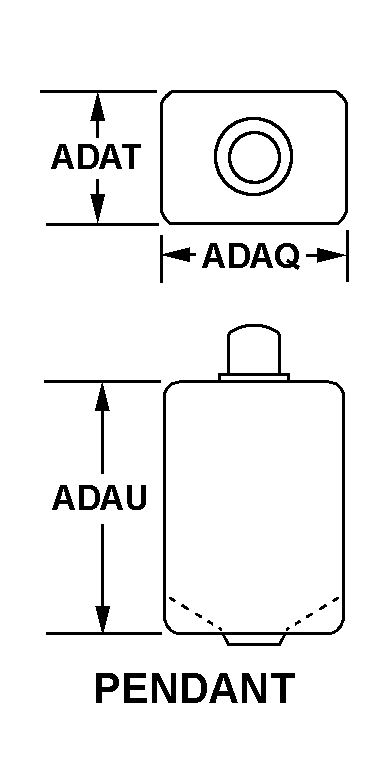

| BODY STYLE | 33K PENDANT |
| BODY LENGTH | 0.650 INCHES MAXIMUM |
| BODY WIDTH | 0.790 INCHES NOMINAL |
| BODY HEIGHT | 1.330 INCHES MAXIMUM |
| ACTUATOR STYLE | 13 RECTANGULAR |
| ACTUATOR HEIGHT | 0.085 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 SOLDER STUD |
| INCLOSURE TYPE | FULLY INCLOSED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-785-8546
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-785-8546
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
