NSN 5930-00-729-7785 A1284BT, A1285BT, A1285BTBP
Product Details | PUSH-PULL SWITCH
5930-00-729-7785 A switch which is actuated in one direction by pushing and in the opposite direction by pulling. Excludes LIGHT-SWITCH ASSEMBLY.
Part Alternates: A1284BT, A1285BT, A1285BTBP, 6955561, 695556-1, 10300098, 5930-00-729-7785, 00-729-7785, 5930007297785, 007297785
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-729-7785 | 00407 ( SWITCH, PUSH-PULL ) |

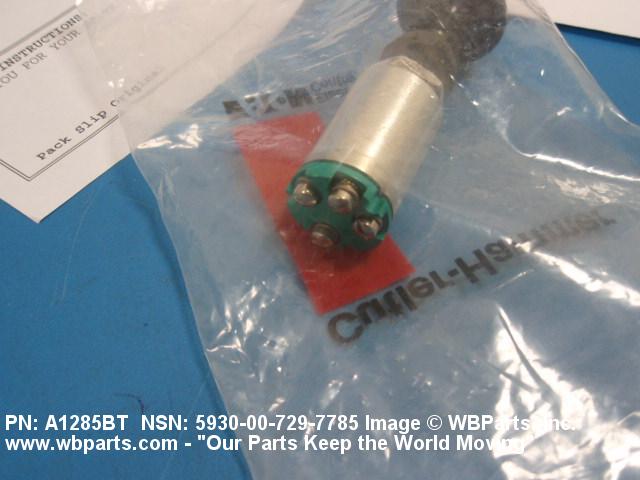

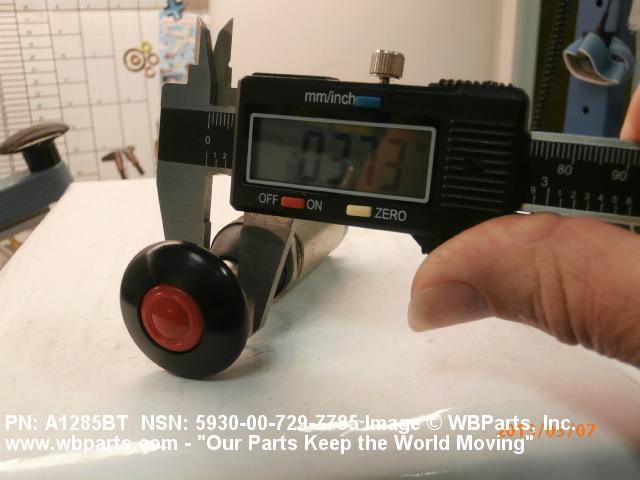

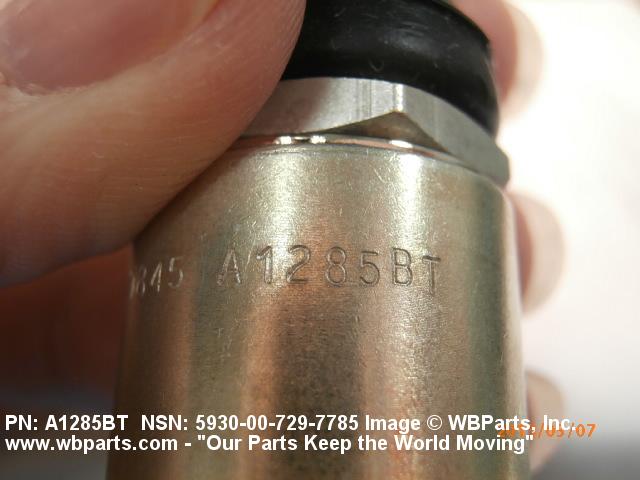

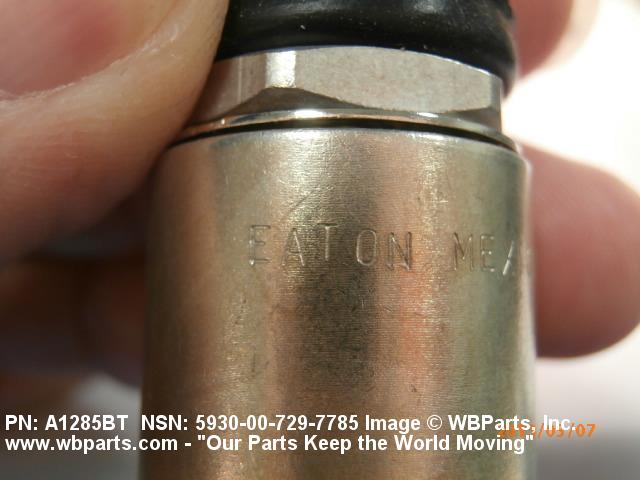

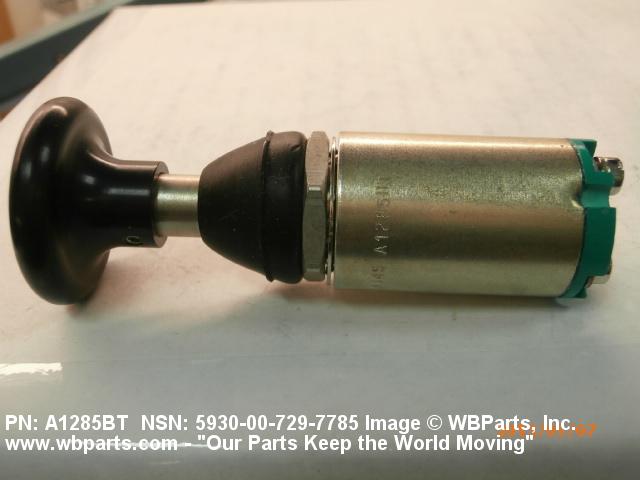

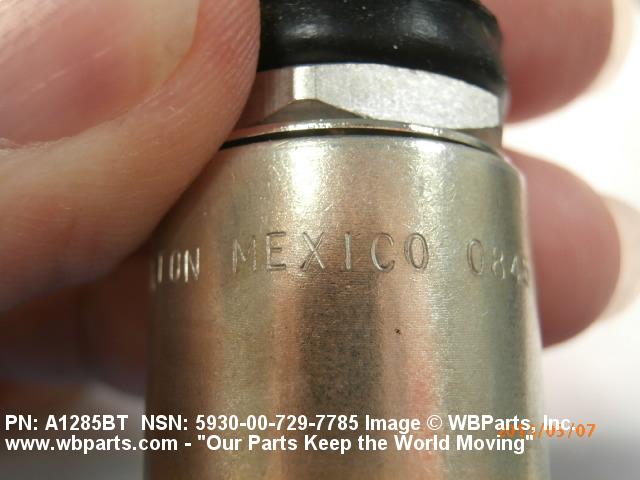

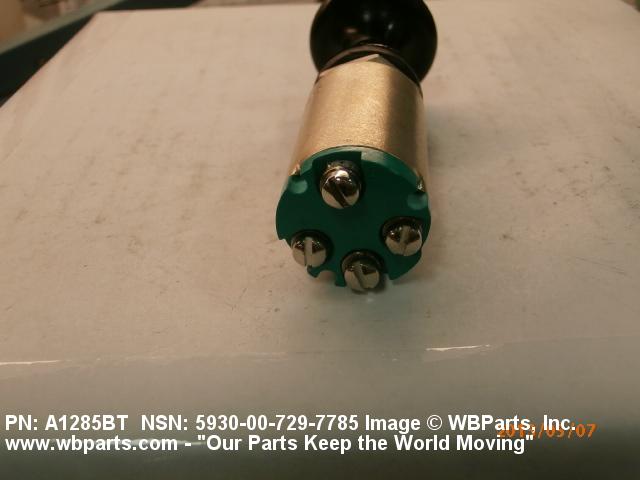

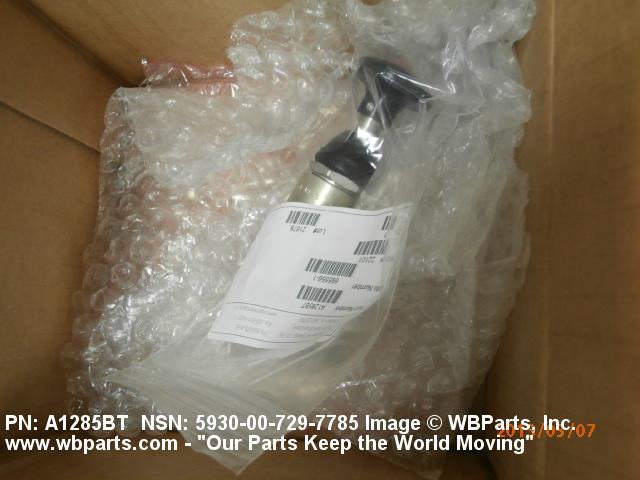

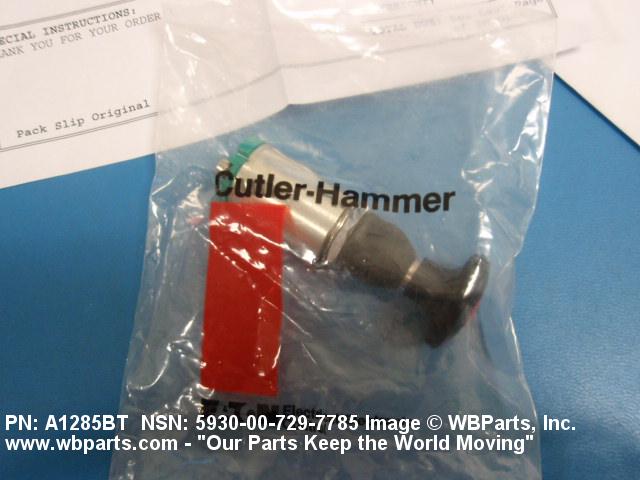

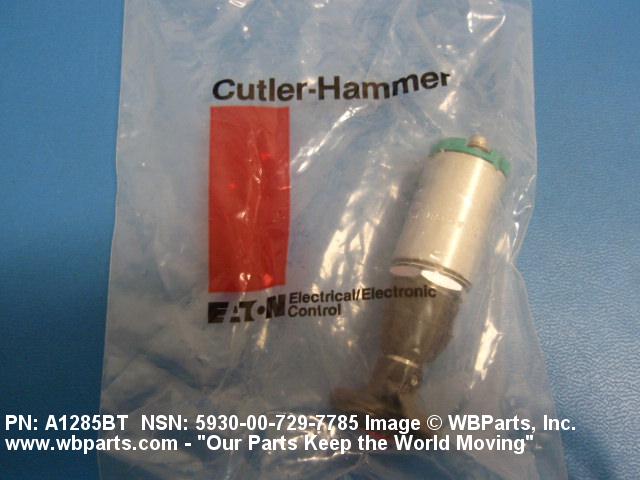

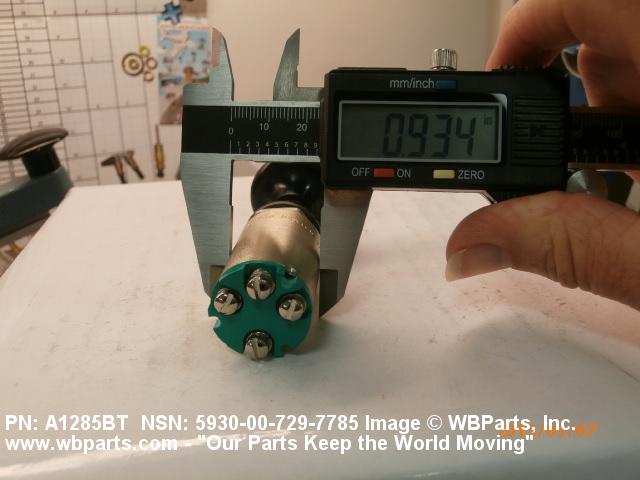

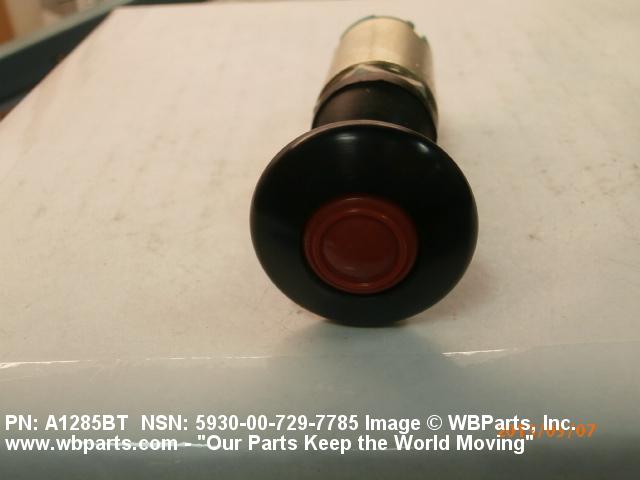

Drawings & Photos | NSN 5930-00-729-7785
Demand History | NSN 5930-00-729-7785
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-729-7785 | 2024-07-204 | 10 | UM |
| A1285BT | 2017-11-334 | 1 | United States |
| 5930-00-729-7785 | 2013-05-121 | 1 | United States |
| 5930-00-729-7785 | 2009-08-233 | 6 | DIBBS |
| A1285BT | 2009-07-196 | 1 | United States |
| 6955561 | 2009-06-176 | 1 | United States |
| 5930-00-729-7785 | 2008-04-105 | 14 | DIBBS |
| A1285BTBP | 2006-05-144 | 5 | us |
| A1285BTBP | 2006-05-142 | 5 | us |
Cross Reference | NSN 5930-00-729-7785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10300098 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 695556-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| A1284BT | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| A1285BT | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| A1285BTBP | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-729-7785
Related Products | NSN 5930-00-729-7785
Technical Data | NSN 5930-00-729-7785
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, DOUBLE MAKE, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE DC |
| BODY STYLE | 4K BUSHING MOUNTED |
| BUSHING LENGTH | 0.375 INCHES NOMINAL |

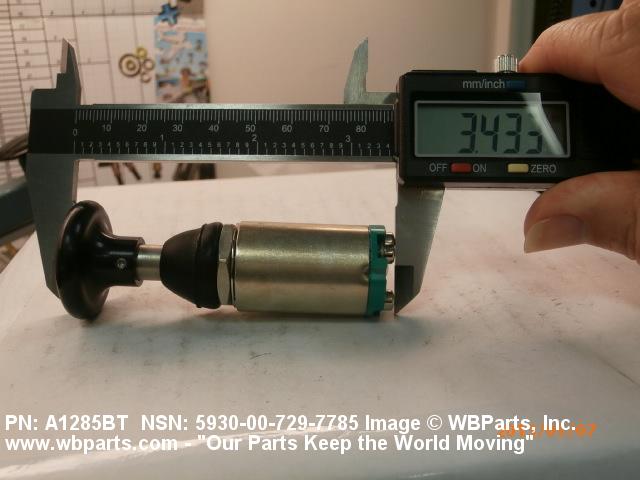

| OVERALL LENGTH | 3.438 INCHES NOMINAL |

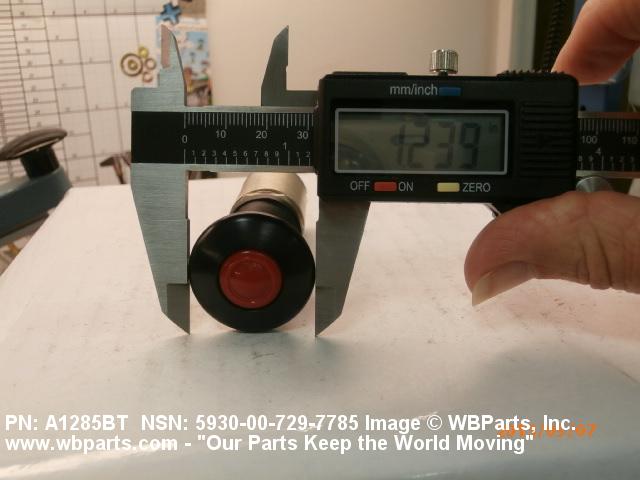

| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| ACTUATOR DIAMETER | 1.250 INCHES NOMINAL |
| ACTUATOR HEIGHT | 1.484 INCHES NOMINAL |
| ACTUATOR COLOR | RED SINGLE ACTUATOR |
| ILLUMINATED ACTUATOR COLOR | RED SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | MOISTURE PROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| FEATURES PROVIDED | ACTUATOR SEAL |
| SPECIAL FEATURES | EXTRA TERMINALS FOR COIL; COIL HOLDS SWITCH IN ON POSITION |
| III END ITEM IDENTIFICATION | AIRCRAFT STRATOFORTRESS B-52 |
Restrictions/Controls & Freight Information | NSN 5930-00-729-7785
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-729-7785
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
