NSN 5930-00-683-1846 324100140M0D, 32410-0-140M0D, 6400172
Product Details | THERMOSTATIC SWITCH
5930-00-683-1846 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 324100140M0D, 32410-0-140M0D, 6400172, 640017-2, 5930-00-683-1846, 00-683-1846, 5930006831846, 006831846
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-683-1846 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-00-683-1846
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-683-1846
Related Products | NSN 5930-00-683-1846
Technical Data | NSN 5930-00-683-1846
| Characteristic | Specifications |
|---|---|

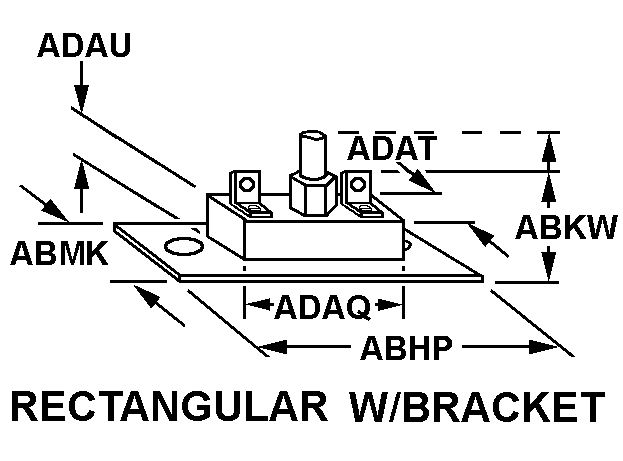

| STYLE DESIGNATOR | 77 RECTANGULAR W/BRACKET |
| OVERALL LENGTH | 1.220 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.500 INCHES MAXIMUM |
| OVERALL WIDTH | 0.401 INCHES MAXIMUM |
| BODY LENGTH | 0.850 INCHES MAXIMUM |
| BODY WIDTH | 0.401 INCHES MAXIMUM |
| BODY HEIGHT | 0.250 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE, PRESET AND ACTUATION POINT ADJUSTABLE, PRESET |
| CONTACT ADJUSTMENT RANGE | -20.00 TO 200.00 ACTUATION POINT DEGREES FAHRENHEIT AND -20.00 TO 200.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT STIMULUS RATING | 140.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 134.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 28.0 DC AT SEA LEVEL SECOND VOLTAGE |
| FREQUENCY IN HERTZ | 400.0 FIRST VOLTAGE |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 1.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 200.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.000 INCHES NOMINAL |
