Product Details | PUSH SWITCH

5930-00-660-5074 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.

Part Alternates: IC5845572921G1, IC5845-572921G1, L572915G1, L57292, L-57292, L5729215G1, L-5729215G1, 171C882G4, 2501717901, 2501717-901 , 346316DT4, 5729215G1, 5729216G1, 7895232P1, 5930-00-660-5074, 00-660-5074, 5930006605074, 006605074

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-660-5074

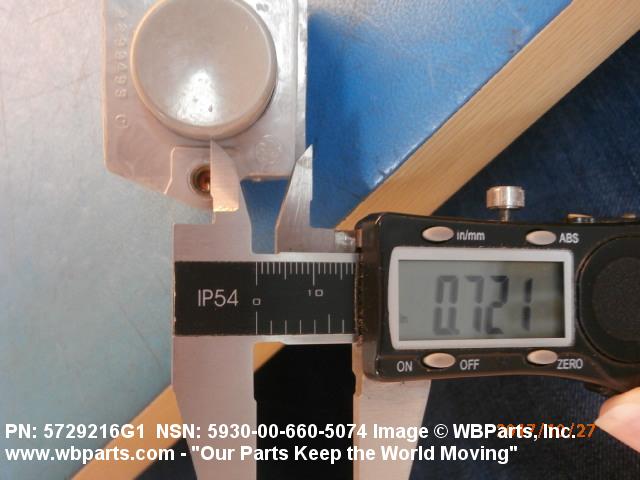

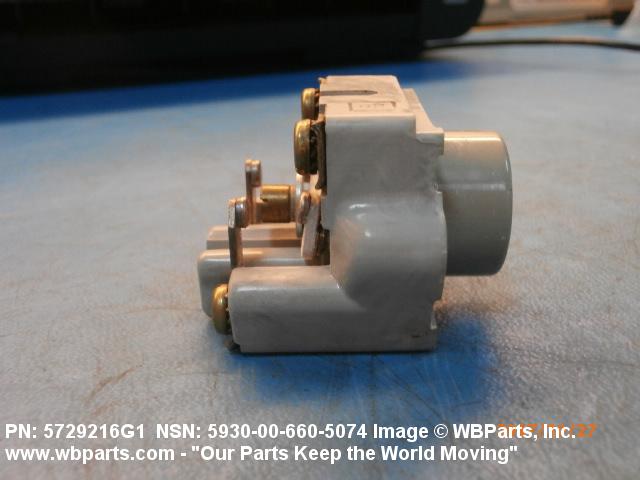

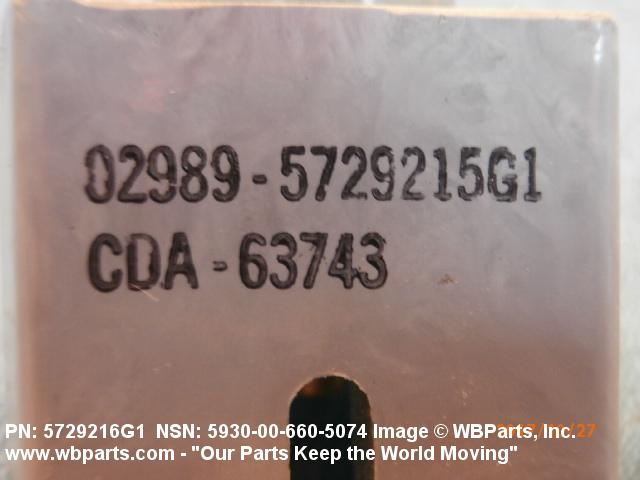

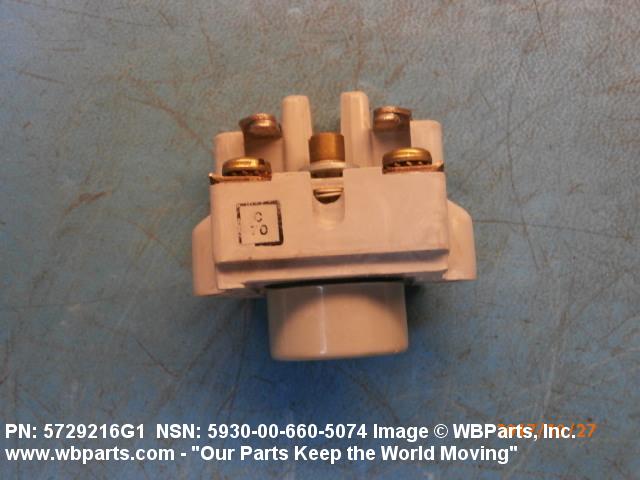

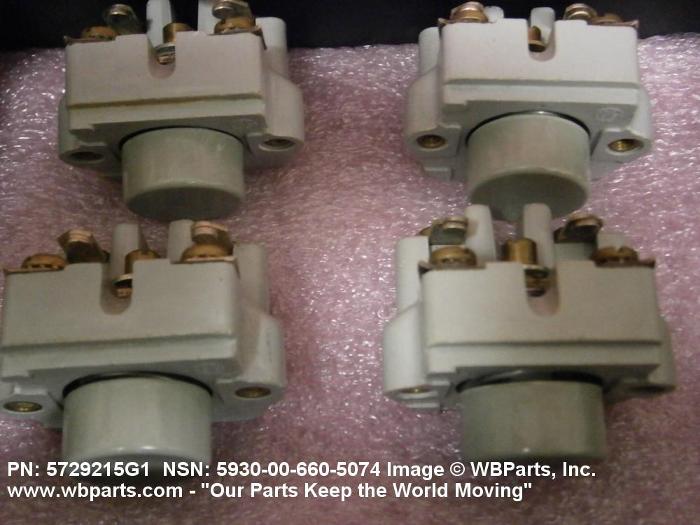

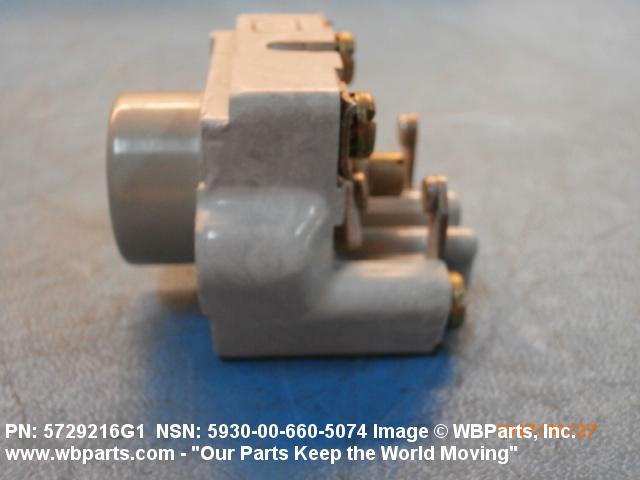

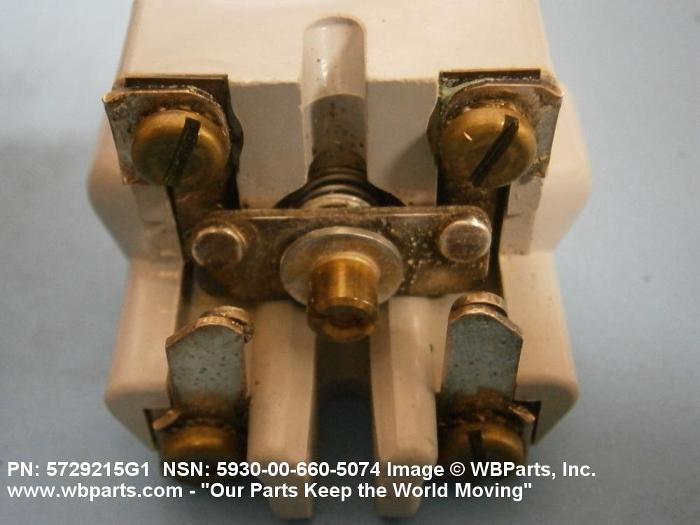

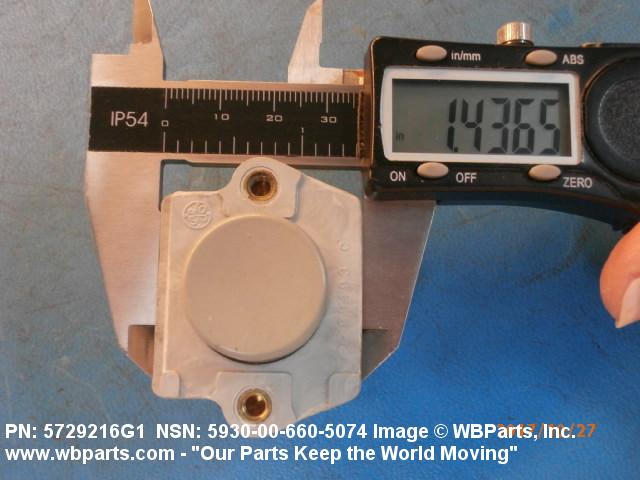

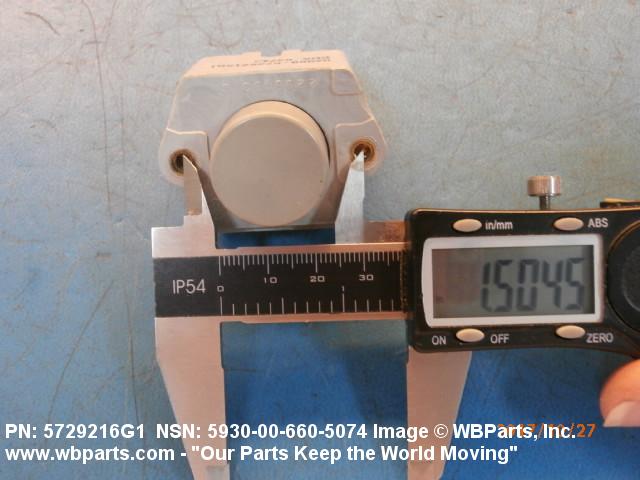

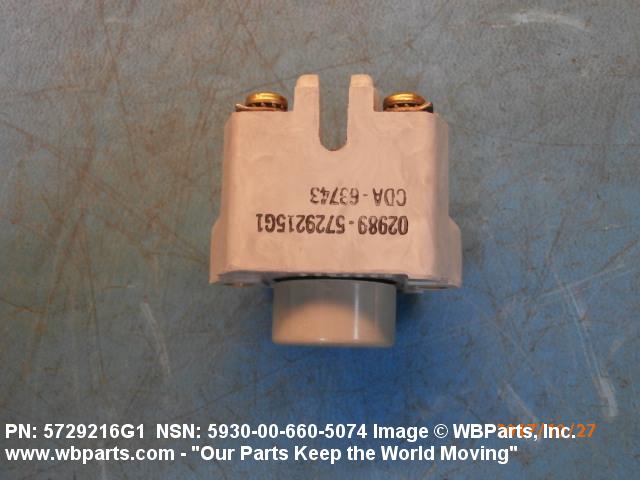

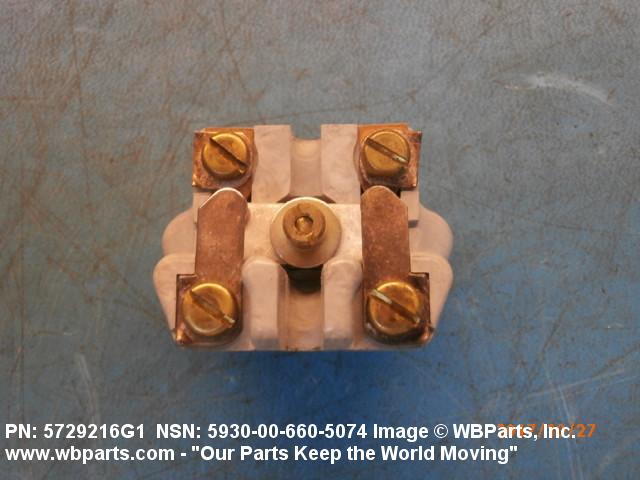

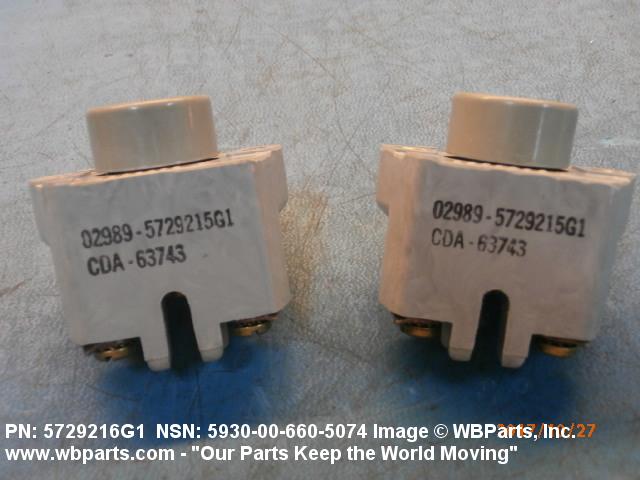

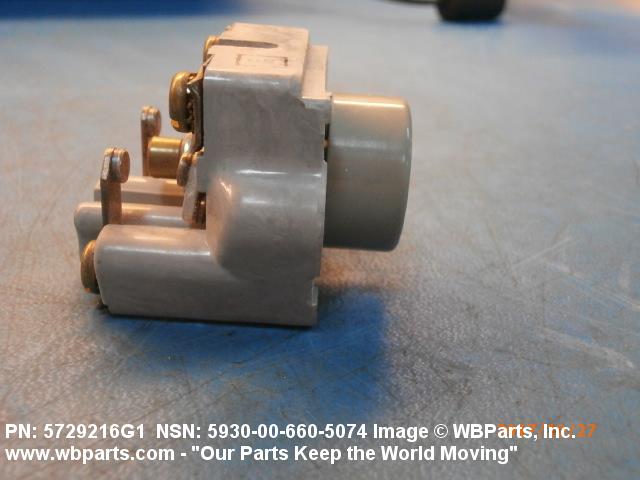

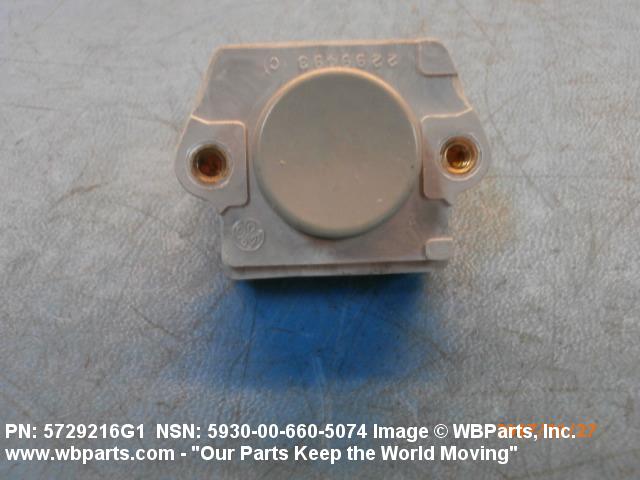

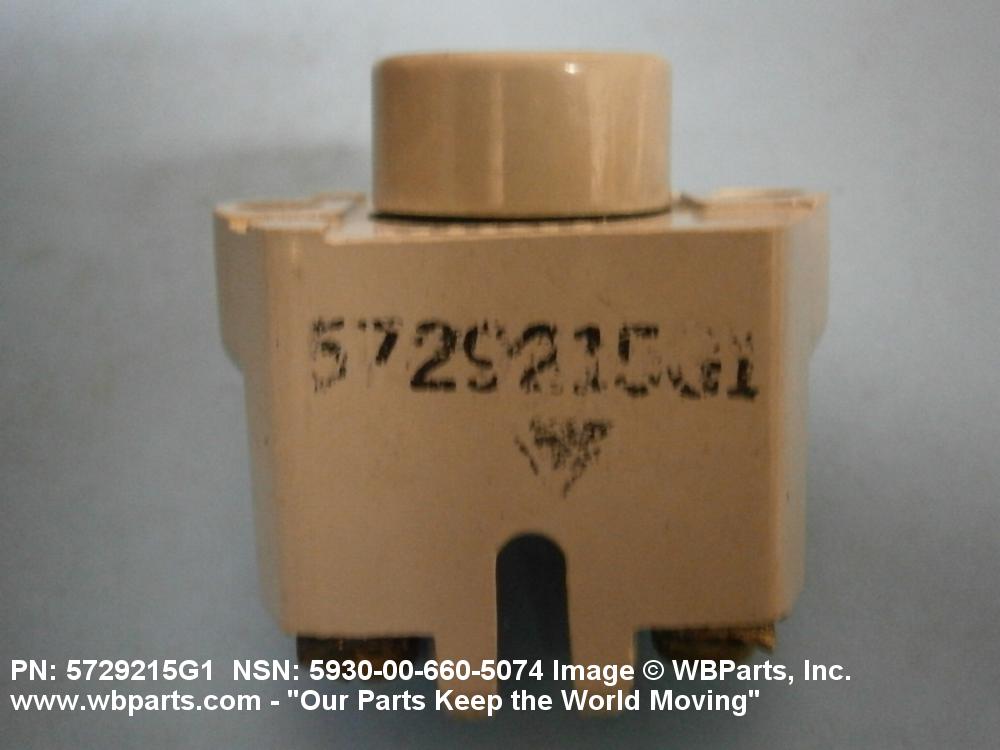

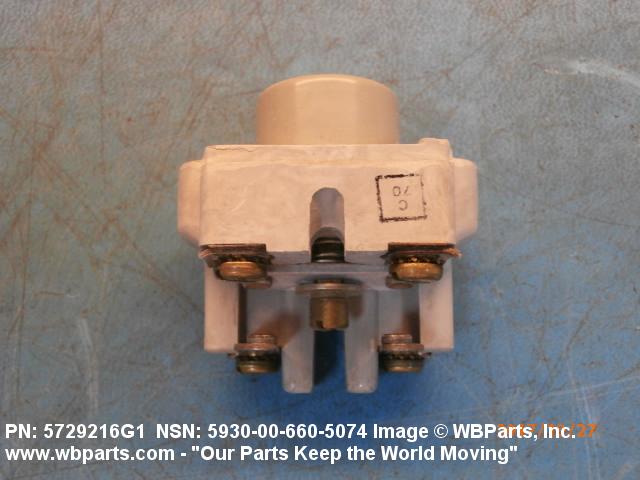

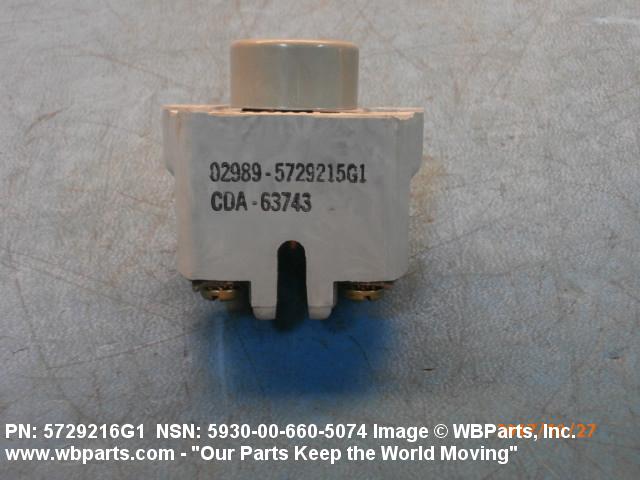

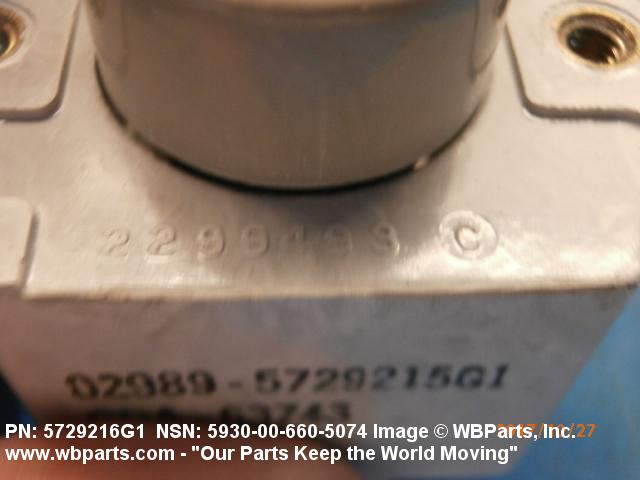

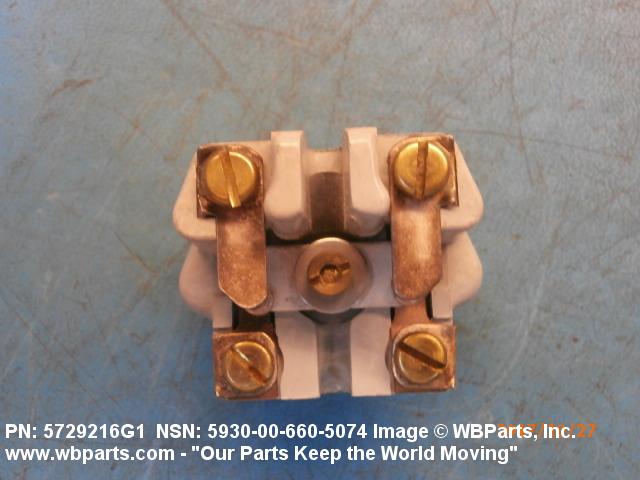

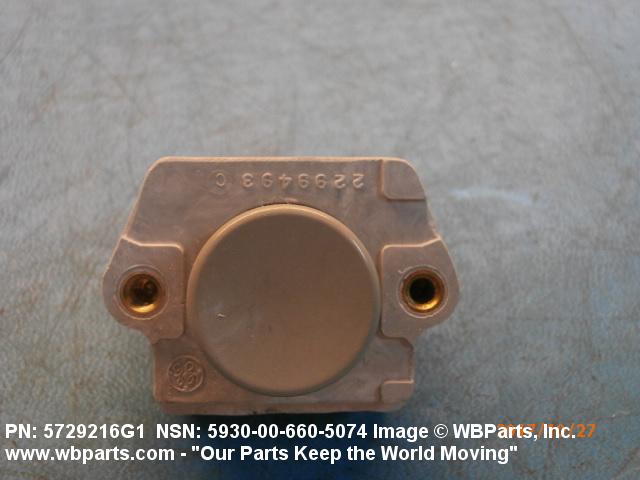

Drawings & Photos | NSN 5930-00-660-5074


Demand History | NSN 5930-00-660-5074

Part Number Request Date QTY Origin
5729215G1 2023-08-232 26 DIBBS
5930-00-660-5074 2021-09-253 2 Canada
5930-00-660-5074 2021-09-253 2 Canada
5729215G1 2021-02-49 6 DIBBS
5729215G1 2020-10-275 30 DIBBS
5729215G1 2020-09-247 59 DIBBS
5729215G1 2020-03-76 73 DIBBS
5729215G1 2020-03-61 73 DIBBS
5930-00-660-5074 2017-10-297 2 United States
5930-00-660-5074 2017-08-236 3 us
5930-00-660-5074 2017-06-181 140 US
5930-00-660-5074 2017-06-181 140 US
5930-00-660-5074 2017-06-180 140 DIBBS
5930-00-660-5074 2017-06-172 1 US
5930-00-660-5074 2016-05-138 47 DIBBS
5930-00-660-5074 2014-08-240 2 us
5930-00-660-5074 2013-11-326 170 DIBBS
5930-00-660-5074 2013-11-311 170 DIBBS
5930-00-660-5074 2013-10-296 170 DIBBS
5729215G1 2013-10-287 3 United States
5930-00-660-5074 2013-10-284 3 United States
5930-00-660-5074 2013-02-58 162 DIBBS
5930-00-660-5074 2013-02-43 162 DIBBS
5729215G1 2012-06-181 2 United States
5729215G1 2012-06-153 2 US
5930-00-660-5074 2011-10-283 4 United States
5930-00-660-5074 2011-10-280 4 United States
5930-00-660-5074 2008-12-339 270 DIBBS
5930-00-660-5074 2008-11-333 28 DIBBS

Cross Reference | NSN 5930-00-660-5074

Part Number Cage Code Manufacturer
171C882G4 03497 GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
346316DT4 93236 DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN
5729215G1 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
5729215G1 03497 GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
5729215G1 29834 GENERAL ELECTRIC CO INSTRUMENT PRODUCTS SECTION
5729215G1 63743 WARD LEONARD ELECTRIC COMPANY INC.
5729215G1 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
5729216G1 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
7895232P1 03497 GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
IC5845-572921G1 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
L-57292 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
L-5729215G1 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
L-5729215G1 03497 GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
L572915G1 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
L5729215G1 63743 WARD LEONARD ELECTRIC COMPANY INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-660-5074

Technical Data | NSN 5930-00-660-5074

Characteristic Specifications
NONPILE-UP CONTACT ARRANGEMENT 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS 600.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 10.000 AMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC
BODY STYLE 10K HOLE MOUNT
ACTUATOR COLOR BROWN SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY 4 SCREW
INCLOSURE TYPE FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION SHOCK RESISTANT
MOUNTING METHOD TERMINAL
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.164 INCHES
THREAD QUANTITY PER INCH 32

Restrictions/Controls & Freight Information | NSN 5930-00-660-5074

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061130 CABLE ASSEMBLY
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 743 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
