NSN 5930-00-660-3954 MS1451523, MS14515-23, MS2452523

Product Details | TOGGLE SWITCH

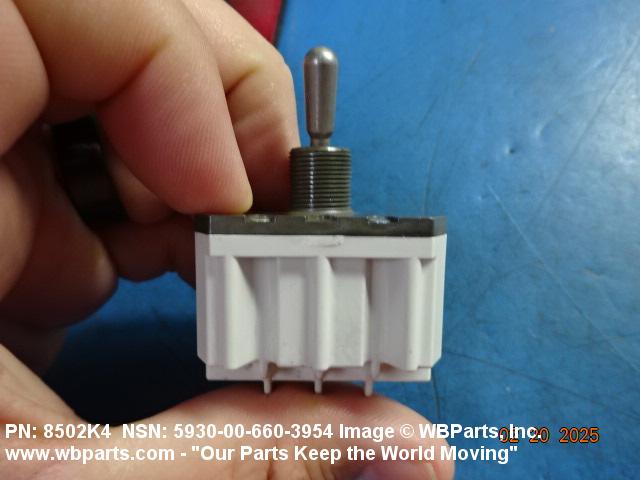

5930-00-660-3954 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS1451523, MS14515-23, MS2452523, MS24525-23, MS245253, MS24525-3, A23404, ASC1536680, C205081, C205-081, ST22731016, ST22731-016, VBE404/87, VBE40487, EE184, MILDTL3950, MIL-DTL-3950, MILS3950, MIL-S-3950, 8100-3527-0120 ITEM NO 4, 810035270120ITEMNO4, 83201118S7, 8502K4, 870IN0048, 9202812, 94148T41146, 94148T41-146, 973.52.17.403, 9735217403, 0272484, 027248-4, 106296, 1N451130008, 24TL13, 24TL1-3, 2546400573, 25464-00573, 2665385030, 266-5385-030, 32103023, 321-03-023, 352250015086, 41696923, 416969-23, 4575847, 457-5847 , 45A0101, 4TL13, 4TL1-3, 511423, 51-1423, 5930-00-660-3954, 00-660-3954, 5930006603954, 006603954

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-660-3954	00184 ( SWITCH, TOGGLE )

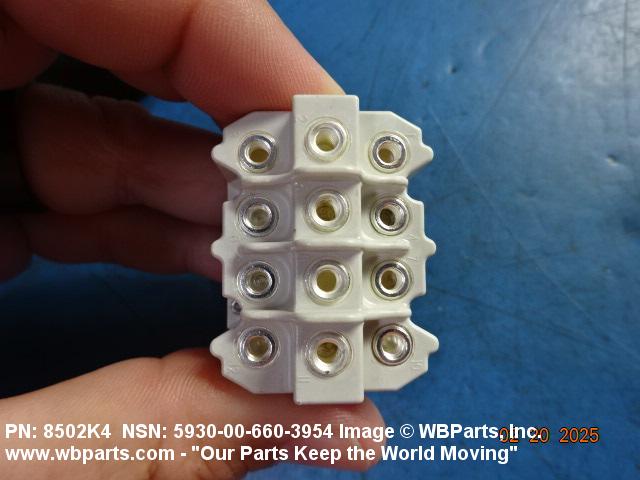

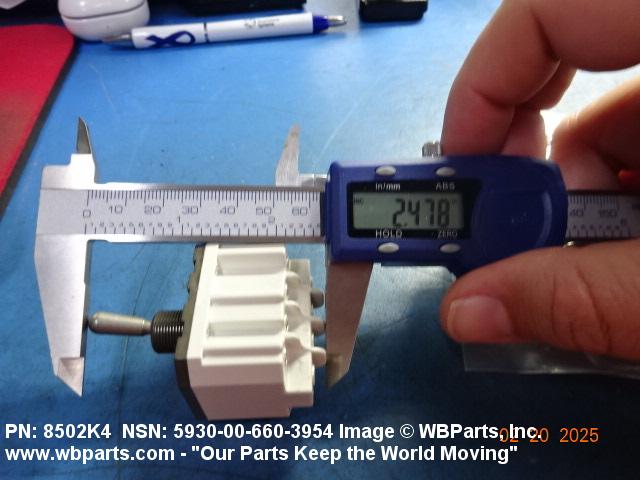

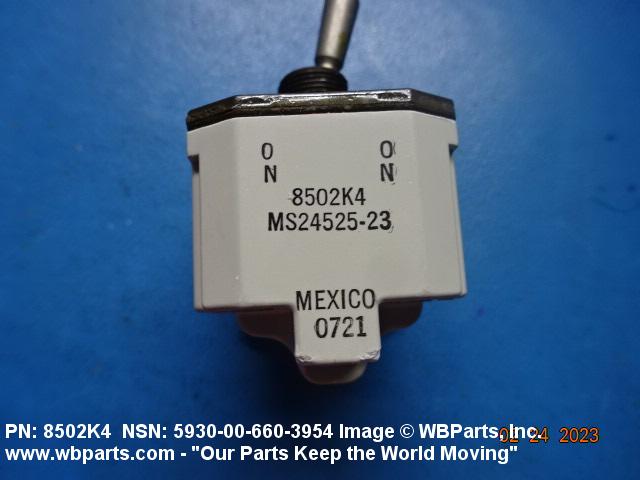

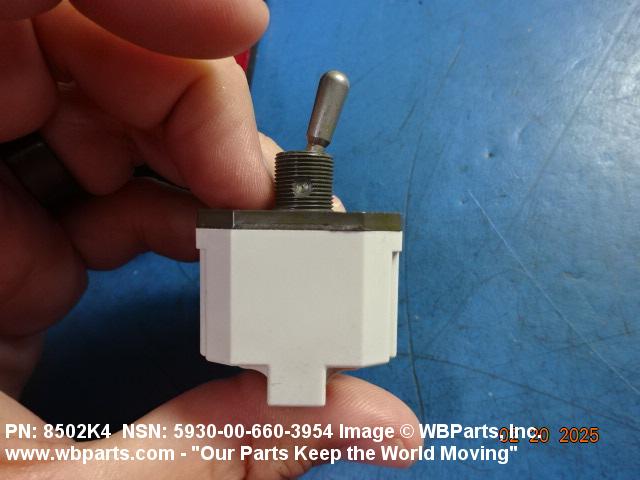

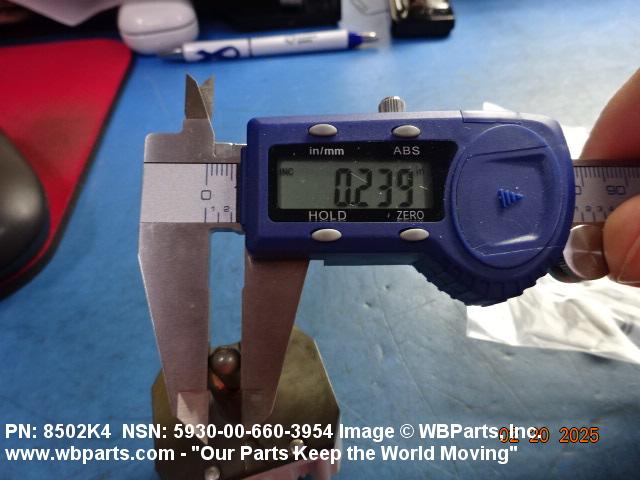

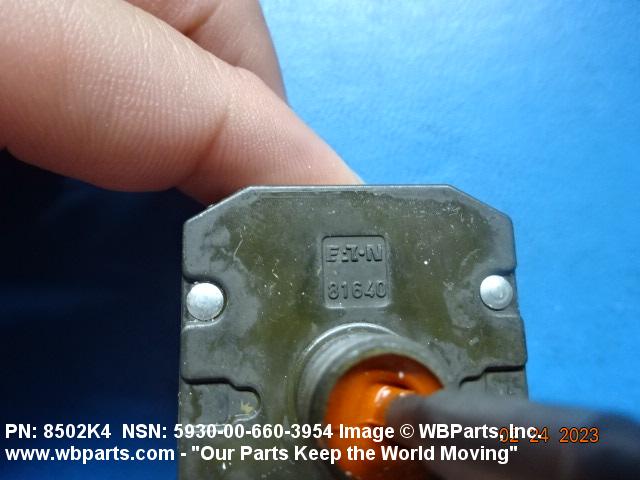

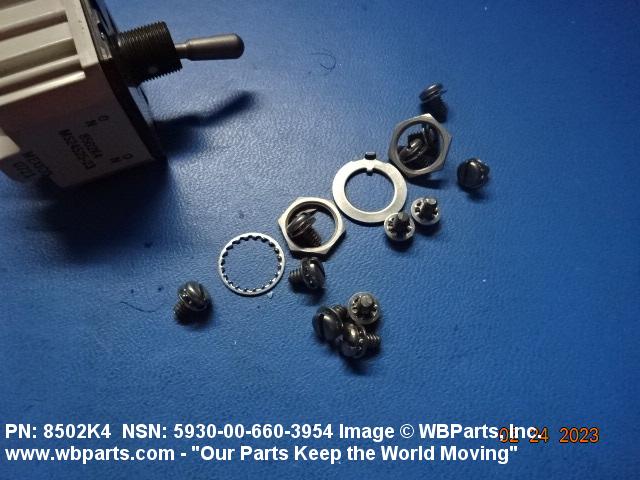

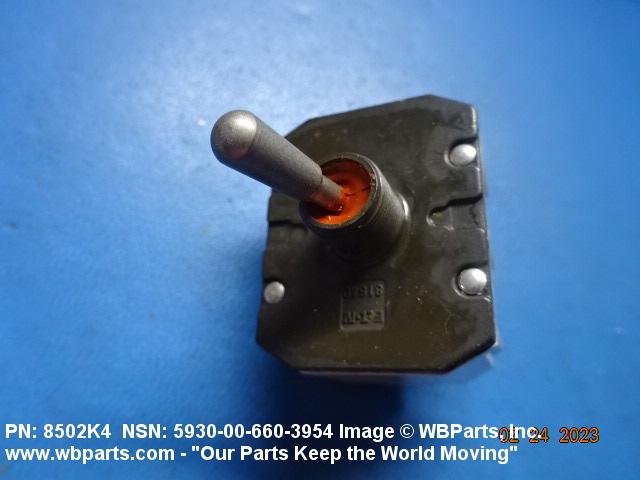

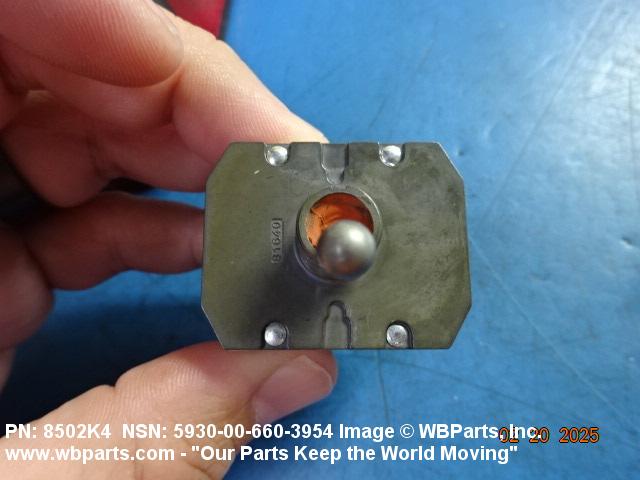

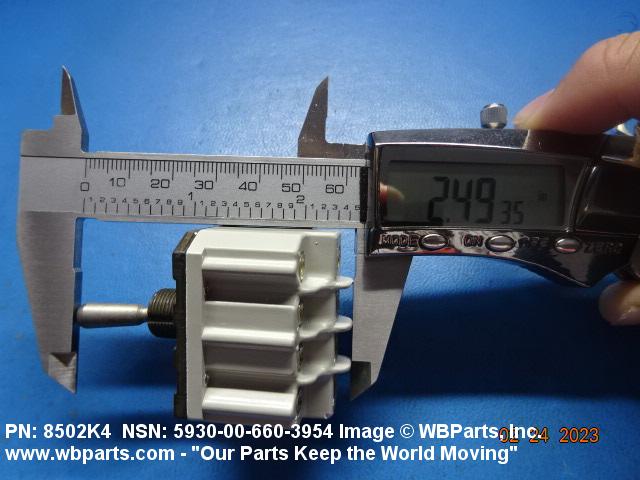

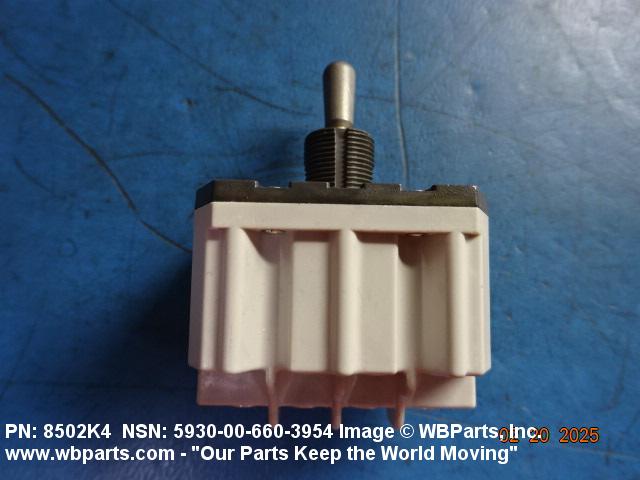

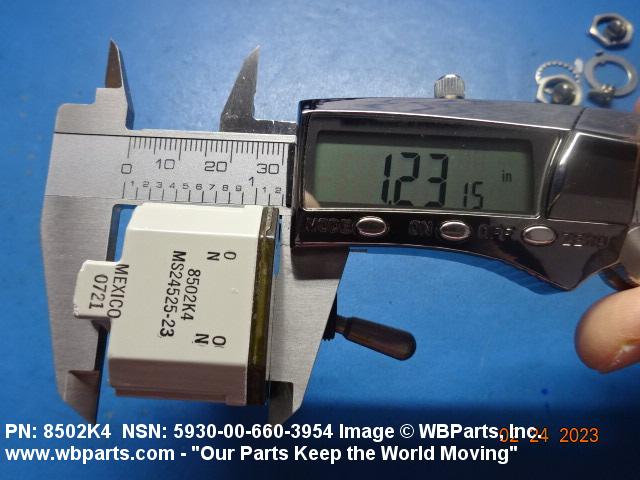

Drawings & Photos | NSN 5930-00-660-3954

Part Number	Request Date	QTY	Origin
5930-00-660-3954	2024-04-114	1	United States
5930-00-660-3954	2023-04-109	2	United States
5930-00-660-3954	2023-02-33	1	United States
MS2452523	2019-09-255	1	United States
5930-00-660-3954	2018-12-338	537	DIBBS
5930-00-660-3954	2018-11-310	434	DIBBS
5930-00-660-3954	2018-09-256	1	Singapore
MS2452523	2018-09-256	2	Singapore
5930-00-660-3954	2018-08-220	575	DIBBS
5930-00-660-3954	2018-05-129	250	DIBBS
5930-00-660-3954	2018-04-94	560	DIBBS
5930-00-660-3954	2018-03-85	320	DIBBS
5930-00-660-3954	2017-09-271	168	DIBBS
5930-00-660-3954	2015-09-271	184	DIBBS
5930-00-660-3954	2015-02-54	1	US
MS2452523	2014-09-272	27	Hong Kong
MILS3950	2014-02-56	4	Canada
MILS3950	2013-01-11	48	US
MS24525-23	2012-11-310	55
MS2452523	2012-07-200	2	Singapore
5930-00-660-3954	2012-03-68	0	DIBBS
5930-00-660-3954	2012-02-38	244	DIBBS
5930-00-660-3954	2011-12-343	6	DIBBS
5930-00-660-3954	2011-11-308	401	DIBBS
5930-00-660-3954	2011-10-293	435	DIBBS
5930-00-660-3954	2011-09-270	324	DIBBS
4TL13	2011-07-192	1	US
MS2452523	2011-06-157	5	US
ST22731016	2011-02-35	10	US
MS2452523	2010-11-307	14	US
5930-00-660-3954	2010-08-217	516	DIBBS
5930-00-660-3954	2010-03-81	207	DIBBS
5930-00-660-3954	2009-10-300	320	DIBBS
5930-00-660-3954	2007-11-330	900	DIBBS
5930-00-660-3954	2007-07-190	601	DIBBS
5930-00-660-3954	2007-05-125	280	DIBBS
5930-00-660-3954	2007-04-113	91	DIBBS
5930-00-660-3954	2006-02-33	4	United States

Cross Reference | NSN 5930-00-660-3954

Part Number	Cage Code	Manufacturer
027248-4	15823	UNIFLITE INC
106296	34355	LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR
1N451130008	A2309	WHITEHEAD SISTEMI SUBACQUEI SPA
24TL1-3	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
25464-00573	K0662	SELEX ES LTD
266-5385-030	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
321-03-023	58475	WESTWOOD CORPORATION DBA NMP DIVISION
352250015086	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
416969-23	96214	RAYTHEON COMPANY DBA RAYTHEON
45A0101	52025	SIEMENS ENERGY & AUTOMATION, INC. DIV SIEMENS ENERGY & AUTOMATION DBA
4TL1-3	23905	L-3 COMMUNICATIONS WESTWOOD CORPORATION
4TL1-3	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4TL1-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
4TL1-3	K6596	HONEYWELL CONTROL SYSTEMS LTD
51-1423	K7178	ITW SWITCHES
5930006603954	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8100-3527-0120 ITEM NO 4	70876	BATH IRON WORKS CORPORATION
83201118S7	K4358	SAFRAN POWER UK LTD.
8502K4	81640	EATON CORPORATION DBA FLUID POWER DIV
870IN0048	0291H	ROSOMAK S.A
9202812	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
94148T41-146	S5466	PON POWER AB
973.52.17.403	S4080	PILATUS AIRCRAFT LTD
A23404	K0967	MBDA UK LTD
ASC1536680	Z4779	ASC PTY LTD
C205-081	K0233	THALES OPTRONICS LIMITED
EE184	77260	PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP
MIL-DTL-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS14515-23	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24525-23	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24525-23	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
MS24525-23	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24525-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
ST22731-016	K0967	MBDA UK LTD
VBE404/87	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-660-3954

Compare

Related Products | NSN 5930-00-660-3954

5930-00-731-3359, 5930-00-823-8324, 5930-00-899-0558, 5930-00-912-3375, 5930-01-015-6035

Technical Data | NSN 5930-00-660-3954

Characteristic	Specifications

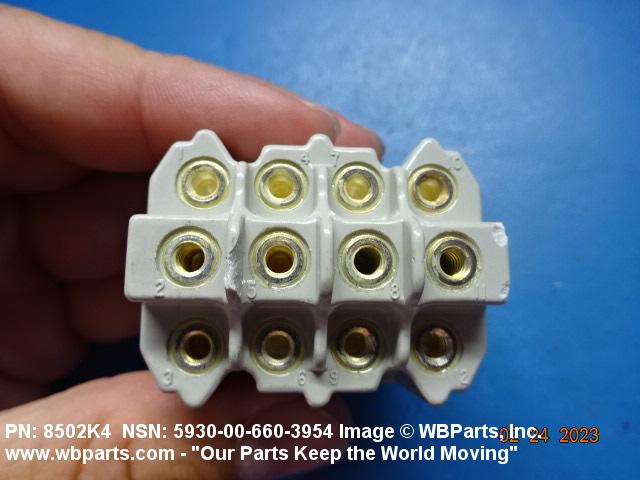

NONPILE-UP CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	20.000 AMPERES RESISTIVE DC AND 12.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 15.000 AMPERES INDUCTIVE AC AND 4.000 AMPERES LAMP AC
BODY STYLE	5P BUSHING MOUNT

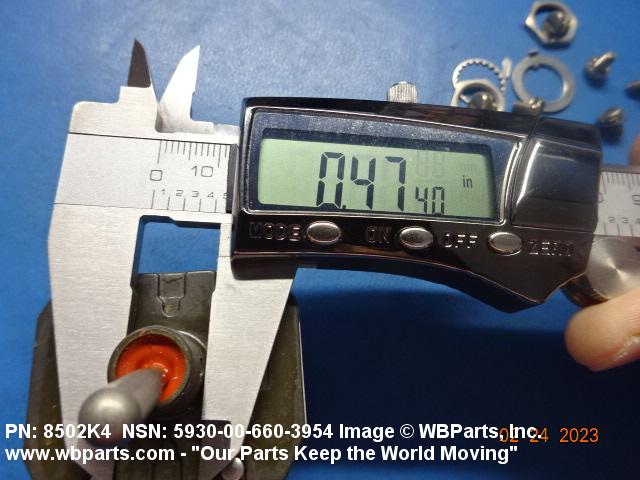

BUSHING LENGTH	0.455 INCHES MINIMUM AND 0.485 INCHES MAXIMUM

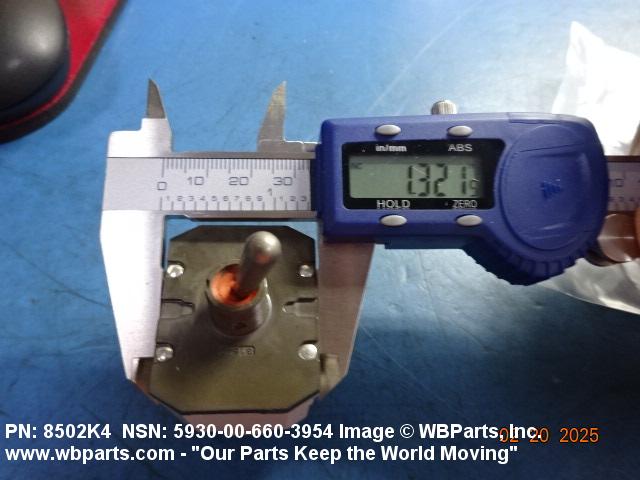

BODY LENGTH	1.340 INCHES MAXIMUM

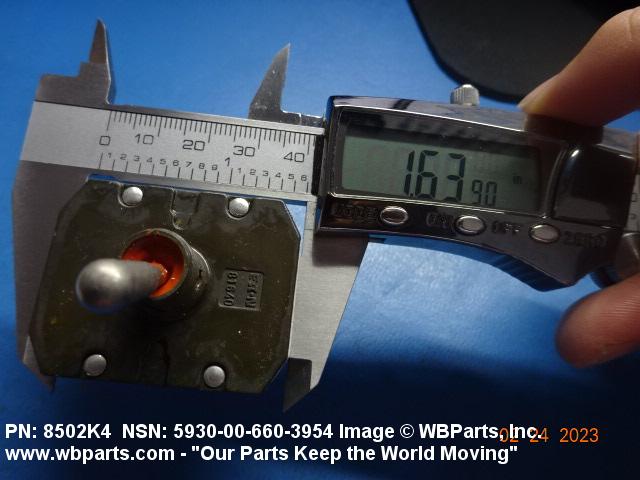

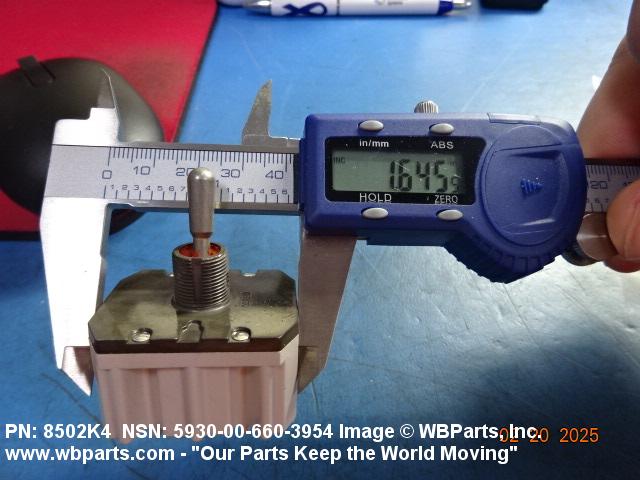

BODY WIDTH	1.660 INCHES MAXIMUM
