NSN 5930-00-655-1759 RG8395JS, RG-8395-JS, 2303766
Product Details | PRESSURE SWITCH
5930-00-655-1759 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: RG8395JS, RG-8395-JS, 2303766, 23037661, 2303766-1, 27113991, 271-1399-1, 5930-00-655-1759, 00-655-1759, 5930006551759, 006551759
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-655-1759 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-655-1759
Cross Reference | NSN 5930-00-655-1759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2303766 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2303766-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 271-1399-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 271-1399-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| RG-8395-JS | 51663 | CRANE CO. DBA LEAR ROMEC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-655-1759
Related Products | NSN 5930-00-655-1759
Technical Data | NSN 5930-00-655-1759
| Characteristic | Specifications |
|---|---|

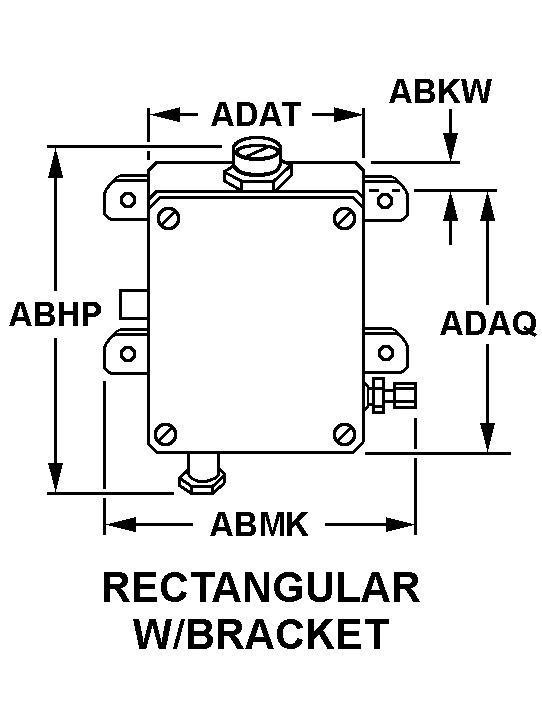

| STYLE DESIGNATOR | 32 RECTANGULAR W/BRACKET |
| OVERALL LENGTH | 3.480 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.500 INCHES MAXIMUM |
| OVERALL WIDTH | 2.500 INCHES MAXIMUM |
| BODY LENGTH | 2.000 INCHES MAXIMUM |
| BODY WIDTH | 2.000 INCHES MAXIMUM |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 4.00 DEACTUATION POINT MINIMUM POUNDS PER SQUARE INCH GAGE AND 6.00 ACTUATION POINT MAXIMUM POUNDS PER SQUARE INCH GAGE AND 2.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 28.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 15.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 10.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | 32.0 DEG FAHRENHEIT MINIMUM AND 122.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| PROOF PRESSURE | 34.00 POUNDS PER SQUARE INCH GAGE |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | BRACKET AND THREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.500 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION UNC ALL THREADED HOLE |
| NOMINAL THREAD SIZE | 0.125 INCHES SINGLE PRESSURE CONNECTION 0.138 INCHES ALL THREADED HOLE |
| THREAD CLASS | 3B ALL THREADED HOLE |
| THREAD QUANTITY PER INCH | 27 SINGLE PRESSURE CONNECTION 32 ALL THREADED HOLE |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
