NSN 5930-00-655-1576 MS2510524, MS25105-24, MS251053
Product Details | TOGGLE SWITCH
5930-00-655-1576 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS2510524, MS25105-24, MS251053, MS25105-3, X09257, 33TS121, 33TS1-21, 533TS121, 533TS1-21, 7770037001, 7770037-001, 8740K12, 5930-00-655-1576, 00-655-1576, 5930006551576, 006551576
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 2002 | 00-655-1576 | 00184 ( SWITCH, TOGGLE ) |

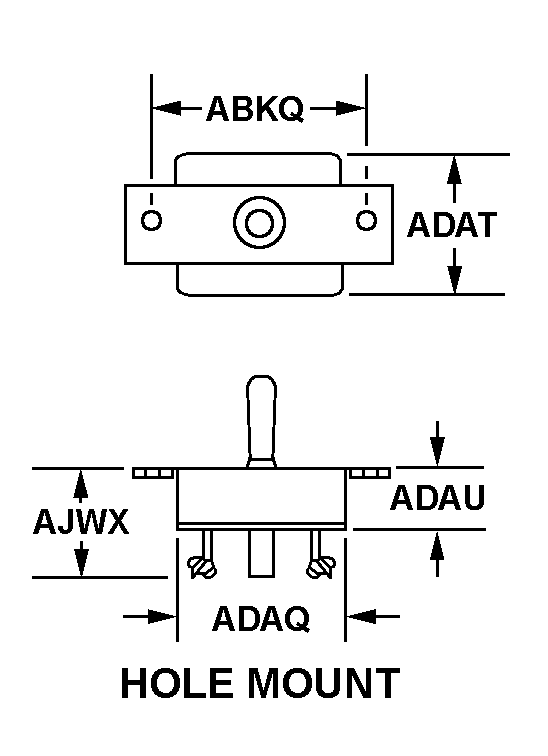

Drawings & Photos | NSN 5930-00-655-1576
Demand History | NSN 5930-00-655-1576
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2510524 | 2018-05-123 | 2 | US |
Cross Reference | NSN 5930-00-655-1576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33TS1-21 | 91928 | LOUIS MFG CO |
| 533TS1-21 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 7770037-001 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 7770037-001 | 98747 | OGDEN AIR LOGISTICS CENTER |
| 8740K12 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| MS25105-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS25105-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| X09257 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-655-1576
Technical Data | NSN 5930-00-655-1576
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 3 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 22.000 AMPERES LAMP DC AND 22.000 AMPERES RESISTIVE AC AND 15.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC |
| BODY STYLE | 16P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.797 INCHES MINIMUM AND 1.827 INCHES MAXIMUM |
| BODY LENGTH | 2.125 INCHES NOMINAL |
| BODY WIDTH | 1.380 INCHES MAXIMUM |
| BODY HEIGHT | 1.531 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.245 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 0.850 INCHES MINIMUM AND 0.910 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-655-1576
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
