Product Details | TOGGLE SWITCH
5930-00-655-1528 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: WS896, 5930-00-655-1528, 00-655-1528, 5930006551528, 006551528
Electrical and Electronic Equipment Components | Switches
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-655-1528 | 00184 ( SWITCH, TOGGLE ) |
Cross Reference | NSN 5930-00-655-1528
Part Number | Cage Code | Manufacturer |
---|---|---|
WS896 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-655-1528
Related Products | NSN 5930-00-655-1528
Technical Data | NSN 5930-00-655-1528
Characteristic | Specifications |
---|---|
NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE AC |

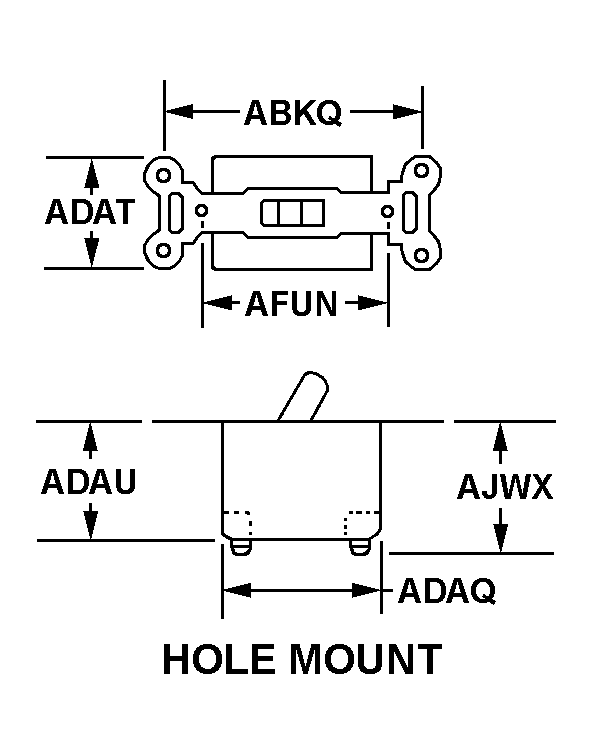

BODY STYLE | 17P HOLE MOUNT |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.281 INCHES NOMINAL |
BODY LENGTH | 1.500 INCHES NOMINAL |
BODY WIDTH | 0.875 INCHES NOMINAL |
BODY HEIGHT | 1.125 INCHES NOMINAL |
SWITCH ACTUATOR QUANTITY | 1 |
ACTUATOR STYLE | 12 RECTANGULAR |
ACTUATOR HEIGHT | 0.562 INCHES NOMINAL |
ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
ACTUATOR COLOR | IVORY SINGLE ACTUATOR |
TERMINAL TYPE AND QUANTITY | 2 SCREW |
INCLOSURE TYPE | FULLY INCLOSED |
NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 CLASS AND B DESIGN |
MANUFACTURERS CODE | 81348 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WS896 |
