NSN 5930-00-631-3737 01745510, 01-745510, 531238-002

Product Details | PUSH SWITCH

5930-00-631-3737 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.

Part Alternates: 01745510, 01-745510, 531238-002, 5930-00-631-3737, 00-631-3737, 5930006313737, 006313737, 531238002

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	11 JUL 1971	00-631-3737	00406 ( SWITCH, PUSH )

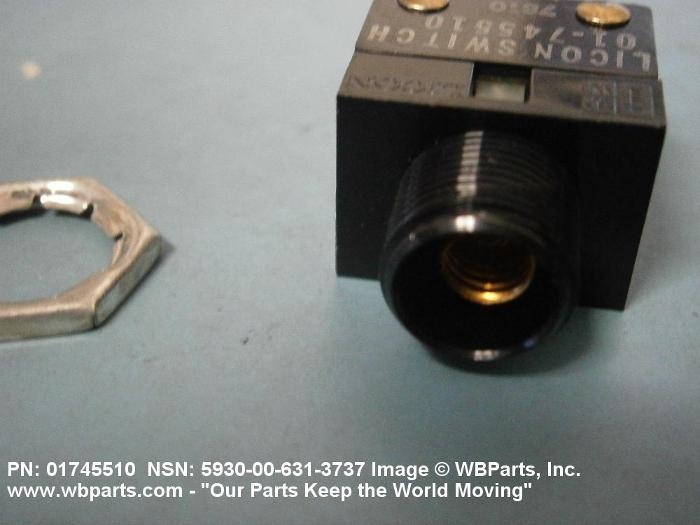

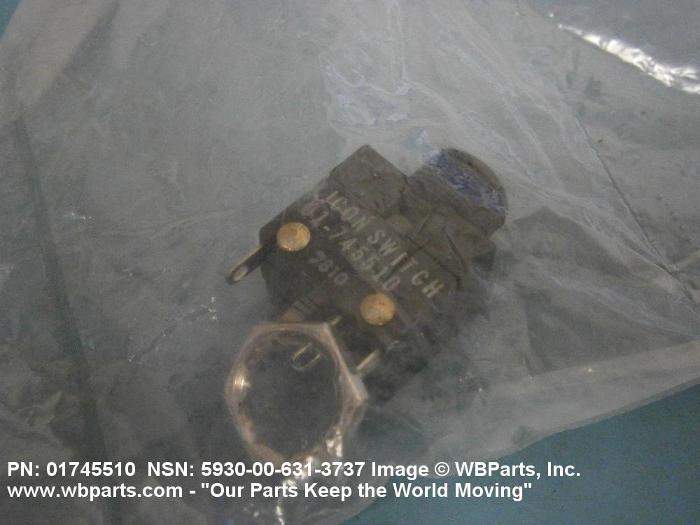

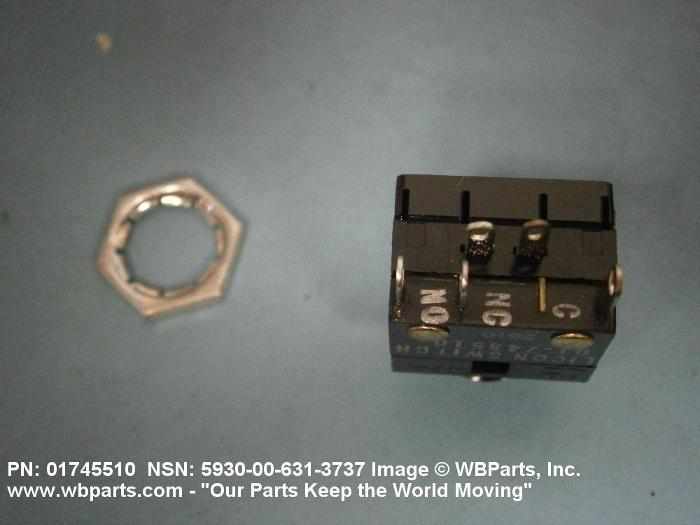

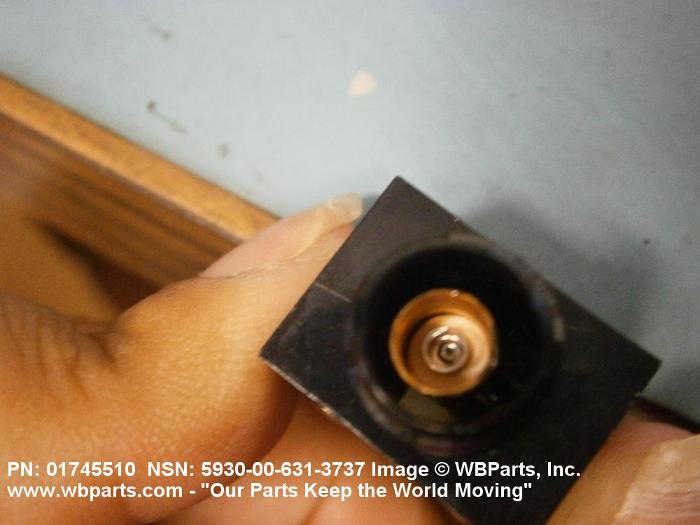

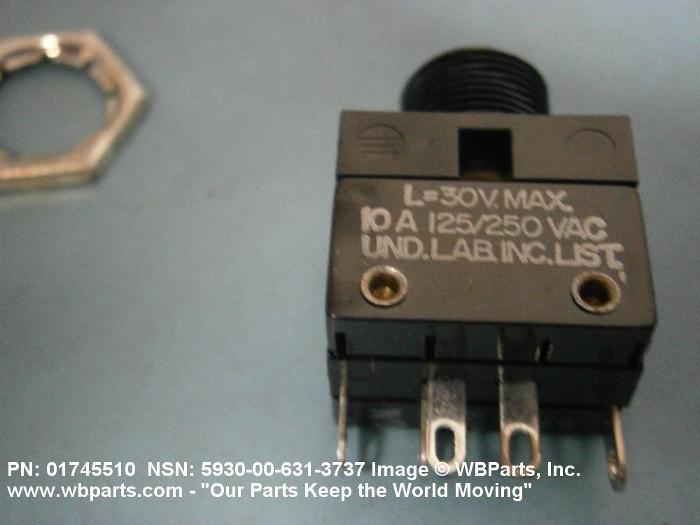

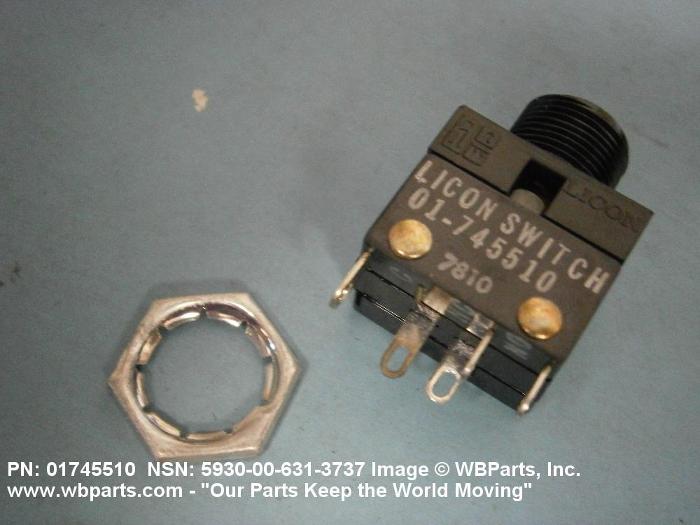

Drawings & Photos | NSN 5930-00-631-3737

Part Number	Request Date	QTY	Origin
5930-00-631-3737	2021-03-67	6	United Kingdom
5930-00-631-3737	2016-05-152	13	DIBBS
5930-00-631-3737	2016-05-140	15	DIBBS
5930-00-631-3737	2016-05-140	13	DIBBS
5930-00-631-3737	2016-05-138	50	US
5930-00-631-3737	2016-04-98	14	DIBBS
5930-00-631-3737	2016-04-96	50	DIBBS
5930-00-631-3737	2015-10-282	577	DIBBS
5930-00-631-3737	2015-09-258	277	DIBBS
5930-00-631-3737	2015-09-246	277	DIBBS
5930-00-631-3737	2015-06-179	144	DIBBS
5930-00-631-3737	2015-06-169	300	DIBBS
5930-00-631-3737	2015-06-166	144	DIBBS
5930-00-631-3737	2015-04-120	107	DIBBS
5930-00-631-3737	2015-03-68	493	DIBBS
5930-00-631-3737	2015-02-55	493	DIBBS
5930-00-631-3737	2015-01-26	548	DIBBS
5930-00-631-3737	2015-01-14	548	DIBBS
5930-00-631-3737	2014-11-321	550	DIBBS
5930-00-631-3737	2014-10-300	550	DIBBS
5930-00-631-3737	2014-10-288	550	DIBBS
5930-00-631-3737	2014-07-188	341	DIBBS
5930-00-631-3737	2014-06-174	341	DIBBS
5930-00-631-3737	2013-09-267	453	DIBBS
5930-00-631-3737	2013-08-240	453	DIBBS
5930-00-631-3737	2013-08-226	191	DIBBS
5930-00-631-3737	2013-03-87	196	DIBBS
01745510	2012-05-124	15	us
01745510	2012-05-124	15	us
01745510	2012-05-124	15	us
01745510	2010-10-292	10	US

Cross Reference | NSN 5930-00-631-3737

Part Number	Cage Code	Manufacturer
01-745510	04426	ILLINOIS TOOL WORKS INC. DIV ILLINOIS TOOL WORKS
531238-002	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
531238-002	49956	RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-631-3737

Compare

Related Products | NSN 5930-00-631-3737

5930-00-631-4381, 5930-00-631-4578, 5930-00-631-4761, 5930-00-631-4783, 5930-00-631-5027

Technical Data | NSN 5930-00-631-3737

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	125.0 AC AND 250.0 AC AND 30.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES RESISTIVE AC AND 7.500 AMPERES RESISTIVE DC AND 5.000 AMPERES INDUCTIVE DC
BODY STYLE	13K BUSHING MOUNTED
BUSHING LENGTH	0.359 INCHES NOMINAL
BODY LENGTH	0.781 INCHES NOMINAL
BODY WIDTH	0.562 INCHES NOMINAL
BODY HEIGHT	0.672 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	3 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	PANEL
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
III CASE MATERIAL	METAL
III PRECIOUS MATERIAL	SILVER AND GOLD
III PRECIOUS MATERIAL AND LOCATION	CONTACTS SILVER AND CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5930-00-631-3737

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	C	Item contains two or more precious metals
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-631-3737

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
