NSN 5930-00-626-4981 2590845040, 259-0845-040, 39638724LR5
Product Details | ROTARY SWITCH
5930-00-626-4981 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 2590845040, 259-0845-040, 39638724LR5, 39638-724LR-5, 5930-00-626-4981, 00-626-4981, 5930006264981, 006264981
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 MAR 1975 | 00-626-4981 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-00-626-4981
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-626-4981
Related Products | NSN 5930-00-626-4981
Technical Data | NSN 5930-00-626-4981
| Characteristic | Specifications |
|---|---|

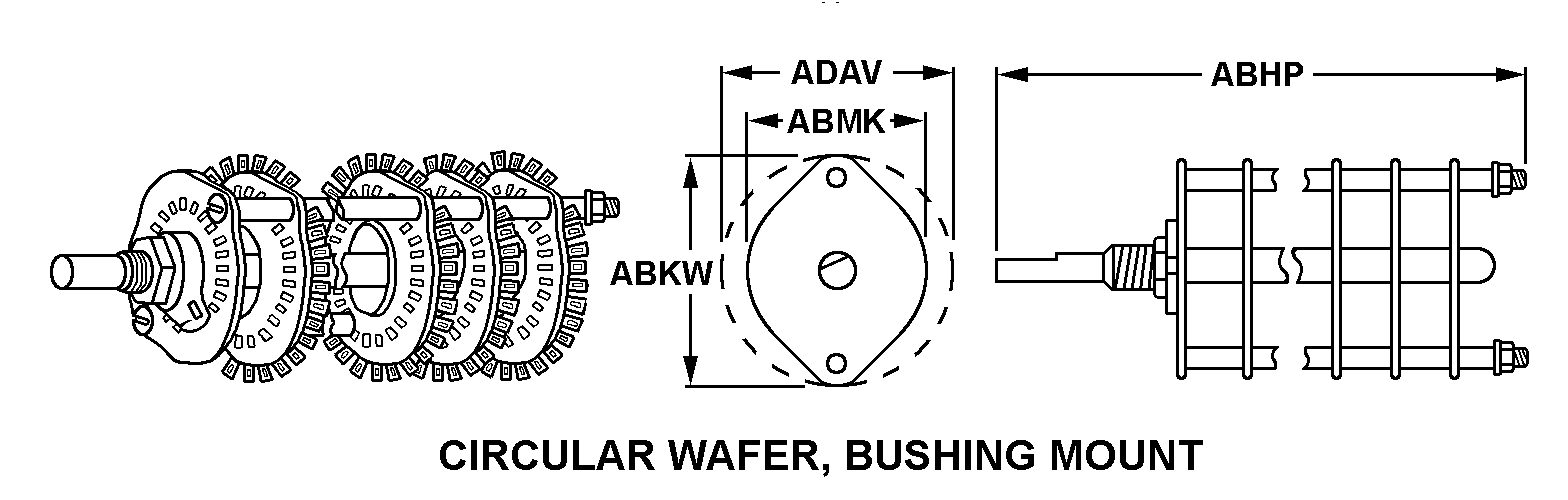

| STYLE DESIGNATOR | 4 CIRCULAR WAFER, BUSHING MOUNT |
| OVERALL LENGTH | 4.085 INCHES NOMINAL |
| OVERALL HEIGHT | 2.312 INCHES MAXIMUM |
| OVERALL WIDTH | 1.983 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 5 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 1ST SECTION FRONT 2 1ST SECTION REAR 2 2ND SECTION FRONT 2 2ND SECTION REAR 2 3RD SECTION FRONT 2 3RD SECTION REAR 3 4TH SECTION FRONT 3 4TH SECTION REAR 2 5TH SECTION FRONT 2 5TH SECTION REAR |
| THROW QUANTITY | 5 EACH SECTION FRONT 5 EACH SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT BREAKS BEFORE MAKES EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 250.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 500.0 MILLIAMPERES RESISTIVE LOAD AND 50.0 MILLIAMPERES INDUCTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 6 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 15.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.406 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.218 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.247 INCHES MINIMUM AND 0.249 INCHES MAXIMUM SINGLE ACTUATOR |
| SHAFT LENGTH | 0.835 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | TAB AT 9:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL AT 9:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 225.0 DEGREES FROM NONTURN DEVICE SINGLE ACTUATOR |
| III OPERATING TEMP RANGE | -65.0 TO 85.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS AND ROTOR BLADES SILVER |
