NSN 5930-00-625-7666 AE14700699, AE147-006-99, BP17937
Product Details | FOOT SWITCH
5930-00-625-7666 A switch with a pedal which is actuated by the foot. For items not provided with a pedal, see switch (as modified). Excludes SWITCH, BEAM SELECTING, HEADLIGHT.
Part Alternates: AE14700699, AE147-006-99, BP17937, BS105, 175542, 17554-2, 6136241, 613624-1, 9809F01004, 9809F01004107, 9809F01004-107, 5930-00-625-7666, 00-625-7666, 5930006257666, 006257666
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-625-7666 | 00174 ( SWITCH, FOOT ) |

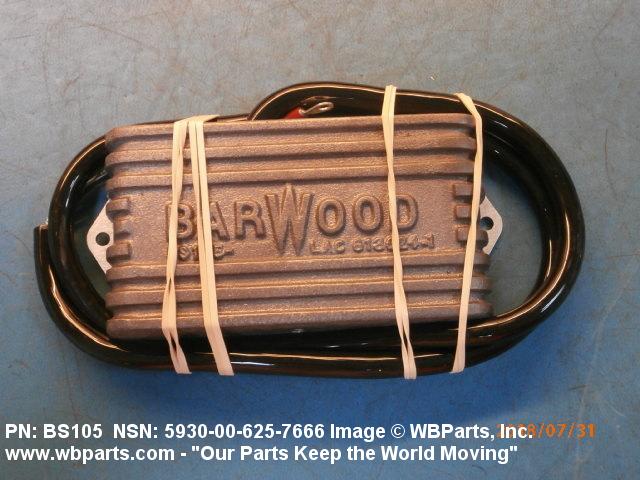

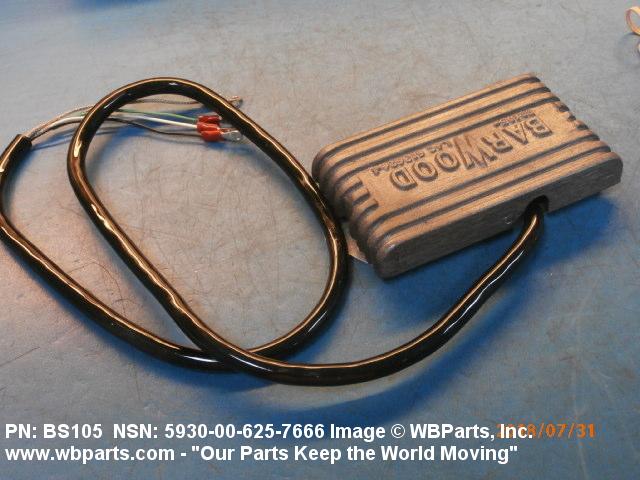

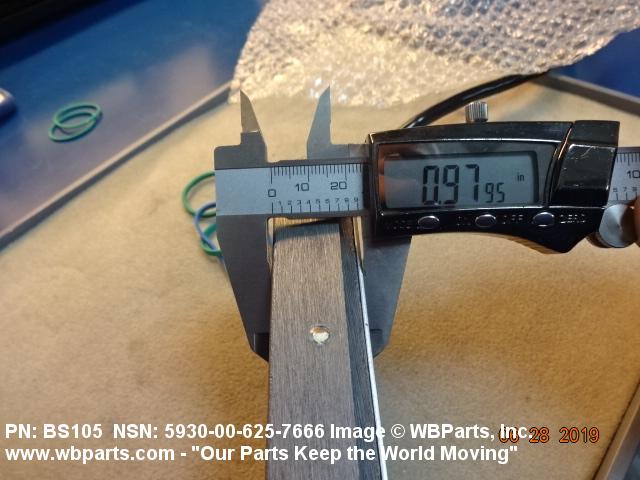

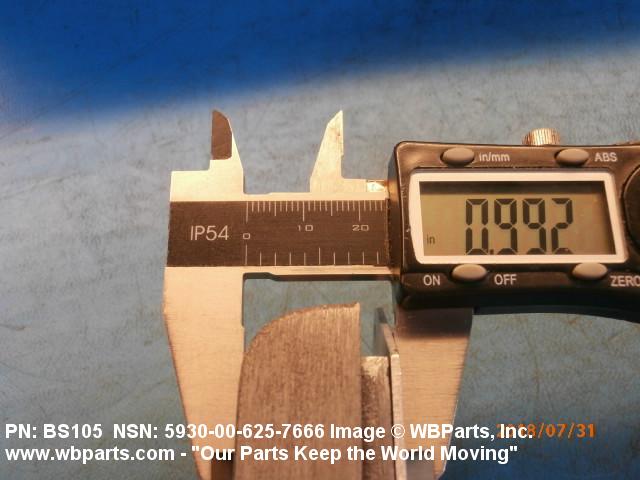

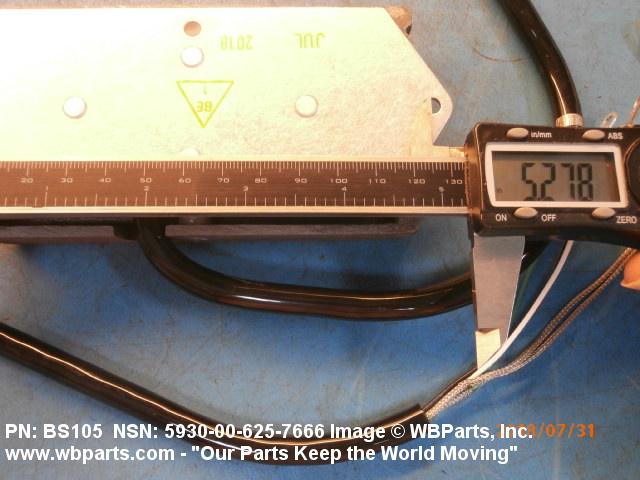

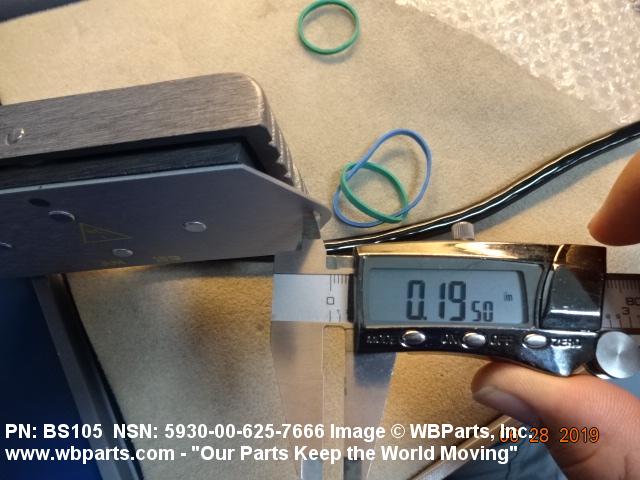

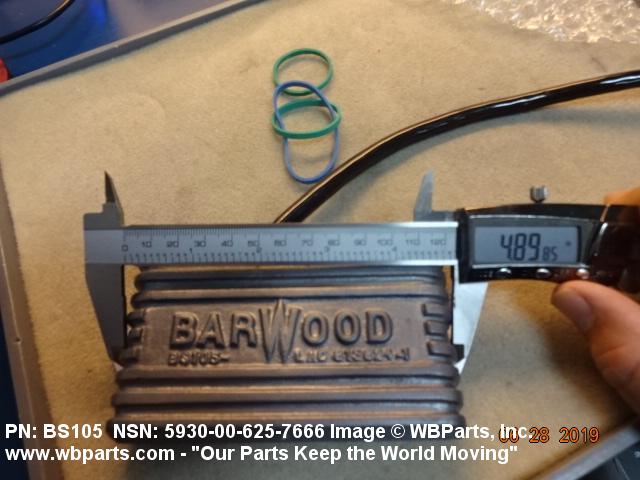

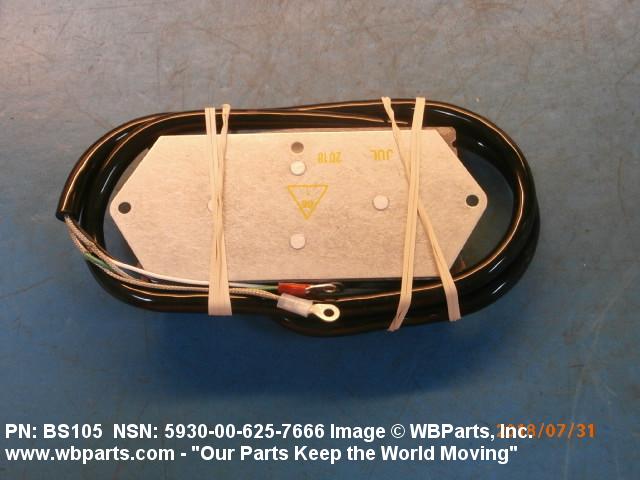

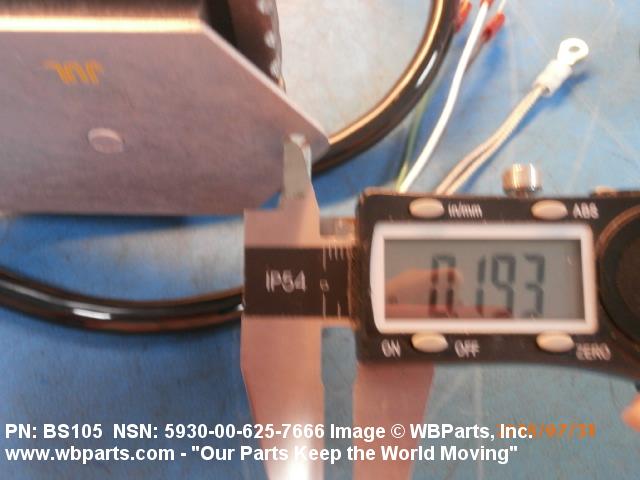

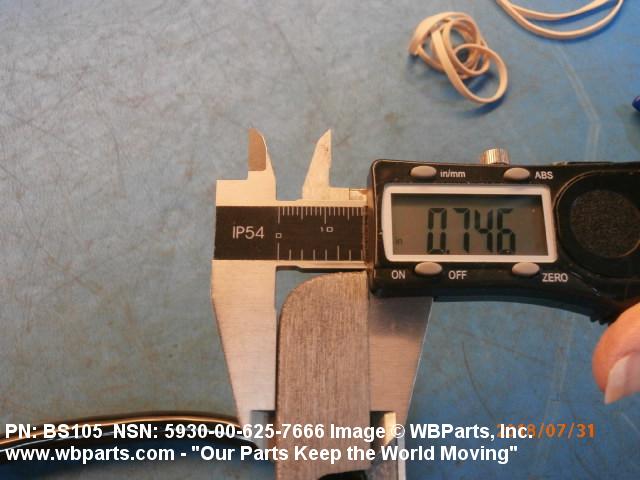

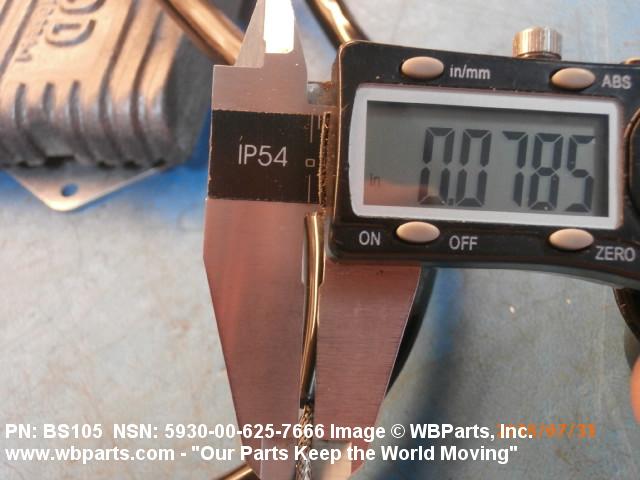

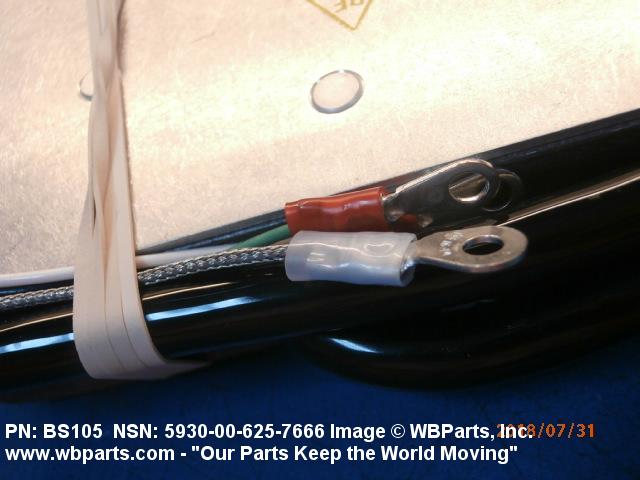

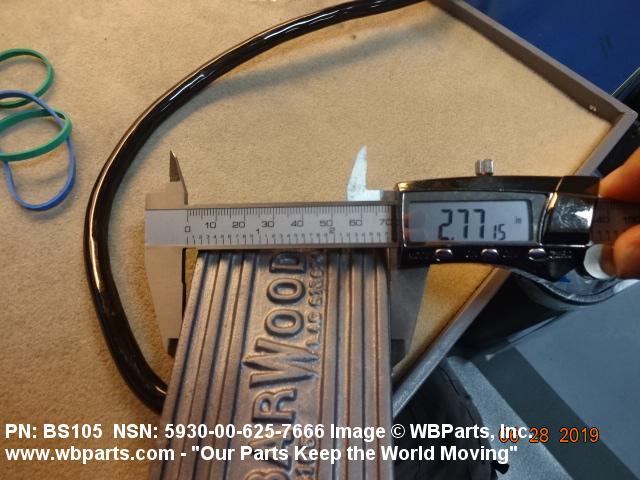

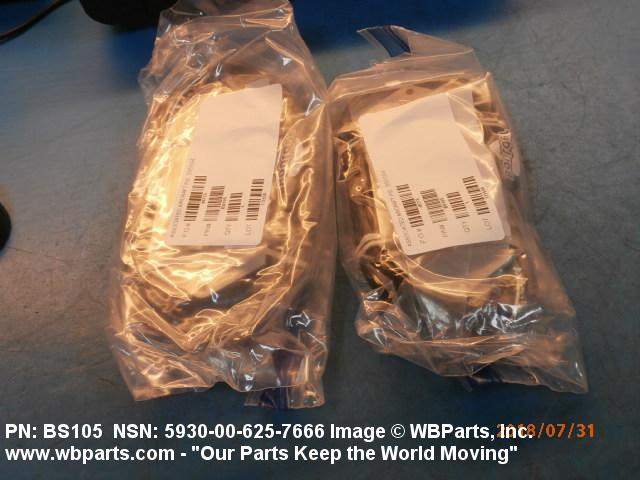

Drawings & Photos | NSN 5930-00-625-7666
Demand History | NSN 5930-00-625-7666
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-625-7666 | 2023-05-122 | 235 | United States |
| 175542 | 2022-06-165 | 1 | US |
| 6136241 | 2021-08-229 | 7 | CA |
| 5930-00-625-7666 | 2021-04-102 | 3 | US |
| 5930-00-625-7666 | 2020-11-316 | 4 | US |
| 5930-00-625-7666 | 2018-10-302 | 4 | United States |
| 5930-00-625-7666 | 2018-08-239 | 81 | DIBBS |
| 5930-00-625-7666 | 2018-08-228 | 81 | DIBBS |
| 5930-00-625-7666 | 2017-12-356 | 2 | United States |
| 5930-00-625-7666 | 2015-10-302 | 102 | DIBBS |
| 5930-00-625-7666 | 2015-09-267 | 41 | DIBBS |
| 5930-00-625-7666 | 2014-08-217 | 43 | DIBBS |
| 5930-00-625-7666 | 2013-12-356 | 22 | DIBBS |
| 5930-00-625-7666 | 2013-10-275 | 26 | DIBBS |
| 5930-00-625-7666 | 2013-08-232 | 16 | DIBBS |
| 5930-00-625-7666 | 2012-10-278 | 24 | DIBBS |
| 5930-00-625-7666 | 2012-05-152 | 15 | DIBBS |
| 5930-00-625-7666 | 2011-08-213 | 28 | DIBBS |
| 5930-00-625-7666 | 2011-06-180 | 17 | DIBBS |
| 5930-00-625-7666 | 2011-05-138 | 10 | DIBBS |
| 5930-00-625-7666 | 2010-09-251 | 17 | DIBBS |
| 5930-00-625-7666 | 2010-04-92 | 25 | DIBBS |
Cross Reference | NSN 5930-00-625-7666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17554-2 | 55097 | SHILOH INDUSTRIES, INC. |
| 613624-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 9809F01004 | 6Z339 | LOCKHEED MARTIN AIRCRAFT CENTER |
| 9809F01004-107 | 6Z339 | LOCKHEED MARTIN AIRCRAFT CENTER |
| AE147-006-99 | 55901 | DARE ELECTRONICS, INC. |
| BP17937 | 27361 | BURKE PRODUCTS, INC. |
| BS105 | 02767 | BARWOOD ELECTRONICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-625-7666
Related Products | NSN 5930-00-625-7666
Technical Data | NSN 5930-00-625-7666
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.000 AMPERES INDUCTIVE DC |

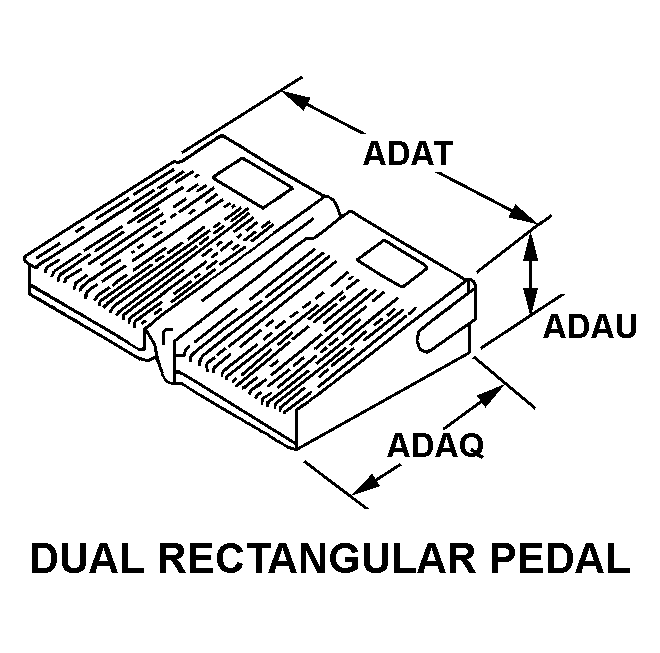

| BODY STYLE | 6C DUAL RECTANGULAR PEDAL |

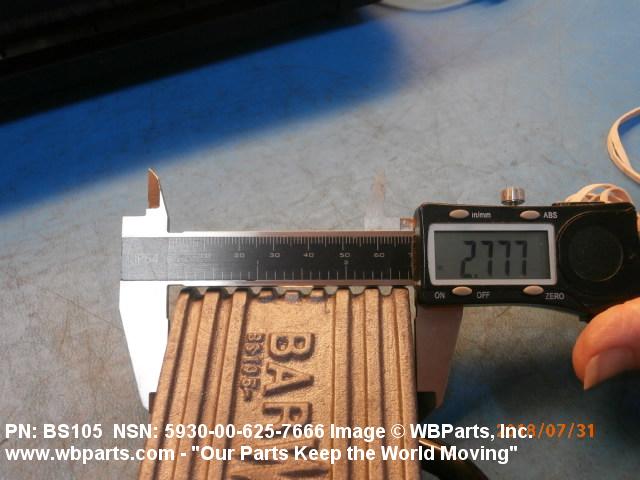

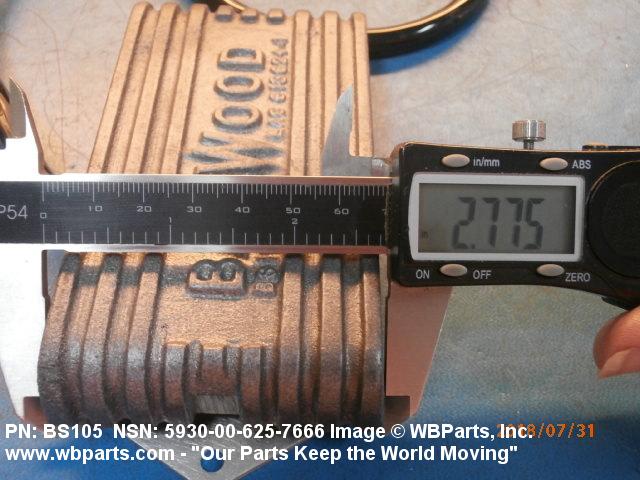

| BODY LENGTH | 2.820 INCHES NOMINAL |

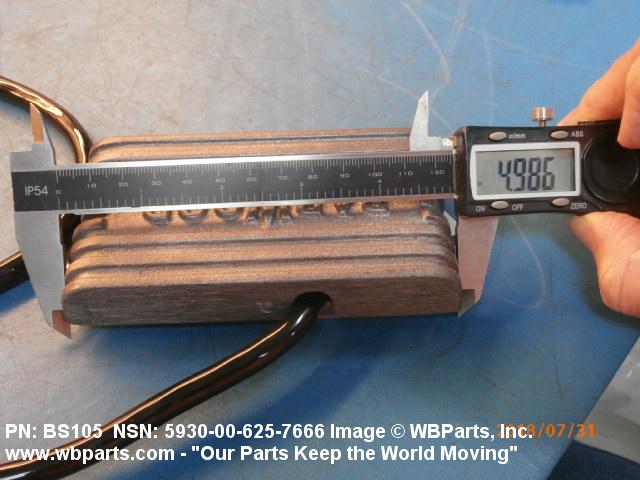

| BODY WIDTH | 4.890 INCHES MINIMUM AND 4.950 INCHES MAXIMUM |
| BODY HEIGHT | 0.876 INCHES NOMINAL |
| OVERALL LENGTH | 2.820 INCHES NOMINAL |

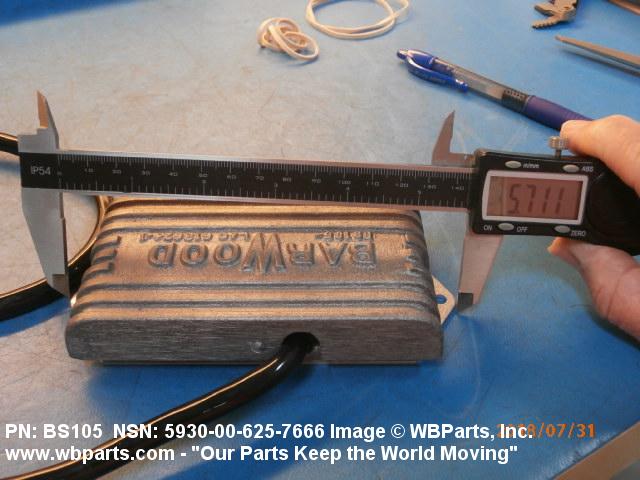

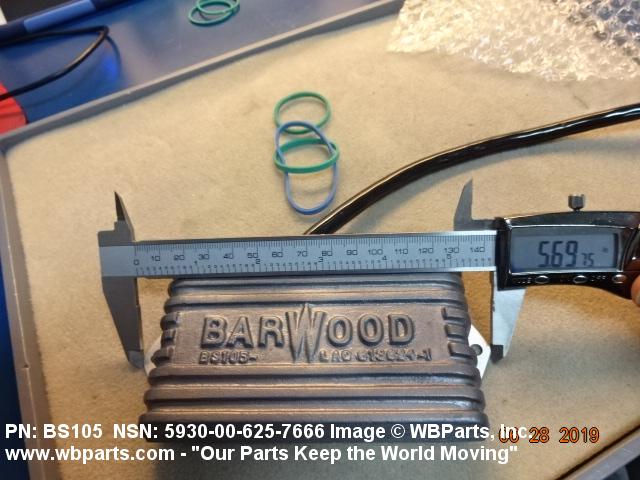

| OVERALL WIDTH | 5.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.940 INCHES NOMINAL |

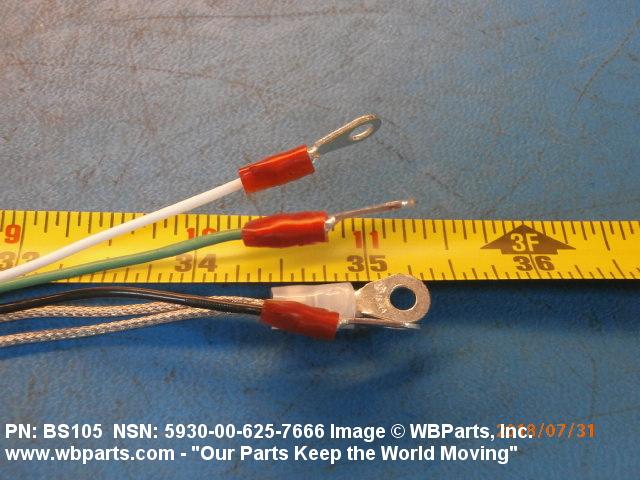

| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| SPECIAL FEATURES | 36.000 IN. LG CONDUCTOR SHIELDED CORD; TWO 0.193 IN. MIN TO 0.194 IN. MAX DIA MTG HOLES SPACTED 5.250 IN. CTR TO CTR |
Restrictions/Controls & Freight Information | NSN 5930-00-625-7666
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-625-7666
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
