NSN 5930-00-603-8911 C20945501, C20945-501, 0020945501
Product Details | PRESSURE SWITCH
5930-00-603-8911 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: C20945501, C20945-501, 0020945501 , 20945501, 20945-501, 5930-00-603-8911, 00-603-8911, 5930006038911, 006038911
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 JAN 1975 | 00-603-8911 | 00206 ( SWITCH, PRESSURE ) |

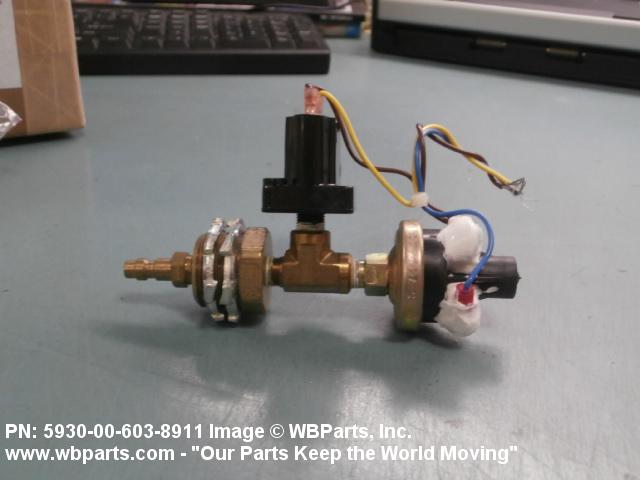

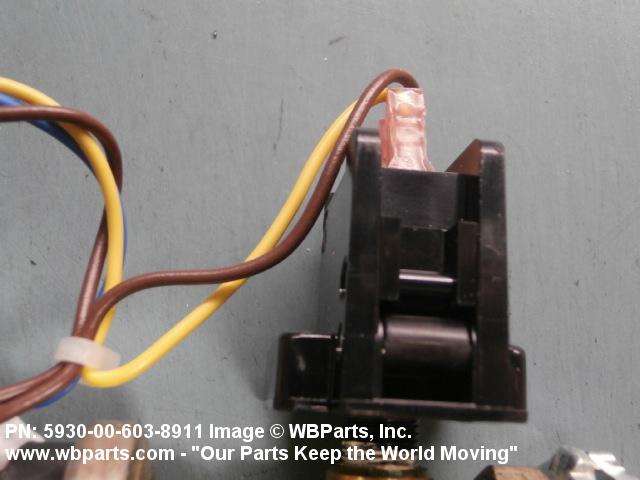

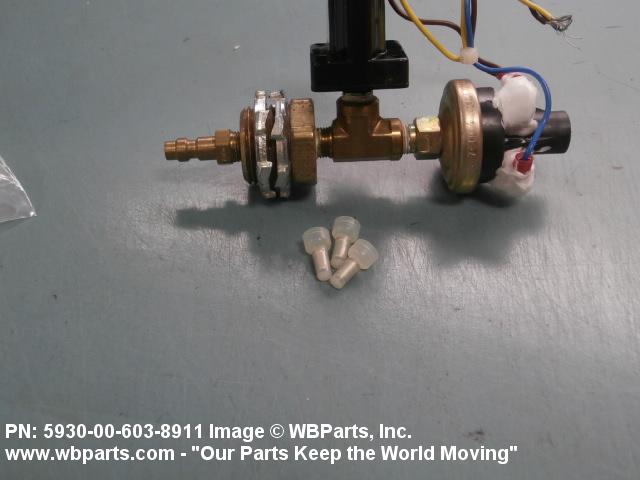

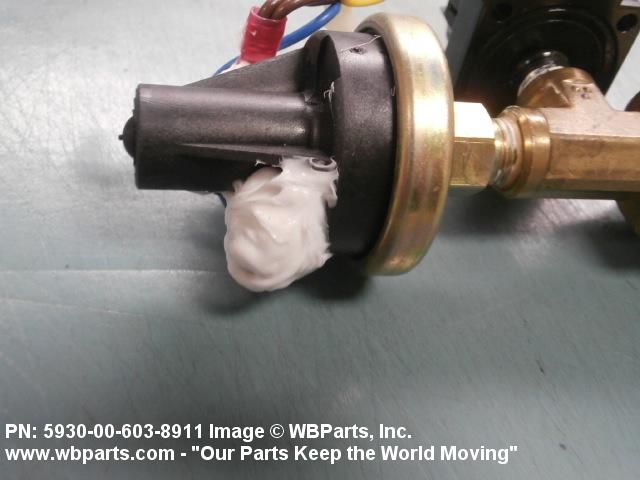

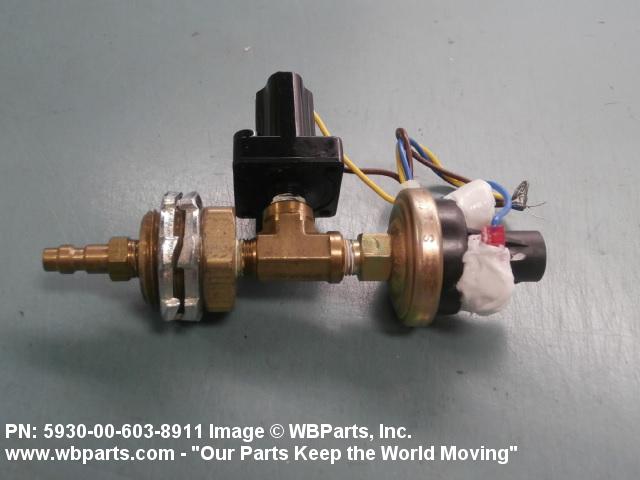

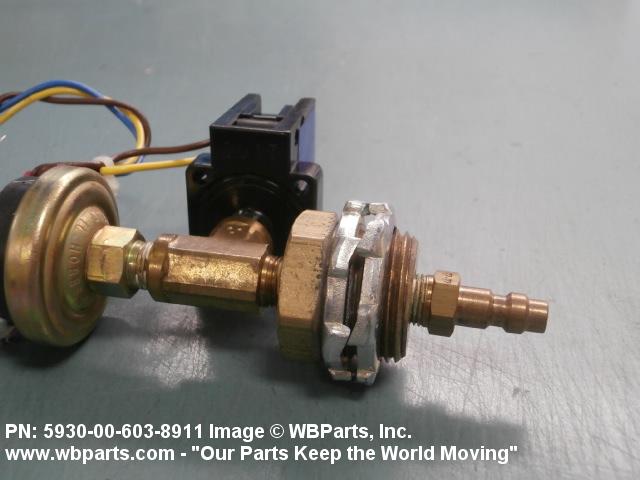

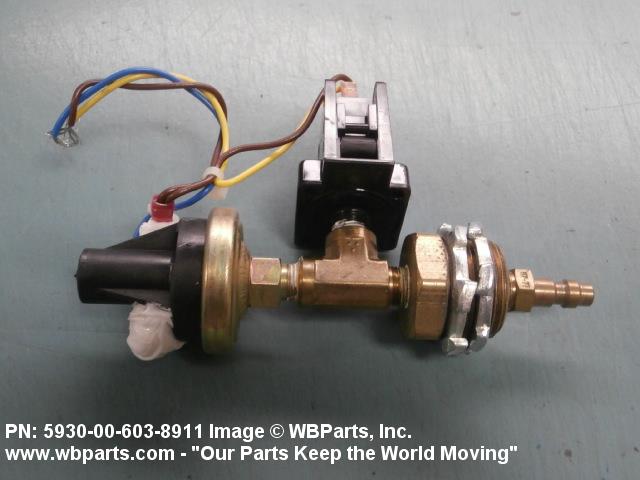

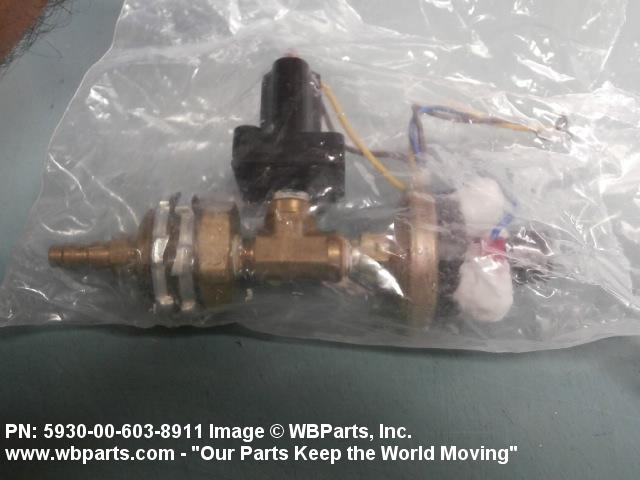

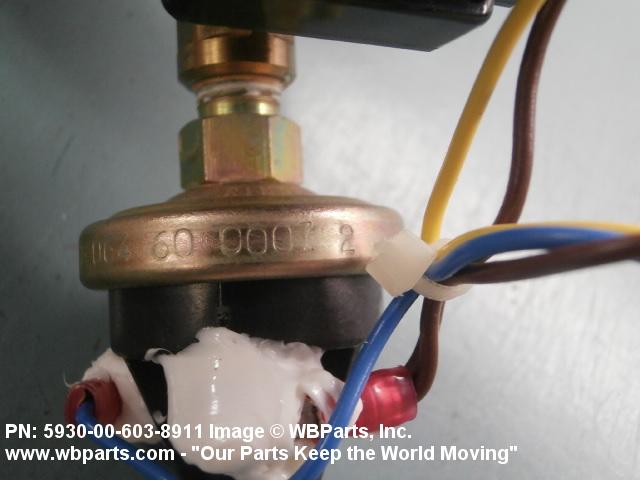

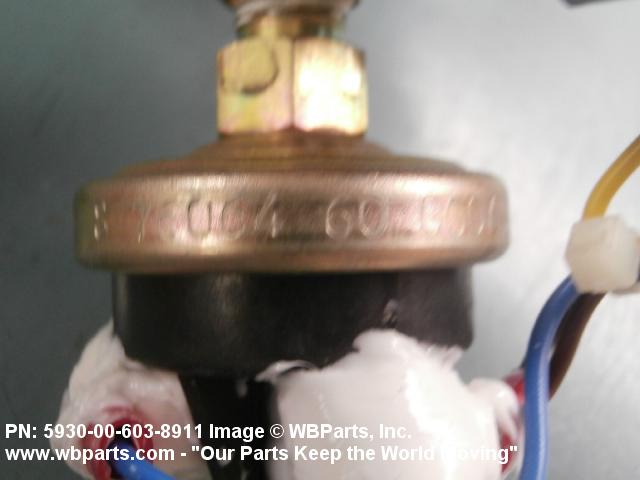

Drawings & Photos | NSN 5930-00-603-8911
Demand History | NSN 5930-00-603-8911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-603-8911 | 2017-01-18 | 1 | United Kingdom |
| 5930-00-603-8911 | 2016-12-353 | 2 | DIBBS |
| 5930-00-603-8911 | 2015-12-344 | 1 | DIBBS |
| 5930-00-603-8911 | 2015-08-236 | 2 | DIBBS |
| 5930-00-603-8911 | 2015-07-194 | 2 | United Kingdom |
| 5930-00-603-8911 | 2014-04-119 | 1 | DIBBS |
| 5930-00-603-8911 | 2014-04-97 | 1 | United Kingdom |
| 5930-00-603-8911 | 2014-04-94 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-603-8911
Related Products | NSN 5930-00-603-8911
Technical Data | NSN 5930-00-603-8911
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 33 RECTANGULAR |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| BODY HEIGHT | 2.620 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| MANUFACTURERS CODE | 08441 |
| DESIGN CONTROL REFERENCE | 20945-501 |
Restrictions/Controls & Freight Information | NSN 5930-00-603-8911
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-603-8911
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
