NSN 5930-00-578-9239 SA5789239, SA5789-239, PA2023
Product Details | ROTARY SWITCH
5930-00-578-9239 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: SA5789239, SA5789-239, PA2023, PA-2023, 8524195, 5930-00-578-9239, 00-578-9239, 5930005789239, 005789239
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-578-9239 | 02134 ( SWITCH, ROTARY ) |

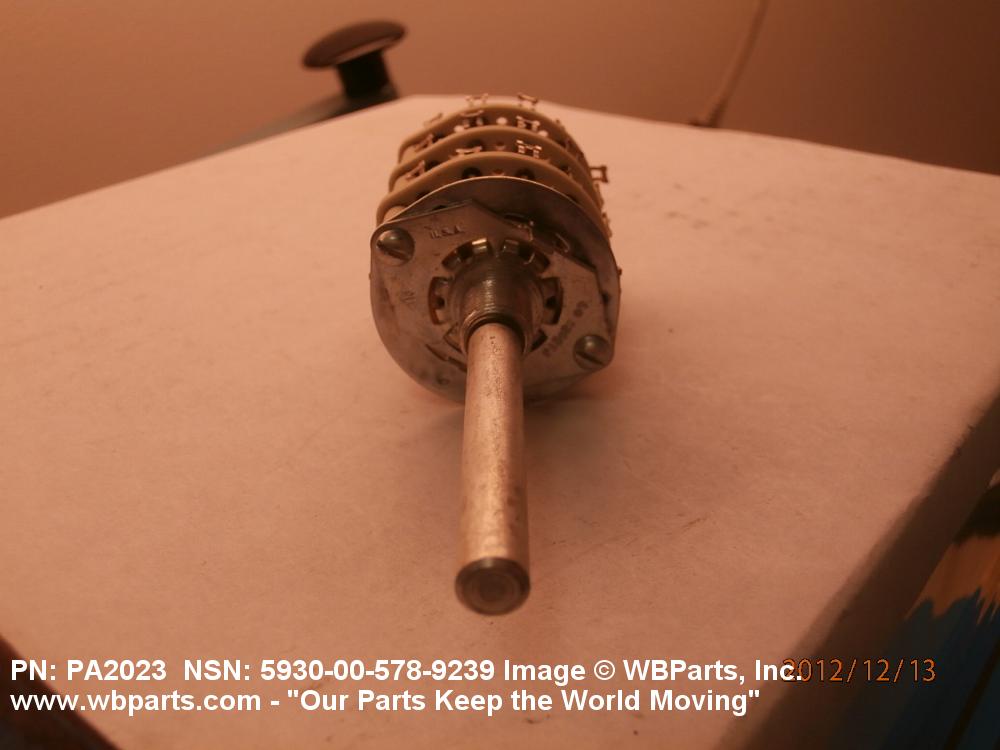

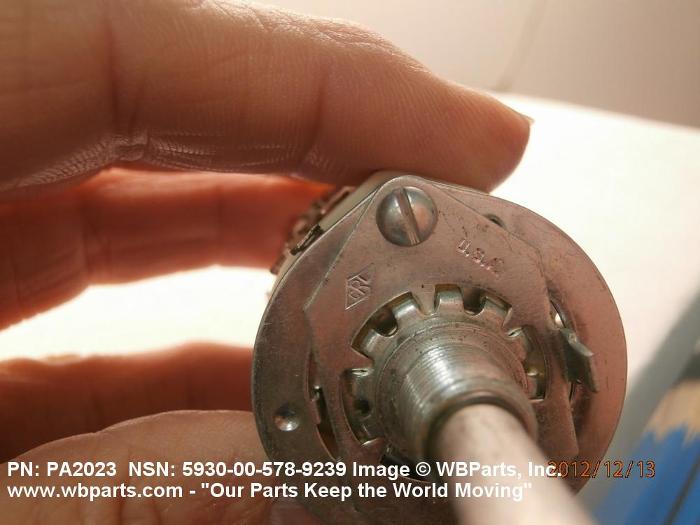

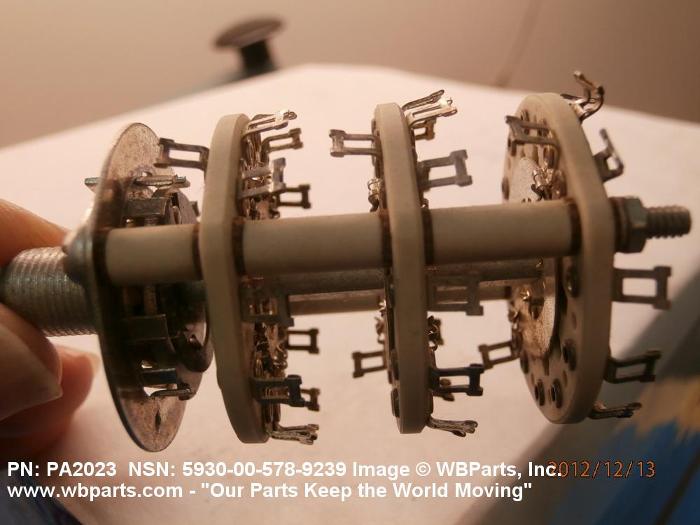

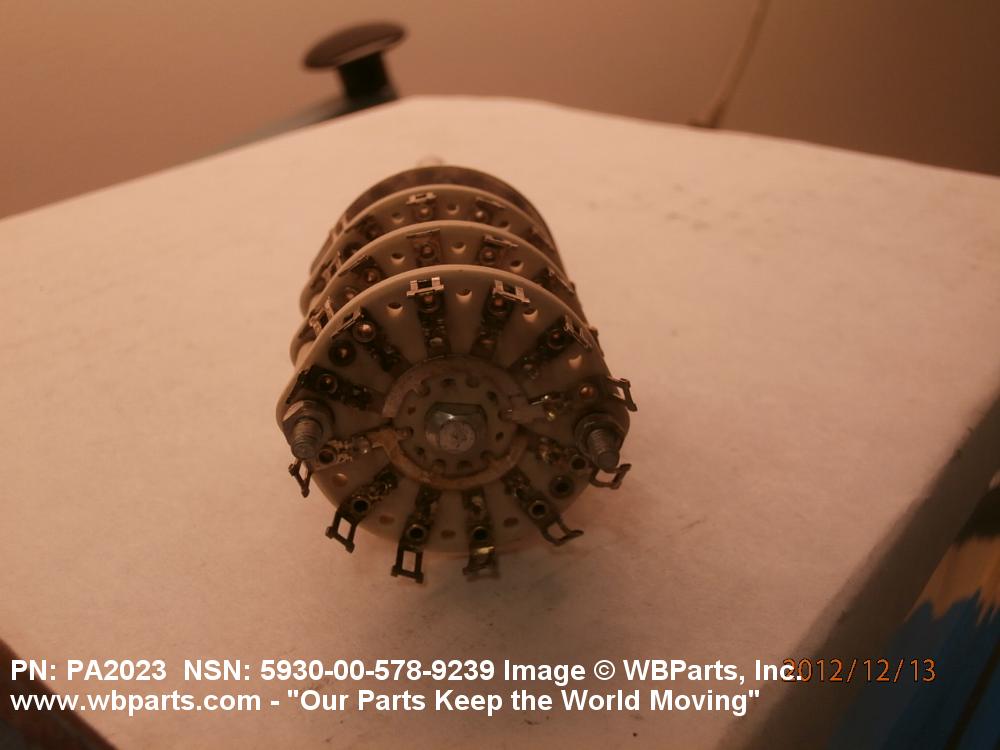

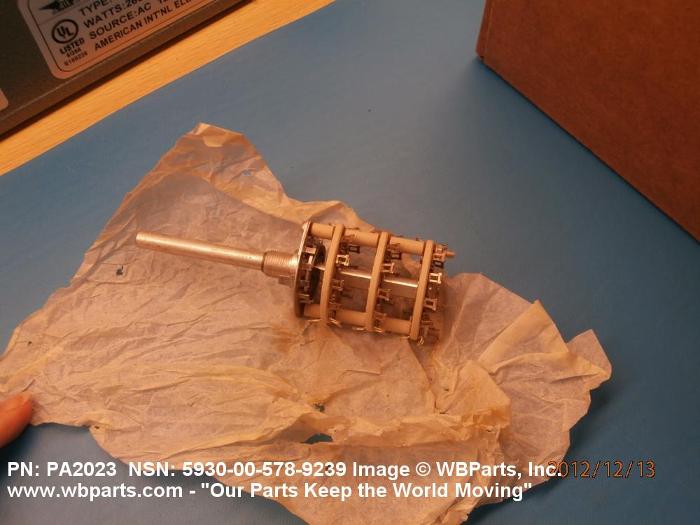

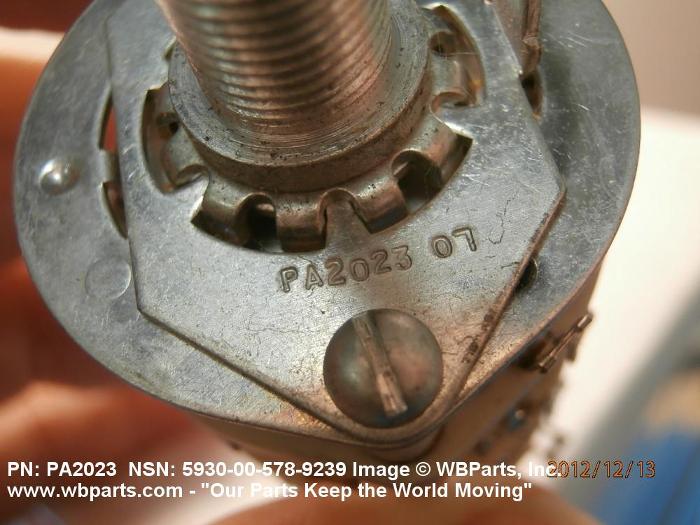

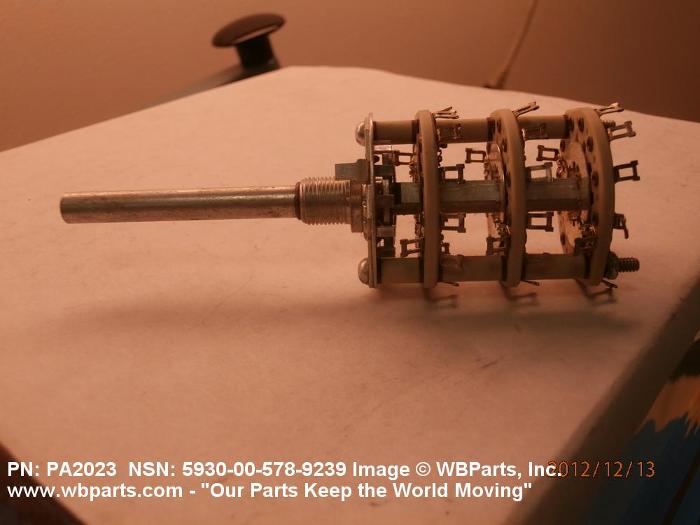

Drawings & Photos | NSN 5930-00-578-9239
Demand History | NSN 5930-00-578-9239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-578-9239 | 2018-08-224 | 1 | DIBBS |
| 5930-00-578-9239 | 2016-08-244 | 3 | DIBBS |
| 5930-00-578-9239 | 2013-07-210 | 2 | DIBBS |
| 5930-00-578-9239 | 2013-07-191 | 5 | United States |
| 5930-00-578-9239 | 2013-02-36 | 4 | DIBBS |
| 5930-00-578-9239 | 2012-11-326 | 2 | United States |
| 5930-00-578-9239 | 2012-11-307 | 2 | DIBBS |
| 5930-00-578-9239 | 2011-11-329 | 1 | DIBBS |
| 5930-00-578-9239 | 2009-05-146 | 1 | DIBBS |
| 5930-00-578-9239 | 2008-08-242 | 6 | DIBBS |
| 5930-00-578-9239 | 2008-05-126 | 7 | DIBBS |
| 5930-00-578-9239 | 2007-01-26 | 2 | DIBBS |
| 5930-00-578-9239 | 2006-06-180 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-578-9239
Related Products | NSN 5930-00-578-9239
Technical Data | NSN 5930-00-578-9239
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 CIRCULAR WAFER, BUSHING MOUNT |
| OVERALL LENGTH | 2.562 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.188 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 3 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| ROTOR THROUGH CONNECTION QUANTITY | 2 EACH SECTION |
| POLE QUANTITY | 2 EACH SECTION FRONT |
| THROW QUANTITY | 6 EACH SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT BREAKS BEFORE MAKES EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 110.0 AC AT SEA LEVEL 6.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 150.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 6 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 30.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.375 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | TAB AT 9:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.438 INCHES NOMINAL AT 9:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | INSULATED STATIONARY CONTACT QUANTITY-2 CONTACTS EACH SECTION |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS AND ROTOR BLADE SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-578-9239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-578-9239
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
