Product Details | THERMOSTATIC SWITCH

5930-00-519-4427 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).

Part Alternates: PDSSS0RP25C, 5930-00-519-4427, 00-519-4427, 5930005194427, 005194427

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 13 AUG 1974 00-519-4427

Drawings & Photos | NSN 5930-00-519-4427


Cross Reference | NSN 5930-00-519-4427

Part Number Cage Code Manufacturer
PDSSS0RP25C 04814 CHATHAM CONTROLS CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-519-4427

Technical Data | NSN 5930-00-519-4427

Characteristic Specifications

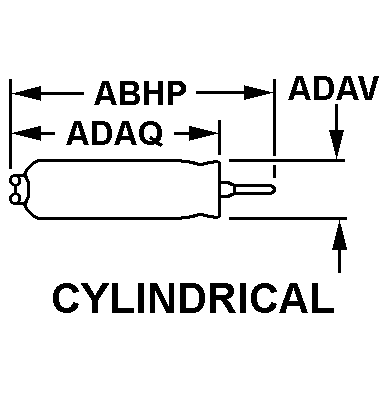

STYLE DESIGNATOR 76 CYLINDRICAL
OVERALL LENGTH 0.970 INCHES NOMINAL
BODY DIAMETER 0.250 INCHES NOMINAL
BODY LENGTH 0.750 INCHES NOMINAL
OVERALL DIAMETER 0.250 INCHES NOMINAL
CONTACT ACTION STIMULUS INCREASE
CONTACT ADJUSTABILITY DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE
CONTACT STIMULUS RATING 25.00 ACTUATION POINT NOMINAL DEGREES CELSIUS AND 0.50 DIFFERENTIAL POINT NOMINAL DEGREES CELSIUS
CONTACT VOLTAGE RATING IN VOLTS 115.0 AC AT SEA LEVEL SINGLE VOLTAGE
FREQUENCY IN HERTZ 60.0 SINGLE VOLTAGE
CONTACT LOAD CURRENT RATING 500.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE
MEDIA FOR WHICH DESIGNED GAS
TEMP SENSING ELEMENT TYPE INTERNAL SENSOR
TERMINAL TYPE TAB, SOLDER LUG
MOUNTING METHOD TERMINAL
