5930-00-489-5048 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.

Part Alternates: J4014820, J40-14820, 61834, 6183-4, 5930-00-489-5048, 00-489-5048, 5930004895048, 004895048

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 22 MAY 1970 00-489-5048

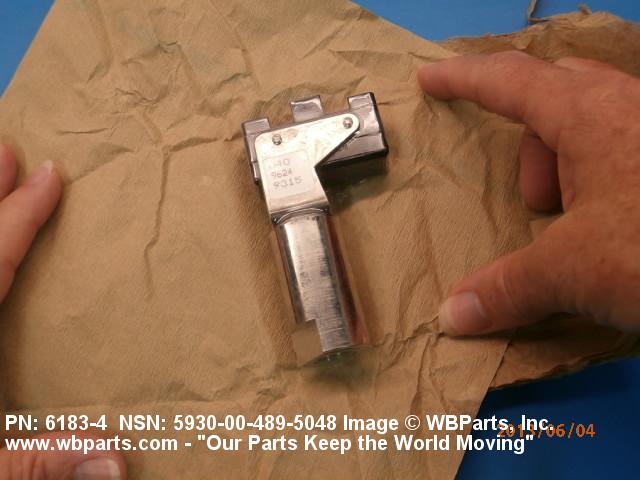

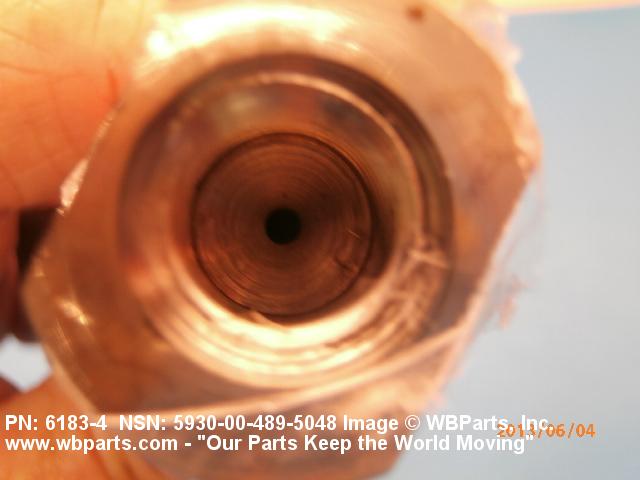

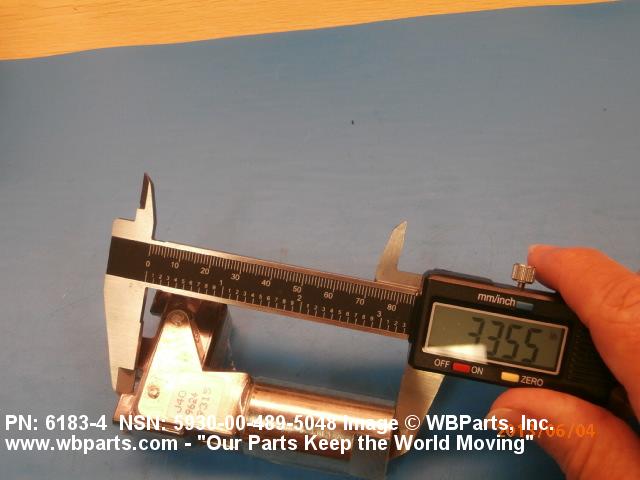

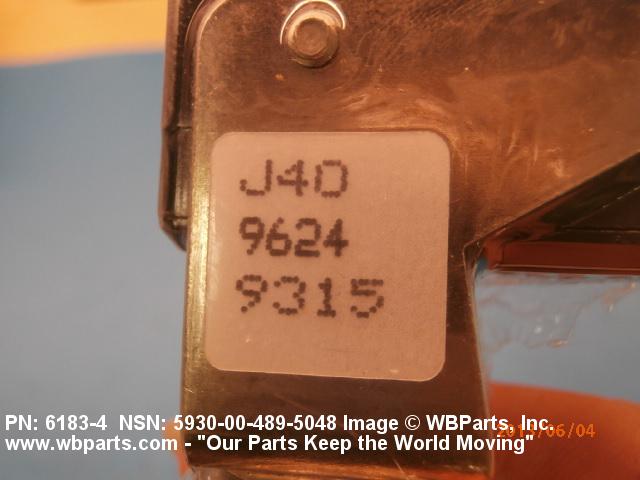

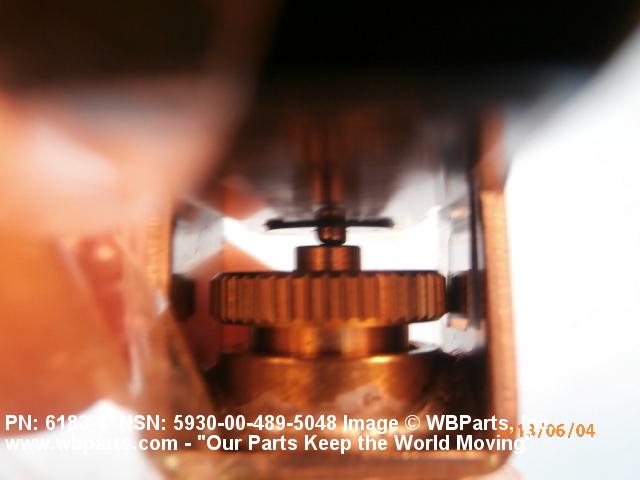

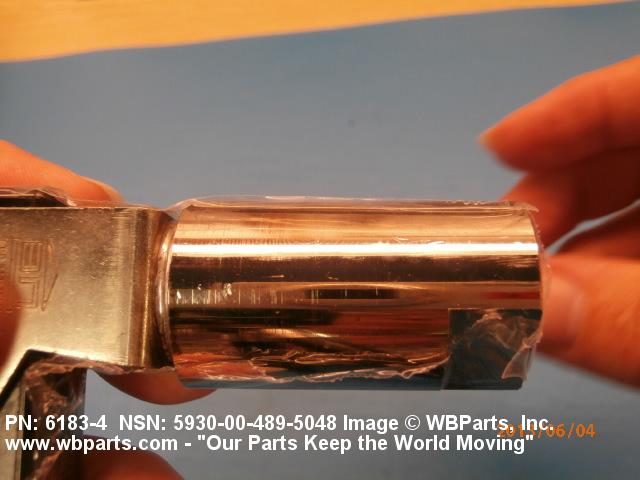

Drawings & Photos | NSN 5930-00-489-5048


Demand History | NSN 5930-00-489-5048

Part Number Request Date QTY Origin
6183-4 2021-09-271 6 DIBBS
J40-14820 2021-09-271 6 DIBBS
6183-4 2020-10-294 14 DIBBS
J40-14820 2020-10-294 14 DIBBS
6183-4 2020-09-254 1 DIBBS
J40-14820 2020-09-254 1 DIBBS
6183-4 2020-02-58 14 DIBBS
J40-14820 2020-02-58 14 DIBBS
5930-00-489-5048 2015-04-119 39 DIBBS
5930-00-489-5048 2013-08-227 20 DIBBS
61834 2013-05-144 1 United States

Cross Reference | NSN 5930-00-489-5048

Part Number Cage Code Manufacturer
6183-4 01496 AIR DRY CO OF AMERICA, LLC DIV ESTERLINE

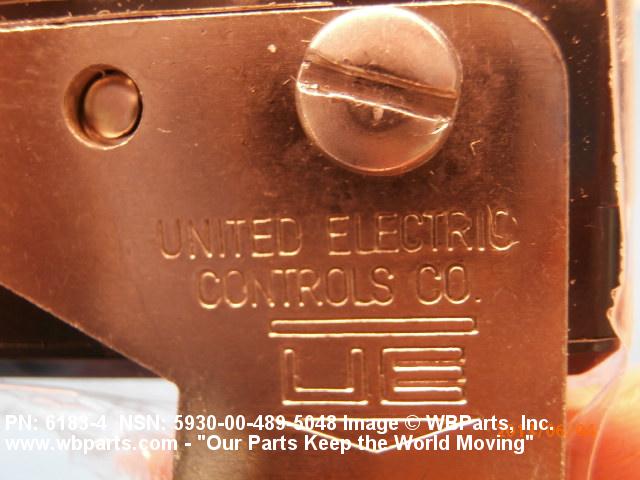

J40-14820 88234 UNITED ELECTRIC CONTROLS COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-489-5048

Technical Data | NSN 5930-00-489-5048

Characteristic Specifications
STYLE DESIGNATOR 35 RECTANGULAR
OVERALL LENGTH 1.938 INCHES NOMINAL
OVERALL HEIGHT 3.375 INCHES NOMINAL
OVERALL WIDTH 1.000 INCHES NOMINAL
BODY HEIGHT 1.375 INCHES NOMINAL
PRESSURE SWITCH TYPE GAGE
NONPILE-UP CONTACT ARRANGEMENT 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
CONTACT ACTION STIMULUS INCREASE
CONTACT ADJUSTABILITY ACTUATION POINT ADJUSTABLE
CONTACT ADJUSTMENT RANGE 0.00 TO 100.00 ACTUATION POINT POUNDS PER SQUARE INCH
CONTACT ADJUSTMENT TYPE EXTERNAL ACTUATION POINT DIAL
CONTACT VOLTAGE RATING IN VOLTS 250.0 AC AT SEA LEVEL SINGLE VOLTAGE
CONTACT LOAD CURRENT RATING 15.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE
MEDIA FOR WHICH DESIGNED GAS OR LIQUID
PROOF PRESSURE 110.00 POUNDS PER SQUARE INCH
PRESSURE CONNECTOR TYPE INVERTED FLARE, THREADED INTERNAL SINGLE CONNECTION
INSIDE DIAMETER 0.250 INCHES NOMINAL SINGLE CONNECTION

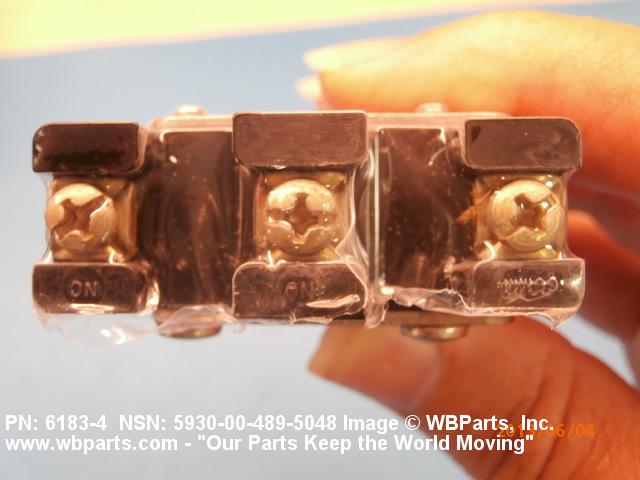

TERMINAL TYPE SCREW
MOUNTING METHOD INLET CONNECTION
THREAD SERIES DESIGNATOR NPT SINGLE PRESSURE CONNECTION
NOMINAL THREAD SIZE 0.250 INCHES SINGLE PRESSURE CONNECTION
III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION DUSTPROOF
